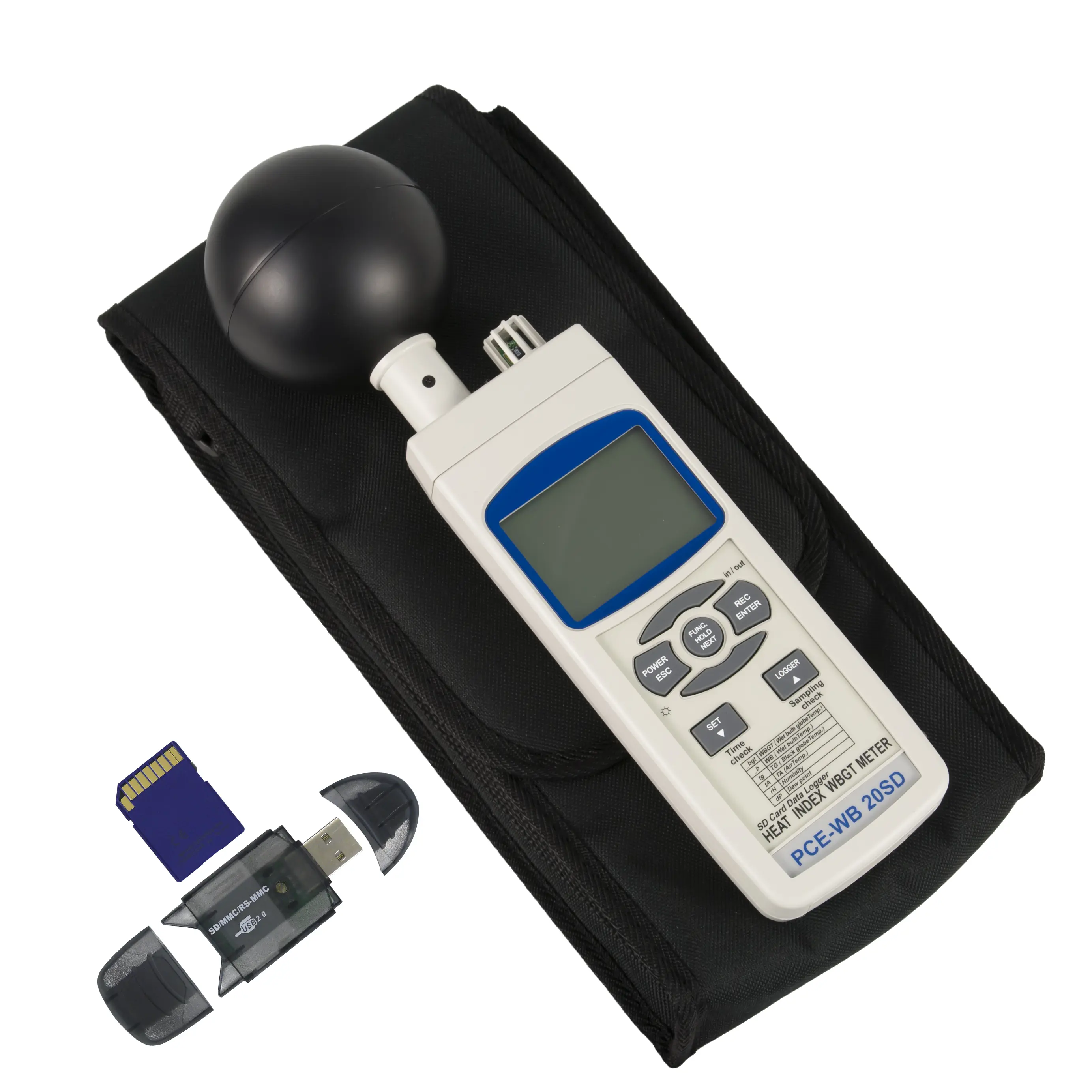

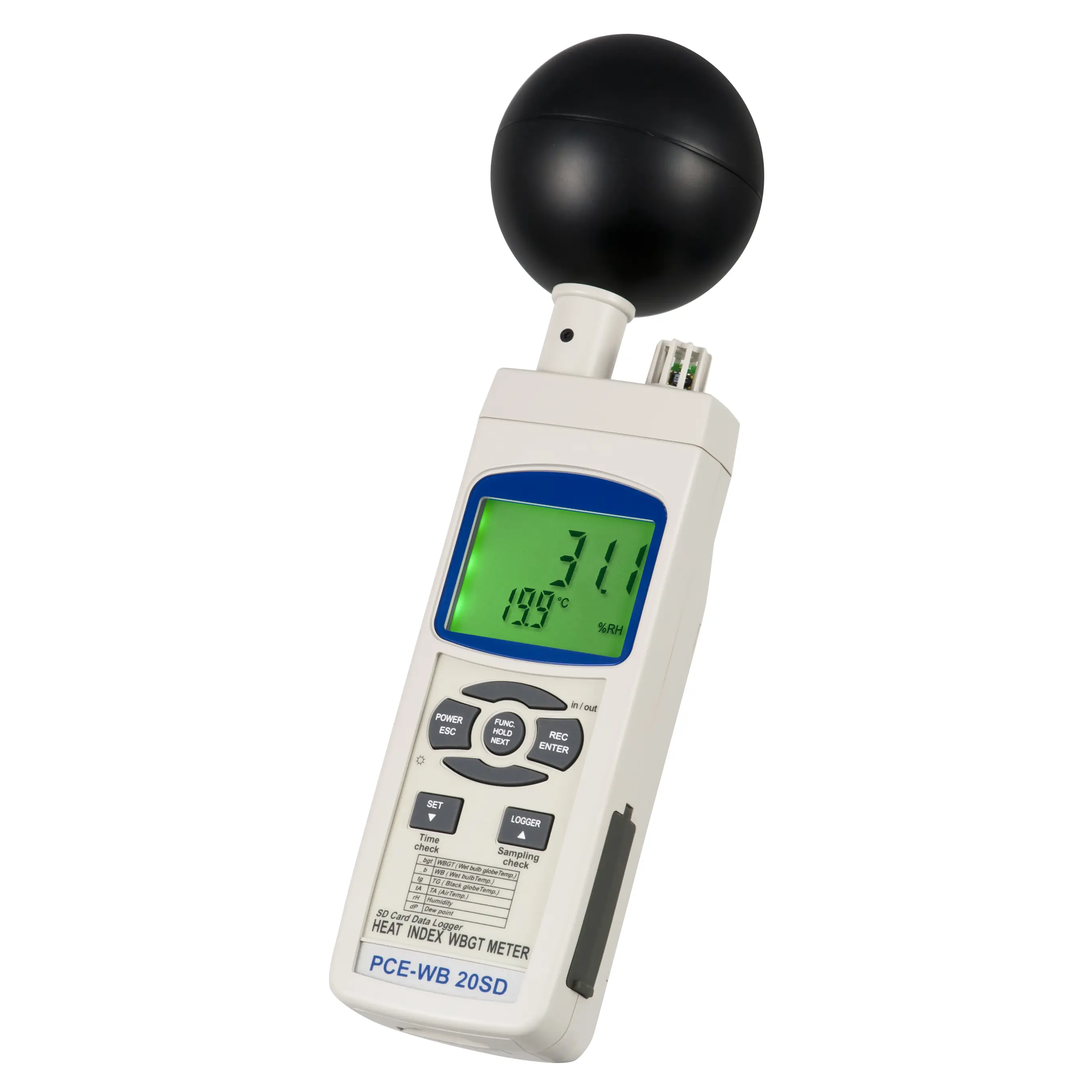

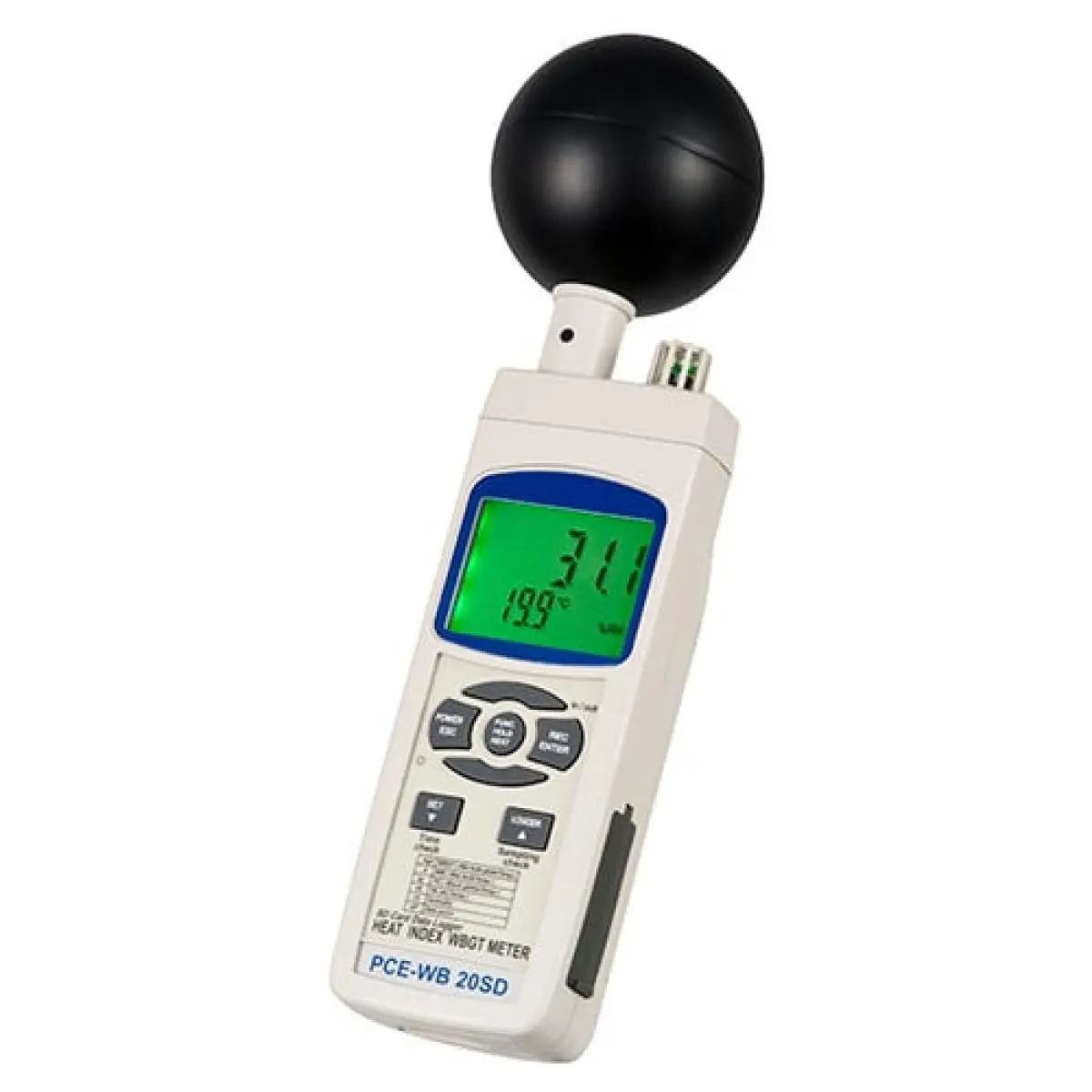

Humidity Detector PCE-WB 20SD
Multipurpose real-time or data-recording temperature and humidity measuring device
The humidity detector is a data-logging thermo-hygrometer used to measure indoor / outdoor wet bulb globe temperature (WBGT), black globe temperature (TG), wet bulb temperature (WB), dew point temperature, air temperature (TA) and relative humidity. Thus, this multipurpose data-recording device is an ideal tool for evaluating heat stress risks in different work environments. The device is also used by indoor air quality (IAQ) inspection professionals to assess the performance of heating, ventilation and air conditioning (HVAC) systems.

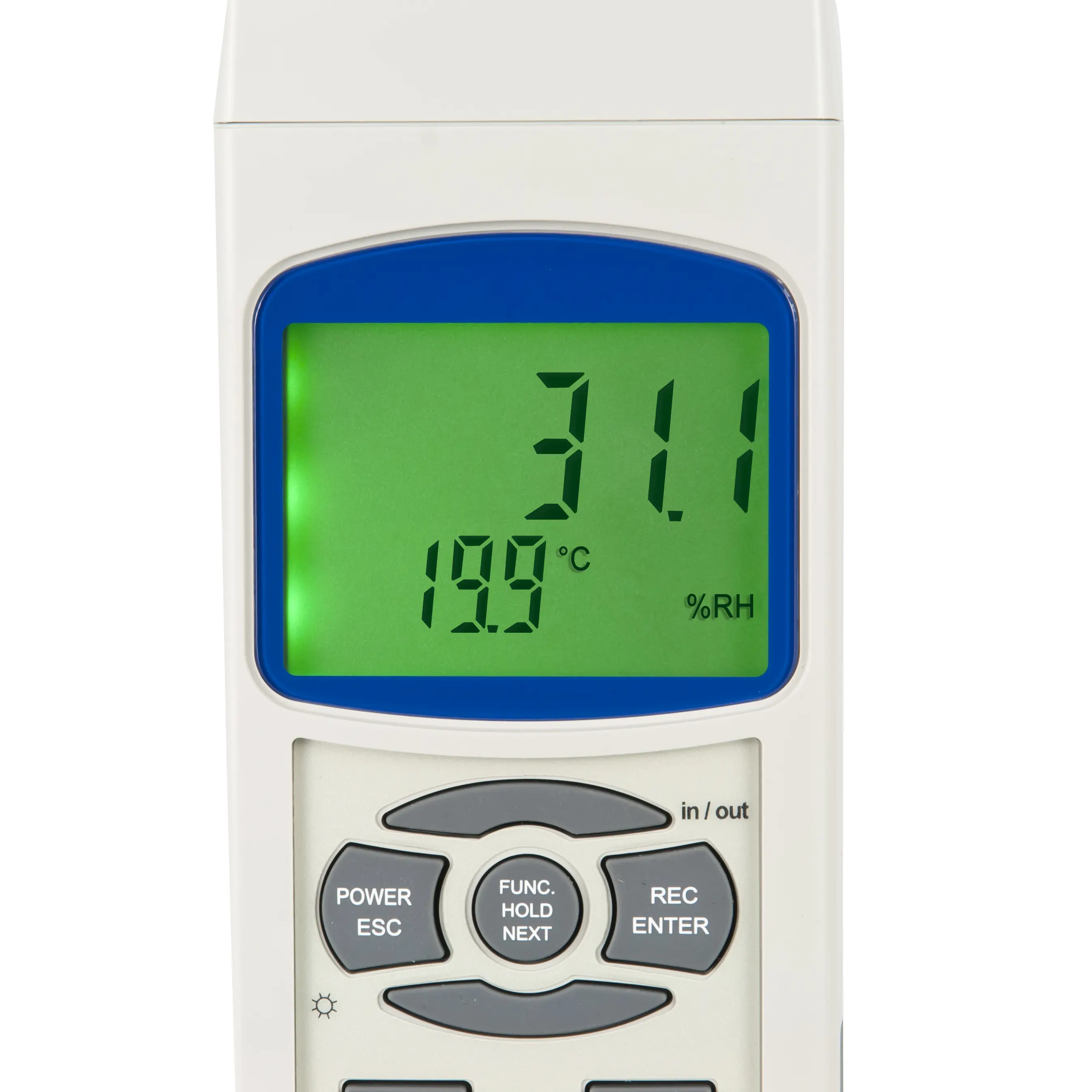

Featuring a large and easy-to-read LCD screen with green backlight, this data-recording heat index meter has a programmable WBGT alarm setting with audible and visual alerts to notify workers of unsafe conditions in the workplace or at the job site in real time. The humidity detector offers manual (push-button) or automatic (adjustable 1 ... 3600 sec) sampling and accommodates SD memory cards from 1 ... 16 GB.
Wet Bulb Globe Temperature (WBGT) | |
Measurement range | Indoors:
0 ... 59°C / 32 ... 138°F Outdoors: 0 ... 56°C / 32 ... 132°F |
Accuracy indoors | ±
1°C / ± 1.8°F from 15 ... 59°C / 59 ... 138°F ± 1.5°C / ± 2.7°F other temperature ranges |
Accuracy outdoors | ±
1.5°C / ± 2.7 °F from 15 ... 56°C / 59 ... 132°F ± 2°C / ± 3.6°F other temperature ranges |
Air Temperature (TA) | |
Measurement range | 0 ... 50°C / 32 ... 122°F |
Resolution | 0.1°C / 0.18°F |
Accuracy | ± 0.6°C / 1.08°F |
Black-Globe Temperature | |
Measuring range | 0 ... 80°C / 32 ... 176°F |
Resolution | 0.1°C / 0.18°F |
Accuracy | ± 0.6°C / 1.08°F |
Humidity | |
Measurement range | 5 ... 95% R.H. |
Resolution | 0.1% R.H. |
Accuracy | >
70% RH: ± (3% read value + 1% RH) < 70% RH: ± 3% RH |
Dew Point Temperature | |
Measuring range | -25.3 ... 48.9°C / -13.5 ... 120°F |
Resolution | 0.1°C / 0.18°F |
Wet Bulb Temperature | |
Measuring range | -21.6 ... 50°C / -6.9 ... 122°F |
Resolution | 0.1°C / 0.18°F |
General Technical Specifications | |
WBGT formula | Inside
/outdoors and no sun: WBGT= (0.7 x WB) + (0.3 x TG) Outdoors and sun: WBGT=(0.7 x WB) + (0.2 x TG) + (0.1 x TA) |
Data storage intervals | Automatically:
every 1 ... 3600 seconds Manually: with every key press |
Memory Card | SD memory card 1 ... 16 GB |
Interface | RS232 / USB |
Display | LCD with background lights, 52 x 38 mm / 2 x 1.5 in |
Operation Temperature | 0 ... 50 °C / 32 ... 122°F |
Environmental Humidity | < 85% R.H. |
Voltage Supply | 6 x 1.5V AA batteries or 9V Adapter |
Power Consumption | DC
14-mA at standard operation DC 37-mA with data storage and without Display lights on |
Weight | 489 g / 1.1 lbs |
Dimensions | Device:
177 x 68 x 445 mm / 7 x 2.7 x 17.5 in Bulb: Ø 75 mm / 3 in |
