Outdoor SPL Meter Kit PCE-430-EKIT-ICA incl. ISO Calibration Certificate

Order no.: PCE-430-EKIT-ICA
GTIN (EAN): 4250348724915
£ 4,508.00
£ 5,409.60
ISO Calibration
price ex. (VAT / delivery)
:
4250348724915
PCE-430-EKIT-ICA
Delivery time: 10 - 14 days
A / B / C / Z
Fast / Slow / Impulse / Peak Timing
Yes

Description

Professional outdoor SPL meter PCE-430-ICA (class 1) incl. outdoor noise level meter kit
Handheld noise meter and real-time frequency analyzer / Octave band filter / Filter upgradeable / Fast, Slow and Pulse Evaluation / Data logger / USB / incl. ISO Calibration Certificate

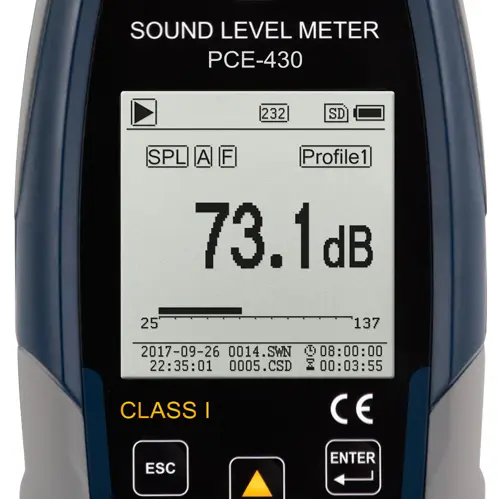

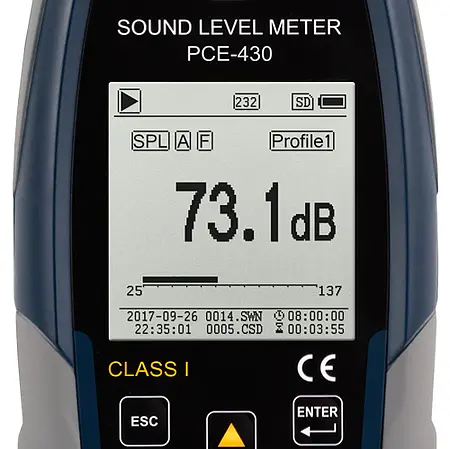

The Class 1 outdoor sound level meter PCE-430-EKIT meets all requirements for noise measurement and frequency analysis. This integrated precision pulse noise meter follows all valid standards and guidelines (Klasse 1 EN/IEC 61672, ANSI S1.4-1983, ANSI S1.43-1997 EN/IEC61260, etc.) The outdoor sound level meter PCE-430 has a very large illuminated display. The noise meter display adjusts the sound pressure level numerically and graphically in real time. The professional noise meter has an integrated data logger. The measurement data is stored on a micro SD card.

This card can be read directly in the PC. Likewise, the outdoor sound level meter can be connected to the PC via USB and the memory can be read out. The post-processing software from the noise meter allows convenient measurement data analysis. The typical applications for this instrument are the measurement of workplace noise, compliance, environmental noise detection, selection of hearing protector selection, selection of appropriate noise abatement measures and noise exposure estimation.

PCE-4xx-EKIT

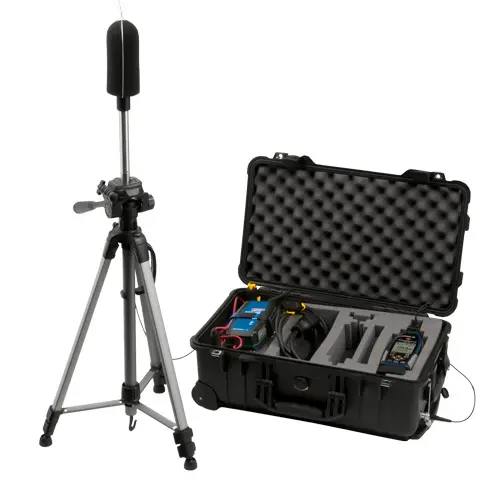

An additional kit for outdoor sound measurement PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430 or PCE-432. This kit makes it possible to measure the outdoor noise with a noise meter over a long period of time. The environmental noise monitoring system consists of a waterproof Peli carrying case with rollers. A charger and two additional lead gel batteries are installed in this case, which allows an operation of the sound monitor for up to 10 days. During the outdoor sound measurement, the case may remain closed. Due to the external connections for the microphone and the power supply all electronic components are protected from water.

The delivery scope of the outdoor sound monitor includes rain and wind protection as well as a wire mesh for the microphone. Also, a tripod is available with which the microphone can be placed outdoors. Also, the charger in the measuring kit PCE-4xx-EKIT is waterproof. So, the charger may also remain outdoors. The outdoor noise meter can be used, for example, for the sound measurement of road noise, aircraft and train noise, event noise, etc. The weather does not matter, hail, snow and rain are no problem for the kit for outdoor noise. If the PCE-432 noise meter is combined with this measuring kit, it is even possible that the exact location of the sound level metering around the outside area is assigned via the GPS receiver.

The pulse function of the PCE-430 allows you to record short-term sound events. Thanks to the integrated octave band function even the smallest differences in the frequency band can be detected. The frequency filter can be optionally upgraded. The measuring range of this professional sound level meter ranges from 22 ... 136 db (A) at a frequency of 3 Hz ... 20 kHz.


Highlights

- 1/1 octave band included
- 1/3 octave band optional
- Accuracy class 1
- A, B, C & Z frequency rating
- Fast, Slow, Pulse and Peak time weighting

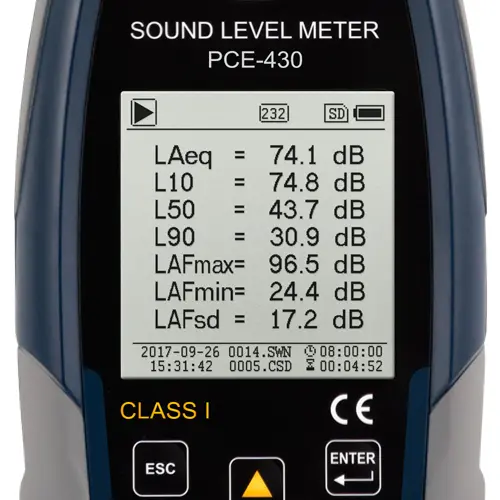

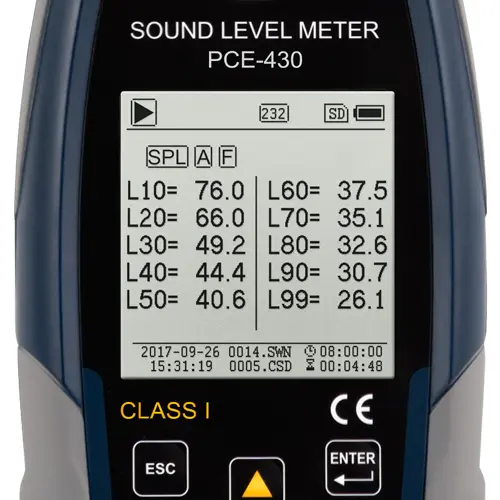

- Statistics function

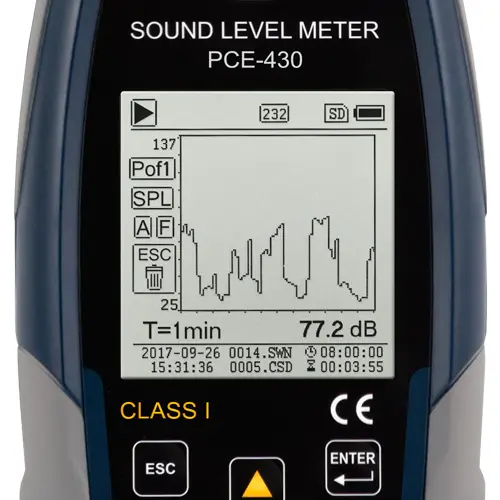

- Display of the sound profile as a graph
- 3 measuring profiles adjustable
- Low inherent noise
- ICCP microphone 40 mV /PA
- Alarm level adjustable

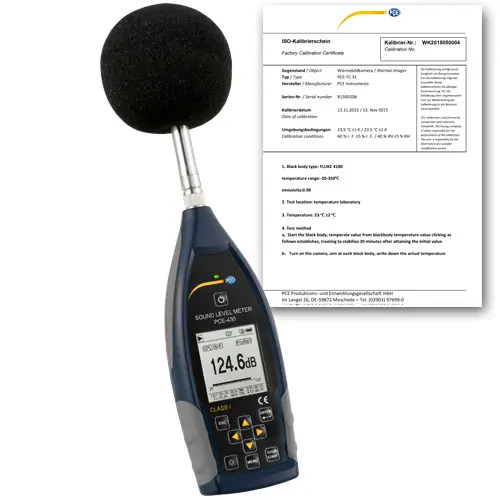

- Incl. ISO calibration certificate

Specification

Measuring range

22 ...  136 dbA

Accuracy

Class 1

Frequency range

3 Hz ... 20 kHz

Standards

GB/T3785.1-2010
GB/T3785.2-2010
IEC60651:1979
IEC60804:2000
IEC61672-1:2013
ANSI S1.4-1983
ANSI S1.43-1997

Frequency analysis

Octave band filter: 8 Hz ... 16 kHz
1/3 Octave band filter: 6.3 Hz ... 20 kHz

Microphone

1/2" measurement microphone class 1
Sensitivity: 40 mV/PA
Frequency range: 3 Hz ... 20 kHz
Connection: TNC
Power supply: ICCP Standard

Data-logging interval

1 s ... 24 h (adjustable)

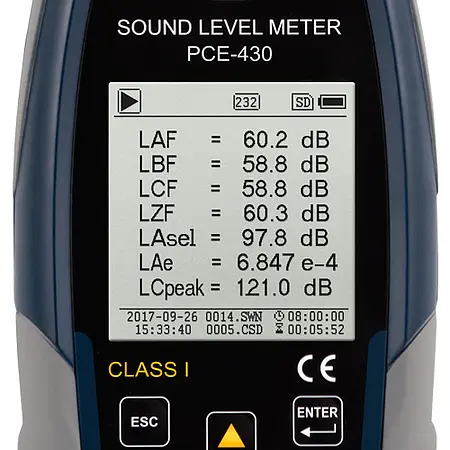

Measuring functions

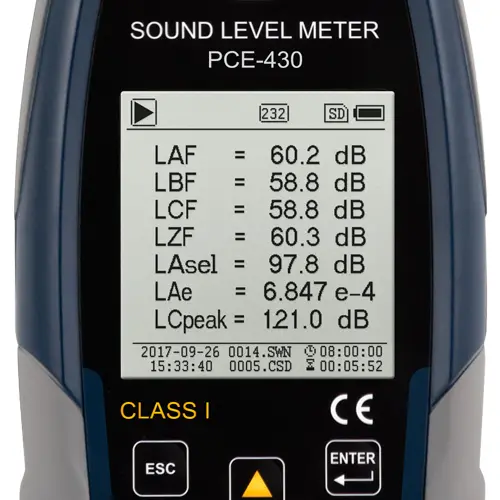

LXY(SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN.

X = Frequency weighting: A, B, C, Z;
Y = Time weighting: F, S, I;
N = Statistics in %: 1 ... 99 %

24 hour measurement

Automatic measurement with data storage

Frequency weightings

A, B, C, Z

Time weightings

Fast (F), Slow (S), Pulse(I), Peak

Inherent noise

Microphone: 19 db(A), 25 db(C), 31 db(Z)
Electronics: 13 db(A), 17 db(C), 24 db(Z)

AD converter

24 bit

Sample rate

Standard: 48 kHz
LN mode: 20 ms

Measuring display

Numerical
Bar graph
Graphical

Display

160 x 160 pixel LCD with backlight

Memory

4 GB Micro SD card

Interface

USB (Memory readable via software or directly as mass storage)
RS232

Voltage output

AC 5V RMS
DC 10 mV/db

Alarm

Adjustable

Power supply

4 x 1.5 V AA batteries
12 V / 1 A power plug
5 V / 1 A USB

Operating time battery mode

min. 10 h

Dimensions

70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)

Weight

approx. 620 g / 1.4 lbs incl. batteries

Transport case PELI 1510 with rollers with grid foam
Protection IP65
Outdoor Noise Level Meter Kit
Connections on the suitcase Microphone: TNC
12 V charging voltage: XLR
110 V / 230 V charging voltage: PowerCon TRU

Charger Victron Blue Smart 12 V / 4 A IP65
Internal batteries 2 x 12 V / 12 Ah lead gel
Battery running time min. 10 days

Power supply with charger EU Version: 180 ... 265 V AC
with charger US Version: 100 ... 130 V AC
battery operation: 2 x 12 V / 12 Ah

Cable length Microphone cable: 2 m / 6 ft 6" with TNC connector
Power supply: 2 m / 6 ft 6" with PowerCon TRU

Dimensions 56 x 35 x 23 cm / 2.2 x 1.3 x 0.9"

Weight ca. 14 kg / 30 lb 13 oz with batteries
ca. 8 kg / 17 lb 10 oz without batteries

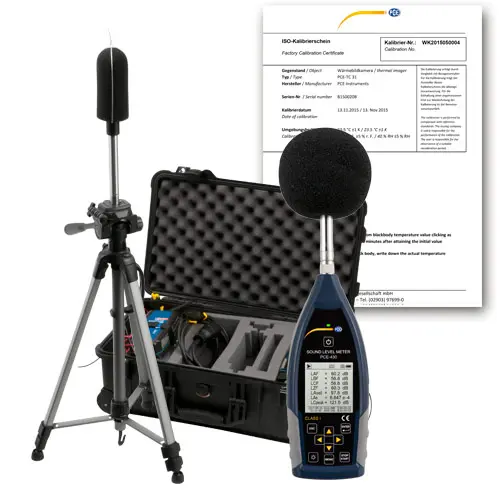

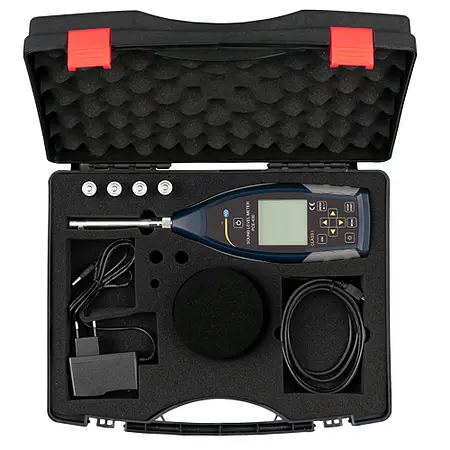

Delivery Scope

1 x Outdoor SPL Meter PCE-430-EKIT incl. Outdoor Noise Level Meter Kit
1 x 1/2" measurement microphone class 1
1 x Wind noise suppression (foam ball)
1 x USB interface cable
1 x Software is a free download
1 x Power adapter
1 x Suitcase
1 x User manual
1 x ISO calibration certificate
1 x Outdoor Noise Level Meter Kit PCE-4xx-EKIT
1 x Waterproof PELI transport case
1 x Wind and rain protection for microphone of the PCE-4xx series
1 x Charger for internal batteries
2 x 12 V lead gel batteries
1 x Tripod
1 x 2 m / 6ft 6" microphone cable
1 x Connection cable for power supply (optional Schuko or US connection)


Note: The outdoor sound level meter PCE-430-EKIT comes with octave band filter. Optionally upgrade with a 1/3 octave band filter (see option)
