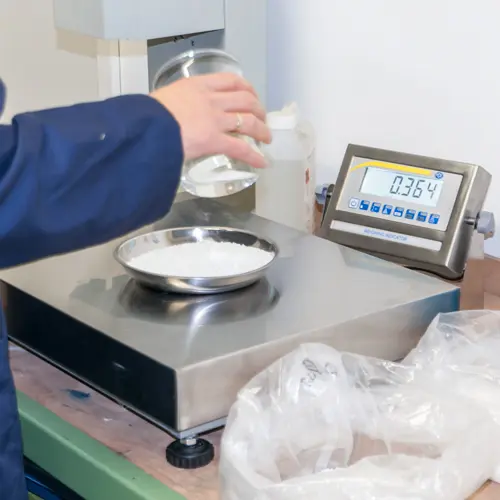

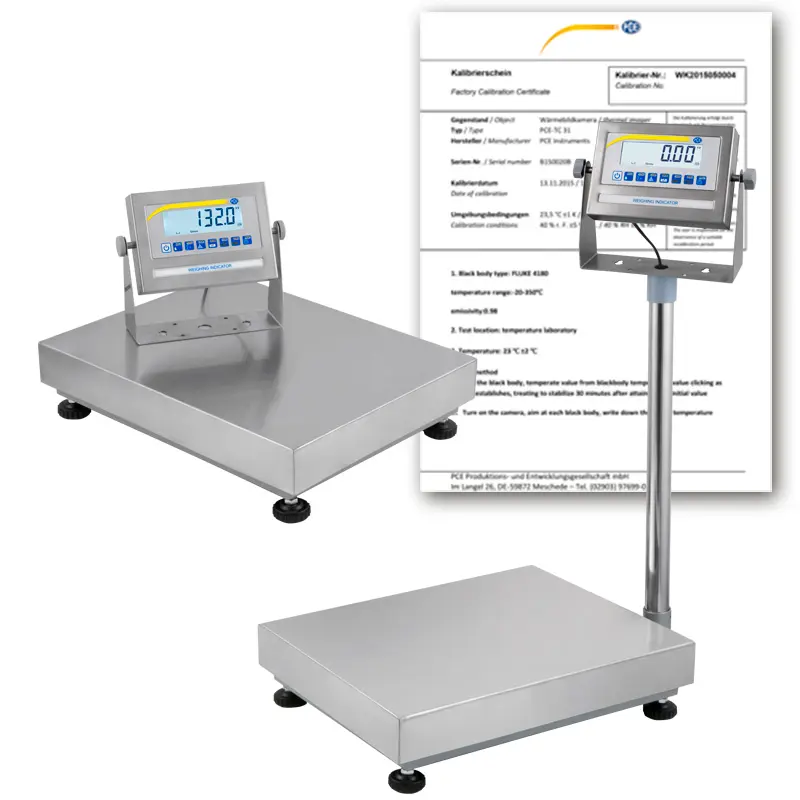

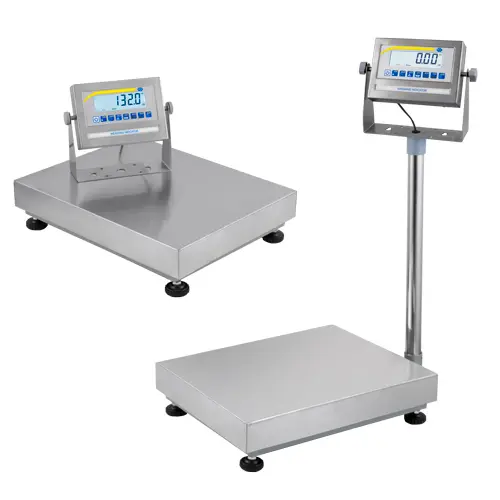

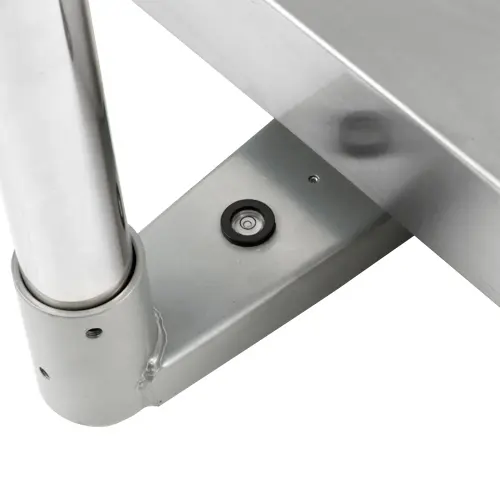

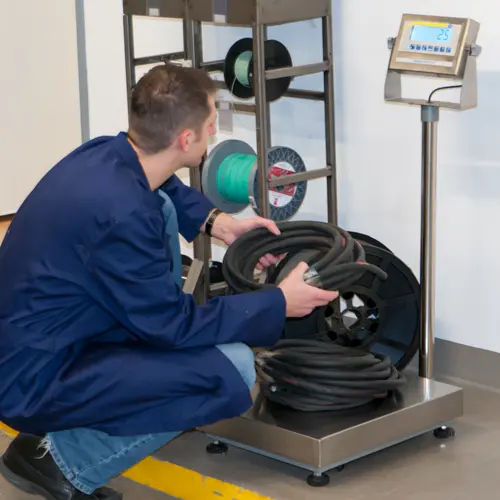

The robust inventory scale is a real all-rounder. The stand of the inventory scale can be easily separated along with the tripod mount from the platform and possibly sunk into the workbench. The cable between the platform and the display has a plug attached and is about 1.6 m long. The display of the platform scale is in a stainless steel housing with protection class IP54. The display can be placed on the workbench, on the wall, or on the stand of the platform scales. P1 is 400 x 500 mm size.
In addition to the standard functions such as counting, summing, gross / net weighing, limit weighing function and the PEAK Hold function, theindustrial scale has two special functions, i.e.the filter function for dynamic weighings and the container weighing function. The bidirectional RS232 interface allows convenient communication with a PC or printer. With the Per Query Command, the weight of the platform scale can be queried from the PC. A similarindustrial scale, but in calibrated form, we can provide with the PCE-SD series.
Measuring range | Max. 1 = 15 kg / Max. 2 = 30 kg |
Resolution | up to 15 kg = 2 g from 15 kg ... 30 kg = 5 g |
Measurement uncertainty | ± 3 d (three times the resolution) |
Platform size [P1] | 400 x 500 mm |
Tare function | Over the entire weighing range |
Interface | RS-232 Bidirectional
/ D-SUB 9 Female Optional: - Analog output 4-20 mA 1/1000 + - 4 Potential-free outputs LO / OK / HI / Stable set as a pulse signal or continuous signal. |
Display | LCD with 25 mm digit height |
Units | kg / lb and freely adjustable weighing unit such as kg/m |
Cable length to display | ca. 160 cm / plug attached |
Power supply | 6V / 4.5Ah battery or 9 V / 1.2 A power
adapter (incl.) Power consumption 70 mA |
Protection class | IP54 |
Working temperature | 0 ... + 40 °C / 10 ... 80 % r.H. |
Dimensions | see Download file "Diagram" |
Weight | ca. 14 kg |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Thermal printer for scales and balances
Requires 112 mm paper rolls
Dimensions: 165x140x50mm (WxDxH)
Includes RS-232 interface cable + power supply
