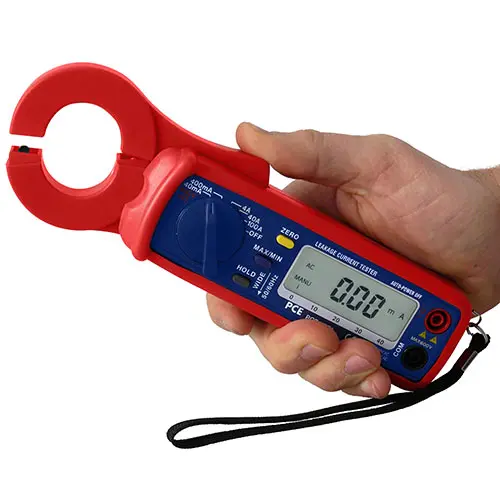

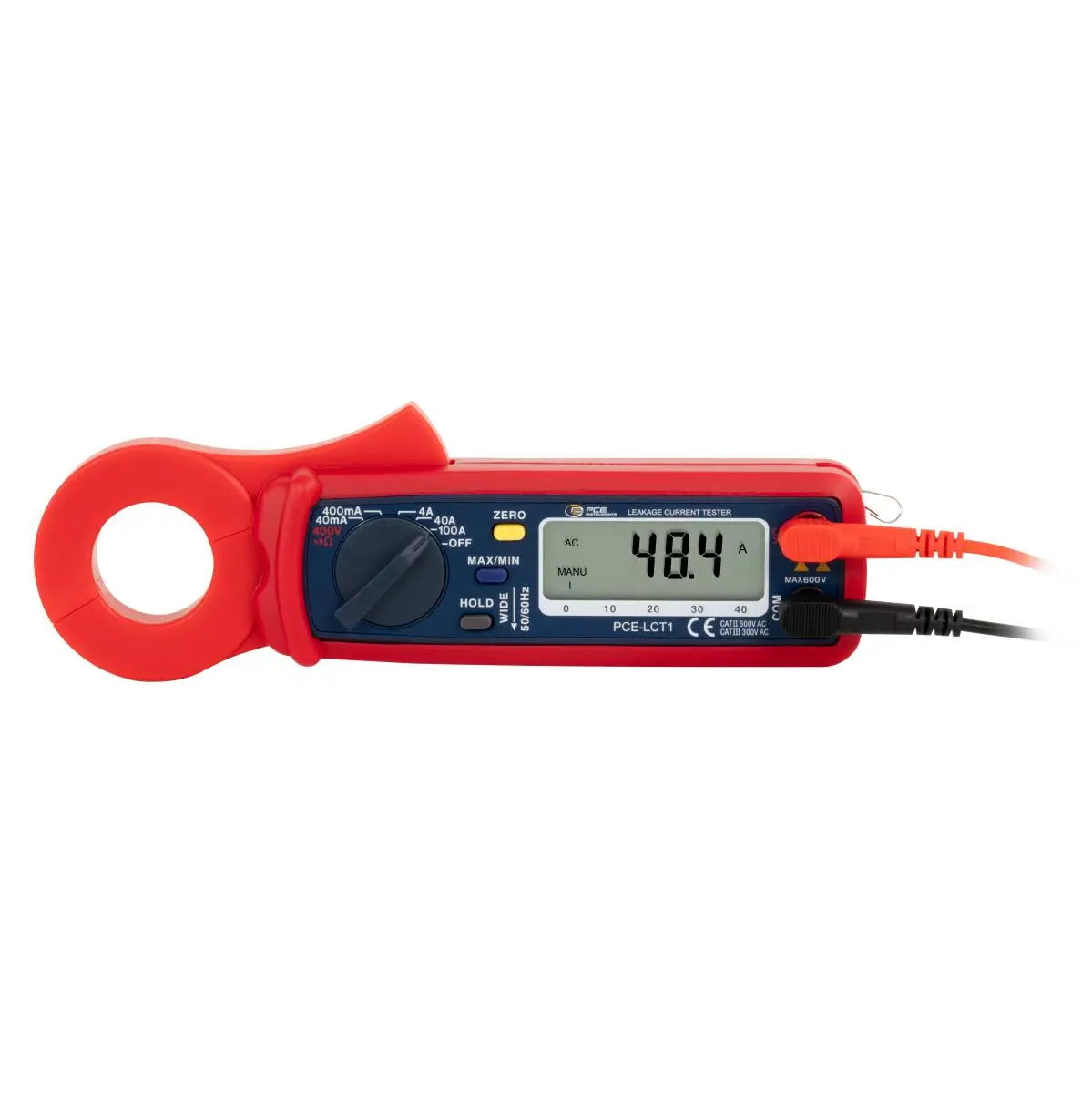

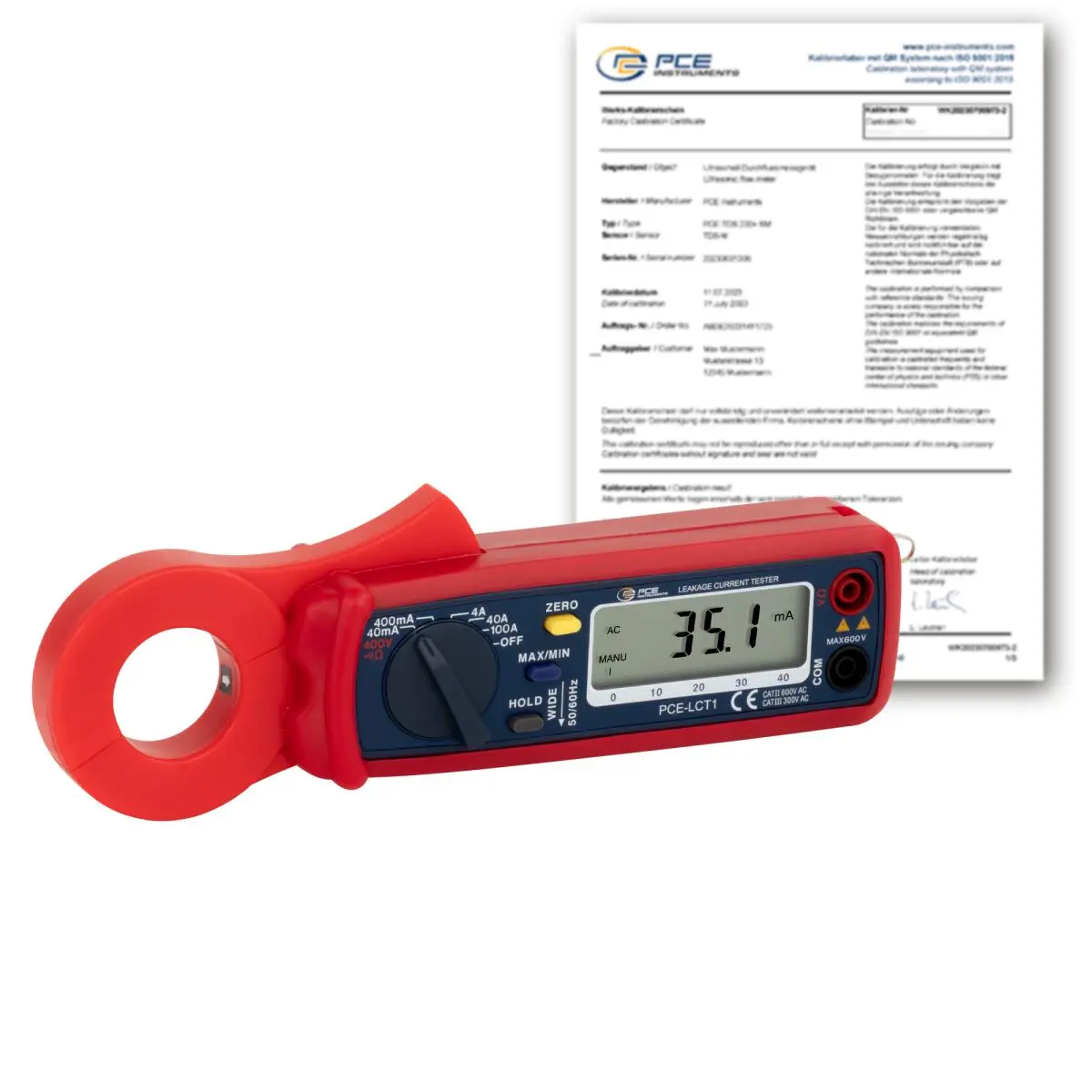

Electrical Tester PCE-LCT 1-ICA incl. ISO Calibration Certificate

Order no.: PCE-LCT 1-ICA
GTIN (EAN):
₹46,708.00
₹55,115.44
ISO Calibration
price ex. (VAT / delivery)
PCE-LCT 1-ICA
Delivery time: 10 - 14 days

Description

Electrical Tester incl. ISO Calibration Certificate
For checking the leakage current / RMS Current measurement / Continuity and resistance test / Voltage measurement up to 400V

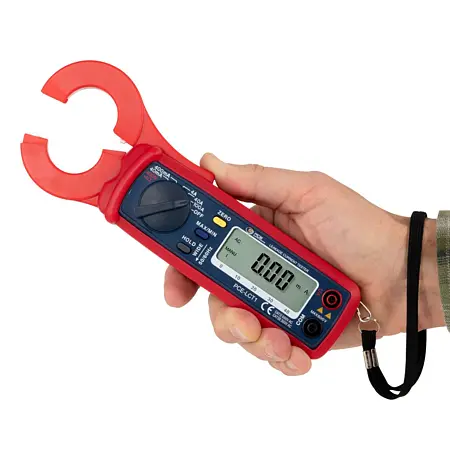

With the Electrical Tester, it is possible to measure leakage currents in the range of up to 100A. Leakage occurs when a current flows through an electrical conductor that is not normally designed to conduct electricity. The Electrical Tester captures these currents and displays them on the display. For example, the Electrical Tester can be used to detect insulation faults. This is particularly advantageous where machines are operated that cannot or must not be switched off and in which an examination of the insulation is pending. The fact that not only leakage currents can be measured with the leakage Electrical Tester, but also the normal current flow, voltage up to 400V, resistance and passage, the leakage Electrical Tester is ideal for the electrician, who has to perform other measuring tasks in addition to the device tests. Thanks to its compact design, the leakage Electrical Tester fits into any pocket. The robust rubber protection protects the measuring device against small drops from low heights and makes the leakage Electrical Tester a reliable companion especially in the field of electrical inspection and workshop technology.

Highlights

- Leakage current measurement via current clamp
- Current measurement up to 100 A
- Voltage measurement up to 400 V
- Continuity test
- Resistance measurement up to 400 Ω
- Digital 40-digit bargraph
- High resolution
- Maximum / minimum value retention in display
- Robust rubber protection
- Test leads included in delivery
- Incl. ISO Calibration Certificate

Specification

Leakage current and current (AC A)
Measurement ranges         Resolution Accuracy
50 / 60 Hz 400 Hz ... 1 kHz
40-mA 10 µA ± (1% + 0.5-mA) ± (4.5% + 0.5-mA)
400-mA 100 µA ± (3% + 5-mA) ± (3% + 5-mA)
4 A 1-mA ± (4% + 0.1-mA) ± (4% + 0.1 A)
40 A 10-mA ± (4% + 1 A) ± (4% + 1 A)
80 A 10-mA ± (2.5% + 1 A) ± (3% + 1 A)
80 A - 100 A 100-mA ± (5% + 1 A) ± (5% + 1 A)
Voltage (AC V)
Measurement ranges Resolution Accuracy
50 / 60 Hz 400 Hz ... 1 kHz
400V 1V ± (1.5 % + 2 digits) ± (2 % + 4 digits)
Resistance
Measurement ranges Resolution
Accuracy Alarm
400 Ω 0.1 Ω ± (1% + 2 digits) Measurement value <38Ω
General Technical Specifications
Display 3 3/4
Measured electrical properties AC V, AC A, resistance

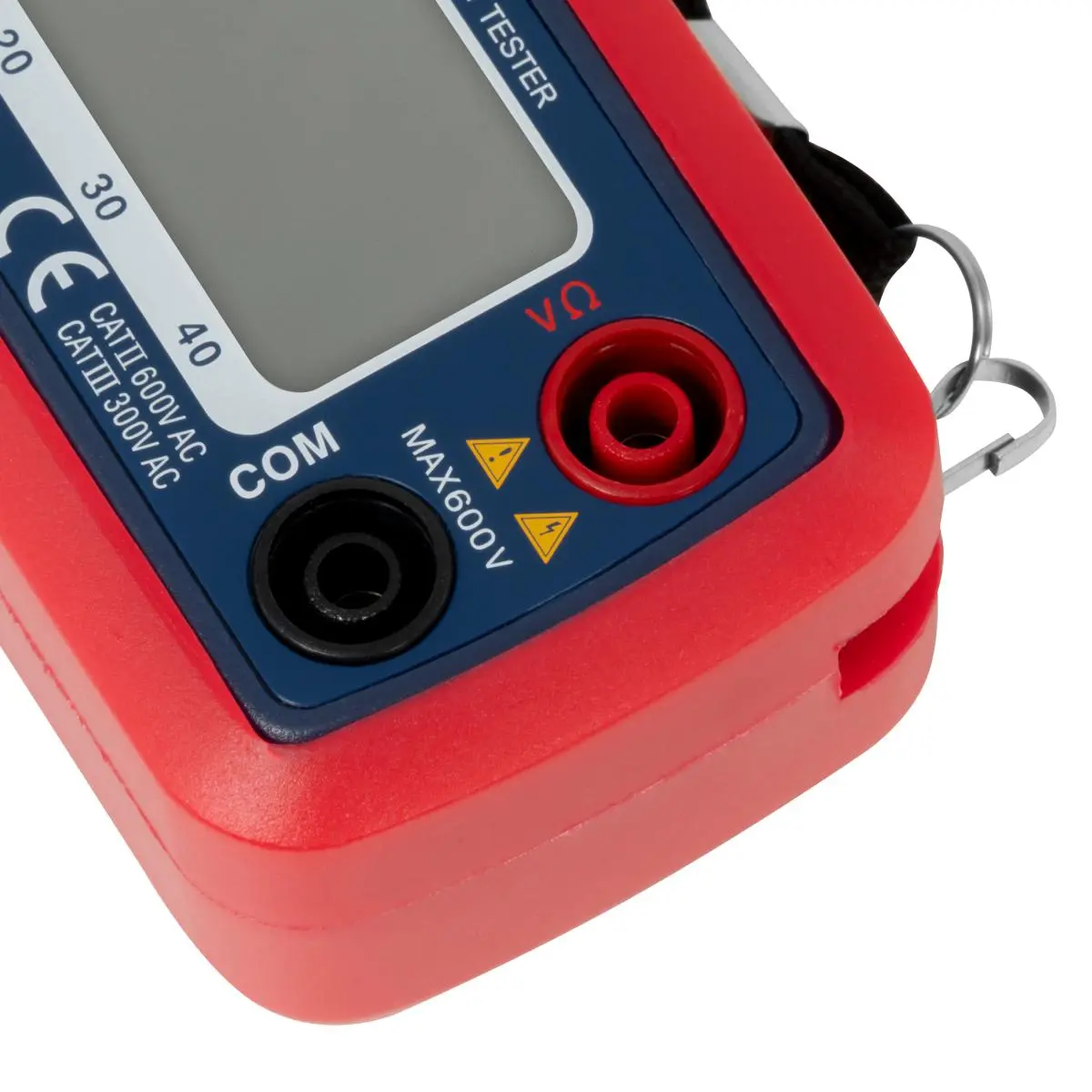

Security standards CAT III 300V / CAT II 600V
Diameter of the clip 30 mm
Input impedance 10 MΩ
Registration rate 2 Hz (numerical values), 20 Hz (bar graph)
Operating temperature -10 ... 50ºC / 14 ... 122ºF
Operating humidity <85% H.r.
Storing temperature -20 ... 60ºC / -4 ... 140ºF
Auto shut-off After 30 minutes
Power 9 V battery
Input current 10-mA
Weight 200 g / < 1 lb
Dimensions 210 x 62 x 35.6 mm / 8.2 x 2.4 x 1.4 in

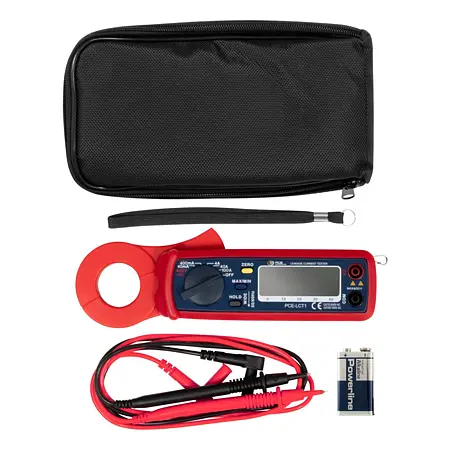

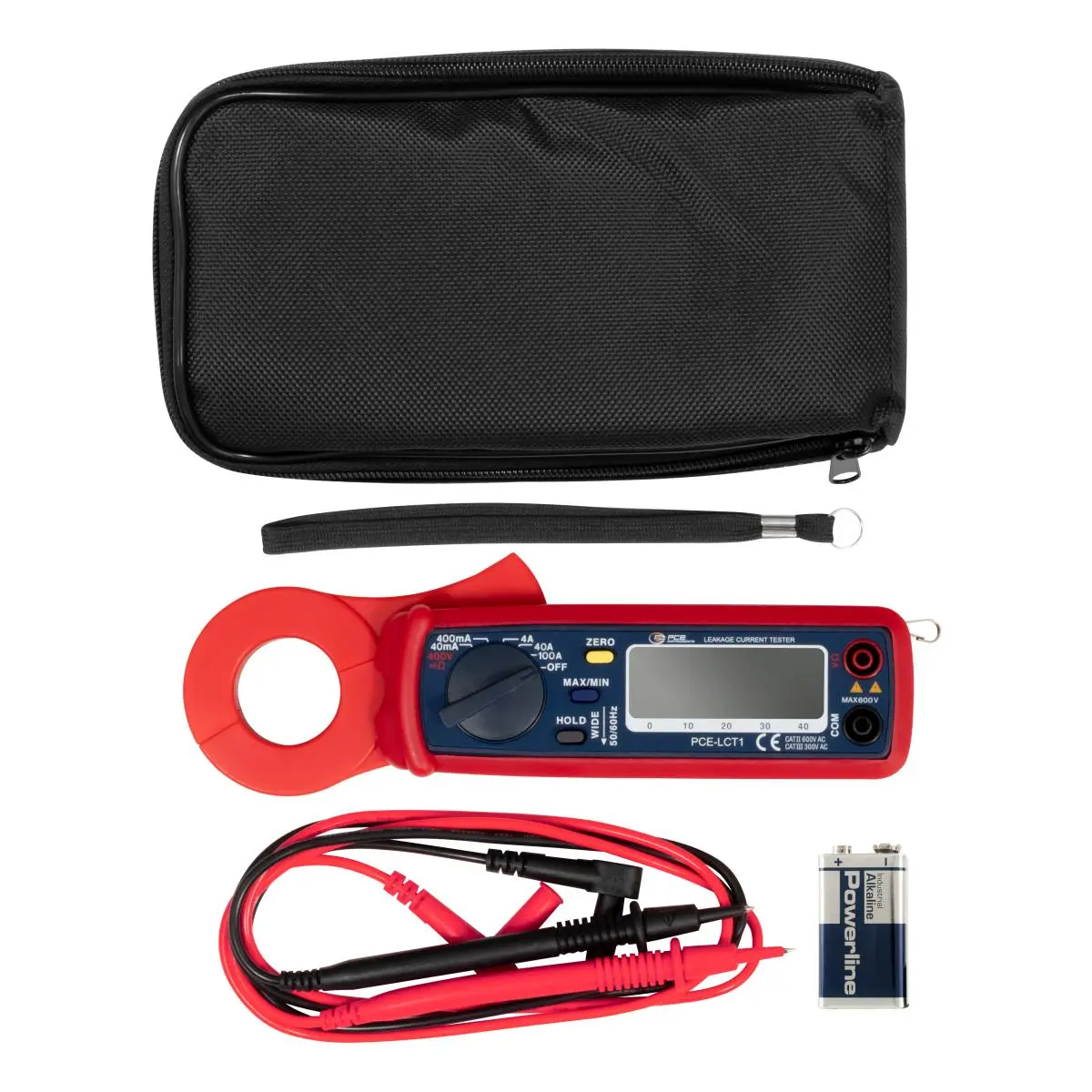

Delivery Scope

1 x Electrical Tester PCE-LCT 1
1 x 9V block battery
1 x Carrying case
1 x Rubber protection

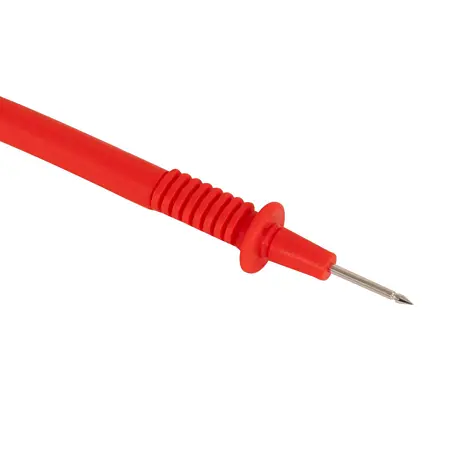

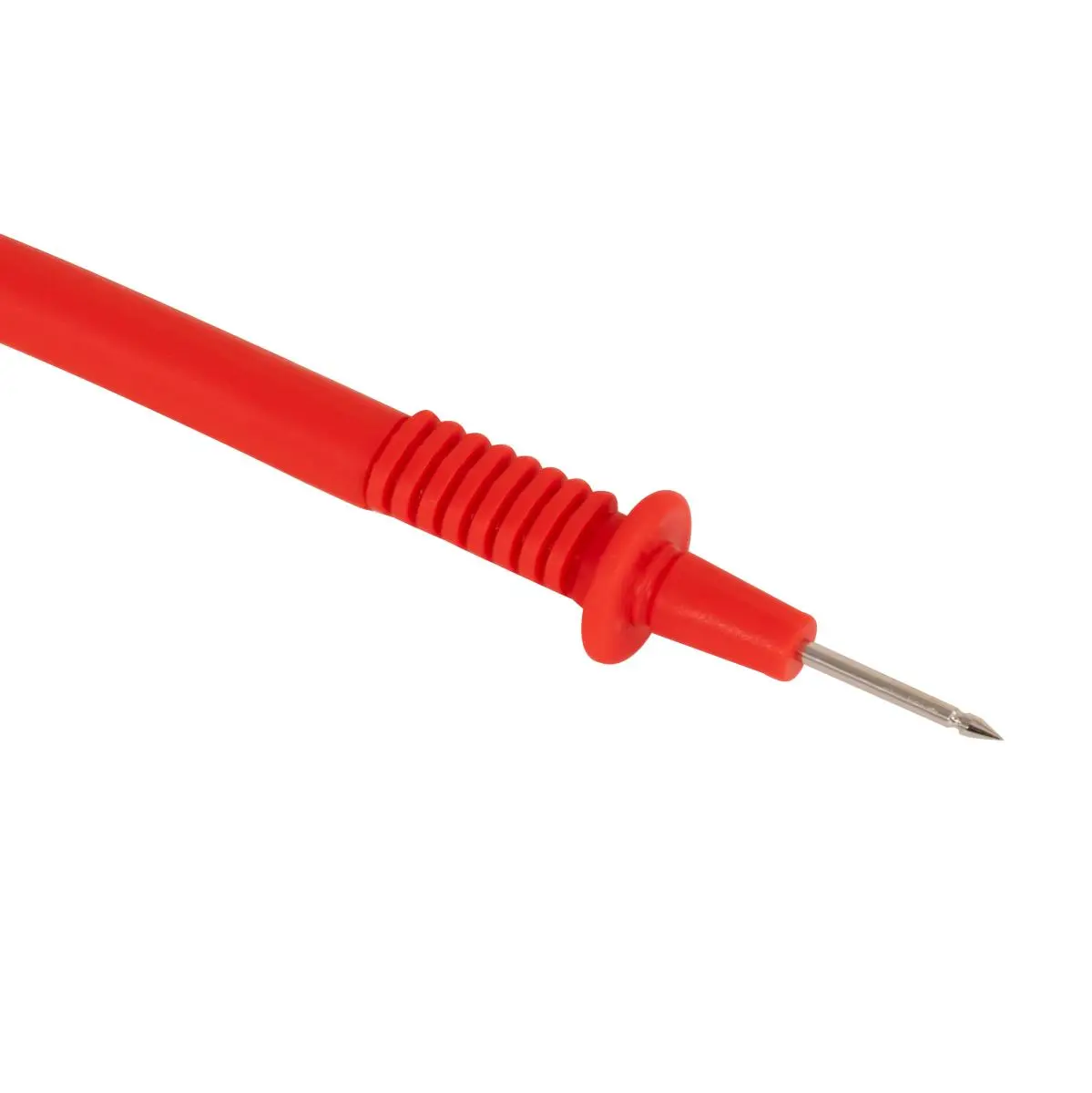

1 x Test leads
1 x Operating instructions

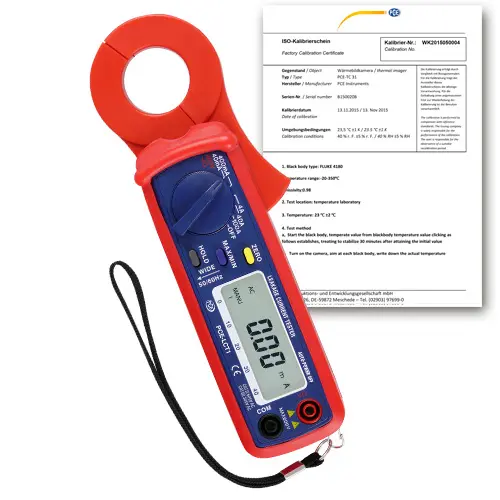

1 x ISO calibration certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
