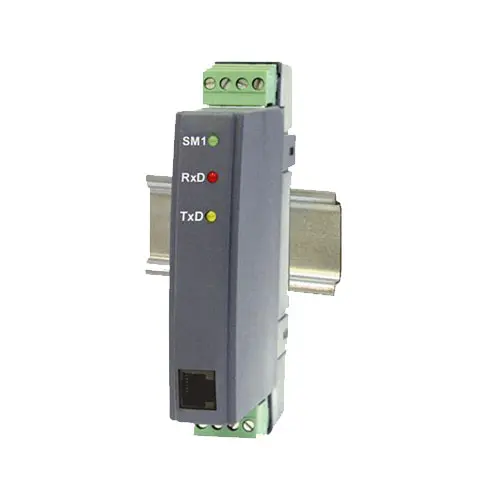

DIN-Rail Measuring Instrument PCE-SM1

Order no.: PCE-SM1

GTIN (EAN):

Description

Analog input module / Input signals selectable / 2 channels / RS485 interface / Modbus RTU / ASCII

The PCE-SM1 DIN rail measuring device is suitable for making analog signals bus-capable. Various analog signals such as 0 ... 20 mA, 0 ... 10 V, PT100 etc. are converted from the analog input module to RS485 Modbus. The transmission method via Modbus is RTU or ASCII. The input module is mounted on a top hat rail. The DIN rail measuring device is parameterized via the front-end RS232 interface and the configuration software.

Highlights

- 2 analog inputs
- RS485 Modbus
- RTU or ASCII transmission
- Galvanically isolated inputs and outputs
- Configuration via RS232
- DIN rail mounting
- Selectable supply voltages
- Easy to operate

Specification

Technical Specification PCE-SM1
Input (selectable)	2 x 0 ... 10 V 2 x 0/4 ... 20 mA 1 x 0 ... 10 V / 1 x 0/4 ... 20 mA 2 x PT100 (-200 ... 850 °C / -328 ... 1562 °F)
Interface	RS485
Protocols	Modbus RTU / ACSII
General Specifications
Dimensions	22.5 x 120 x 100 mm / 0.8 x 4.7 x 3.9 in
Assembly	DIN rail mounting 35 mm / 1.3 in
Protection class	IP 40
Supply voltage (selectable)	85 ... 253 V AC / DC 20 ... 50 V AC / DC
Power consumption	4 VA
Environmental conditions	-20 ... 55 °C / -4 ... 131 °F / <95% rh
Maximum cable cross section	1.5 mm²

Delivery Scope

Delivery Scope
1 x DIN-Rail Measuring Instrument PCE-SM1
1 x User manual
