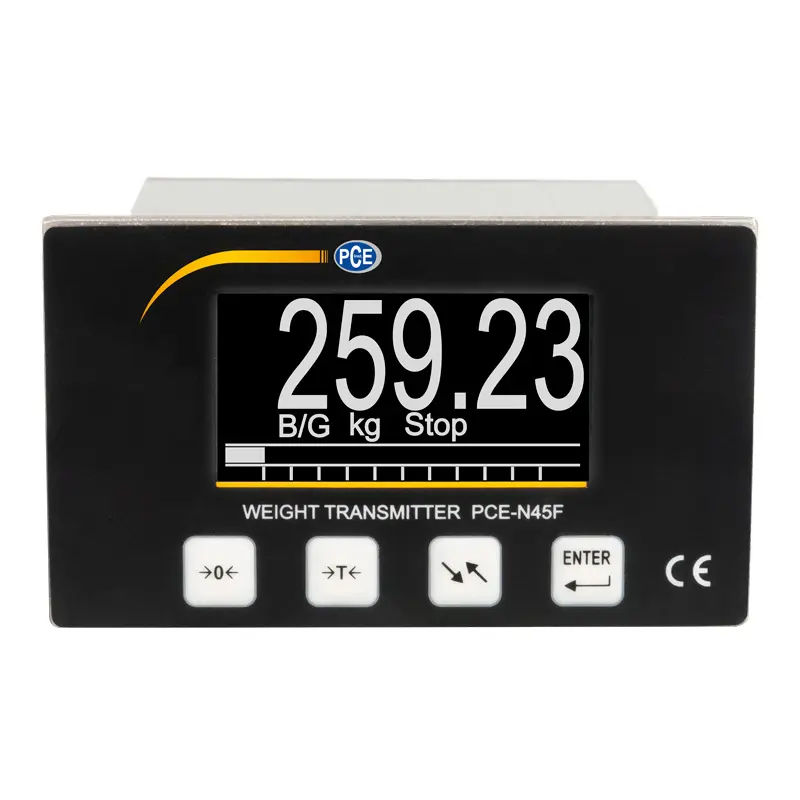

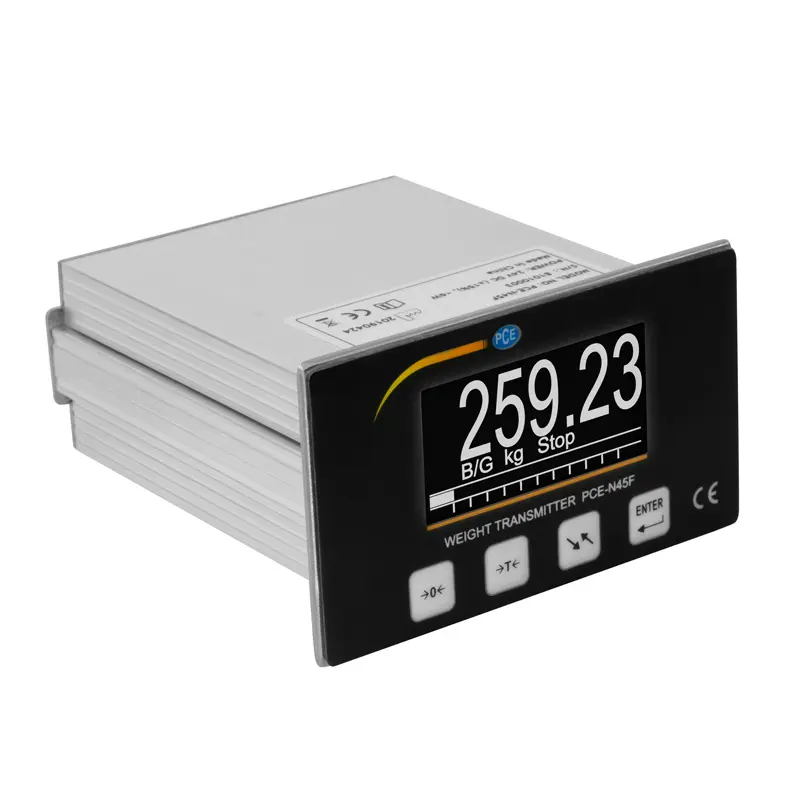

Panel Meter PCE-N45F
Weighing indicator for load cells, force sensors and weighing platforms /
4 and 6 wire connection technology / OLED display / Analogue output / Digital input / Relay s
The panel meter is used to realize individual weighing solutions. Load cells, force sensors, weighing platforms and other sensors that use strain gauges can be connected to the panel meter. This makes the panel meter a versatile measuring instrument for weight, force, torque, etc. The panel meter has a measuring input to which the sensors can be connected in 4 or 6-wire technology. The menu can be used to perform an exact calibration / adjustment from the panel meter.

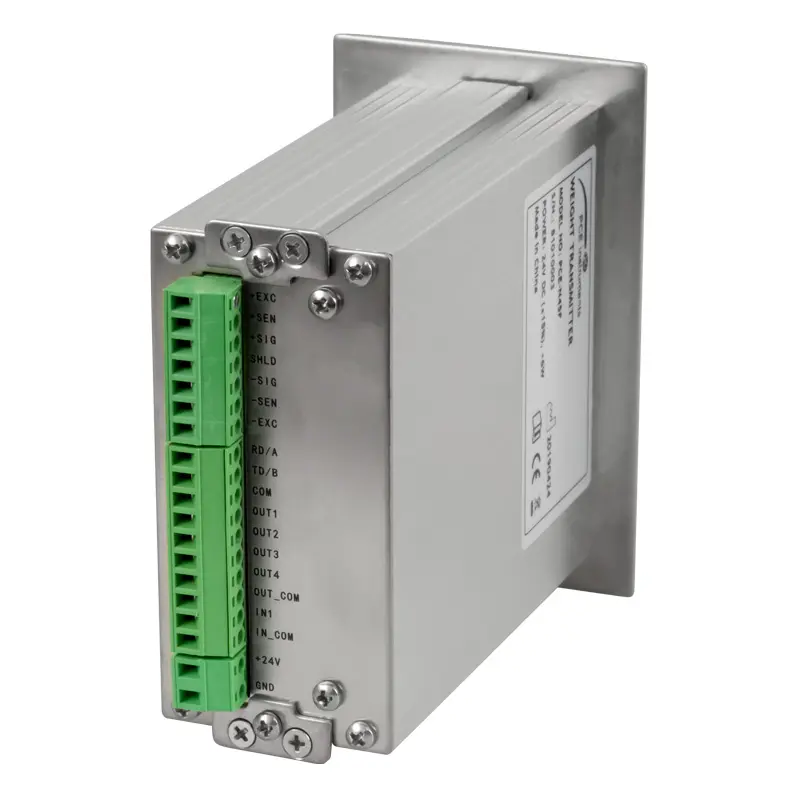

The panel meter has many rear connections. Thus, the 4 NO relays and the potential-free digital input are connected here on the panel meter. The outputs can be used to trigger different processes. The digital input is used to tare the panel meter or to set the display to 0. In addition to these functions, the panel meter can be deleted via the interface. The analogue output is used to pass on the displayed value directly from the panel meter.
