Panel Meter PCE-PA 5500

Order no.: PCE-PA 5500
GTIN (EAN): 4250348733580
US$ 170.00
ex. VAT, ex. delivery costs
:
4250348733580
PCE-PA 5500
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

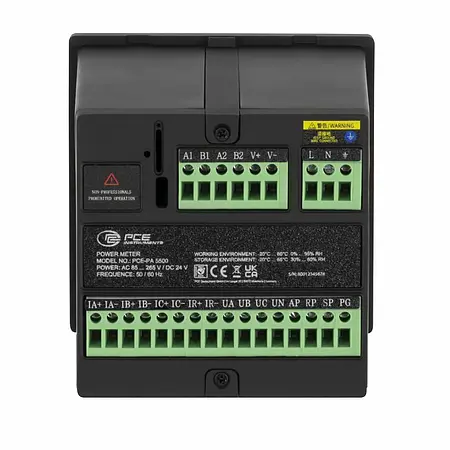

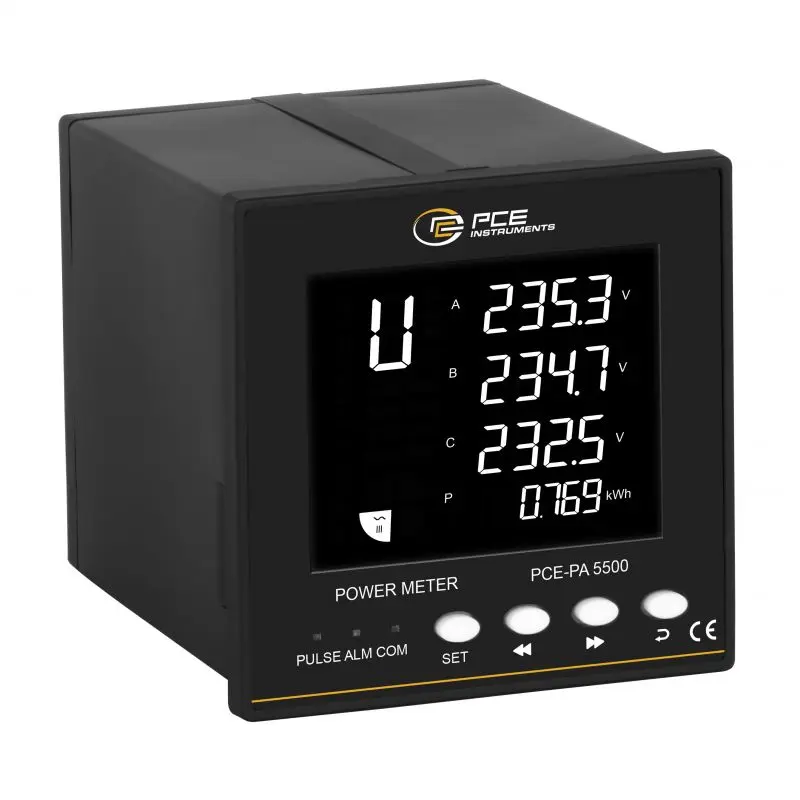

Panel Meter with RS485 interface / simple button operation / class 0.5 for basic power parameters / high-resolution black and white LCD display

The panel meter is a compact instrument for measuring and displaying various network parameters in three-phase networks. This panel meter can record the energy values of individual consumers or electrical feeders. In addition to the voltages and currents, the apparent, reactive and active power as well as the active and reactive energy are measured and shown on the 68 x 55 mm display. Furthermore, an RS485 interface is integrated into this panel meter, which enables integration into existing systems. The RS485 interface communicates using the Modbus RTU protocol. This makes it possible to read out measured values from the panel meter or to read and change device settings.

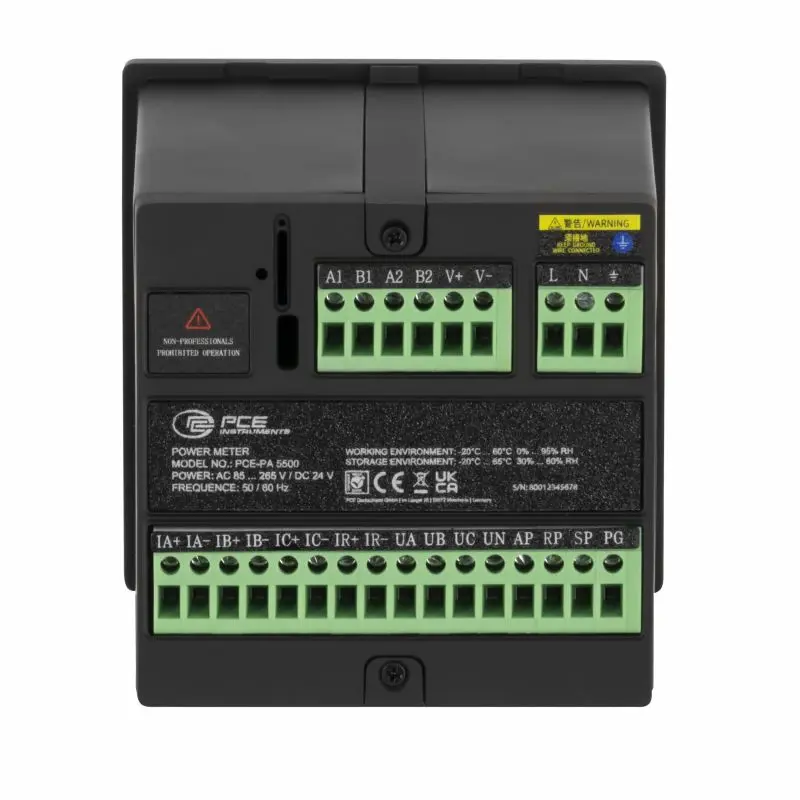

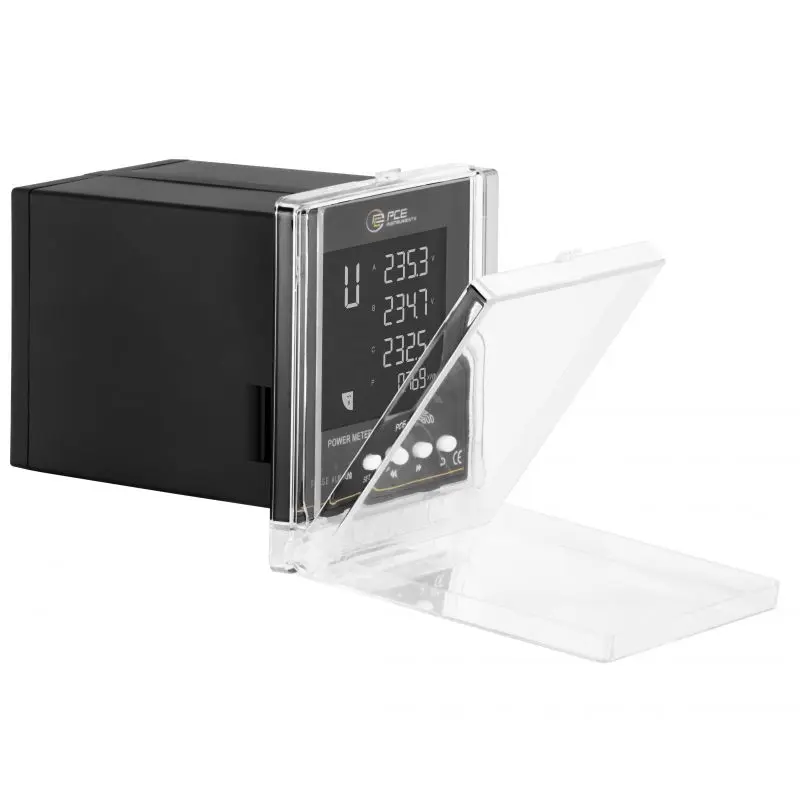

The panel meter is designed for panel mounting with a cut-out of 96x96 mm. The scope of delivery includes a transparent door that can be attached to the front to protect the device against dust and moisture. In addition to the many measuring functions, the panel meter offers alarm functions. A stable power supply is a top priority for every network operator. To avoid fluctuations in power quality and faults, grid monitoring, control and automation must be adapted and optimised.


Highlights

- Alternating voltage: 30 ... 264 V
- Alternating current direct: 0.025 mA ... 5 A
- Energy meter
- RS485 Modbus interface
- Accuracy class: 0.5

Specification

AC voltage AC
Measuring range  30 V ... 264 V
Resolution  0.1 V
Accuracy  0.5 %
Overload  1500 VAC continuous
2500 VAC, 50 ... 60 Hz for one minute
Alternating current AC
Measuring range  0.025 A ... 5 A
Resolution  0.01 A
Accuracy  0.5 %
Overload  10-fold RMS for 1s.
Effective power
Measuring range  0.75 W ... 1320 W
Resolution  0.01 W
Accuracy  0.5 %
Power factor
Measurement range  -1 ... +1
Resolution  0.001
Accuracy  0.5 %
Frequency
Measuring range  45 Hz ... 65 Hz
Resolution  0.01 Hz
Accuracy  0.5 %
Harmonic measurement (harmonics)
Measurement range  1 (ordinal number) ... 50 (ordinal number)
Current range  20 ... 100 %
Voltage range  0.1 ... 100 %
General technical data
Display type  LCD with illumination
Display size  3.4 inch
Interface  RS485
Standard(s)  IEC 62053-22, GB/T18215.322-2008, IEC61010-1
Phase shift  0 ... 359.9 °
Switch panel cut-out  96x96 mm
Menu language  English
Protection class (device)  IP20
Power supply  100 ... 260 VAC, approx. 5 W
Weight  474 g
Depth  110 mm
Operating conditions  -20 ... 60 °C , 0 ... 95 % r.H
Storage conditions  -20 ... 65 °C , 30 ... 80 % r.H
Accumulator/battery  1x 3 V CR1225 , Lithium
Capacity  50 mAh

Delivery Scope

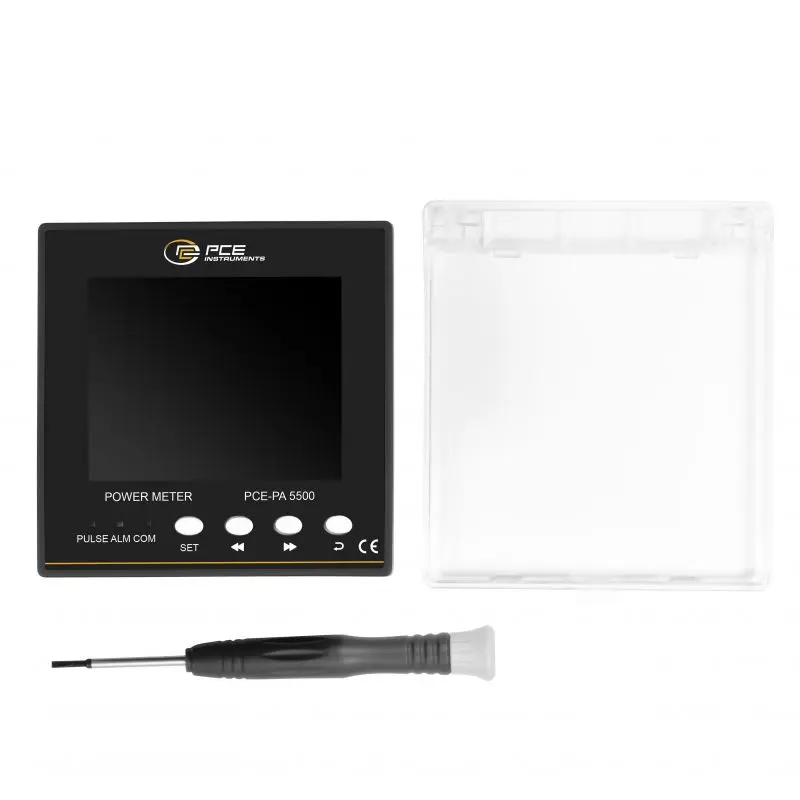

1 x PCE-PA 5500 panel meter
1 x transparent front door
1 x slotted screwdriver
1 x operating instructions
