Universal Input Controller PCE-RE100P

Order no.: PCE-RE100P
GTIN (EAN): 4250348722058
US$ 187.00
ex. VAT, ex. delivery costs
:
4250348722058
PCE-RE100P
Available in: 1-2 days
Universal
Thermocouple, Pt100, NTC
Relays
yes
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description


PID universal controller with various control outputs / Universal analog input / Program control / RS485 interface / 4 digital inputs / Int. Sensor supply

The process controller is used for temperature and process control. The various inputs and outputs, which are installed as standard on the PID controller, make it possible for the PID controller to be used universally. The universal controller is equipped with a program control. In the universal controller up to 16 programs with 8 segments each can be set. Via the four digital inputs, the respective control programs can be started and stopped, as well as paused and resumed. Likewise it can be switched between the programs.

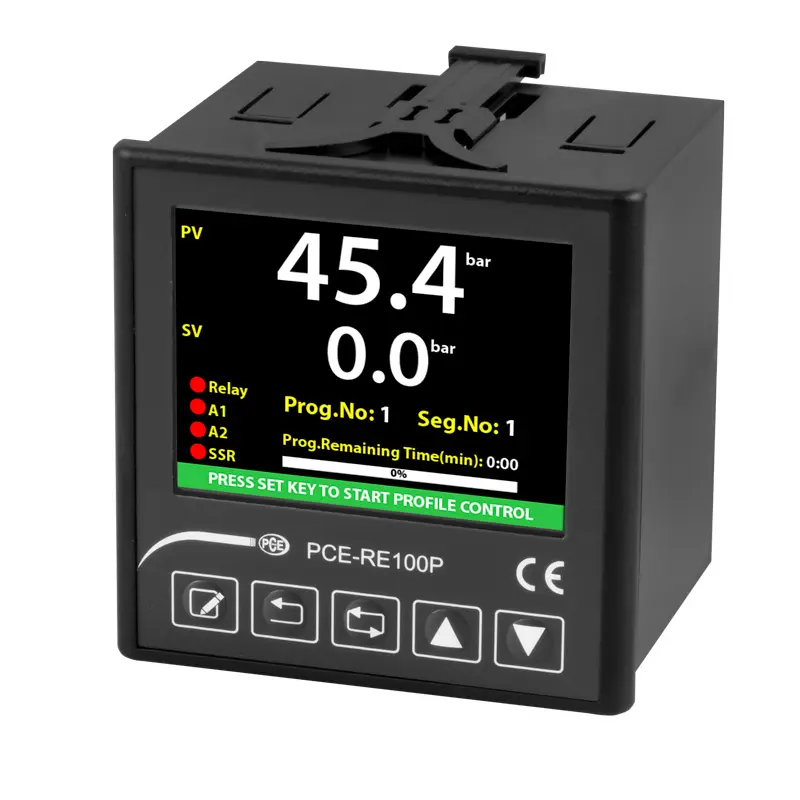

The PID controller is equipped with a universal input to which various temperature sensors and sensors with process signal output can be connected. The large LCD display continuously informs about set points and actual values, as well as about the states of the outputs and the respective control programs. The controller is equipped with an RS485 Modbus interface for connection to a process control system.

Highlights

- Universal input
- Adjustable program control
- 3.5" LCD display
- Relay, SSR and analog output
- 50 ms sampling rate
- Autotune PID
- Memory for several PID parameters
- RS485 Modbus interface

Specification

Measuring function
Input type thermocouple Measuring & display area Accuracy
Type B  200 ... 1800°C / 392 ... 3272°F         ± 0.1% ± 2°C / 3.6°F
Type E -100 ... 900°C / -148 ... 1652°F ± 0.1% ± 0.5°C / 0.9°F
Type J -100 ... 900°C / -148 ... 1652°F  ± 0.1% ± 0.5°C / 0.9°F
Type K -100 ... 1300°C / -148 ... 2372°F ± 0.1% ± 0.5°C / 0.9°F
Type L -100 ... 900°C / -148 ... 1652°F ± 0.1% ± 1.5°C / 2.7°F
Type N -200 ... 1300°C / -328 ... 2372°F ± 0.1% ± 0.5°C / 0.9°F
Type R  0 ... 1700°C / 32 ... 3092°F ± 0.1% ± 1°C / 1.8°F
Type S  0 ... 1700°C / 32 ... 3092°F ± 0.1% ± 1°C / 1.8°F
Type T -250 ... 300°C / -418 ... 572°F  ± 0.1% ± 0.5°C / 0.9°F
Type U -200 ... 400°C / -328 ... 752°F ± 0.1% ± 0.5°C / 0.9°F

Input type resistance sensors Measuring & display area Accuracy
Pt100 -200 ... 850°C / -328 ... 1562°F ± 0.1% ± 0.5°C / 0.9°F
  -100 ... 160°C / -148 ... 320°F ± 0.1% ± 0.5°C / 0.9°F
NTC -60 ... 150°C / -76 ... 302°F ± 0.1% ± 0.5°C / 0.9°F

Input type process stream Measuring & display area Accuracy
0 ... 20-mA -32768 ... 32767 ± 0.1% ± 1 digit
4 ... 20-mA -3276.8 ... 3276.7 ± 0.1% ± 1 digit

Input type mV Measuring & display area Accuracy
0 ... 150 mV -327.68 ... 327.67
  -32,768 ... 32,767 ± 0.1% ± 20 μV

Input type process voltage Measuring & display area Accuracy
0 ... 5V   ± 0.1% ± 1 digit
1 ... 5V   ± 0.1% ± 1 digit
0 ... 10V   ± 0.1% ± 1 digit

Input type resistor Measuring & display area Accuracy
0 ... 550 Ω   ± 0.2% ± 0.1 Ω
0 ... 10 kΩ
± 0.5% ± 10 Ω

Digital input for program control        Measuring & display area Accuracy
  5V or 30V Start-Stop Pause
  RI = 100 Ω Previous program
    Next program

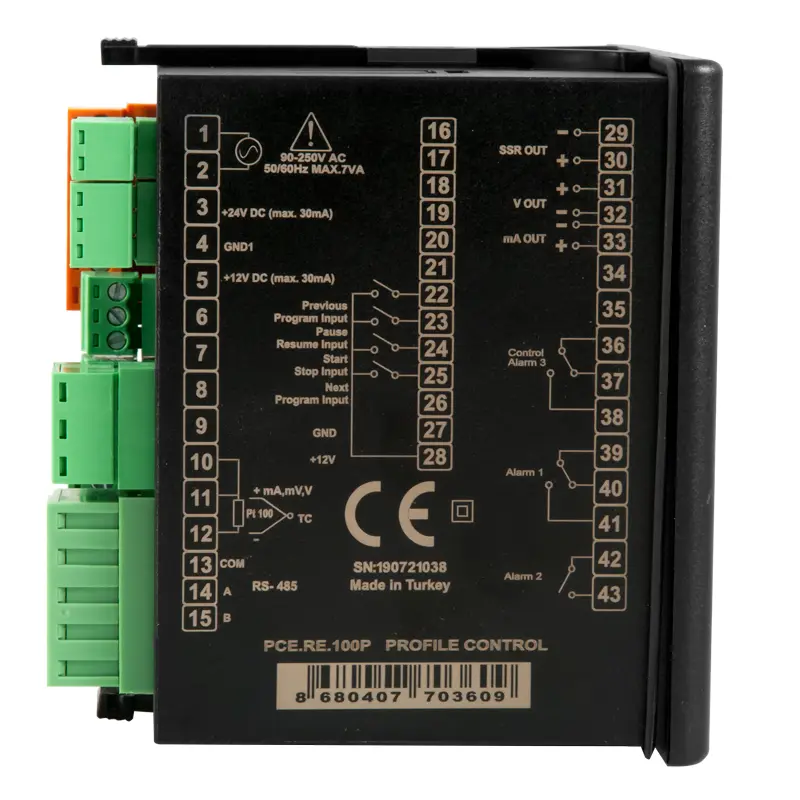

Output Control relay: NO / NC 250V AC / 2 A
  Alarm 1: NO / NC 250V AC / 2 A
  Alarm 2: NO 250V AC / 2 A
  SSR: 0 ... 12V / 40-mA
  mA: 0/4 ... 20-mA (750 Ω max.)
  V: 0 ... 10V
Power supply 90 ... 250V AC / 50/60 Hz
Input 7 VA

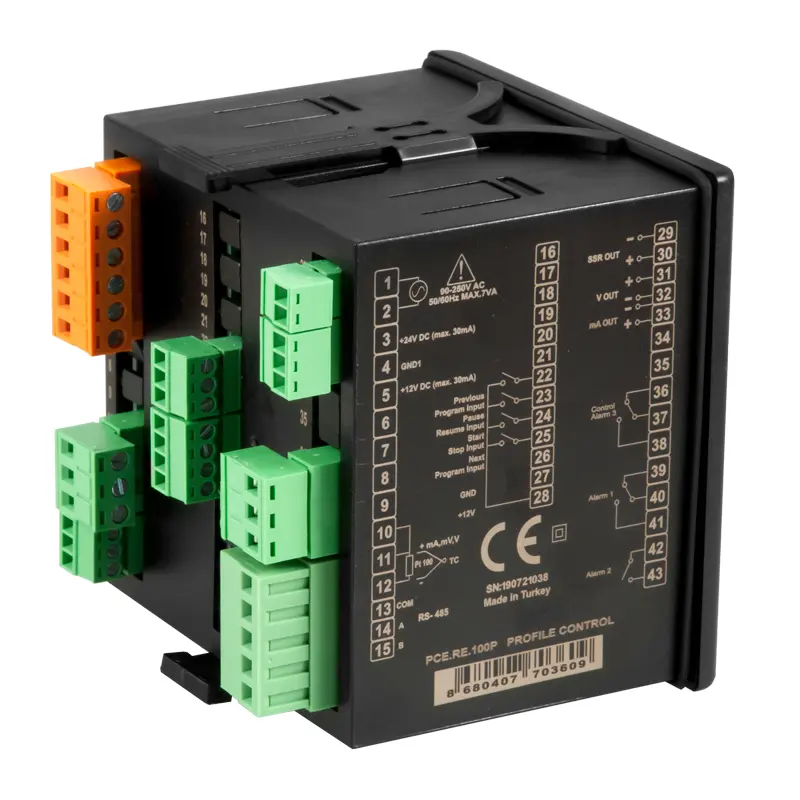

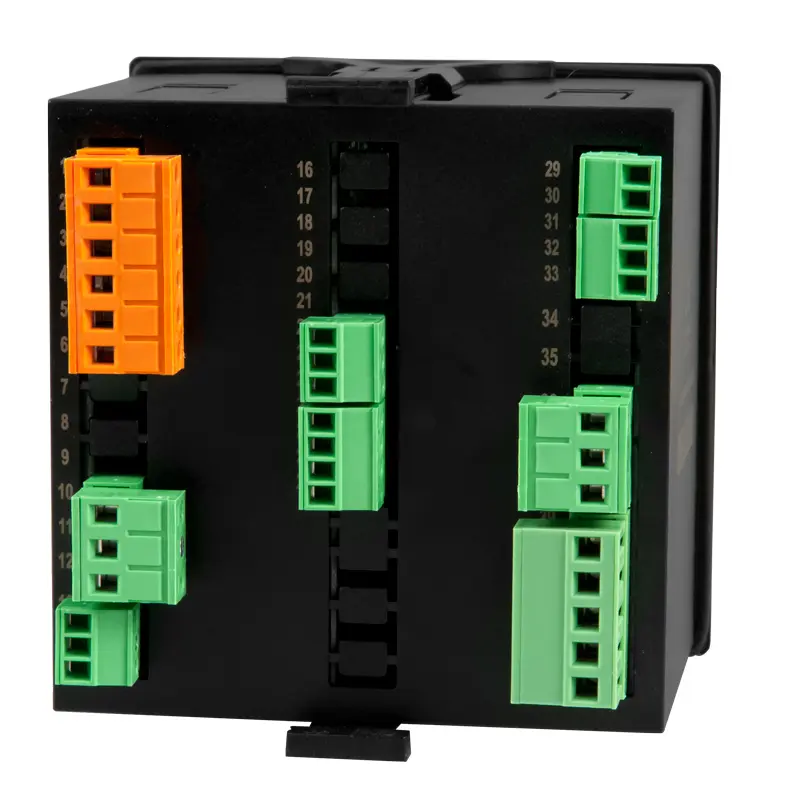

Electrical connection 2.5 mm² via screw terminals
Interface RS485 Modbus RTU
Operating conditions 0 ... 50°C / 32 ... 122°F, max. 80% rh
Storage conditions -25 ... 70°C / -13 ... 158°F, max. 80% rh
Degree of protection Front: IP65
  Back side: IP20
Dimensions 96 x 96 x 81 mm / 3.8 x 3.8 x 3.2 in
Panel cut 92 x 92 mm / 3.6 x 3.6 in
Weight About 400 g / < 1 lb



Delivery Scope

1 x Universal Input Controller  PCE-RE100P
1 x Mounting material
1 x User manual
