US$ 323.00
Bilingual Technical Support (EN / ES)
Public Service, Military and First Responder Discount
30 Day Return Policy
2 Year Warranty
Free Standard Shipping (US)
Measuring range | 0 ... 87 psi, 0 ... 6 bar |
Resolution | 0.0145 psi, 0.001 bar |
Accuracy | 0.25% FSO |
Pressure | relative |
Overpressure | 1.5 times |
Measurable media | gases, water |
Response time | < 50 ms |
Housing material | metal |
Measurement units | Mpa, bar, Kpa, mH2o, kg / cm², |
psi, mmH2o, in.WC, mbar | |
Protection class | IP56 |
Diameter display | 2.5" |
Dimensions (without sensor) | Ø80 x 50 mm / 3.1 x 2 in |
Pressure connection | 1/40" NPT |
Power supply | 3 x 1.5V AAA batteries |
Environmental conditions | -10 ... 60°C / 14 ... 140°F, < 80% RH |
Weight | approx. 276 g / < 1 lb (without batteries) |
1 x Pressure sensor PCE-DPG 6-ICA
3 x Batteries 1.5V AAA
1 x Operating instructions

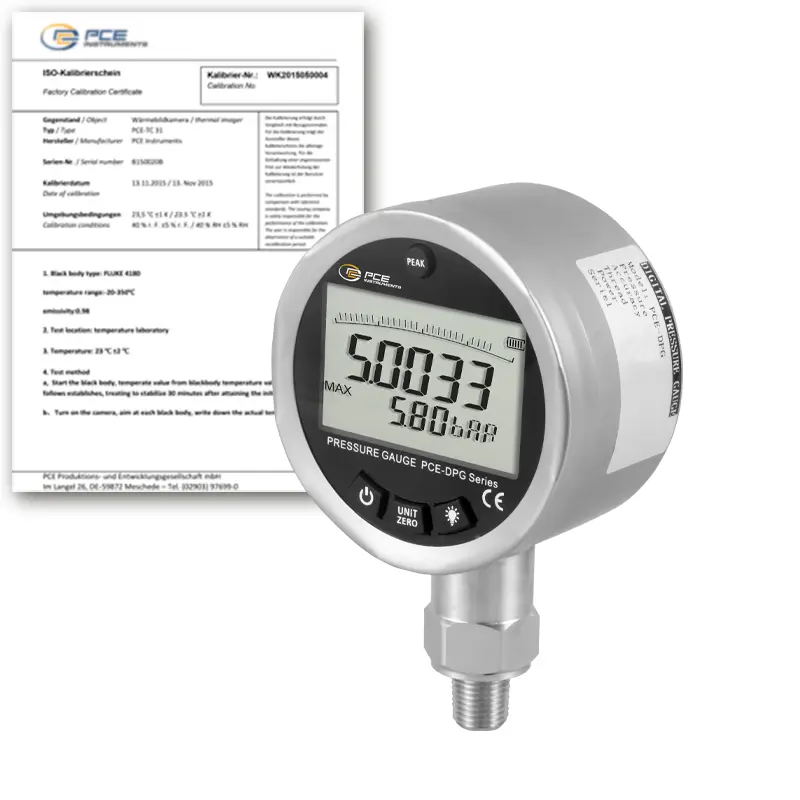

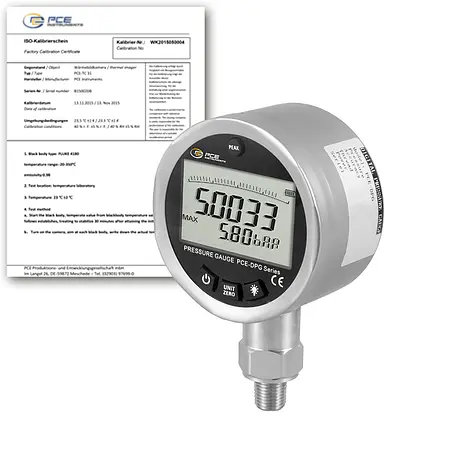

1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
