- Ideal for machine condition monitoring and quality control applications
- Measures RMS and peak value of vibration velocity or acceleration
- Piezoelectric accelerometer
- IP67 ingress protection rating against water and dust

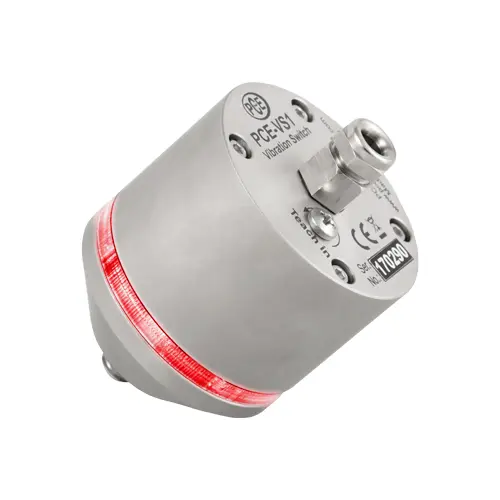

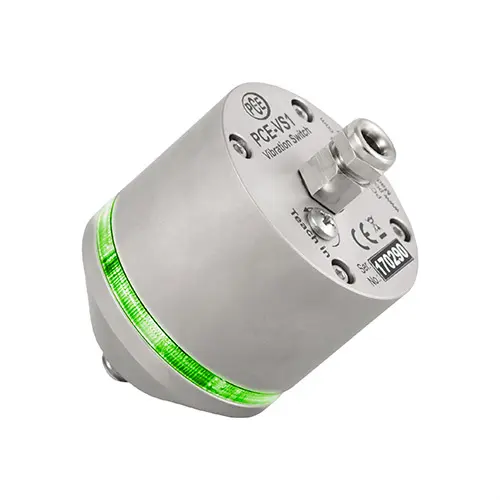

- Features a red and green visual warning or alarm
- Programmable high pass and low pass filters
- Emergency shut-off
- Setup via USB and PC

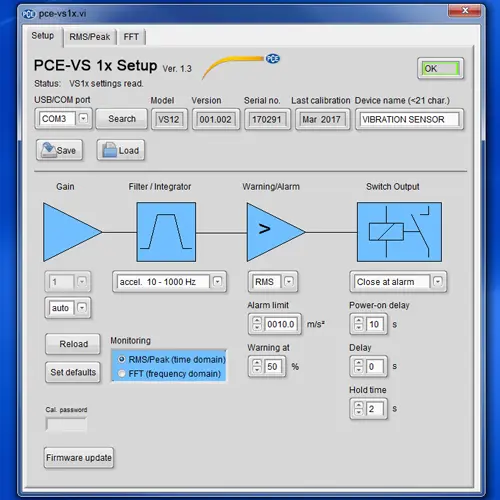

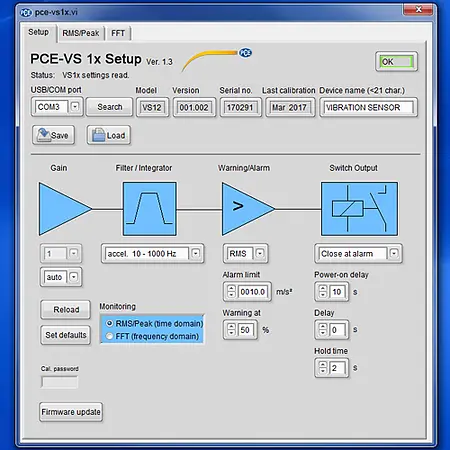

- Includes software for detailed vibration analysis

Measuring range	0.1 ... 1000 m/s² acceleration Frequency dependent velocity
Monitoring values	Peak value of vibration acceleration or vibration velocity RMS value of vibration acceleration or vibration velocity
High pass filter	0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration 2 / 5 / 10 / 20 / 50 Hz velocity
Low pass filter	0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration 1 kHz velocity
Relay output	PhotoMOS relay SPST Max. 60 V / 0.5 A (AC/DC) Open/close programmable Connection via screw terminals

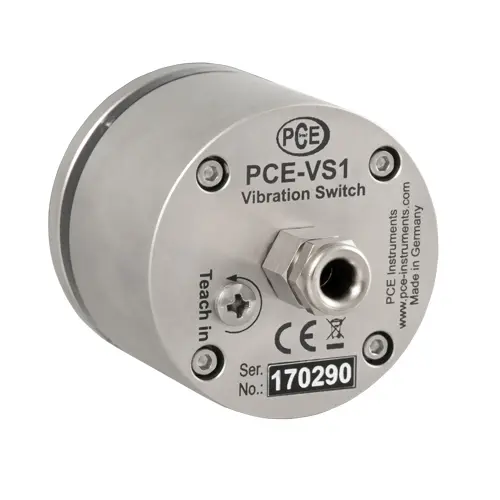

Teach-in function Warning / alarm Alarm delay / hold time	Button for measuring the switching threshold Green and red LEDs 0 ... 99 s / 0 ... 9 s
Interfaces	USB 2.0 full speed for parameterization and measurement CDC mode / virtual COM port Micro USB port inside
External USB port Power supply voltage	No 5 ... 30 V DC 5 V DC USB < 100 mA screw terminals
Ingress protection	IP67 rating
Operating temp. range	-40 ... +80 °C / -40 ... +176 °F
Approx. weight	160 g / 0.36 lb
Approx. dimensions	50 mm / 1.97" Ø 52 mm / 2.05" height

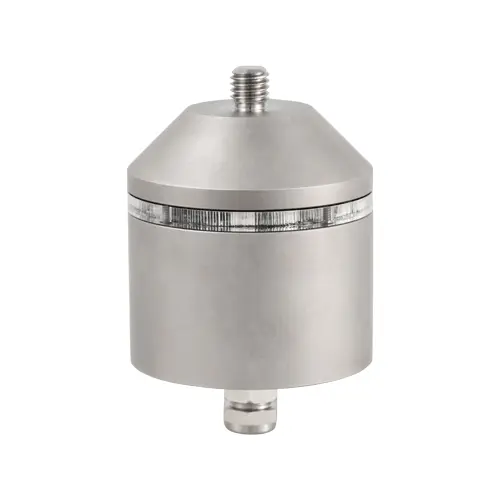

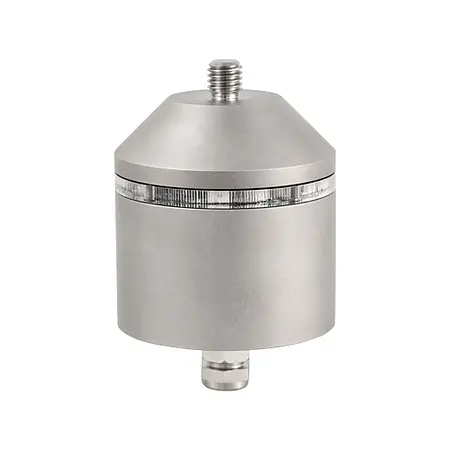

Mounting	M8 thread pin 8 mm / ≈ 0.32" length 25 mm / ≈ 0.99" Ø coupling surface

1 x PCE-VS10 vibration sensor switch
1 x USB cable
1 x PC-compatible software
1 x user manual
