Signal Converter PCE-P17U

Order no.: PCE-P17U

GTIN (EAN): 4250348710611

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

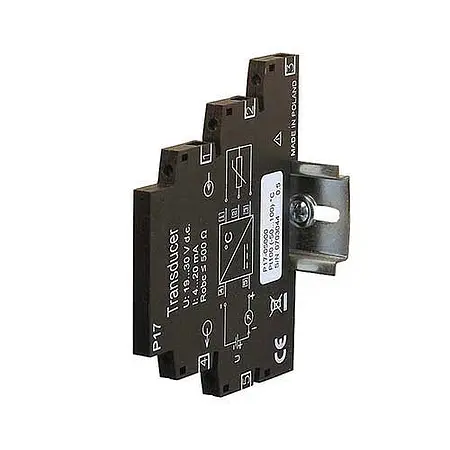

Signal Transducer PCE-P17U
Signal transducer for the conversion of 0 ... 10 V in 4 ... 20 mA/ Supply 19 ... 30 V DC/ merely 6.2 mm wide / DIN rail mounting / for all transmitters with voltage output

The signal transducer for 0 ... 10 V PCE P17U converts voltage signals into standard electricity signals. The power of the signal transducer for 0 ... 10 V is supplied via a current loop. Each sensor or transducer with 0 to 10 V output can be connect to the input of the signal transducer. The output of the signal transducer 0 to 10 V can be connect to displays, controllers or screen recorders. It should be noted that the load is no bigger than 500 Ω. Due to the small installation dimensions of only 6.2 mm, the signal transducer for 0 ... 10V signals fits onto any DIN rail mounting.

Highlights

- Converter for 0 to 10 V signals
- Power supply via electricity loop
- Low installation width
- Mounting on DIN rail
- Output 4 ... 20 mA
- Simple design

Specification

Technical Specification of the Signal Transducer PCE-P17U
Input signal	0 ... 10 V
Output signal	4 ... 20 mA
Load (RLOAD)	Max. 500 Ω
Conductor cross-section	0.2 mm ² ... 2.5 mm ² (AWG24-12)
Mounting width	6.2 mm
Power	19 ... 30 V DC
Weight	80 g
Ambient temperature	- 20 ° C ... + 65 ° C
Ambient humidity	<95% non-condensing
Dimensions	77.5 x 6.2 x 100 mm

Delivery Scope

Delivery content of the Signal Transducer PCE-P17U

1 x Signal Transducer PCE-P17U,
1 x manual
