Universal Signal Converter PCE-SCI-E

Name: Universal Signal Converter PCE-SCI-E
Brand: PCE Instruments
SKU: 5963391
Price: 272 USD
Availability: InStock

Order no.: PCE-SCI-E

GTIN (EAN): 4250348728340

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

Universal signal converter for top hat rail mounting / Measuring range 0 ... 600 V AC/DC /
Output signals in 4 ... 20 mA and 0 ... 10 V / Configurable via keypad /
Current measuring range 0 ... 5 A AC/DC / Frequency measurement

The transmitter has an adjustable measuring range of 0… 600 V AC/DC and can therefore measure a wide variety of voltages. For example, it is possible to connect the transmitter to the supply line in order to monitor the applied voltage. In addition to voltage measurement, the transmitter can also measure the current directly with a maximum adjustable measuring range of 0 … 5 A AC/DC. A current transformer can be connected to the transmitter to expand the current range. The measured value is then converted by the transmitter into a standardized analog 4 … 20 mA or 0 … 10 V signal. Thus the transmitter is the ideal extension of a process control.

Since the input and output range can be set identically, the transmitter can be used for galvanic decoupling. The transmitter is configured directly via the keypad. This means that no additional cable or software is required for the settings of the signal converter. The transmitter is mounted on a DIN rail. The transmitter is operated with a voltage of 18 … 265 V AC/DC at a frequency of 45 … 65 Hz.

Highlights

- DIN rail mounting
- Measuring range 0 ... 600 V AC/DC
- Active and passive output signal
- Display and keypad for configuration
- Frequency measurement
- Measuring range 0 ... 5 A AC/DC

Specification

Input signals
AC voltage
Adjustable measuring ranges	0 ... 1 / 2 / 10 / 15 / 30 / 60 / 100 /
	150 / 300 / 450 / 600 V AC,
	0 ... 50 / 60 / 75 / 100 / 150 /
	200 / 300 / 500 mV AC
Accuracy	<0.3 % of full range
Maximum input signal	800 V AC for the measuring ranges 10 ... 600 V AC,
	50 V AC for the measuring ranges 50 mV AC ... 2 V AC
Measuring resistance	13 MΩ for the measuring ranges 10 ... 600 V AC,
	81 KΩ for the measuring ranges 50 mV AC ... 2 V AC
Measurement type	True RMS
Protection category	CAT-II 300 V AC
DC voltage
Adjustable measuring ranges unipolar	0 ... 1 / 2 / 10 / 15 / 30 / 60 / 100 /
	150 / 300 / 450 / 600 V DC,
	0 ... 50 / 60 / 75 / 100 / 150 /
	200 / 300 / 500 mV DC
Adjustable measuring ranges bipolar	±1 / ±2 / ±10 / ±15 / ±30 / ±60 / ±100
	/ ±150 / ±300 / ±450 / ±600 V DC,
	±50 /± 60 / ±75 / ±100 / ±150 /
	±200 / ±300 / ±500 mV DC
Accuracy	<0.2 % of full range
Maximum input signal	800 V DC for the measuring ranges 10 ... 600 V DC,
	50 V DC for the measuring ranges 50 mV DC ... 2 V DC
Measuring resistance	13 MΩ for the measuring ranges 10 ... 600 V DC,
	81 KΩ for the measuring ranges 50 mV DC ... 2 V DC
Alternating current
Adjustable measuring ranges	0 ... 1 / 2 / 3 / 4 / 5 A AC,
	0 ... 5 / 10 / 20 / 50 / 75 / 300 / 500 mA AC
Accuracy	<0.3 % of full range
Maximum input signal	7 A AC for the measuring ranges
	300 mA AC ... 5 A AC (for a maximum of 7 seconds),
	150 mA AC for the measuring ranges
	5 mA AC ... 75 mA AC
Measuring resistance	20 mΩ for the measuring ranges 300 mA AC ... 5 A AC,
	3.33 Ω for the measuring ranges 5 mA AC ... 75 mA AC
Direct current
Adjustable measuring ranges	0 ... 1 / 2 / 3 / 4 / 5 A DC,
	0 ... 5 / 10 / 20 / 50 / 75 / 300 / 500 mA DC
Accuracy	<0.2 % of full range
Maximum input signal	7 A DC for the measuring ranges
	300 mA DC ... 5 A D (for a maximum of 7 seconds),
	150 mA DC for the measuring ranges
	5 mA DC ... 75 mA DC
Measuring resistance	20 mΩ for the measuring ranges 300 mA DC ... 5 A DC,
	3.33 Ω for the measuring ranges 5 mA DC ... 75 mA DC
Frequency
Adjustable measuring ranges for voltage	0 ... 100 / 45 ... 55 / 55 ... 65 Hz
Adjustable measuring ranges for current	0 ... 100 / 45 ... 55 / 55 ... 65 Hz
Accuracy	<0.2 % of full range
Reaction time
AC signals	<350 ms typically 0 ... 99 %
DC signals	<90 ms typically 0 ... 99 % without filter
	<175 ms typically 0 ... 99 % with 50/60 Hz filter
	<350 ms typically 0 ... 99 % with 50/60 Hz filter
Output signals
Active current output	4 ... 20 mA minimum 0 mA and maximum <22 mA
Passive current output	4 ... 20 mA maximum 30 V DC
Voltage output	0 ... 10 V DC
	minimum 0 V DC and maximum <11 V DC
Load resistance	current output maximum <400 Ω
	voltage output minimum >1 KΩ

Further specifications
All accuracies relate to an ambient temperature of 25 °C / 77 °F
Thermal drift	150 ppm / °C
Power supply	18 ... 265 V AC/DC isolated
	( 20 ... 240 V AC/DC ±10 %)
Frequency	45 ... 65 Hz
Power consumption	<1.5 W
Conductor cross-section	1 ... 2.5 mm²
Overvoltage category	CAT-II
Isolation	3000 Vrms for 60 seconds
Protection class	IP30
Impact protection	IK06
Operating conditions	0 ... 50 °C / 32 ... 122 °F, 0 ... 95 % RH, non-condensing
Storage conditions	-20 ... 70 °C / -4 ... 158 °F, 0 ... 95 % RH, non-condensing
Warm-up time	15 minutes
Maximum working height	2000 meters / 6561 feet
Mounting	standard DIN rail 35 x 7.5 mm / 1.3 x 0.3"
Connection	plug-in screw terminal (grid 5.08 mm / 0.2")
Housing material	polyamide V0
Dimensions	106 x 108 x 22.5 mm / 4.1 x 4.2 x 0.9"
Weight	<150 g / 5.3 oz

Delivery Scope

1 x Universal Signal Converter PCE-SCI-E
1 x User manual

Downloads

Manual

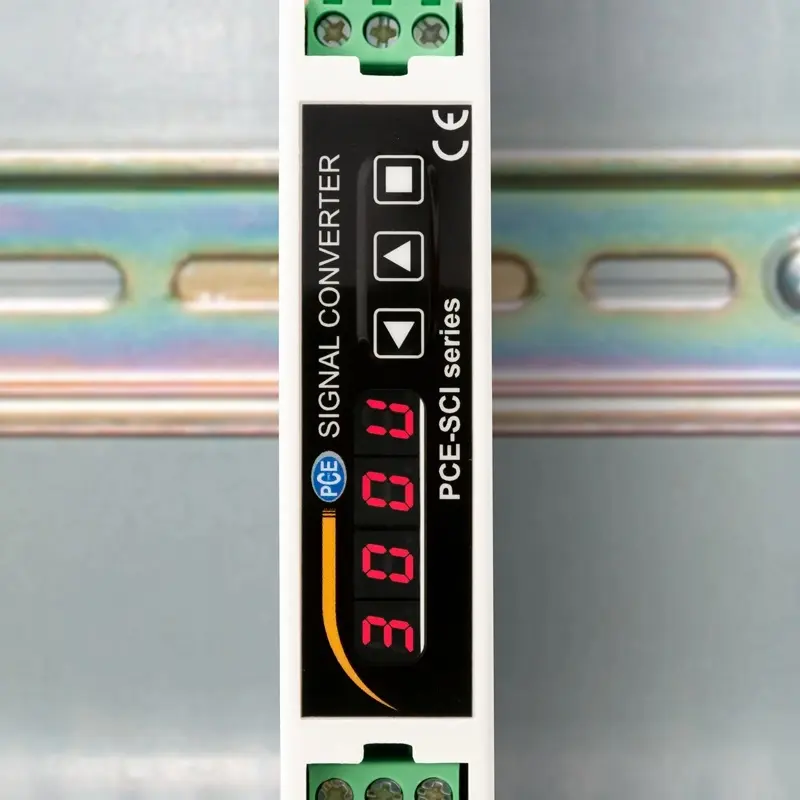

Universal Signal Converter PCE-SCI-E

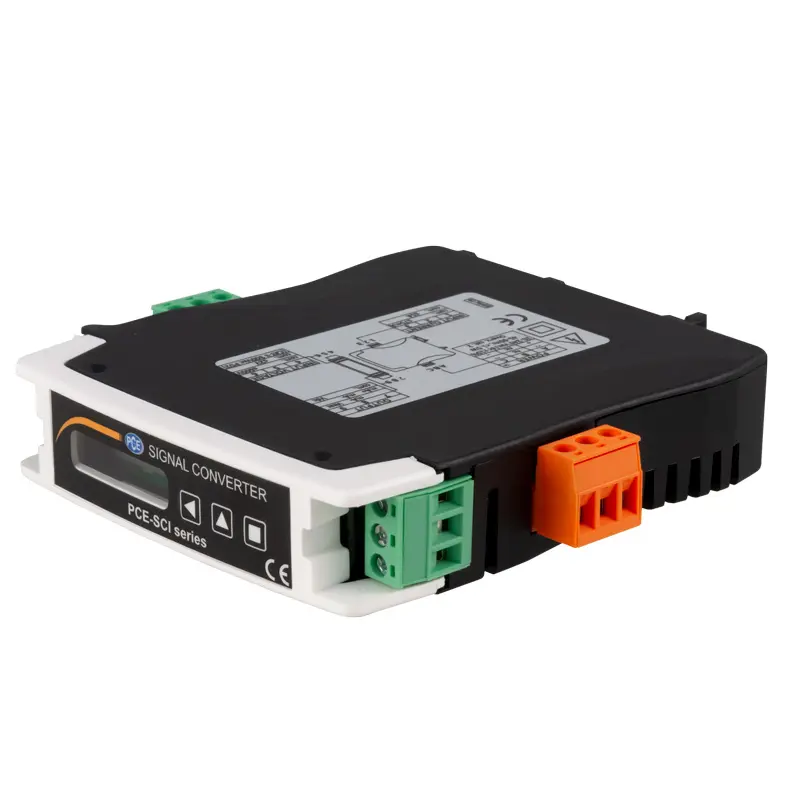

Universal Signal Converter PCE-SCI-E application

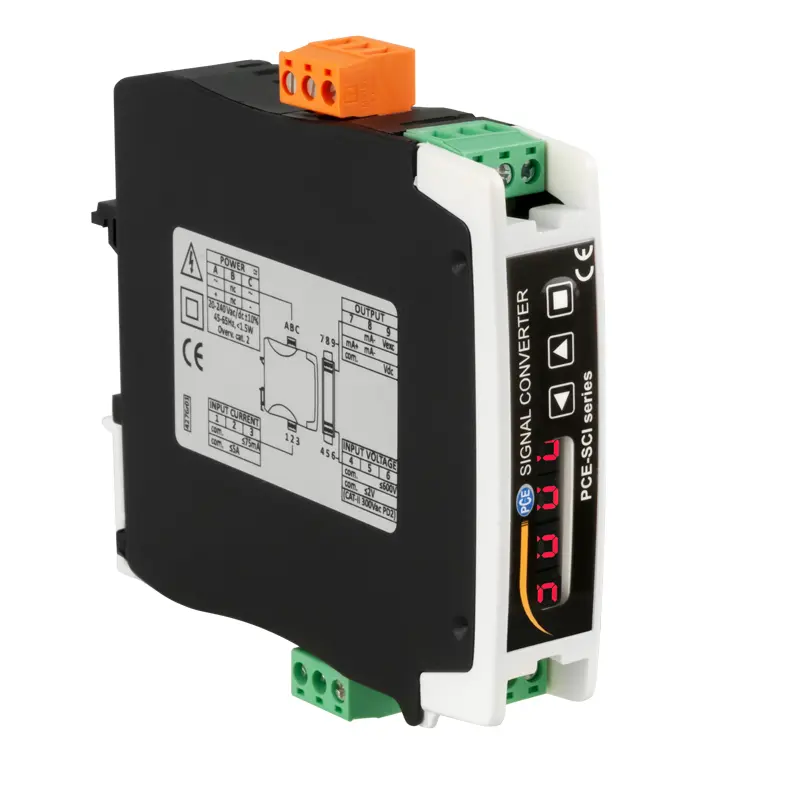

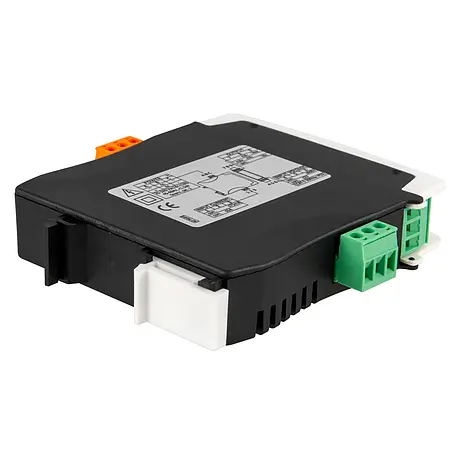

Universal Signal Converter PCE-SCI-E connections

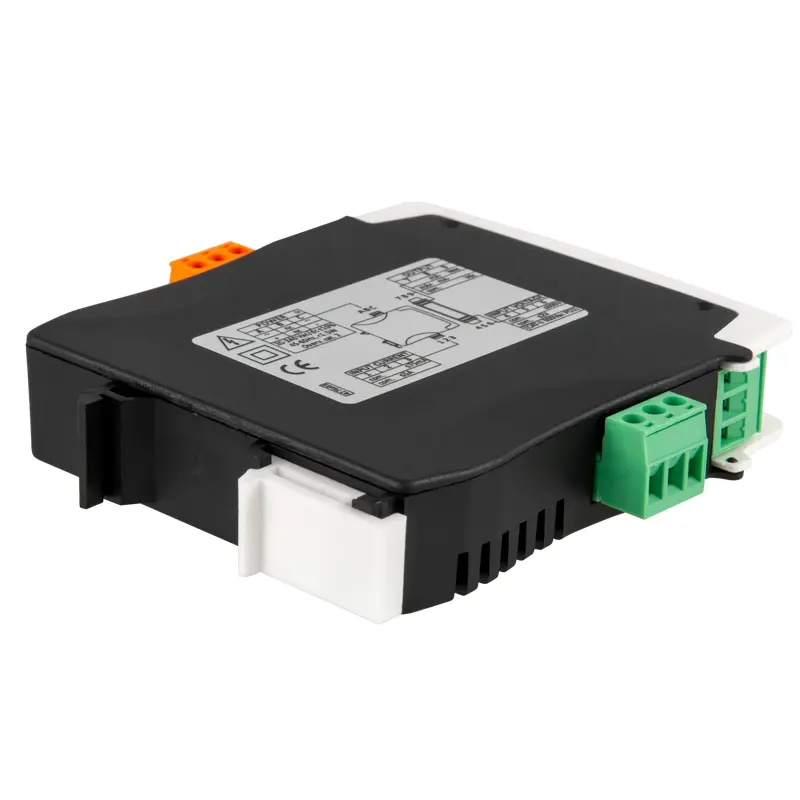

Universal Signal Converter PCE-SCI-E connections

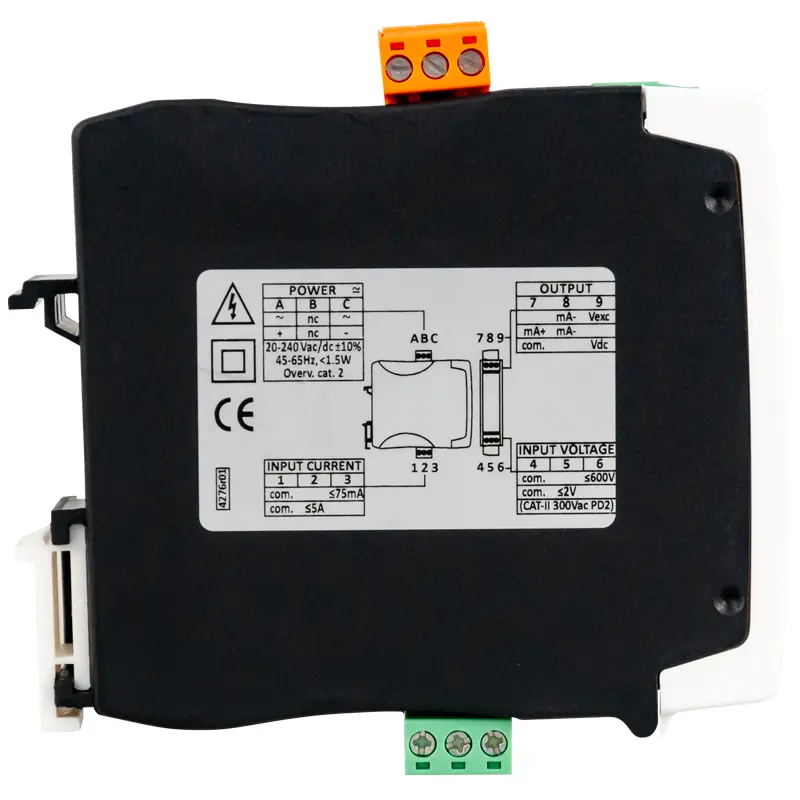

Universal Signal Converter PCE-SCI-E connection diagram
