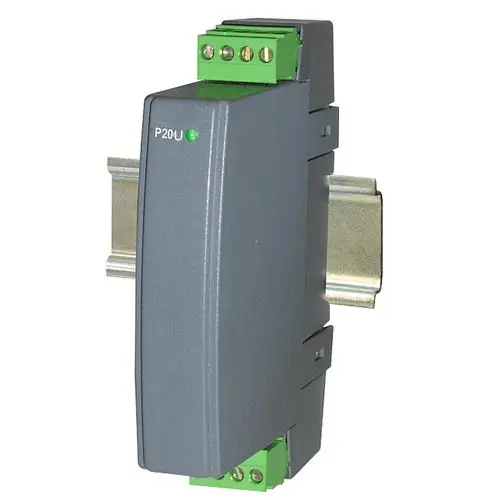

Current Transmitter PCE-P20Z Alternating Current

Order no.: PCE-P20Z

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Programming adaptor PCE-PD14

US$ 92.00

Description

Current converter PCE-P20Z for alternating current / 1 A or 5 A input / RMS measurement / 0 ... 20 mA or 0 ... 10 V output / different supply voltages / DIN rail

The PCE-P20Z current transmitter measures currents and converts them into a standard signal. This makes it possible to precisely determine the most diverse currents with the current transmitter. The current transmitter has an RMS input for up to 5 A AC. The input of the current transmitter is able to perform direct current measurements. However, it is also not a problem to connect current transformers to the current transmitter. This makes it possible to convert currents of several hundred amperes to a signal which can be processed for control technology. The output is 0 ... 10 V. The power supply voltage of the current transmitter is 85 ... 250 V AC / DC or 20 ... 40 V AC / DC.

Highlights

- RMS Measurement
- Output: 0 ... 10 V / 4 ... 20 mA
- Various supply voltages
- Compact DIN rail mounting
- 1 A or 5 A input
- For direct or indirect current measurement
- Current transformer connectable
- Easy to operate

Specification

Technical Specification Current Transmitter PCE-P20Z
Input	1 A AC 5 A AC
Accuracy class	0.2
Frequency class	45 ... 500 Hz
Output (selectable)	0 ... 10 V 4 ... 20mA
Dimensions	22.5 x 120 mm 100 mmm
Assembly	DIN rail mounting 35 mm
Protection class	IP 50
Supply voltage (selectable)	85 ... 253 V AC / DC 20 ... 40 V AC / DC
Power consumption	4 VA
Environmental conditions	-20 ... 55 °C / < 95 % r.H.
Maximum cable cross section	1.5 mm²

Delivery Scope

Delivery Scope

1 x Current transmitter PCE-P20Z Alternating Current
1 x User manual
