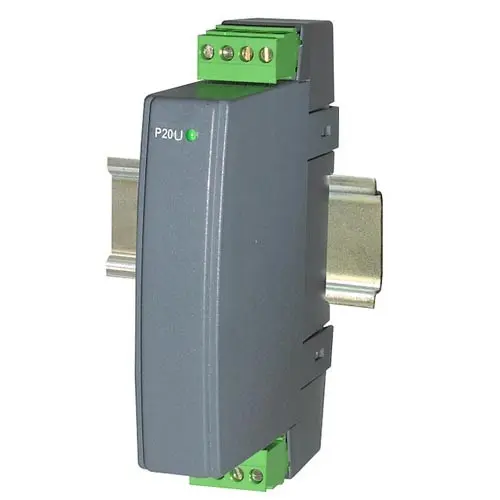

Voltage Transmitter PCE-P20Z AC Voltage

Order no.: PCE-P20Z

GTIN (EAN):

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Programming adaptor PCE-PD14

US$ 92.00

Description

Voltage converter PCE-P20Z for alternating voltage The PCE-P20Z voltage transmitter measures voltages up to 600 V AC and converts this into a standard signal. Depending on the version, the voltage converter PCE-P20Z can measure voltages up to 250 V AC, 400 V AC or 600 V AC and outputs a 4 ... 20 mA standard signal. Depending on the model, the supply voltage of the transmitters is either 85 ... 253 V AC / DC or 20 ... 40 V AC / DC. The installation is simple: the voltage transmitter can be easily attached to a 35 mm DIN rail. The standard signals output by the measuring transducer can then be processed with the aid of controllers or screen recorders.

Highlights

- RMS Measurement of voltages up to 600 V AC
- Output: 4 ... 20 mA Standard signal
- Various supply voltages
- Compact DIN rail mounting
- IP 50
- Current transformer connectable
- Easy to operate

Specification

Technical specifications
Inputs (max)	100 VAC 250 VAC 400 VAC 600 VAC
Accuracy class	0.2
frequency	45 ... 500 Hz
exit	4 ... 20 mA 0 ... 10V
Dimensions	22.5 mm x 120 mm x 100 mm / 0.8 x 4.7 x 3.9 in
Assembly	DIN rail mounting 35 mm
Protection class	IP 50
Supply voltage	85 ... 253 V AC / DC 20 ... 40 V AC / DC
Power consumption	4 VA
Environmental conditions	-20 ... +55 °C / -4 ... 131 °F / <95% rh
Maximum cable cross section	1.5 mm²

Delivery Scope

Delivery Scope

1 x Voltage transmitter PCE-P20Z AC Voltage
1 x User manual
