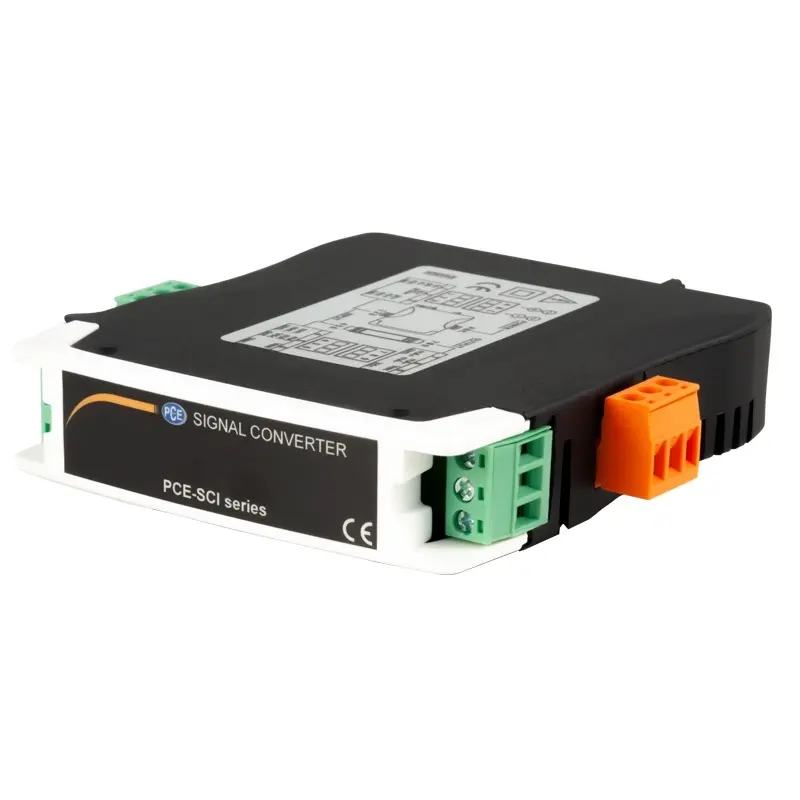

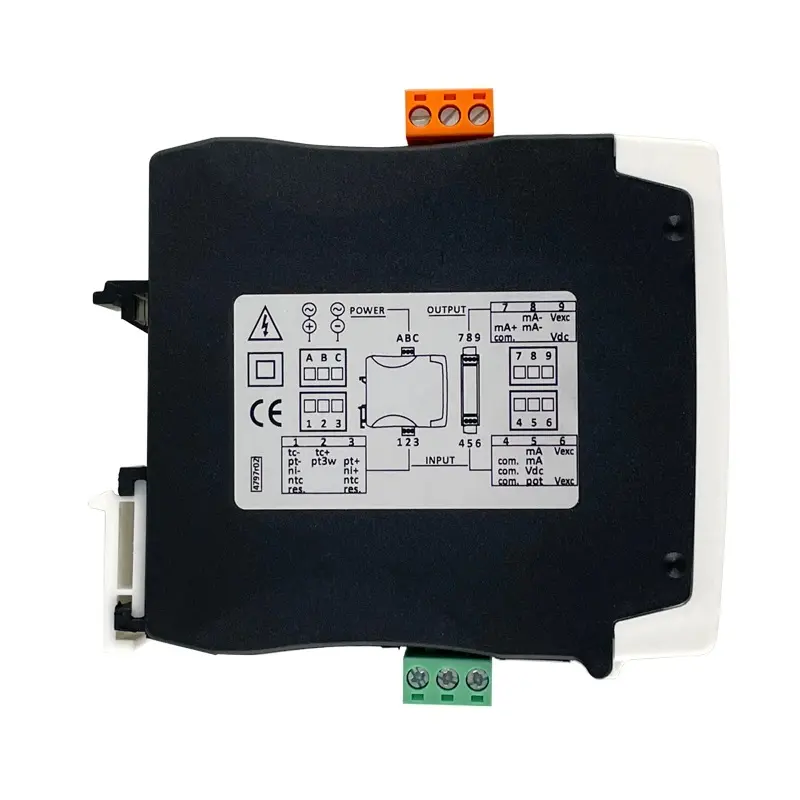

Input |
Measuring range |
Accuracy |
Overload |
|
|
|
|
Process current |
4 ... 20 mA |
< 0.3% of measuring range |
max. 25 mA |
Process voltage |
0 ... 10 V |
< 0.3% of measuring range |
max. 25 V DC |
|
|
|
|
Potentiometer 0 ... 100 % |
0 ... 500 Ω
|
< 1% of measuring range |
|
|
0 ... 20 kΩ |
|
|
|
|
|
|
Resistance |
0 ... 2.5 kΩ
|
< 1% of measuring range |
|
|
0 ... 5 kΩ
|
|
|
|
0 ... 10 kΩ
|
|
|
|
0 ... 25kΩ
|
|
|
|
0 ... 50 kΩ
|
|
|
|
0 ... 100kΩ |
|
|
|
|
|
|
NTC(R25=10K; β=3500) |
-60 ... 90 °C / -76 ... 194 °F |
<1% of measuring range |
|
NTC (44006) |
-60 ... 90 °C / -76 ... 194 °F |
|
|
|
0 ... 90 °C / 32 ... 194 °F |
|
|
|
|
|
|
Thermoelement Type J |
0 ... 150 °C / 32 ... 302 °F
|
<0.5% of measuring range |
|
|
0 ... 300 °C / 32 ... 572 °F
|
|
|
|
0 ... 450 °C / 32 ... 842 °F
|
|
|
|
0 ... 600 °C / 32 ... 1112 °F
|
|
|
|
0 ... 800 °C / 32 ... 1472 °F
|
|
|
|
0 ... 1000 °C / 32 ... 1832 °F
|
|
|
|
0 ... 1200 °C / 32 ... 2192 °F |
|
|
|
|
|
|
Thermoelement Type K |
0 ... 150 °C / 32 ... 302 °F
|
<0.5 % of measuring range |
|
|
0 ... 300 °C / 32 ... 572 °F
|
|
|
|
0 ... 450 °C / 32 ... 842 °F
|
|
|
|
0 ... 600 °C / 32 ... 1112 °F
|
|
|
|
0 ... 800 °C / 32 ... 1472 °F
|
|
|
|
0 ... 1000 °C / 32 ... 1832 °F
|
|
|
|
0 ... 1350 °C / 32 ... 2192 °F |
|
|
|
|
|
|
Thermoelement Type N |
0 ... 150 °C / 32 ... 302 °F
|
<1 % of measuring range |
|
|
0 ... 300 °C / 32 ... 572 °F
|
|
|
|
0 ... 450 °C / 32 ... 842 °F
|
|
|
|
0 ... 600 °C / 32 ... 1112 °F
|
|
|
|
0 ... 800 °C / 32 ... 1472 °F
|
|
|
|
0 ... 1000 °C / 32 ... 1832 °F
|
|
|
|
0 ... 1300 °C / 32 ... 2192 °F |
|
|
|
|
|
|
Thermoelement Type E |
0 ... 150 °C / 32 ... 302 °F
|
<0.5 % of measuring range |
|
|
0 ... 300 °C / 32 ... 572 °F
|
|
|
|
0 ... 450 °C / 32 ... 842 °F
|
|
|
|
0 ... 600 °C / 32 ... 1112 °F
|
|
|
|
0 ... 900 °C / 32 ... 1652 °F |
|
|
|
|
|
|
Thermoelement Type T |
0 ... 100 °C / 32 ... 212 °F
|
<1 % of measuring range |
|
|
0 ... 200 °C / 32 ... 392 °F
|
|
|
|
0 ... 300 °C / 32 ... 572 °F
|
|
|
|
0 ... 400 °C / 32 ... 752 °F |
|
|
|
|
|
|
Thermoelement Type R |
0 ... 900 °C / 32 ... 1652 °F
|
<2 % of measuring range |
|
|
0 ... 1200 °C / 32 ... 2192 °F
|
|
|
|
0 ... 1500 °C / 32 ... 2732 °F
|
|
|
|
0 ... 1750 °C / 32 ... 3182 °F |
|
|
|
|
|
|
Thermoelement Type S |
0 ... 900 °C / 32 ... 1652 °F
|
<2 % of measuring range |
|
|
0 ... 1200 °C / 32 ... 2192 °F
|
|
|
|
0 ... 1500 °C / 32 ... 2732 °F
|
|
|
|
0 ... 1750 °C / 32 ... 3182 °F |
|
|
|
|
|
|
Pt100 (2- & 3-wire) |
-200 ... 200 °C / -328 ... 392 °F
|
<0.5 % of measuring range |
|
|
-100 ... 100 °C / -148 ... 212 °F
|
|
|
|
-50 ... 50 °C / -58 ... 122 °F |
|
|
|
|
|
|
|
0 ... 100 °C / 32 ... 212 °F
|
<0.3% of measuring range |
|
|
0 ... 200 °C / 32 ... 392 °F
|
|
|
|
0 ... 300 °C / 32 ... 572 °F
|
|
|
|
0 ... 400 °C / 32 ... 752 °F
|
|
|
|
0 ... 500 °C / 32 ... 932 °F
|
|
|
|
0 ... 600 °C / 32 ... 1112 °F
|
|
|
|
0 ... 700 °C / 32 ... 1292 °F |
|
|
|
|
|
|
Pt500 |
-150 ... 150 °C / -238 ... 302 °F
|
<1 % of measuring range |
|
|
0 ... 300 °C / 32 ... 572 °F
|
|
|
|
0 ... 630 °C / 32 ... 1166 °F |
|
|
|
|
|
|
Pt1000 |
-150 ... 150 °C / -238 ... 302°
|
<1 % of measuring range |
|
|
0 ... 300 °C / 32 ... 572 °F
|
|
|
|
0 ... 630 °C / 32 ... 1166 °F |
|
|
|
|
|
|
Ni100 |
-60 ... 180 °C / -76 ... 356 °F |
<1% of measuring range |
|
Ni1000 |
-60 ... 180 °C / -76 ... 356 °F |
<1% of measuring range |
|
|
|
|
|
Temperature drift |
150 ppm/°C |
Response time |
300 ms ( 0 ... 99 % of measuring range) |
Output |
Active: 4 ... 20 mA; max. load 400 Ω |
|
Passive: 4 ... 20 mA; max. 30 V loop voltage |
|
0 ... 10 V ; max. load 1 kΩ |
Settings
|
internal buttons |
Display |
internal LED display |
Power supply |
18 ... 265 V AC/DC / 45 ... 65 Hz |
Power consumption |
< 1.5 W |
Connectable cable cross-section |
1 ... 2.5 mm² |
Protection category |
2 |
Isolation |
2300 Vrms (max 60 s) |
Degree of protection |
IP30 |

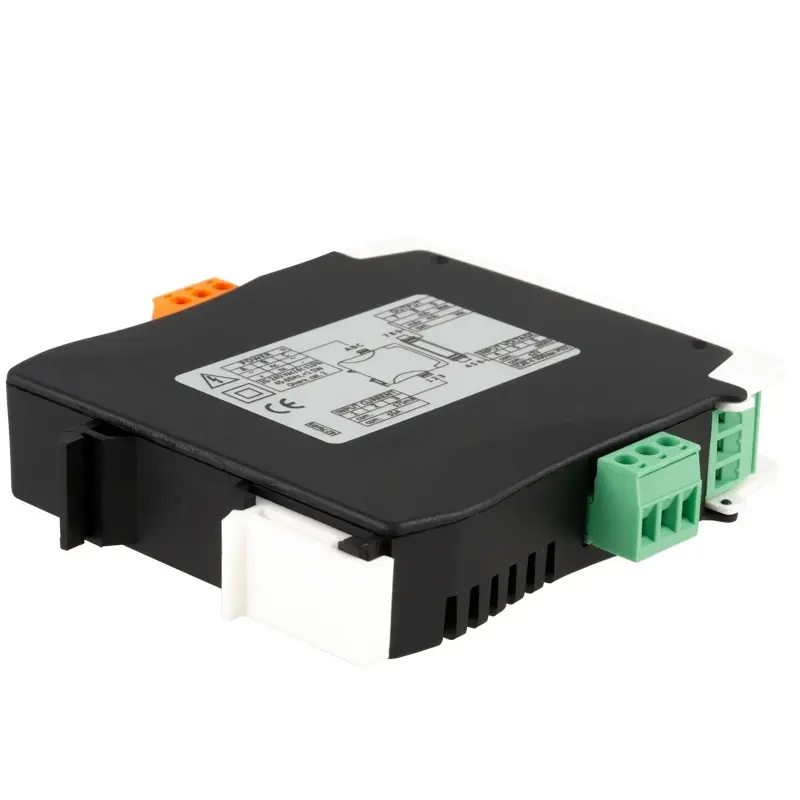

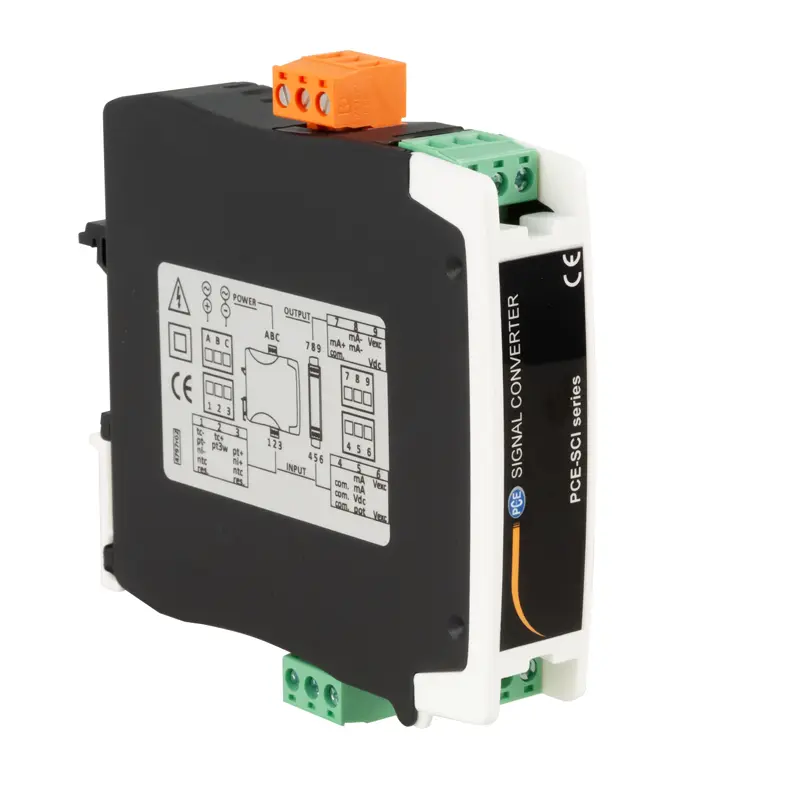

Mounting |

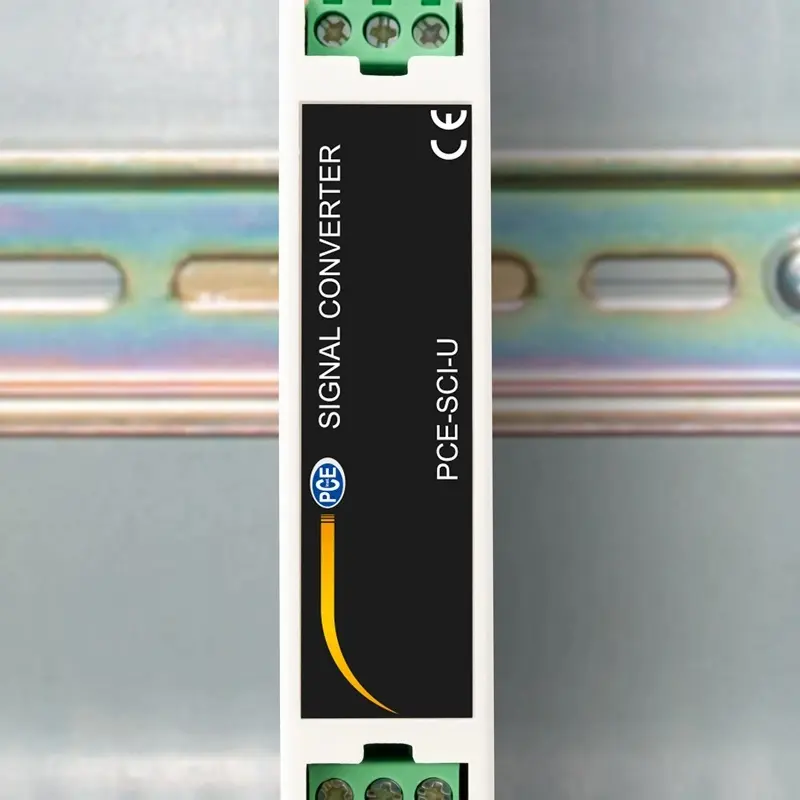

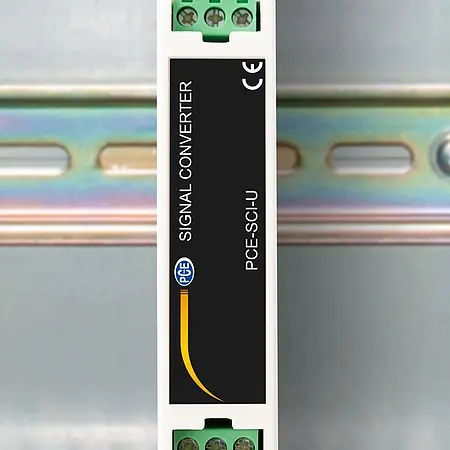

35 mm DIN rail mounting |
Operating conditions |
0 ... 50 °C / 32 ... 122 °F / non-condensing |
Storage conditions |
-20 ... 70 °C / -4 ... 158 °F / non-condensing |
Heating-up time |
ca. 15 min. |
Dimensions |
106 x 108 x 22.5 mm / 4.2 x 4.3 x 0.9" |
Weight |
ca. 150 g / < 1 lb |
|
|
