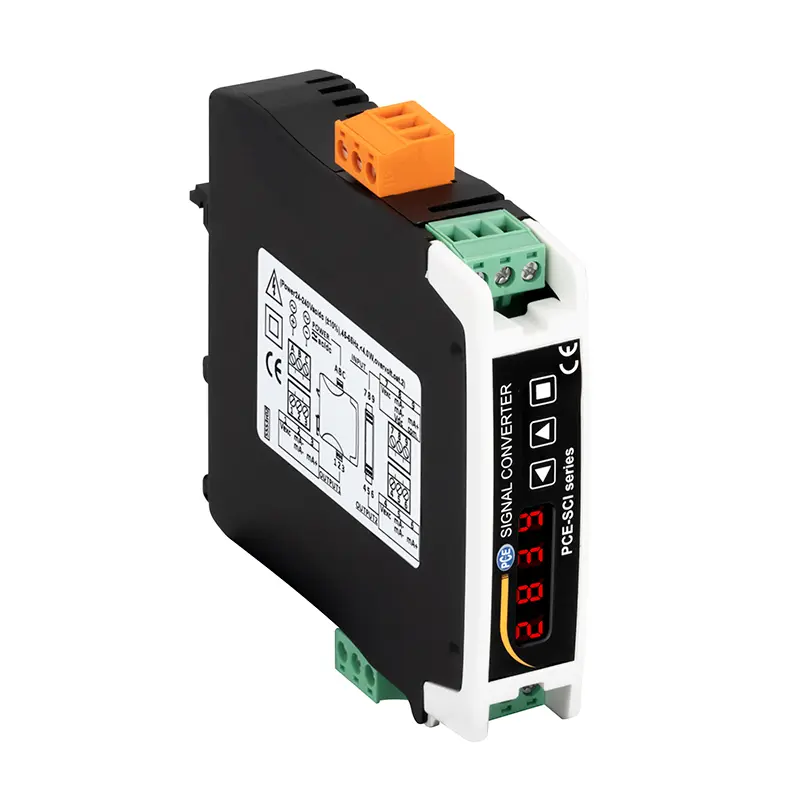

The configurable universal measuring transducer for electrical signals is a signal doubler and signal converter for process signals. A 4 ... 20-mA and 0 ... 10V DC signal can be applied to the input. The configurable universal transmitter for electrical signals supplies excitation voltage if required. It has 2 outputs, whereby output 1 can be set to 4 ... 20-mA and output 2 to 4 ... 20-mA or 0 ... 10V DC. It also has quadruple isolation between power supply, input signal, output 1 and output 2.

Circuit isolation prevents ground loops and propagation of voltage spikes, protecting equipment and signal integrity. Configuration system (numbers and keypad) are accessible behind the front cover and offer easy and quick configuration. The signal duplicator has a "password" function to block access to the configuration. The configurable universal transmitter for electrical signals is designed for industrial use, with the possibility of integration into a variety of applications, reduced costs, excellent quality and optional customization of the device for individual use.
