Magnetometer PCE-MFM 2400+

Order no.: PCE-MFM 2400+
GTIN (EAN): 4250348722539
US$ 1,039.00
ex. VAT, ex. delivery costs
:
4250348722539
PCE-MFM 2400+
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

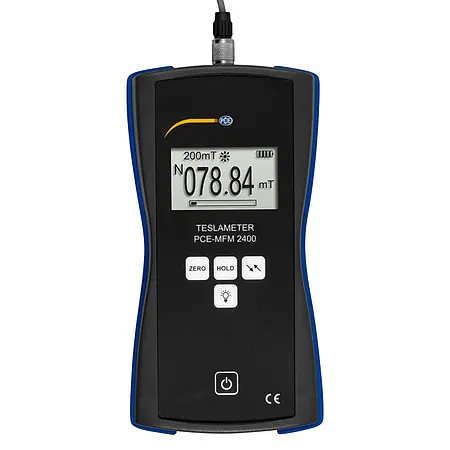

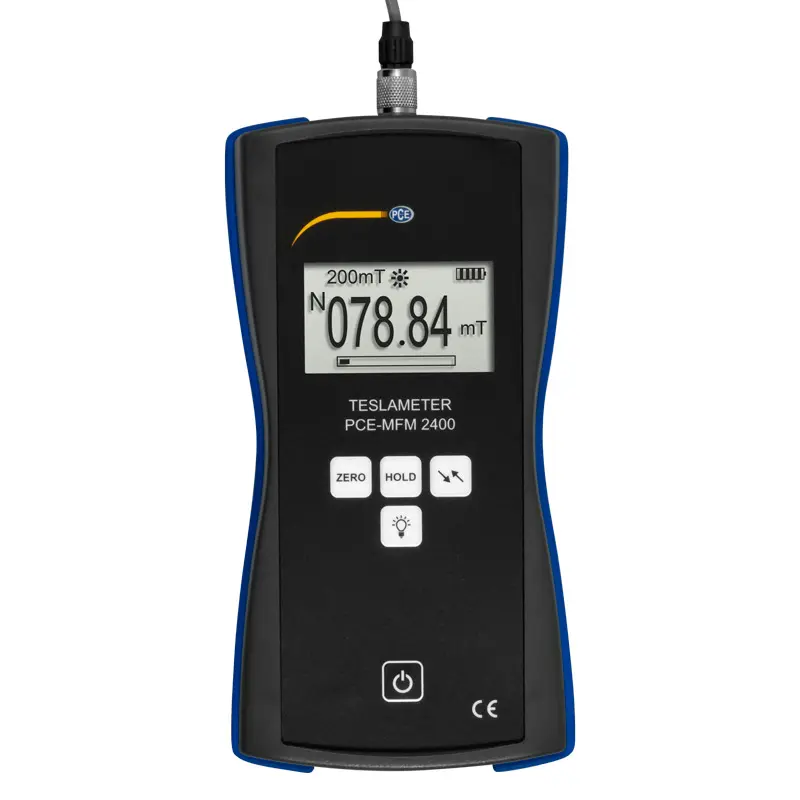

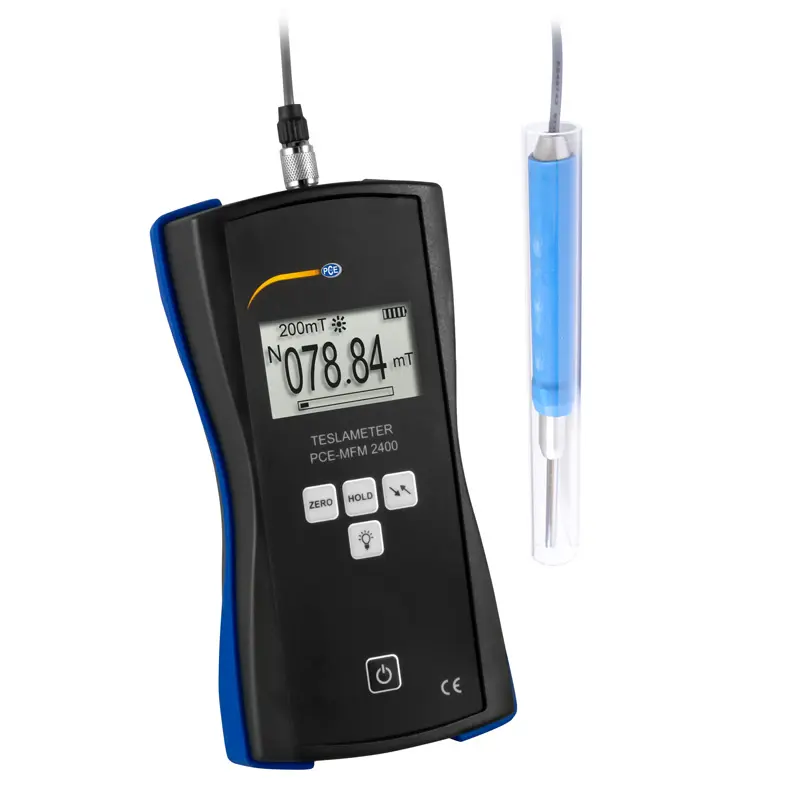

Magnetometer PCE-MFM 2400+
Precise magnetic field meter with an accuracy of 1% /
Automatic shutdown / Axial measurement / Background lighting /
Tesla and Gaussian measurements / For static magnetic fields


With a measuring range of 2,400 mT, the magnetometer covers a wide range of measuring tasks. The magnetometer has an accuracy of 1%. This makes the magnetometer a very precise measuring device. For example, relays and permanent magnets can be tested for the existing magnetic field with the magnetometer. The magnetometer is used in production processes or in quality control.

With the backlighting of the magnetometer, the measured values are always easy to read, even in poor lighting. Thanks to the automatic switch-off function, the magnetometer switches itself off automatically after 5 minutes. This ensures that the magnetometer's battery does not discharge completely.

Highlights

- Very precise measurement technology
- Measuring range up to 24,000 G and 2,400 mT

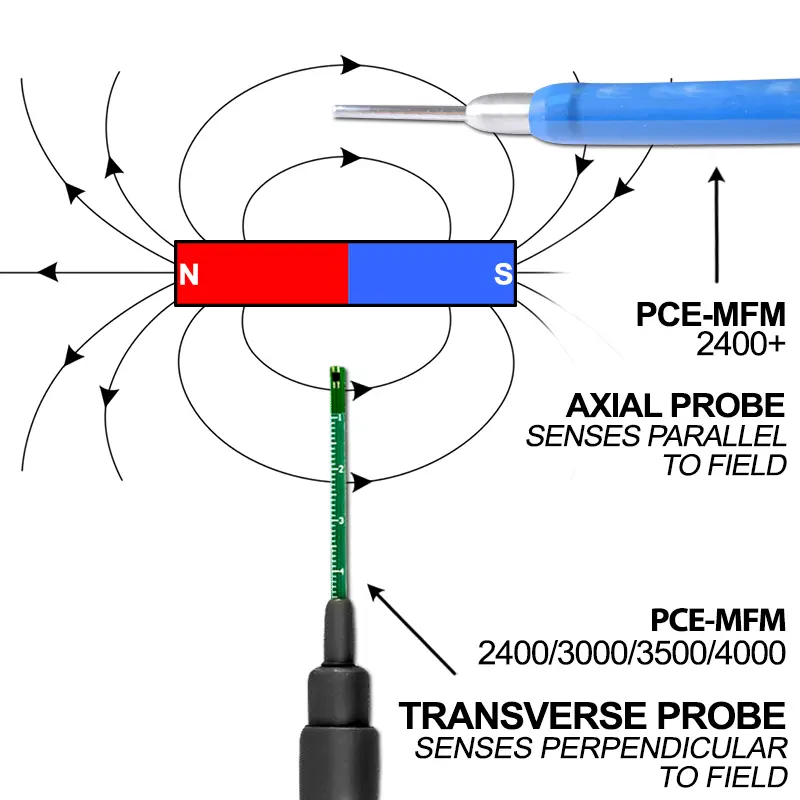

- Axial sensor
- For measuring static magnetic fields
- Automatic shutdown

Specification

Measuring range 0… 200 mT
  200… 2,400 mT
  0 ... 2,000 G
  2,000 ... 24,000 G

Accuracy ± 1% of reading

Resolution 0.01 mT
  0.1 g

Measuring direction Axial
Magnetic field Static (DC)
Unit mT, G
Power supply 1 x 9V block battery
Automatic shutdown    Automatic shutdown after 5 minutes in idle status
Modes Hold mode, measurement mode

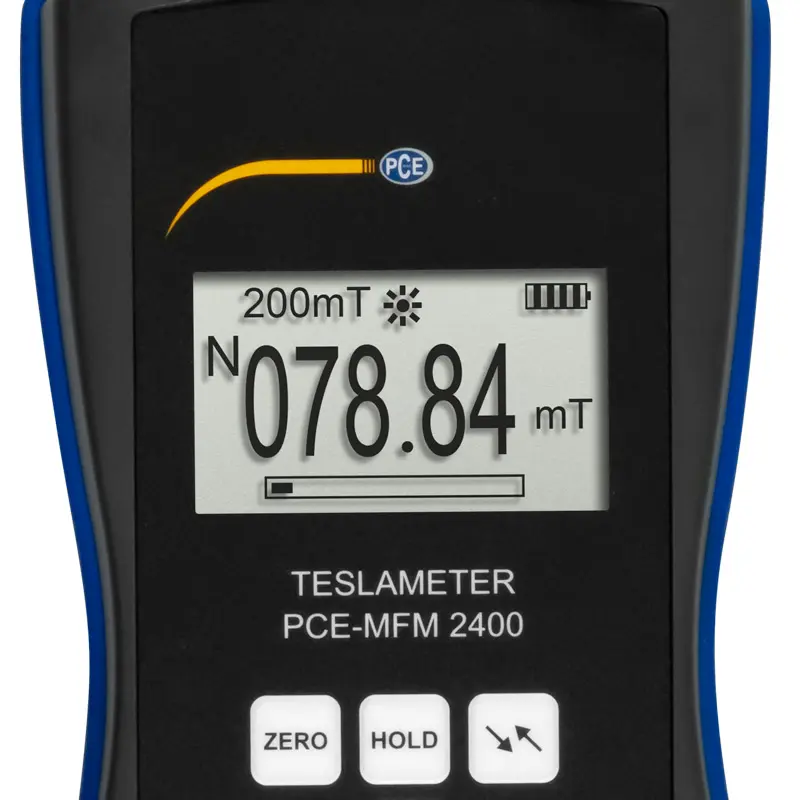

Display Backlight digital 4-digit value display
Operating temperature         0… 50°C / 32 ... 122°F
Storage temperature-20… 50°C / -4 ... 122°F
Dimensions 185 x 97 x 40 mm / 7.28 x 3.82 x 1.57 inch
Weight310 g / < 1 lb

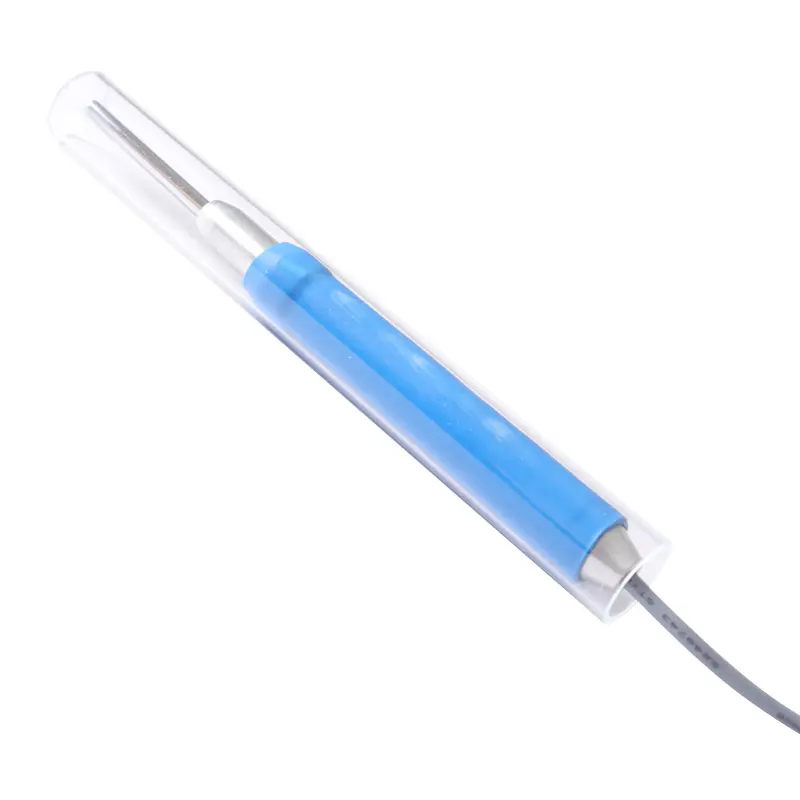

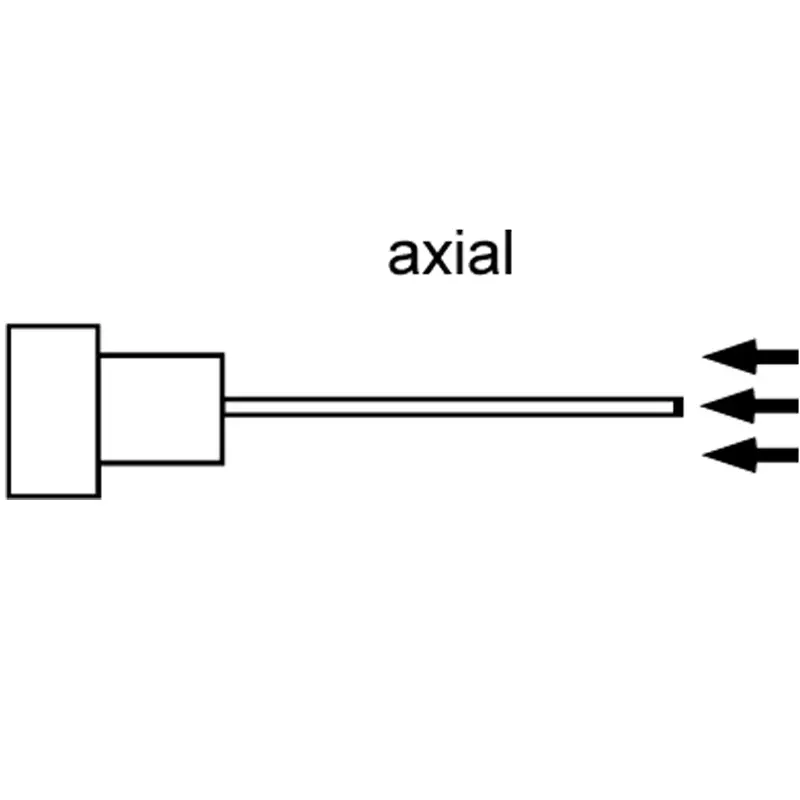

Sensor Hall sensor axial, cable length approx. 2 m / 6.6 ft

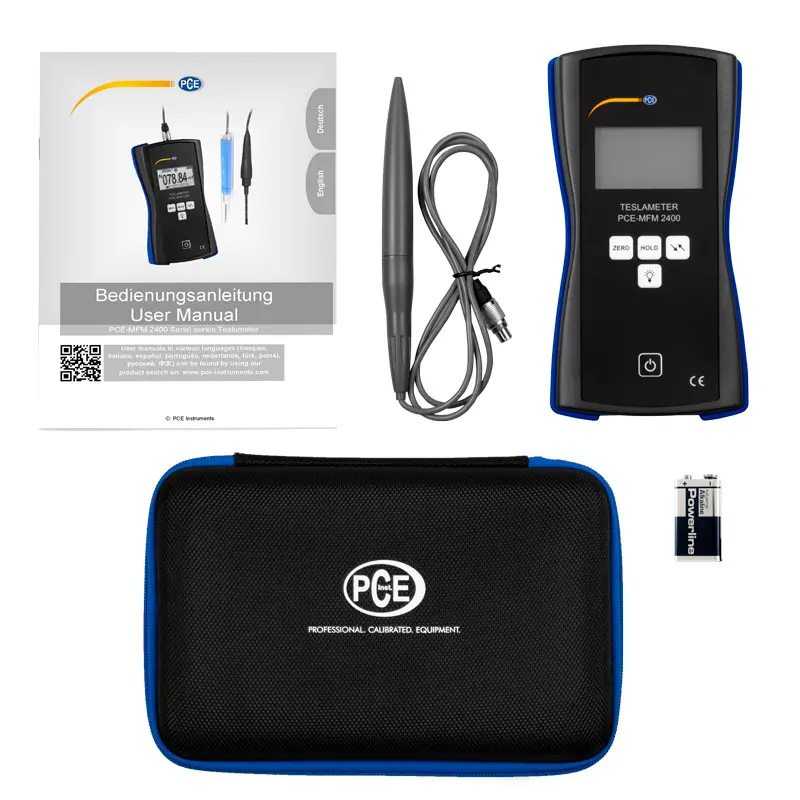

Delivery Scope

1 x Magnetometer PCE-MFM 2400+
1 x Hall sensor (axial)
1 x Service bag
1 x 9V block battery
1 x Instruction manual
