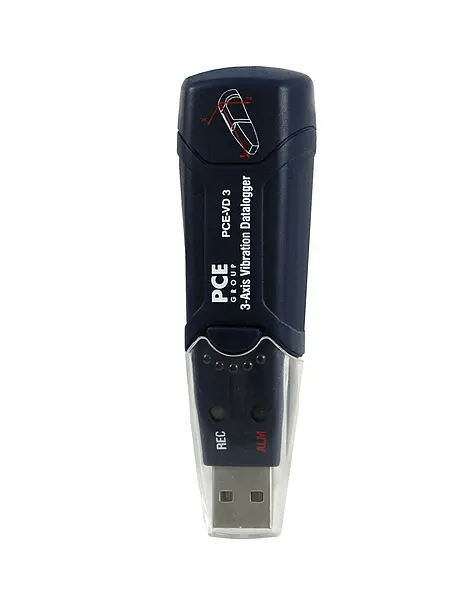

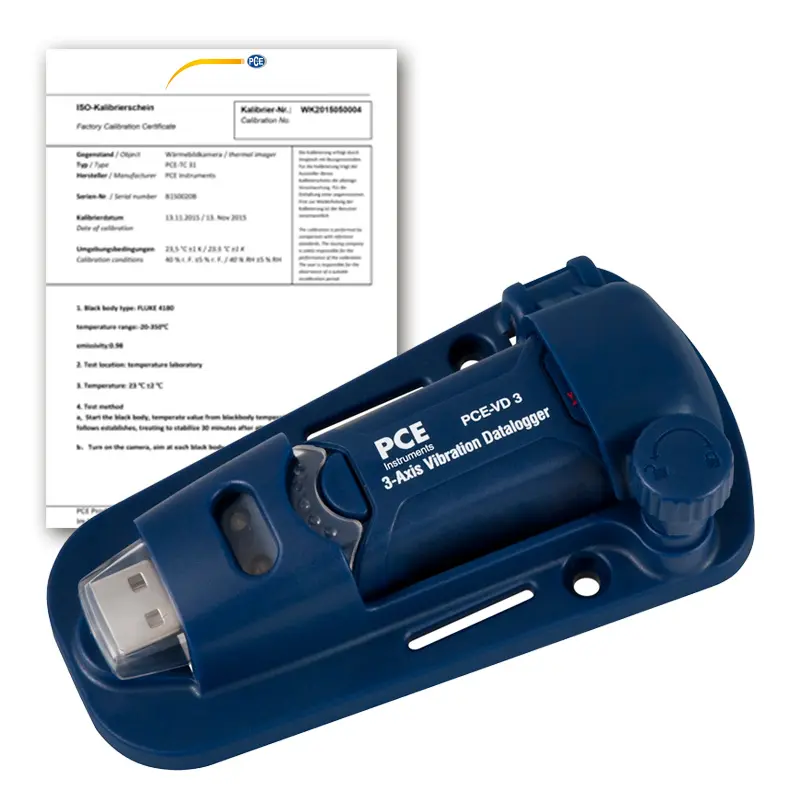

PCE-VD 3-ICA Accelerometer incl. ISO Calibration Certificate
Measures 3-axis shock / Built-in accelerometer sensor / Logs and stores up to 168,042 records / Adjustable recording interval from 50 ms ... 12 hours / Connects to PC via USB port

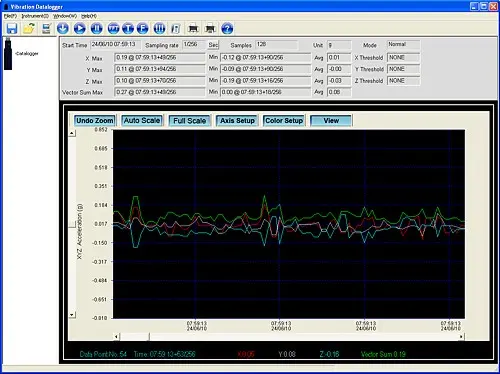

PCE-VD 3 is a Accelerometer that measures 3-axis shock/vibration via a built-in accelerometer sensor. This vibration data logger records 3-axis acceleration (X, Y, Z) vibration measurement data for Fast Fourier Transform (FFT) waveform analysis. The vibration data logger connects to your PC via a USB port for configuration and for quick and easy data transfer.

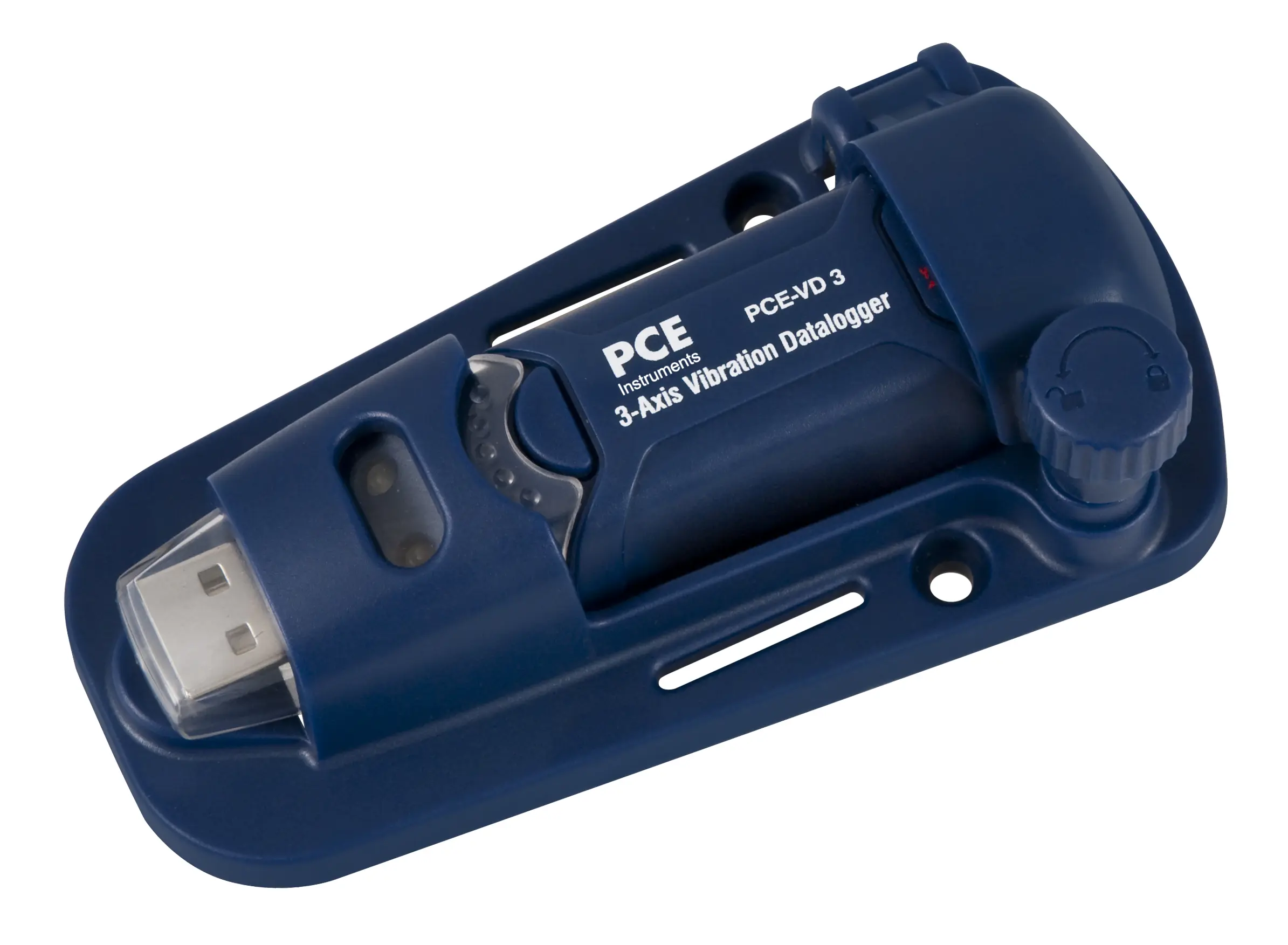

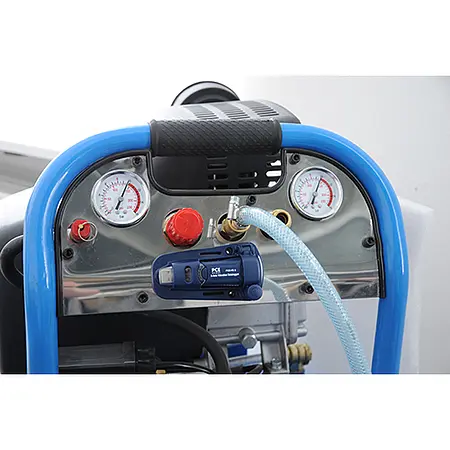

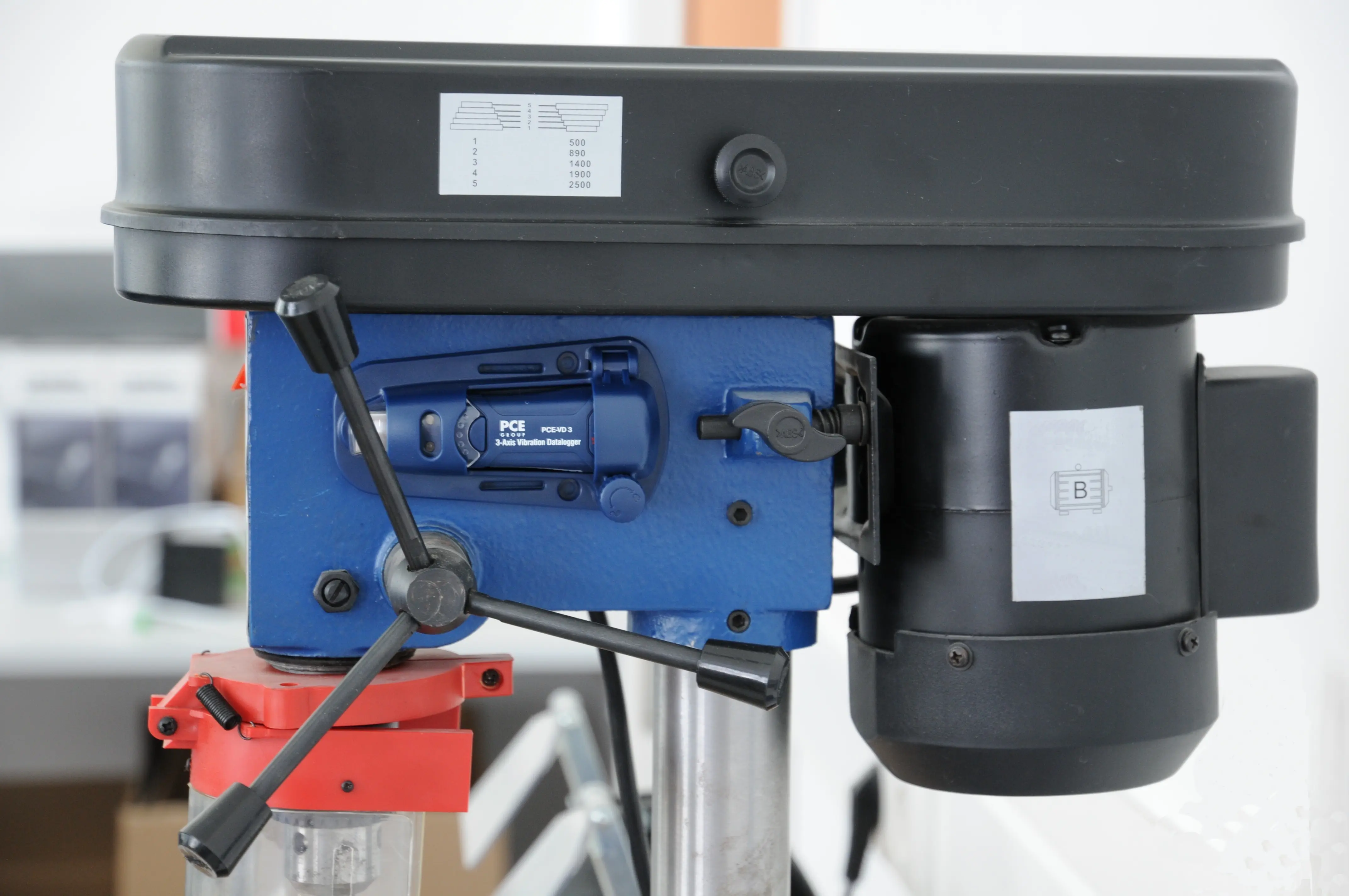

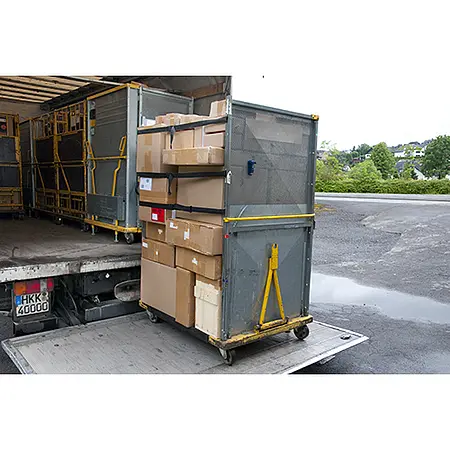

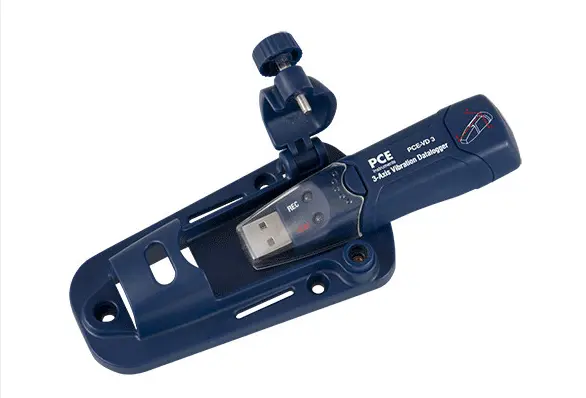

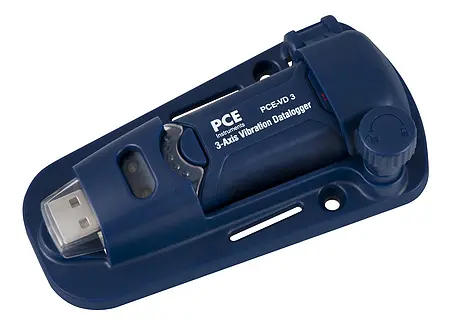

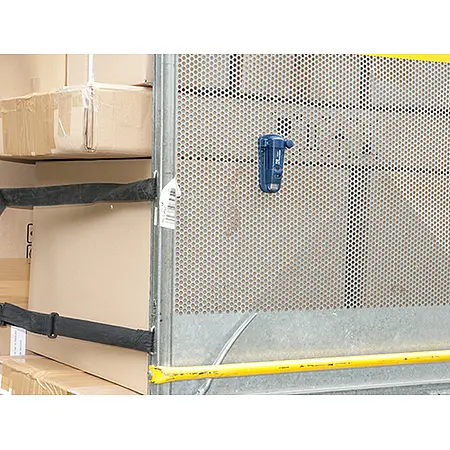

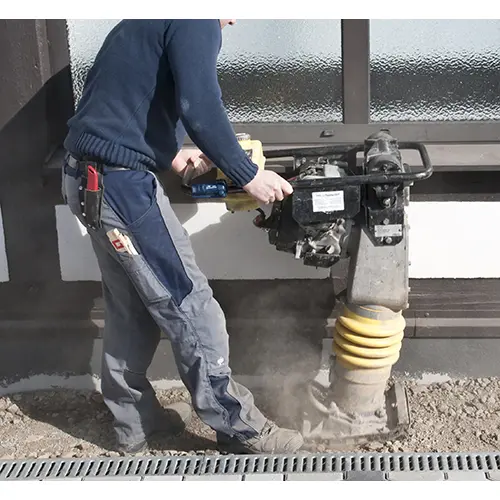

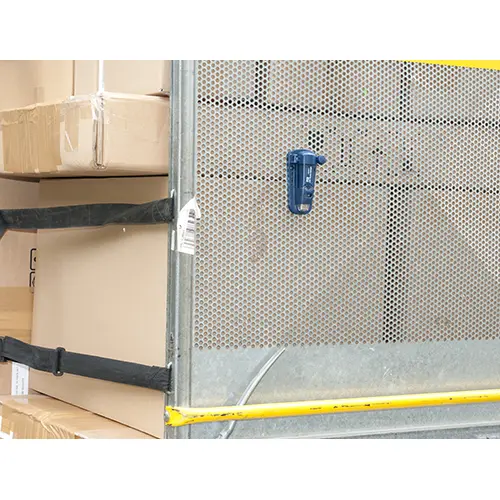

The vibration data logger can be placed almost anywhere due to its lightweight design and magnetic/wall-mounting bracket. The vibration data logger has many practical applications. It can be used for monitoring vibration during shipping, machine operation and more.
Note: The PCE-VD 3 vibration data logger must be configured with a PC before it will operate. Please follow the instructions in the user manual to program the device accordingly.
| Measurement range | ±16 g |
| Accuracy | ± 0.5 g |
| Resolution | 0.004 g |
| Frequency range | 0 ... 60 Hz |
| Memory | 8 Mbit |
| normal measuring mode: 168042 records | |
| motion detection: 112028 records | |
| Measurement rate / Record interval |
50 ms ... 12 hours |
| Power supply | 1 x 3.6 V, 1/2 AA, 14250, battery |
| Power consumption | ca. 2.8 mA during a measurement |
| <1.5 µA idle | |
| Battery life | ca. 400 hours |
| Status display |
via 2 LEDs (recording in progress / alarm) |
| Interface | USB |
| Operating conditions | 0 ... 40 ºC (32 ... 104 ºF), 10 ... 75 % RH non-condensing |
| Storage conditions | -10 ... 60 °C (14 ... 140 °F), 10 ... 90 % RH, non-condensing |
| Dimensions of device |
95 x 28 x 21 mm / 3.7 x 1.1 x 0.8" |
| Dimensions of wall bracket | 106 x 56 x 33.5 mm / 4.2 x 2.2 x 1.3" |
| Weight |
25 g / 0.88 oz |
