Air Flow Meter KWG1

Order no.: KWG1
GTIN (EAN):
US$ 117.00
ex. VAT, ex. delivery costs
KWG1
Available in: 1-2 days
Speed
Cup vane
No
Yes (Hz output)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

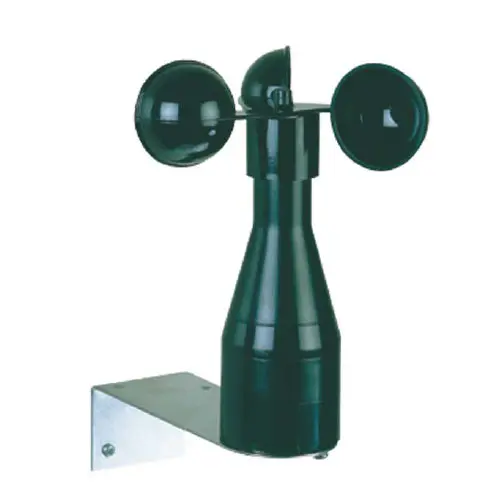

Air Flow Meter KWG1
Basic wind transmitter with impulse output / heating / suitable for PCE-WL1 und PCE-WL2
Additional small wind transmitter KWG 1 for PCE Wind logger. Cup anemometer with impulse output.

Highlights

- Basic wind transmitter
- 3 m connection cable
- Easy assembly
- Compatible with PCE-WL 1 and PCE-WL 2

Specification

Technical Datas
Output0… 100 Hz
Measurement reading range0.9 … 40 m/s
Accuracy ± 0.5 m/s or 5 % v. M
Loadmax. 60 m/s (temporary)
Contact Load10 VA, max. 42 V DC, max. 0,4 A

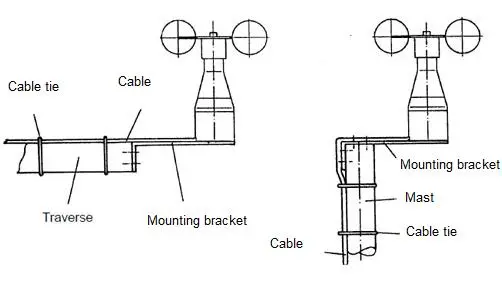

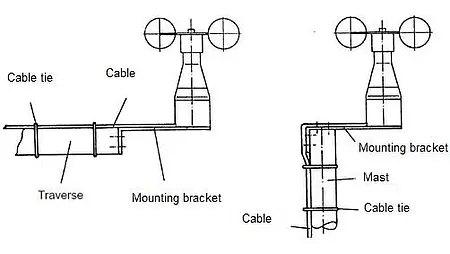

Assembly mounting bracket
Heatingmax. 24 V DC/AC, max. 1 A
Ambient temperature25 ... +60 °C (in ice-free conditions)
Cable (selectable)3 m; LiYY 4 x 0,5 mm²
15 m; LiYY 4 x 0,5 mm²
Protection classIP54

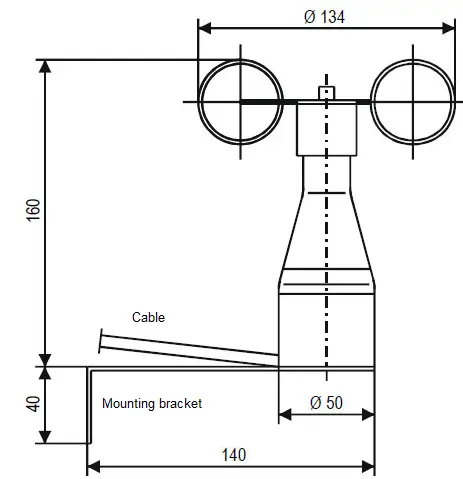

DimensionsØ 134 x 160 mm
WeightCa. 300g

Delivery Scope

Delivery content
1 x KWG1, 1 x Data Sheet
