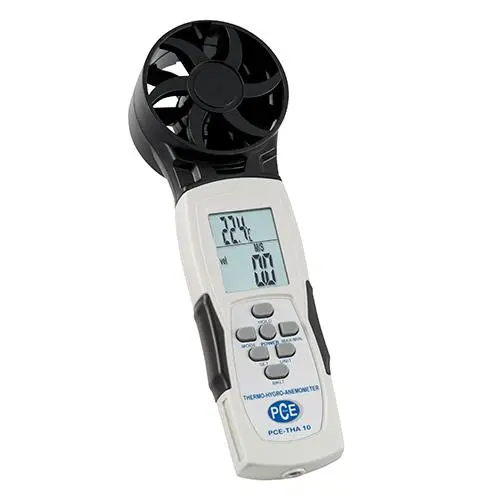

The Air Flow Meter PCE-THA 10 with compact size, new structure and integrated vane anemometer is equipped with a one-hand operation. Besides the wind speed, the Air Flow Meter measures the temperature, the humidity, the dew point, wet bulb temperature and the air volume. It is possible to save 5 areas. The average wind speed can be determined from the 20 storable points. Min and Max function. It is possible to record a measuring with the HOLD-function. The Air Flow Meter is equipped with an easy to read, large display with switchable backlight and automatic cutoff. With the included software and USB cable, you can analyze the measurements at the computer. The Air Flow Meter is ideal for heating, ventilation, and air-conditioning engineers or for sailors to measure the wind speed on a sailing tour.
| Temperature | ||
| Measuring range | -15 ... 50°C / 14 ... 122°F | |
| Accuracy | ± 0.6°C / 1.08°F | |
| Resolution | 0.1°C / 1.8°F | |
| Wind Speed | ||
| Measuring range | 0.4 ... 35 ms (80 ... 5900 ftm) | |
| Accuracy | ±3% of FS | |
| Units | m/s, ftm, kmh, knot, bft, mph | |
| Humidity | ||
| Measuring range | 5 ... 95% r.H. | |
| Accuracy | ±3% r.H. (25°C / 77°F, 30 ... 95% r.H.) ±5% r.H. (25°C / 77°F, 10 ... 30% r.H.) | |
| Resolution | 0.1% | |
| Air volume | 0 ... 9.999 m³/s | |
| Storage | 20 measurements | |
| Average | Up to 20 measurements | |
| Power supply | 3 x AAA batteries | |
| Operating Conditions | Temperature:
0 ... 50°C / 32 ... 122°F Humidity: < 80% r.H. | |
| Dimensions | 244 x 77 x 43 mm / 9.6 x 3 x 1.7 in | |
