Air Humidity Meter PCE-HT 71N

Name: Air Humidity Meter PCE-HT 71N
Brand: PCE Instruments
SKU: 2131335
Price: 119 USD
Availability: InStock

Order no.: PCE-HT 71N

GTIN (EAN): 4250348707024

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

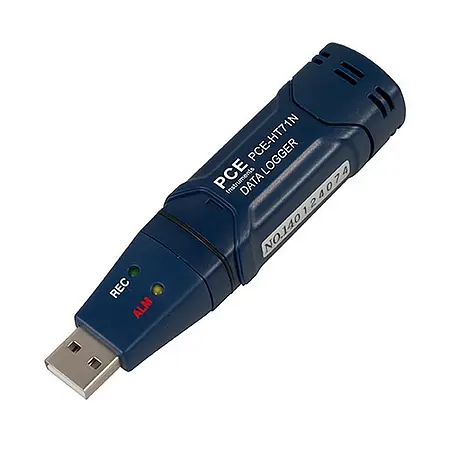

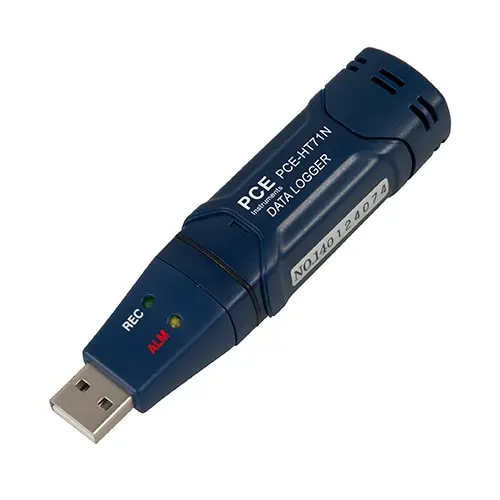

PCE-HT 71N Air Humidity Meter
Mini device for prolonged measurement of temperature and relative humidity / 32k memory/ USB port/ Software to calculate dew point/ Powered by a long-life lithium battery

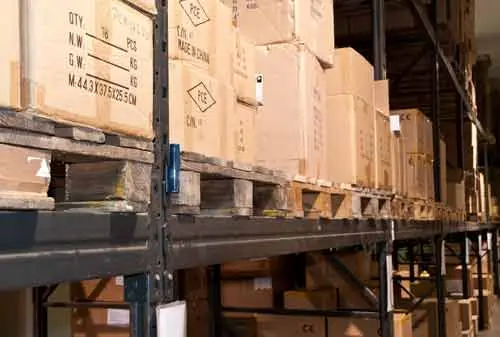

The PCE-HT 71N Air Humidity Meter detects air temperature and humidity and stores readings in its internal memory. The Air Humidity Meter has a compact format and a wide memory capacity (up to 32,000 values / 16,000 values for each parameter) and it is mainly used as a data logger in fields such as supermarket refrigeration units, refrigerated transport, warehouses, and other temperature controlled environments. The Air Humidity Meter works as a data logger to record climatological data in spaces with controlled ambient conditions. Data can be transferred to a computer or a laptop via the USB port. The PCE-HT 71N Air Humidity Meter can be manually activated or can be programmed to start and stop on specific dates and times or to set the intervals at which measurements will be taken, allowing it to be left to record data in situ. Once transferred, data can be analysed on a computer. The software included in the delivery also calculates dew point. The internal clock allows the user to accurately assess the results. One special characteristic of the PCE-HT 71N is that it is powered by a removable 3.6V, long-life lithium battery. The battery life is approximately one year.

Highlights

- Storage capacity: 32K
- USB port
- A software for calculating dew point and analysing data in a computer is included

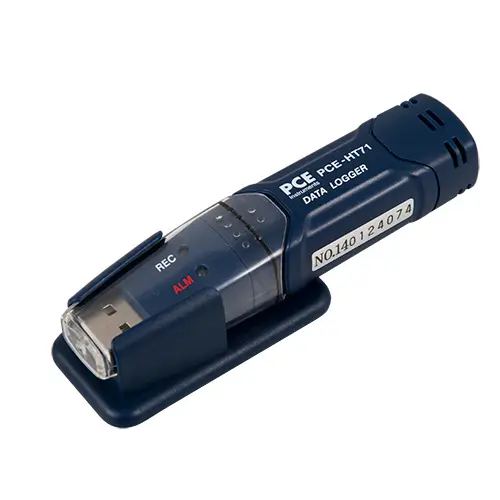

- Wall mount included in the delivery
- Adjustable date/time clock (it loses 3 s / month)
- Adjustable measurement quota (2s ... 24h)
- Long-life lithium battery
- Non-volatile EEPROM
- Staus indicated by 2 LEDs (including alarm)
- Programmable alarm limits across entire measurement range
- Replacement battery

Specification

Measurement range	-35 ... 70ºC / -31 ... 158ºF 0 ... 100% H.r.
Accuracy	± 3% H.r. (20 ... 80%) and ± 5% / ± 1°C (1.8°F)
Resolution	0.5% H.r. / 0.1°C (0.18°F)
Sensors	Internal (humidity and temperature)
Memory	Max. 32,000 measurement values (16,000 for each parameter)
Measurement quota / measurement intervals	Adjustable, 10 s, 20 s, 1 min, 10 min, 20 min, 30 min
Alarm limit	Adjustable
Status indicator	Through 2 LED’s (recording data / alarm)
Port	USB
Software	Included in the delivery
Dew point temperature	Calculated by the software once data has been transmitted (accuracy: ± 2°C (3.6°F))
Power	3.6V lithium battery (life: approx. 1 year)
Positioning	- Can be wall mounted or placed anywhere on a flat surface, for instance on a table
Operating conditions	-35 ... 70°C / -31 ... 158ºF 0 ... 100% H.r.
Case	ABS plastic
Software	Windows 2000 / XP / Vista
Weight	25 g / < 1 lb

Software

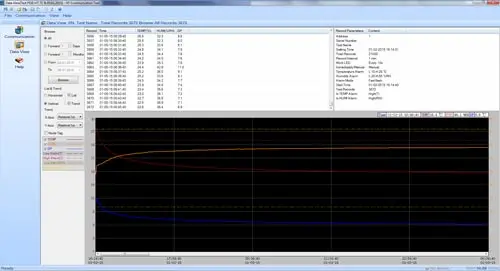

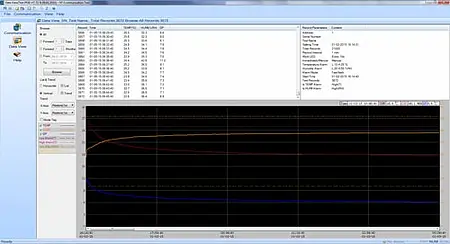

Professional software for programming the device and for analysing data on computers. The software has the following features:

Data columns and graphical representation (x-t diagram with date and time), a series of data can be exported to other programs such as MS Excel.

The software also allows the user to adjust the device's parameters via a computer.

Menu of the PCE-HT71 air humidity meter.
