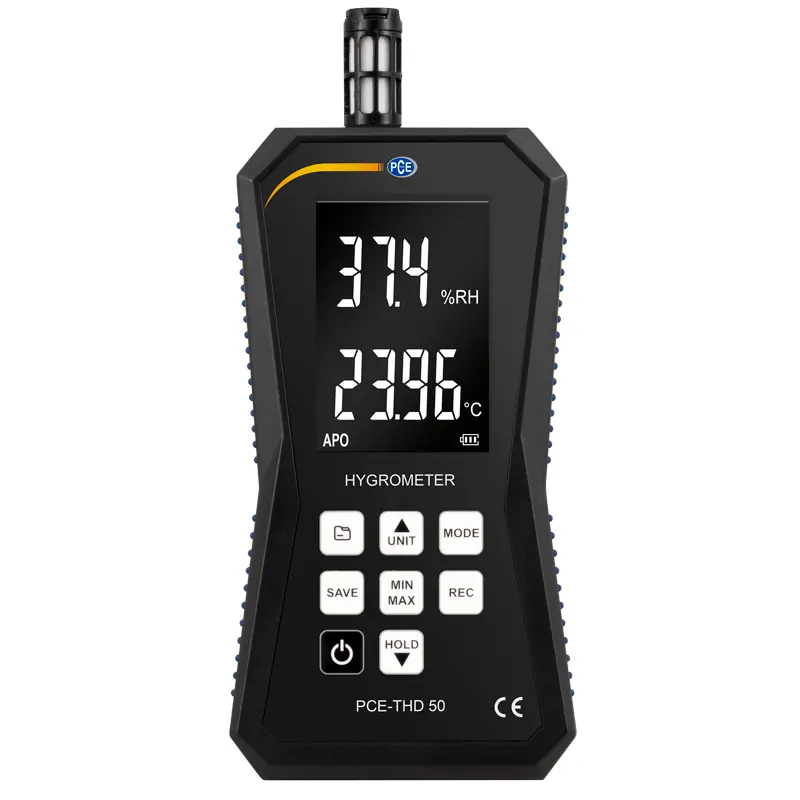

Air Quality Meter PCE-THD 50-ICA incl. ISO Calibration Certificate

Order no.: PCE-THD 50-ICA
GTIN (EAN): 4250348728302
US$ 385.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348728302
PCE-THD 50-ICA
Available in: 10 - 14 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

High Temperature Sensor TF-514
High Temperature Sensor TF-514
US$ 607.00
AGL-90 Compensation / Thermocouple Extension Cable 90 °C (linear meter)
AGL-90 Compensation / Thermocouple Extension Cable 90 °C (linear meter)
US$ 5.00
High Temperature Sensor TF-104B (extra long)
High Temperature Sensor TF-104B (extra long)
US$ 131.00
Screw-on Sensor
Screw-on Sensor TF-524
US$ 59.00
Screw-in Sensor TF-119
Screw-in Sensor TF-119
US$ 191.00
Magnetic Surface Sensor TF-513
Magnetic Surface Sensor TF-513
US$ 112.00
Surface Sensor TF-509 (self-adhesive)
Surface Sensor TF-509 (self-adhesive)
US$ 62.00
HT Surface Sensor TF-110A
HT Surface Sensor TF-110A
US$ 105.00
Crocodile Clip Sensor TF-109
Crocodile Clip Sensor TF-109
US$ 53.00
Temperature Sensor TF-101
Temperature Sensor TF-101
US$ 90.00
AGL-400 Compensation / Thermocouple Extension Cable 400 °C (lfm)
AGL-400 Compensation / Thermocouple Extension Cable 400 °C (linear meter)
US$ 5.00
AGL-260 Compensation / Thermocouple Extension Cable 260 °C (linear meter)
AGL-260 Compensation / Thermocouple Extension Cable 260 °C (linear meter)
US$ 4.00
Penetration / Immersion Sensor TF-106
Penetration / Immersion Sensor TF-106
US$ 66.00
Flexible Temperature Sensor TF-500 (Type K)
Flexible Temperature Sensor TF-500
US$ 14.00
Universal bag PCE-BAG M for measuring devices
Universal bag PCE-BAG M for measuring devices
US$ 20.00
ISO Calibration Certificate for Temperature and Humidity
ISO Calibration Certificate for Temperature and Humidity
US$ 211.00

Description

Air quality meter with connection for thermocouple type K / Measuring range -20 ... 60 °C /
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate

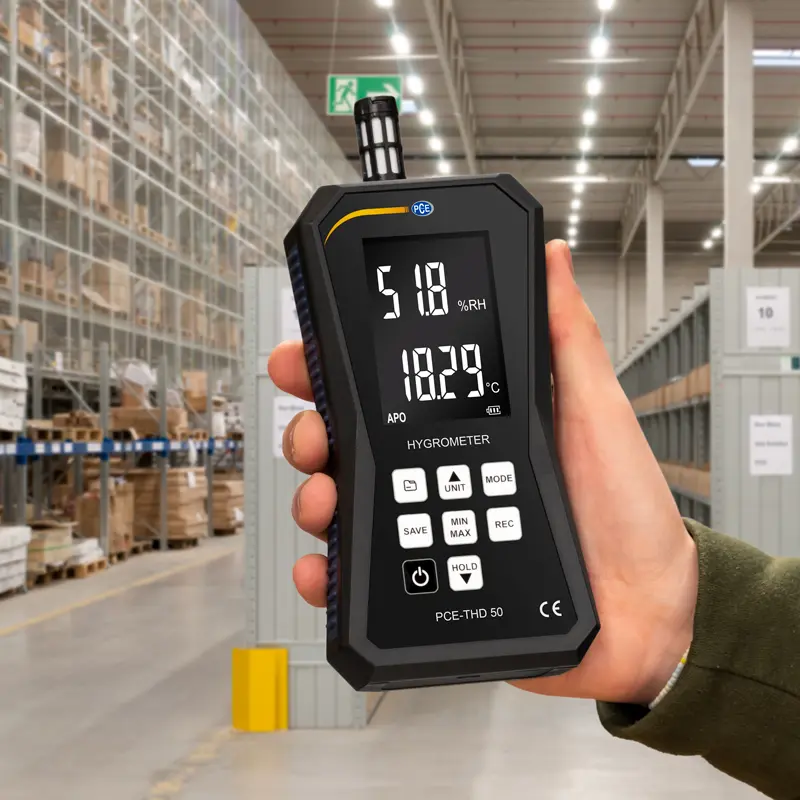

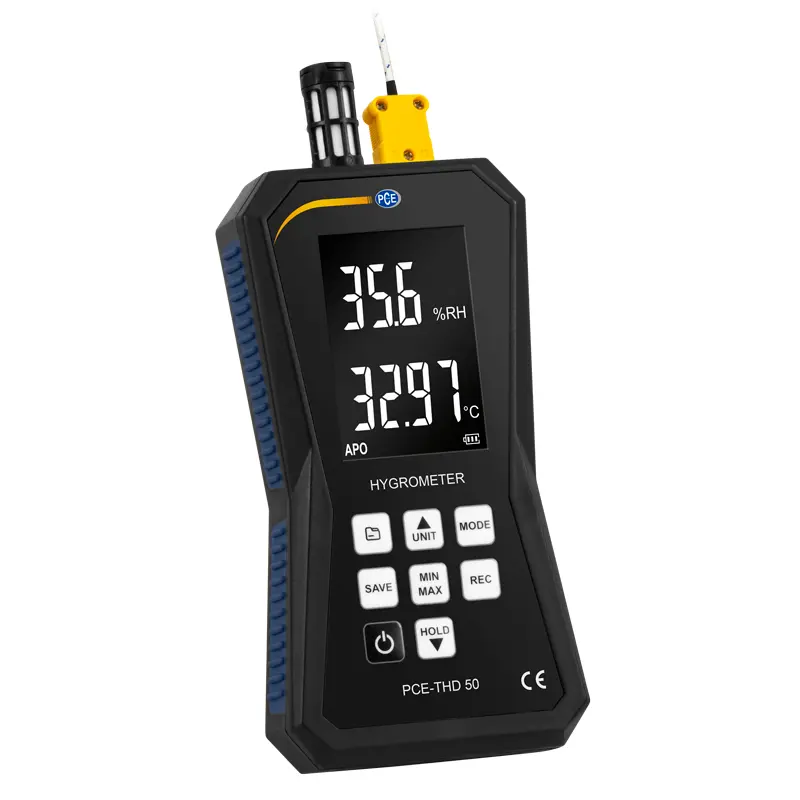

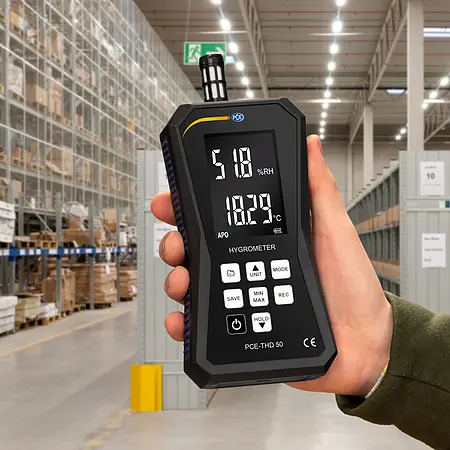

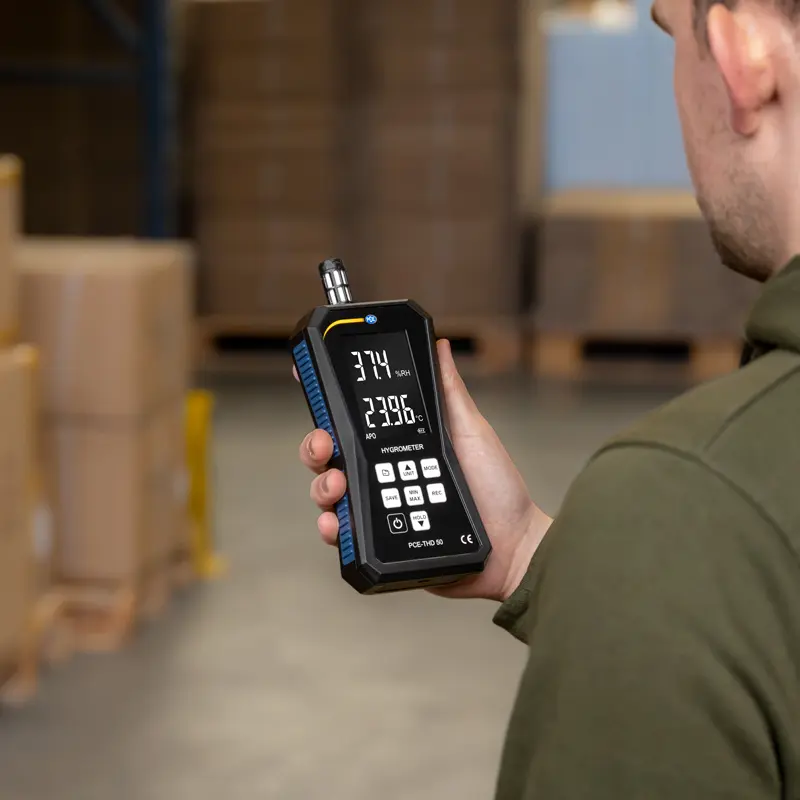

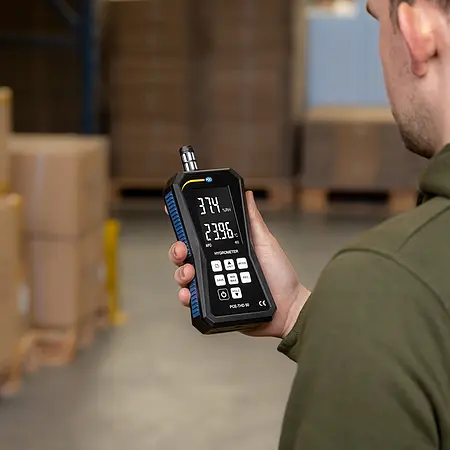

The air quality meter is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The air quality meter can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the air quality meter. In addition, the dew point and wet bulb temperature is calculated and displayed by the air quality meter. In addition, any type K thermocouple can be connected to the air quality meter in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the air quality meter to the thermocouple.

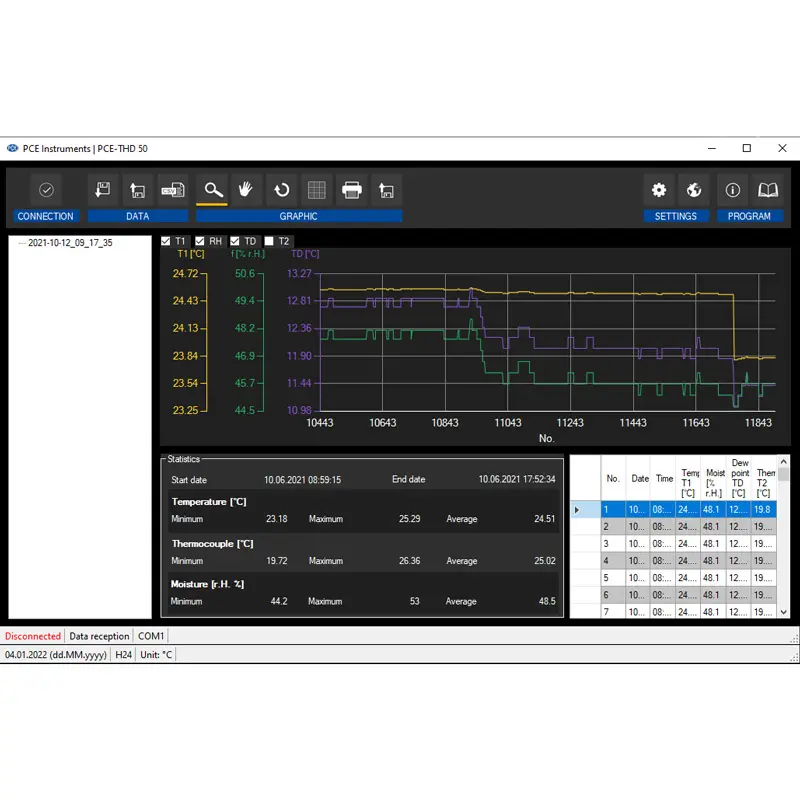

Measured values ​​can be recorded with the data logger function of the air quality meter. The large memory of 32,000 measuring points in the air quality meter allows recording of measured values ​​over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the air quality meter and the free software. The data logged by the air quality meter can be exported in CSV file format for further processing.

A 3.7 V Li-ion battery is installed in the air quality meter to enable mobile use. This battery can be recharged via the micro-USB interface on the air quality meter.

Highlights

- Measuring range -20 ... 60 °C / -4 ... 140 °F
- Temperature, humidity, dew point
- Backlit LC display

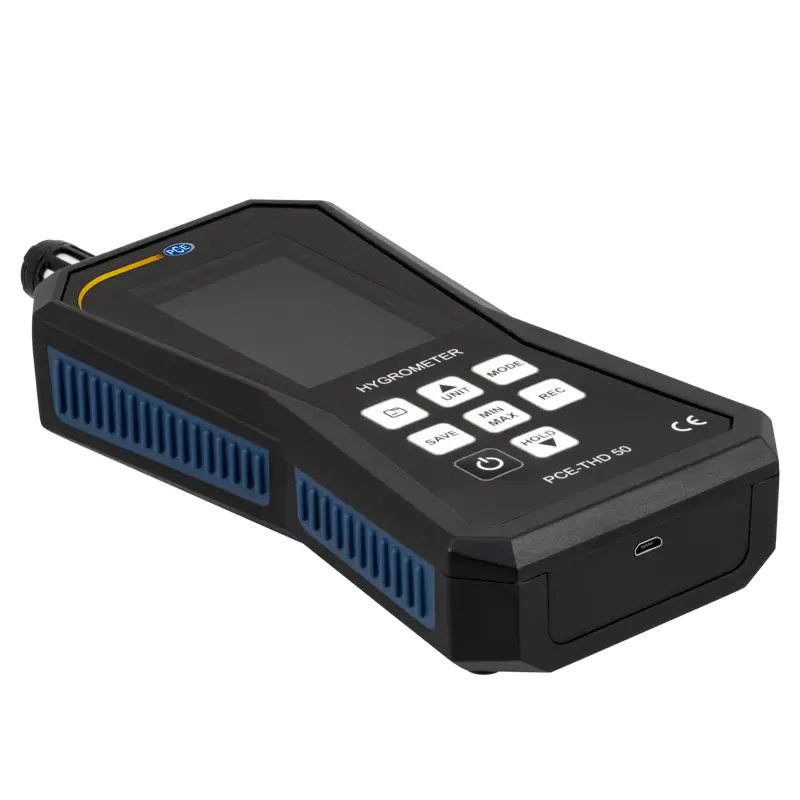

- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature

Specification

Air temperature
Measuring range -20 … 60 °C（-4 … 140 °F）
Resolution 0.01 °C/°F
Accuracy ±0.5 °C @ 0 … 45 °C，±1.0 °C
   in remaining range
  ±1.0 °F @ 32 … 113 °F，±2.0 °F
   in remaining range
Measuring rate 3 Hz

Relative humidity
Measuring range 0 … 100 % RH
Resolution 0.1 % RH
Accuracy ±2.2 % RH (10 … 90 % RH)
  @ 23 °C (73.4 °F)
  ±3.2 % RH (<10，>90 % RH)
   @23 °C (73.4 °F)
Response time <10 s (90 % RH, 25 °C (77 °F), with no wind)

Thermoelement
Sensor type Thermoelement Type K
Measuring range -100 … 1372 °C（-148 … 2501 °F）
Resolution 0.01 °C/°F, 0.1 °C/°F, 1 °C/°F
Accuracy ±(1 % ±1 °C)

Calculated values
Wet bulb temperature   -20 … 60 °C （-4 … 140 °F）
Dew point temperature -50 … 60 °C （-58 … 140 °F）

Further specifications
Internal memory 99 measuring points
  (redundant, only readable on the measuring device)
  32,000 measuring points
  (only readable on the PC)
Power supply 3.7 V Li-ion battery
Operating conditions 0 … 40 °C (32 … 104 °F) <80 % RH,
  non-condensing
Storage conditions -10 … 60 °C (14 … 140 °F) <80 % RH,
  non-condensing
Dimensions 162 mm x 88 mm x 32 mm / 6.3 x 3.4 x 1.2"
Weight 248 g / 8.74 oz

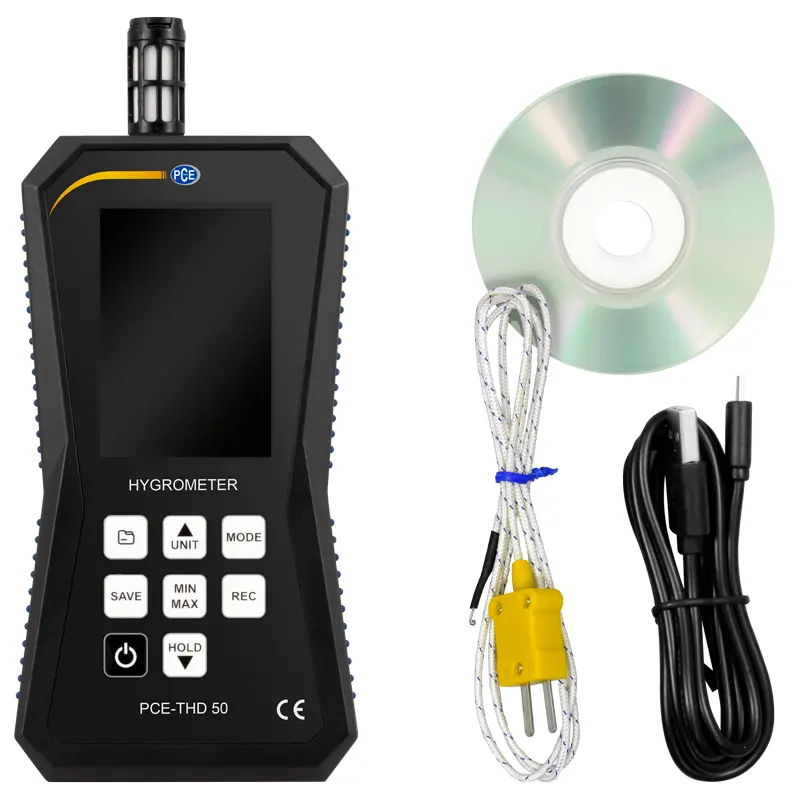

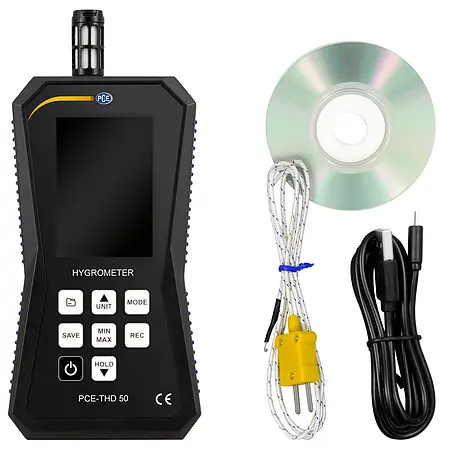

Delivery Scope

1 x Air quality meter PCE-THD 50
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual

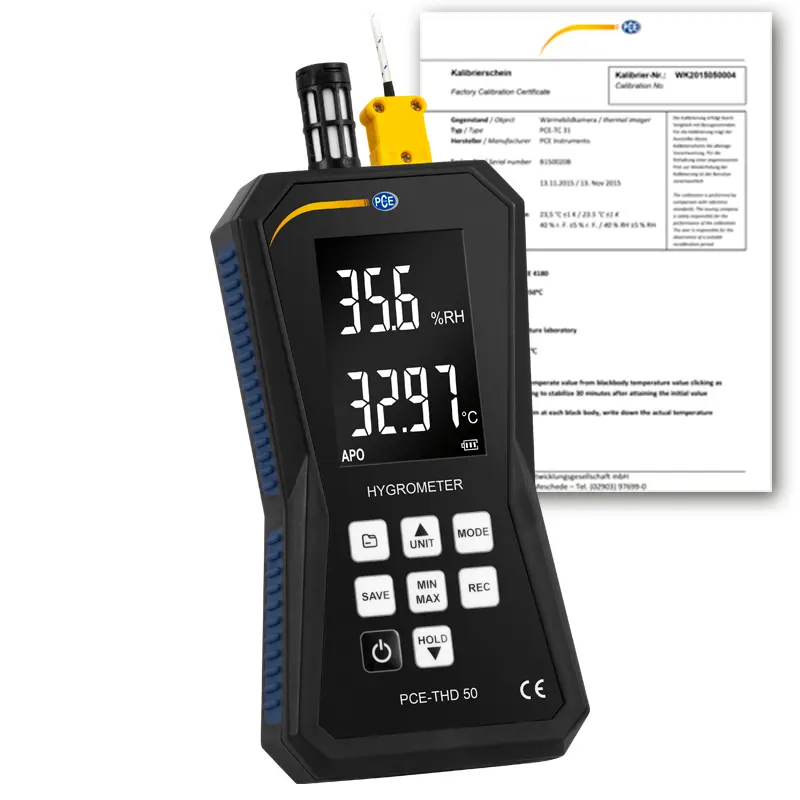

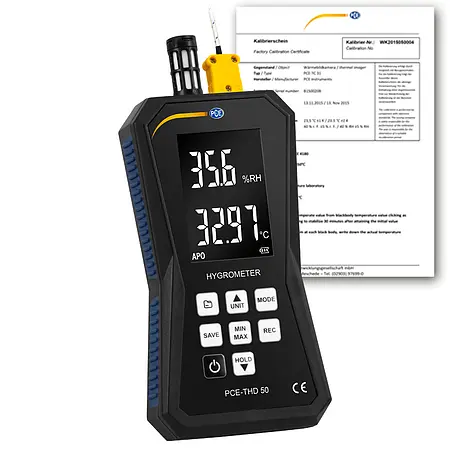

1 x ISO Calibration Certificate


N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
