Air Velocity Meter incl. ISO Cal Certificate PCE-007-ICA

Order no.: PCE-007-ICA
GTIN (EAN):
US$ 627.00
ISO Calibration
ex. VAT, ex. delivery costs
PCE-007-ICA
Available in: 10 - 14 days
Impeller
Up to 45 m/s
Yes (integrated)
Yes (RS-232)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Adaptor RS-232 to USB
Adaptor RS-232 to USB
US$ 43.00

Description

Accurate Data-Logger air velocity meter with connection port, memory,
software for measuring wind speed, temperature and Data- Logger

This air velocity meter is very economical. With this air velocity meter you can measure wind speed and air temperature. Once you have the right cross section, the air velocity meter will show the air volume flow. The readings can be stored in the device and then transferred to a computer for further analysis. As such, you can take a series of measurements with the air velocity meter off-site, then look closely at the data once back at the office. In this way, you save time and maintain a high level of accuracy in readings.

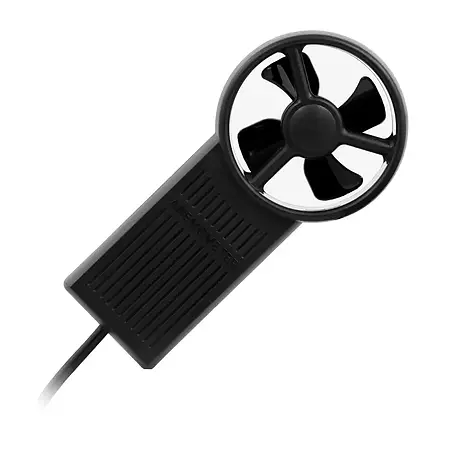

The external impeller, connected by a 1.5 m / 4.9 ft long cable, increases the mobility and flexibility of measurements of wind speed. These Flow meters form a part of the basic equipment of an installation technician for  ventilation systems. The useful life of the battery is approx. 50 hours with a current of 300-mA/h. If you wish to take timed measurements over a period of time longer than 2 days, you will need to use a battery pack, or a power adapter.


Highlights

- Measures wind speed and air temperature
- Calculate and shows Data logger
- Stores up to 2000 readings
- Comes with an RS-232 interface
- Has software to transfer data
- Shows distinct units of measurement
- Has a dual display
- Is easy to use
- Max/Min/Hold functions
- Auto-Power off
- Incl. ISO Calibration Certificate

Specification

Ranges of measurement with the corresponding symbol of measurement displayed for the PCE-007 Flow meter:
    - m / s
    - Feet/min
    - Knots
    - Km/h
    - Mph
    - °C / °F
    - m³/min 		0.3 ... 45.0
0.3 ... 8800
0.3 ... 88.0
0.3 ... 140.0
0.3 ... 100.0
0.0 ... 45.0 / 32 ... 113°F
0.0 ... 999,900
Resolution:
    - Wind speed
    - Air temperature
    - Data logger 		0.01 m/s (the same for all units)
0.2°C / 32.4°F
0.001 to 100 (according to the measurement range)
Accuracy:
    - Wind speed
    - Air temperature
    - Data logger 		±3% ±0.1 (the same for all units)
±1°C / 33.8°F
Calculated from the wind speed and the surface
Interface Yes, RS-232 for data transfer
Memory Yes, 2000 readings either as wind speed or temperature.
Don't forget: if the memory is full, it will save all currently stored data, but if the batteries have no power, then all the data will be lost.
Software Yes, for the configuration of the device and to transfer data to a computer (with Windows 95, 98, 2000 or XP Professional)
Measurement values can be exported to other programmes such as Excel.
Data transmission rate (via software)  1 s
Side wheel
  - Casing
  - Dimensions 		Sapphire (set upon bearings of precious stones)
66 x 132 x 29.2 mm / 2.6 x 5.2 x 1.1 in

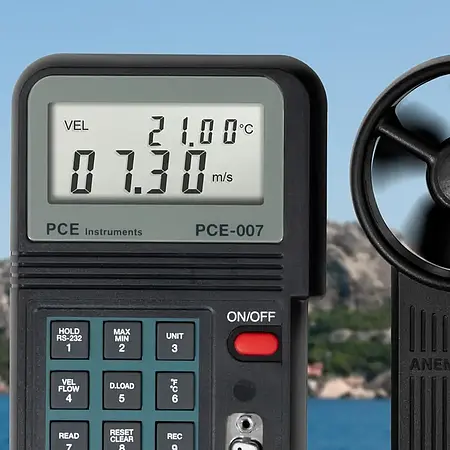

Display  2 double LCDs with 4 digits
Operating conditions  Data logger:    0 ... 50°C / 32 ... 122°F,  <80% r.h.
 Side wheel:       0 ... 60°C / 32 ... 140°F, <80% r.h.
Power  1 x 9V battery (approx. 50 hours of use)
Dimensions of the device  88 x 168 x 26.2mm / 3.5 x 6.6 x 1 in
Enclosure  ABS plastic
Weight  350g / < lb

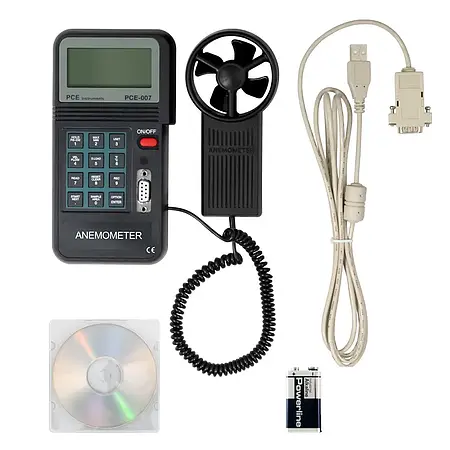

Delivery Scope

1 x PCE-007 air velocity meter with impeller and 1.5 m / 4.9 ft long cable
1 x Interface
1 x Software
1 x Battery
1 x Bag
1 x User's manual
1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
