Air Velocity Meter PCE-WSAC 50-320

Order no.: PCE-WSAC 50-320
GTIN (EAN): 4250348716279
US$ 570.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348716279
PCE-WSAC 50-320
Available in: 5-7 working days
Speed
Cup vane
No
Yes (optional RS-485 modbus)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

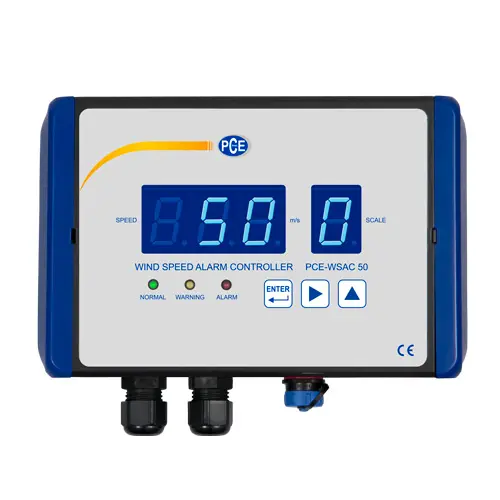

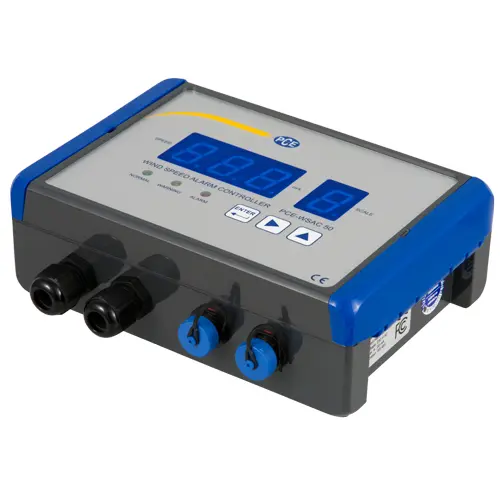

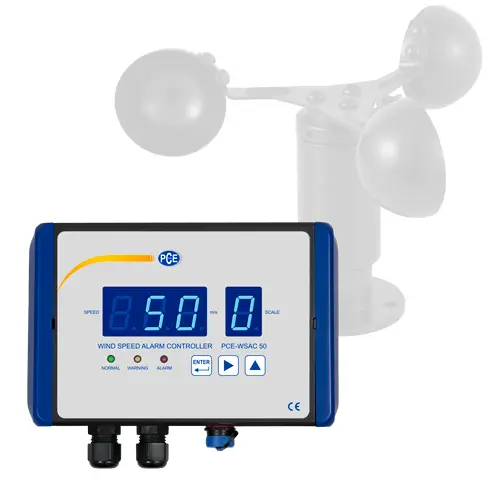

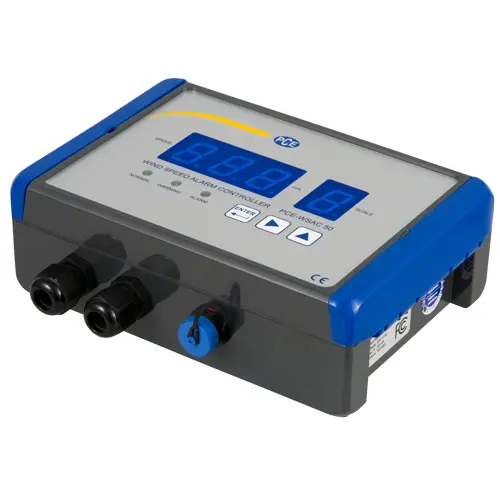

Air Velocity Meter / Wind Warning Device PCE-WSAC 50-320
Anemometer with pre-alarm and alarm / display of wind speed / easy operation / display of the average speed of the last 2 and 5 minutes

The wind warning device can be used in different fields of application. In use, the wind measuring device carries out measurements from the smallest wind movements. The wind warning device can be used on the one hand to monitor the current wind speed. On the other hand, it is also possible to use the wind measuring device to measure the average value of the last two or five minutes. If the wind speed values ​​are higher than the preset values, a pre-alarm is first activated before the alarm is output. Both alarms are given visually and acoustically on the wind warning device. If the pre-alarm takes effect, a yellow LED will flash on the front of the device and a beeper will emit a periodic warning tone. When the normal alarm needs to be activated, the red LED will flash and the beep will be played continuously by the device.

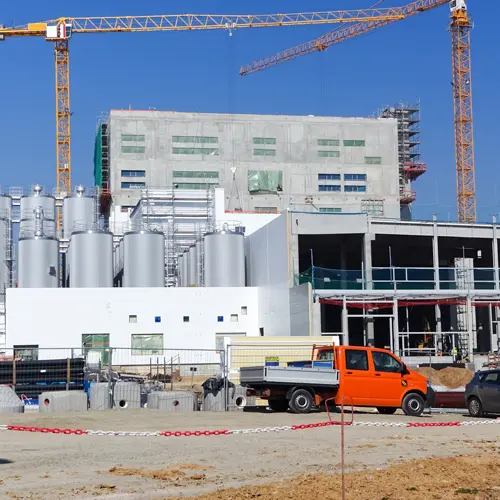

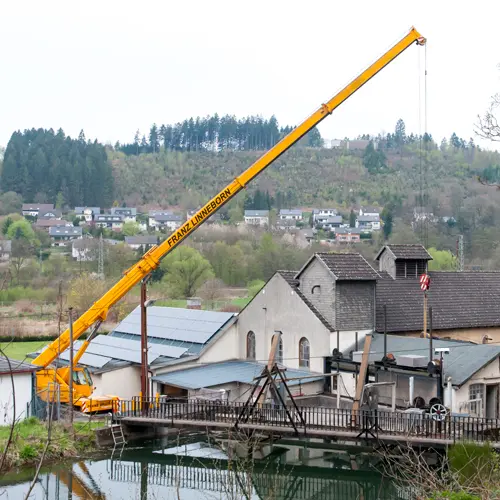

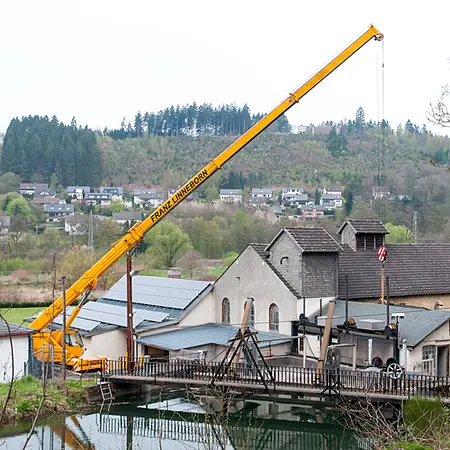

In general, the wind warning device is used wherever wind monitoring has to be carried out. This is often the case in factories, mines, wind turbines and similar. If necessary, a relay can also be connected to the anemometer. In addition to the low wind speeds, the wind measuring device is characterized by its high reliability and high accuracy.


***Sensors sold separately***


Highlights

- Wind warning device with adjustable alarms
- 2 alarm types

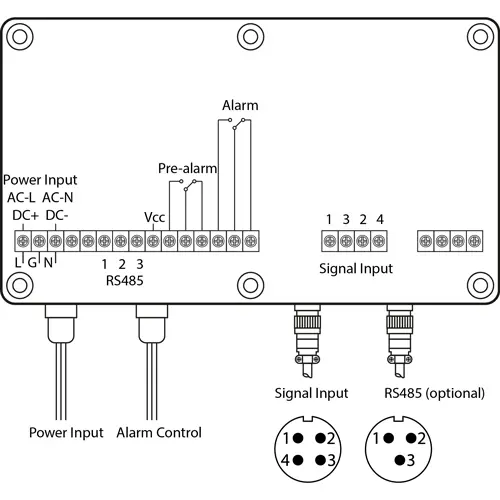

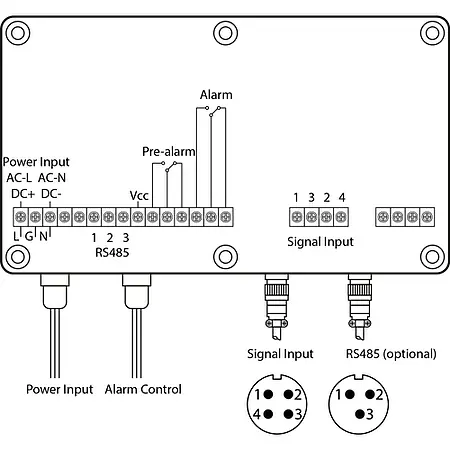

- Supply voltage: 24 V DC
- Input signal: 0 ... 10 V
- 2 alarm relays installed
- Built-in beeper to alert
- Sensor supply via evaluation device

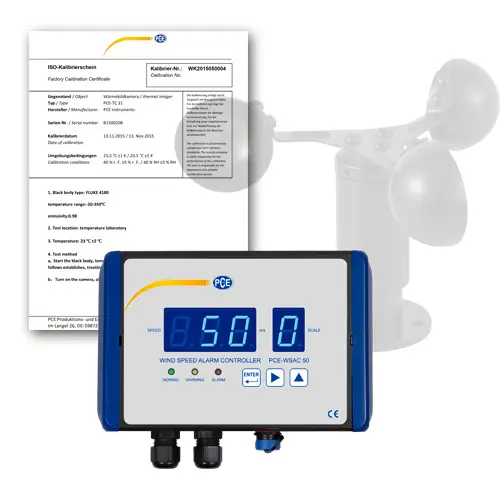

- Incl. ISO Calibration Certificate

***Sensors sold separately***

Specification

Power supply24V DC
Supply voltage for sensors (output) 12V DC
24V DC
Measuring range 0 ... 50 m/s
Measuring accuracy ± 3% of measuring range
Signal input 0 ... 10 V
Alarm relay
2 NO/NC relays with max. load of 220V AC / 10 A


Operating temperature -20 ... 60°C / -4 ... 140°F
Protection class IP66
Dimensions 197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7 in

***Sensors sold separately***

Delivery Scope

1 x Air Velocity Meter PCE-WSAC 50-320
1 x User manual
1 x Sensor connector

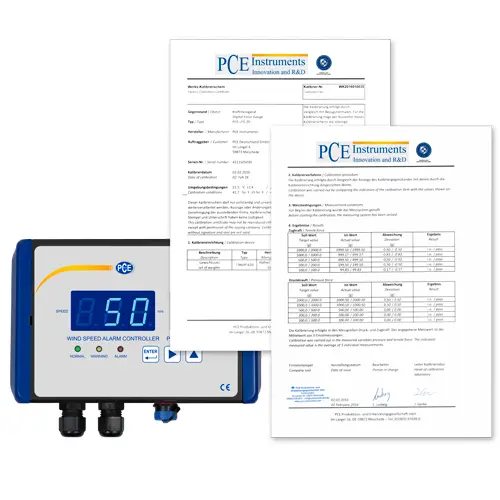

1 x ISO Calibration certificate


Note: Wind sensor not included. This must be ordered separately.
