Pressure Gauge PCE-THB 38

Order no.: PCE-THB 38

GTIN (EAN): 4250348701442

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Calibration certificate for series PCE-THB (Temperature, Pressure & Humidity)

US$ 252.00

Description

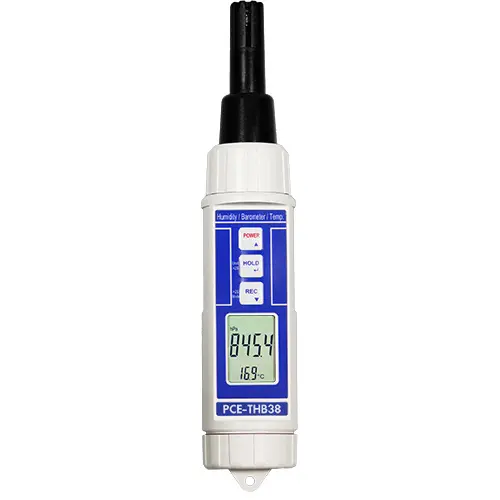

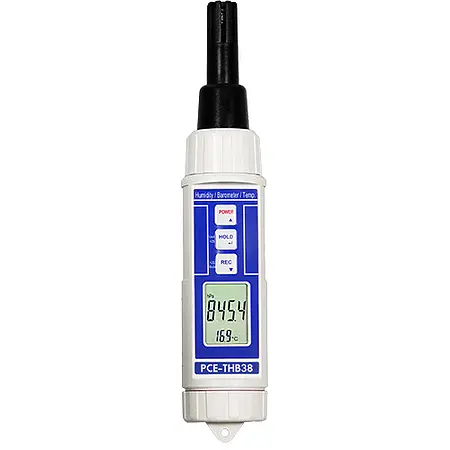

Multifunction PCE-THB 38 Pressure Gauge.
(thermometer, humidity meter and Pressure Gauge all in one device)

The PCE-THB 38 Pressure Gauge is ideal for detecting and digitally displaying humidity, temperature and barometric pressure. Temperature is measured by an RTD sensor and air humidity is measured by a highly repeatable, capacitive sensor. The Pressure Gauge also calculates dew point, and shows atmospheric pressure in a range of 10 to 1100 hPa. With all of these features, it is a complete climatological device. It is shipped from the manufacturer already calibrated. Otherwise, a laboratory calibration and certificate can be ordered which meets ISO calibration standards.

Highlights

- Measures temperature, humidity and barometric pressure
- Calculates dew point
- Selectable pressure units: hPa, (mbar), mmHg and inHg
- Battery level indicator
- Minimum, maximum and hold functions
- Protected internal sensor
- Good price
- Light weight
- Easy to use
- Durable enclosure
- Highly accurate measurements

Specification

Measurement ranges -Temperature -Relative air humidity -Barrometric pressure -Dew point temperature	0 to 50°C / 32 to 122°F 10 to 95% r.h. 10 to 1100 hPa (mbar) -25 to 49°C / -20.2 to 120.2 °F
Resolution -Temperature -Relative air humidity -Barrometric pressure -Dew point temperature	0.1ºC 0.1% r.h. 0.1 hPa to 1000 hPa (but 1 hPa) 0.01ºC
Accuracy -Temperature -Relative air humidity -Barrometric pressure	±0.8°C ±3% of reading or ±1% (<70% r.h., but ±3% r.h.) ±1,5 hPa to 1000 hPa, but ±2 hPa
Operating temperature	0 to 50ºC / 32 to 122 °F
Power	4 AAA batteries
Dimensions	120 x 40mm / 4.7 x 1.5in
Weight (with batteries)	160g / 5.6oz

Delivery Scope

1 x PCE-THB 38 air humidity meter
4 x Batteries
1 x User's manual

Downloads

Datasheet
