Anemometer PCE-WS P

Name: Anemometer PCE-WS P
Brand: PCE Instruments
SKU: 6133878
Price: 181 USD
Availability: InStock

Order no.: PCE-WS P

GTIN (EAN): 4250348722447

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Optional Mounting Kit PCE-WS/MOUNT

US$ 99.00

Description

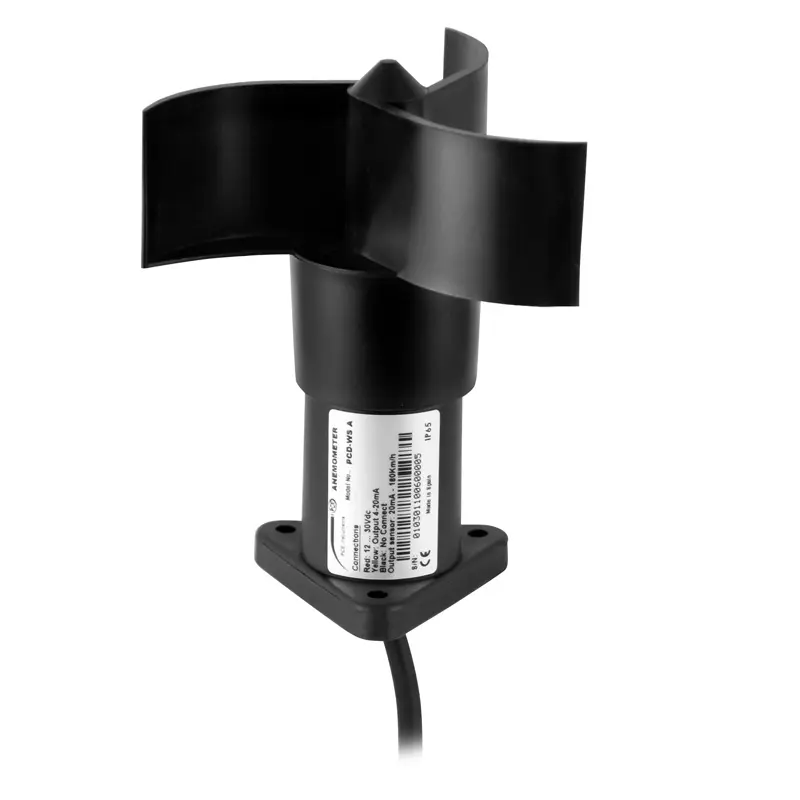

Robust Anemometer for fixed installation / various output signals /

for wind warning systems, building services and building automation

The Anemometer impresses with its compact design and various output signals. The Anemometer can be used for applications in warning technology, building automation and home technology. Depending on the Anemometer, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Anemometer is designed as a star, so that operation independent of the wind direction is guaranteed.

The Anemometer is made of robust plastic and is therefore resistant to rust and corrosion. The Anemometer is also protected to IP65. The design of the Anemometer also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Anemometer has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Anemometer is optionally available.

Highlights

- Robust PA plastic housing

- IP 65 protection

- mA, V, pulse or Modbus output

- Long lifetime

- Direct measurement of wind speed

- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Measuring range	2.62 ... 164.04 ft/s, 0.8 m / s ... 50 m / s
Measurement from	≤2.62 ft/s, 0.8 m / s
Output	pulses (reed contact)
Accuracy	<13.12 ft/s: ± 0.89 ft/s, <4 m / s: ± 0.27 m / s
	> 13.12 ft/s: ± 3%, > 4 m / s: ± 3%
Operating voltage	12 ... 30 V DC
Operating temperature range	-4 ... +185 ° F, -20 ... +80 ° C at ≤95% rel. humidity
Maximum wind speed	180.45 ft/s, 123 mph, 55 m / s

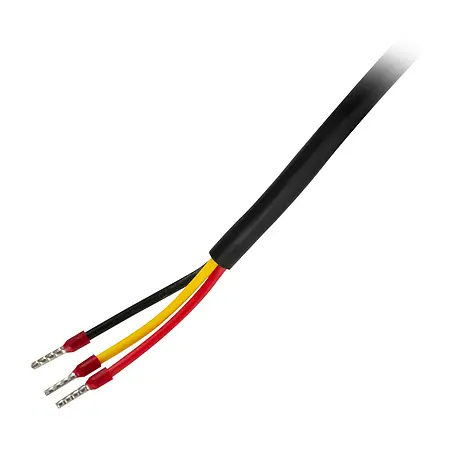

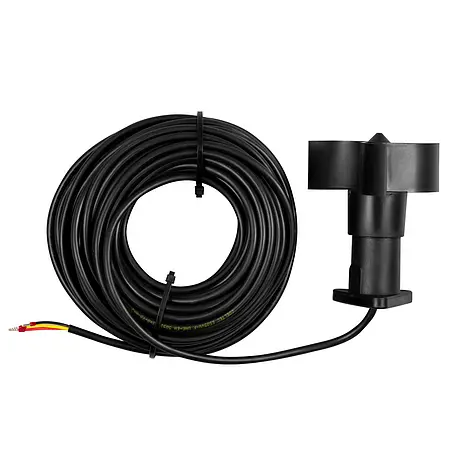

Electrical connection	65 ft, 20 m connection cable
Protection class	IP65

Delivery Scope

1 x Anemometer PCE-WS P

1 x instruction manual

Downloads

Manual

Datasheet
