ATP Tester PCE-ATP 1 KIT

Order no.: PCE-ATP 1-KIT
GTIN (EAN): 4250348728272
US$ 1,599.00
ex. VAT, ex. delivery costs
:
4250348728272
PCE-ATP 1-KIT
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

PCE-ATP 1 KIT Food & Hygiene ATP Testing Meter / Fast hygiene measurement / Easiest sampling / USB and Bluetooth printer interface / Self-calibration at power up

The PCE-ATP 1-KIT with 100 swabs included is used to quickly and easily check the cleanliness of surfaces. The ATP Tester displays a measurement result on the large LC display after only 10 seconds. The ATP Tester's internal memory stores up to 10,000 measured data sets with time and date. The PCE-ATP 1 with the associated PCE-ATP SwapPens, allows a quick detection of food or microbiological residues on all surfaces in contact with the product as an effectiveness test of cleaning and disinfection measures. Quantitative determination of intracellular and extracellular adenosine triphosphate (ATP) is performed in the portable PCE-ATP 1. The measured data from the ATP Tester can be stored and further processed after the measurement. The ATP Tester is used in the hygiene control in pharmacy, medicine, gastronomy, wholesalers and more.

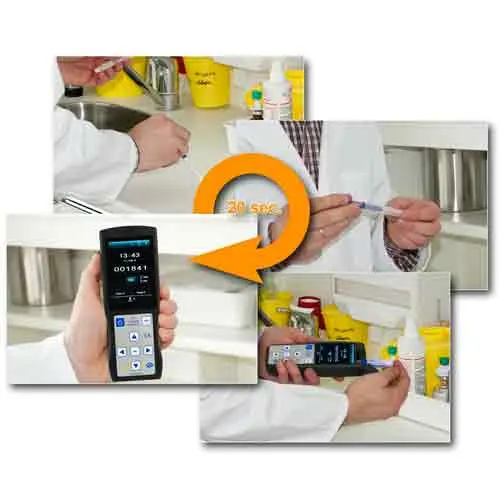

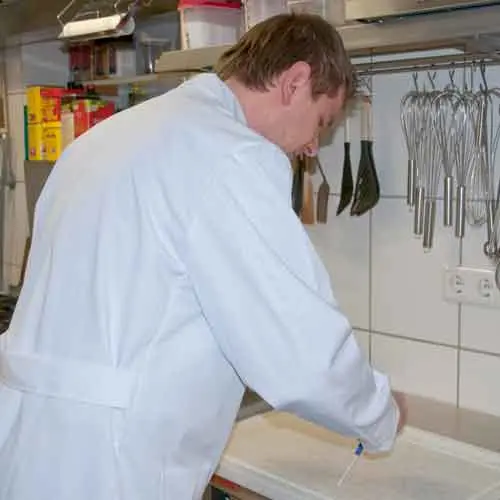

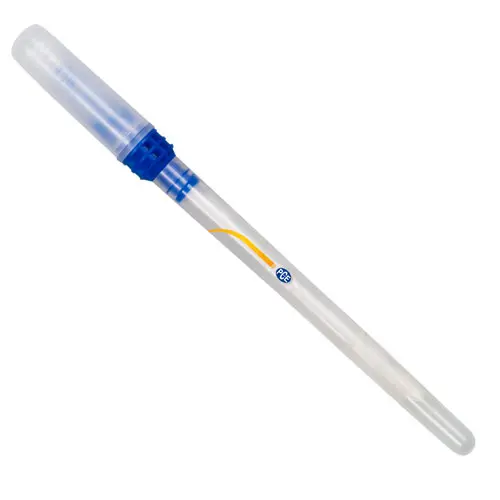

The measurements with the ATP Tester are carried out with the specially available ATP test tubes. With the swab contained in the tube, the surface is sampled. The swab is then pressed all the way down into the tube, whereby it comes into contact with the reaction liquid and the actual reagent. By gentle shaking, the reaction liquid collects in the reaction chamber of the tube. The entire test tube is then inserted into the measuring chamber of the PCE-ATP 1. Then the measurement is started. After 10 seconds, the measurement result is displayed in RLU (Relative Light Units) on the display of the ATP Tester. The PCE-ATP 1 can be used in different business branches. Thus, the ATP Tester enables complete control and documentation in the food industry. This can be in the control of cleanliness in a large kitchen or in the processing of food in large industrial enterprises. The PCE-ATP 1 helps to implement the HACCP concept. In addition to the application in the food industry, the hygiene tester can also be used by cleaning companies to provide evidence of cleaning services. The memory of the PCE-ATP 1 documents the time of the measurement with date and time. Furthermore, different users can be added to differentiate the measurement data. In addition, the  PCE-ATP 1 finds its application in the field of health care. Wherever the cleanest surfaces and sterility are required, the luminometer can be used to quickly control cleanliness.

Highlights

- HACCP concept implementation
- Low weight and short measuring time
- Data transfer to the evaluation software
- Measured value memory for 10,000 measurement results
- Automatic self-calibration
- USB and Bluetooth printer interface
- Includes 100 swabs for testing surfaces

Specification

Detection methods

Analog integration by photodiodes

Data output

RLU (Relative Light Unit)

Background interference

± 5 RLU

Measuring width

0 ... 999,999 RLU

Measuring time

10 seconds

Display

3.5" graphic LCD

Interface

USB
Bluetooth

Storage

256 users
10,000 records

Self-diagnosis

Automatic cleanliness test before each use

Environmental conditions

5 ... 40°C / 41 ... 104°F, 20 ... 80% rh

Storage conditions

-10 ... 40°C / 14 ... 104°F, max. 60% rh

Voltage supply

3.7V / 2300-mAh Li-ion battery

Battery Life

Operation 10 hours
Standby: 600 hours

Dimensions

189 x 70 x 35 mm / 7.4 x 2.8 x 1.4 in

Weight

About 280 g / < 1 lb



Delivery Scope

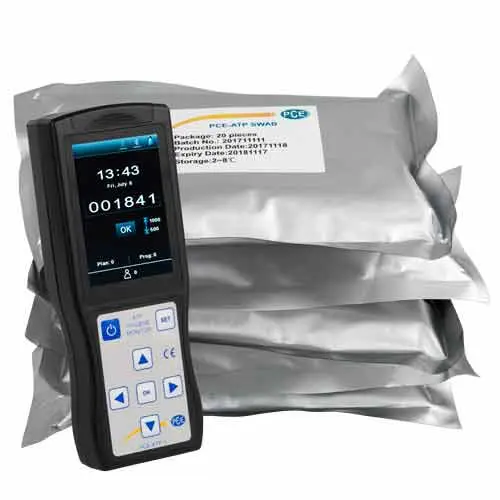

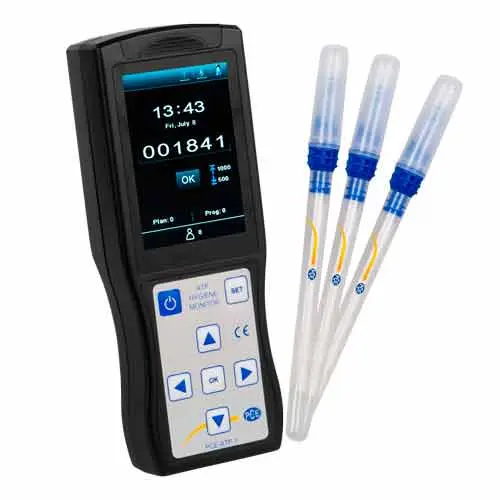

1 x PCE-ATP 1 KIT ATP Tester
1 x 3.7V / 2300-mAh Li-ion battery
1 x USB cable
1 x USB charger
1 x Wrist strap
1 x PC software
1 x Test tubes or swabs (100 pieces)
