Automotive Tester / Borescope PCE-VE 260HT

Order no.: PCE-VE 260HT
GTIN (EAN): 4250348734198
US$ 6,442.00
Topseller
ex. VAT, ex. delivery costs
:
4250348734198
PCE-VE 260HT
Available in: 5-7 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

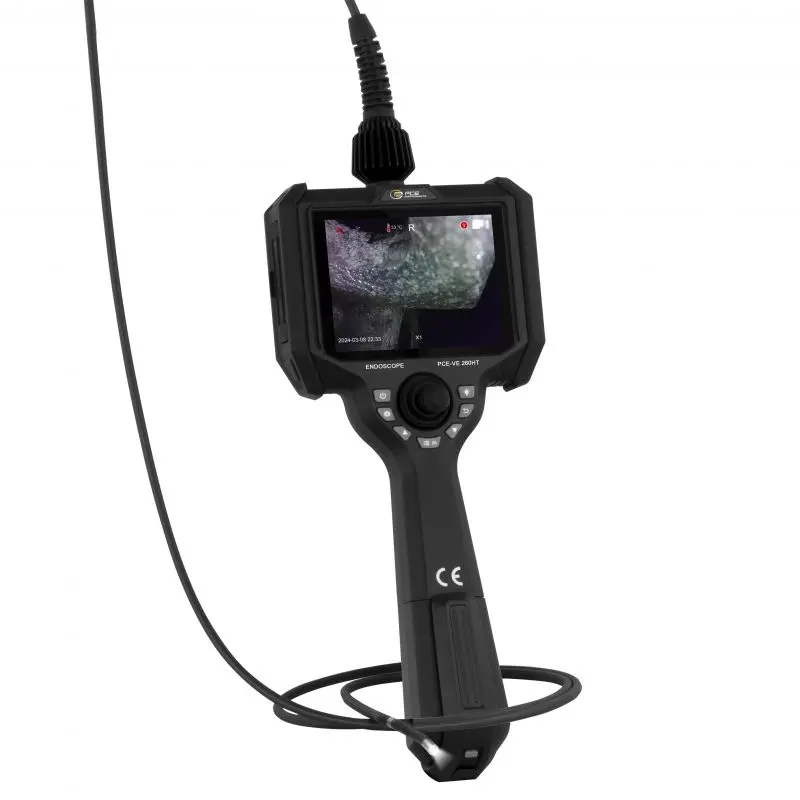

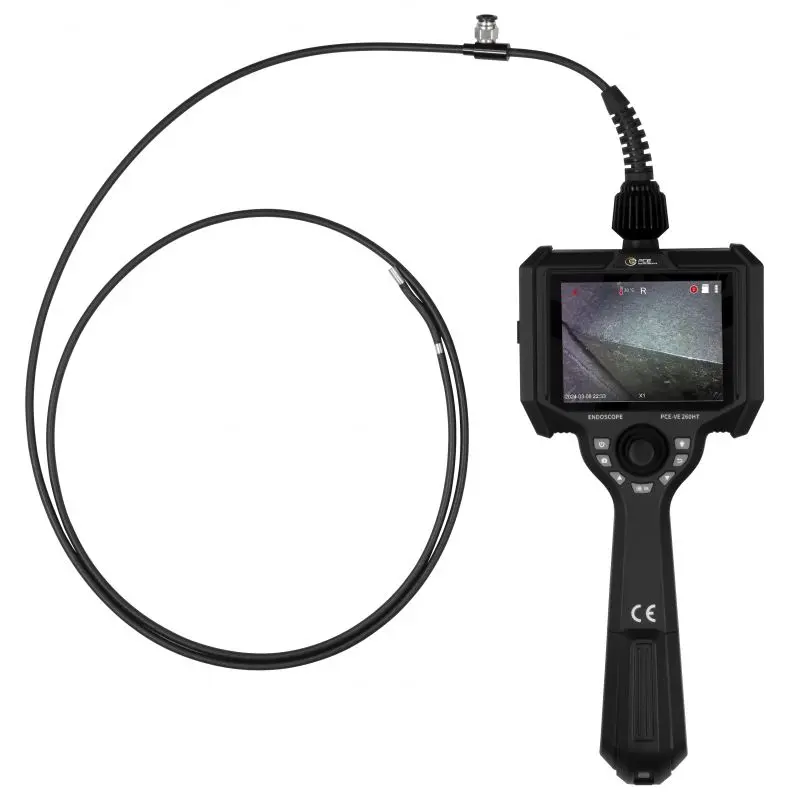

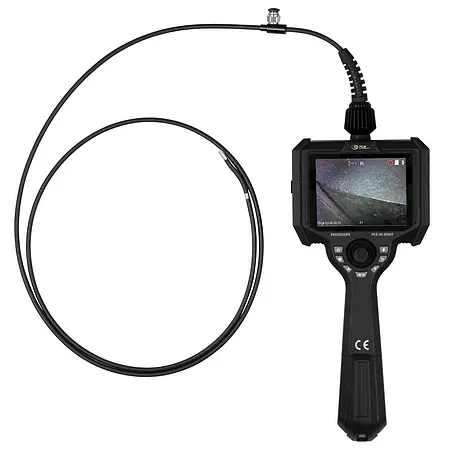

Boroscope with 2 m camera cable / connection for air cooling / high-resolution display / one-hand operation via joystick / incl. transport case

The borescope offers an advanced solution for visual inspection in extreme environments with temperatures of up to 300 °C. With a specially developed high-temperature camera cable, it enables reliable image and video recording even under extreme conditions. The integrated connection on the camera cable for air cooling ensures effective cooling during use.

The detachable Li-ion battery enables flexible and mobile use of the borescope without having to rely on an external power source. The 4-way camera head enables comprehensive monitoring and inspection from different angles. For optimum illumination in dark environments, the borescope is equipped with LED lighting via fibre optics, which ensures uniform and intensive illumination. HDMI image transmission enables high-resolution live transmission of the inspection image to external monitors or recording devices.

For recording and storing inspection data, the borescope has a 32 GB micro SD card memory, which offers sufficient space for extensive recordings. An audio recording can also be added to a video via the AUX input. The device allows user-defined notes and file names to be assigned in the menu. With these powerful features, the borescope is the ideal solution for demanding inspection applications in hot and extreme environments.


Highlights

- High-temperature camera cable up to 300 °C

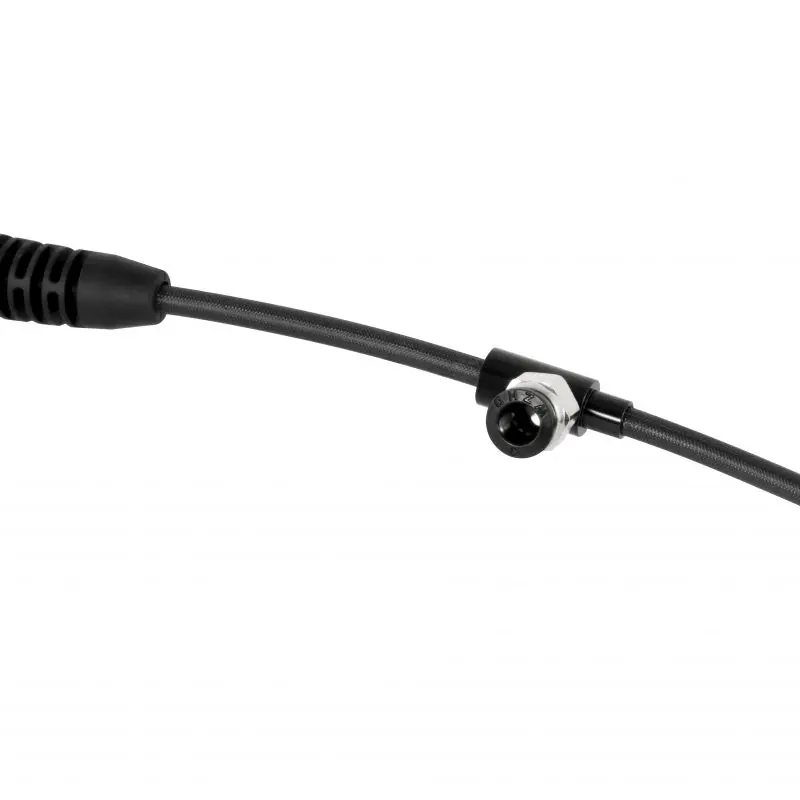

- Connection for air cooling

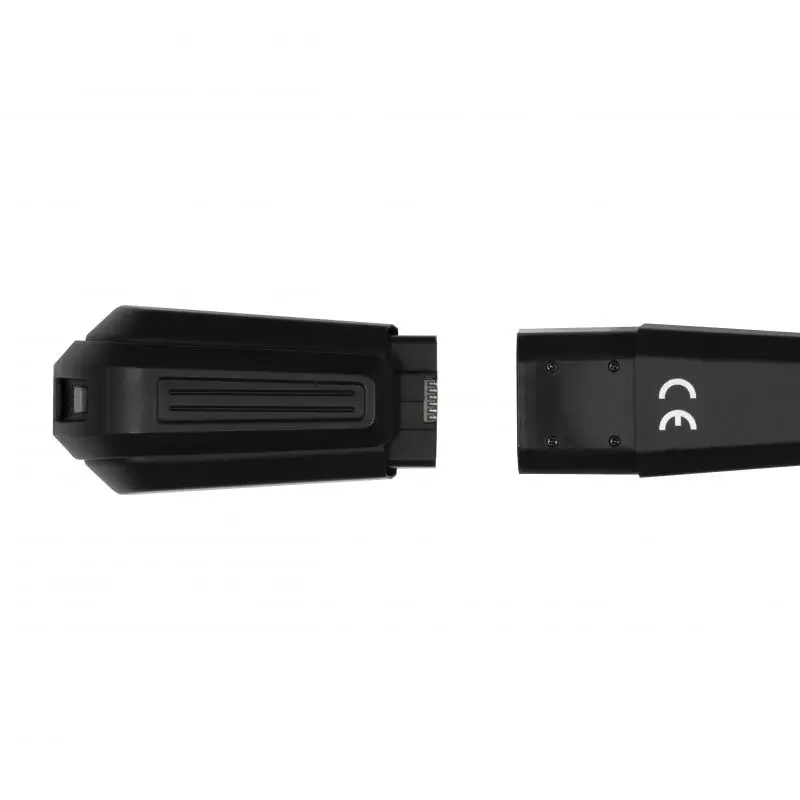

- Removable Li-ion battery

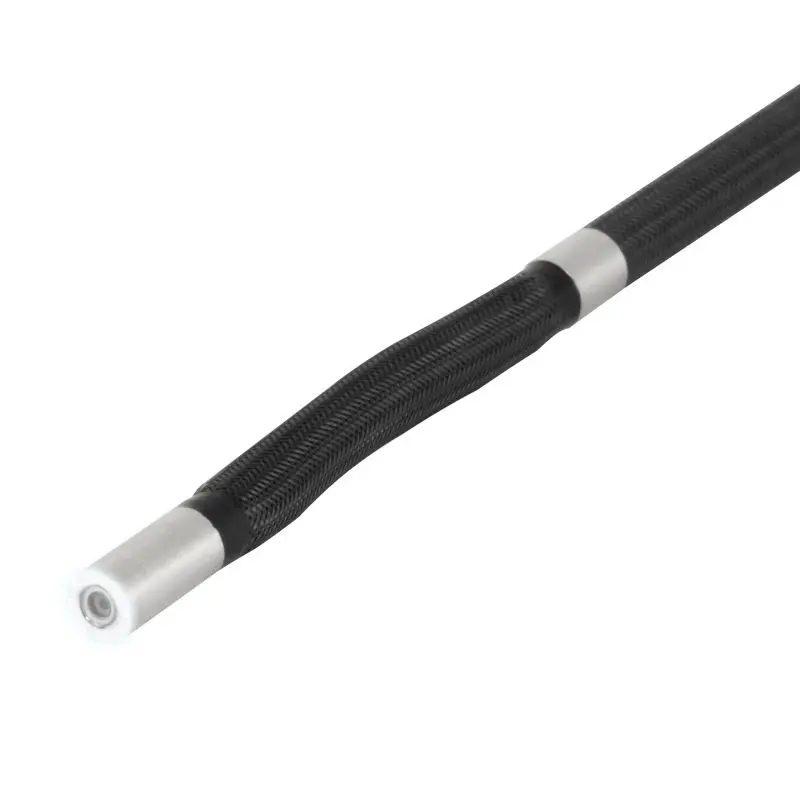

- 4-way camera head
- Illumination via LED fibre optics
- HDMI image transmission
- 32 GB micro SD card memory

Specification

General technical data

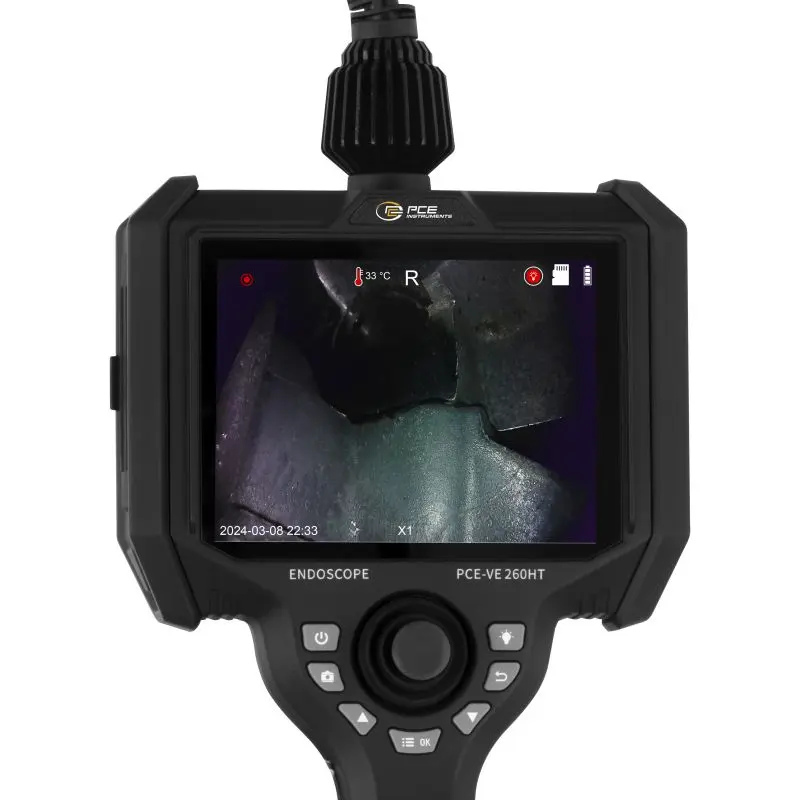

Display type  LCD
Display size  5 inch
Storage medium  Micro SD card
Storage capacity  32 GB
Storage capacity (additional information)  max. 128 GB possible

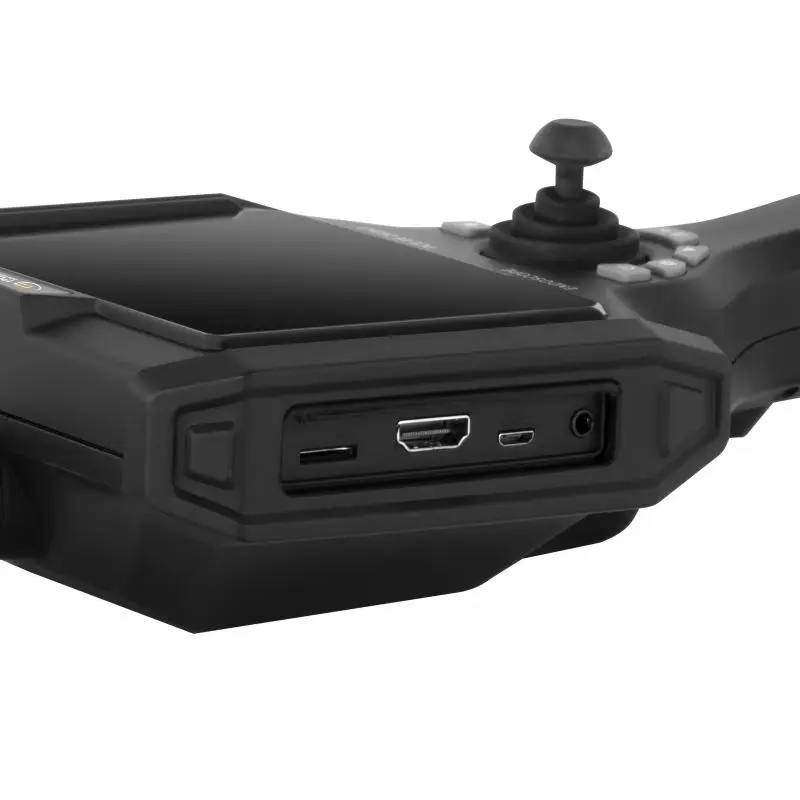

Interface  HDMI, Micro-USB, AUX
Camera resolution  1280 x 720
Camera orientation  frontal 0°
Operating time  4 h
Length of camera probe  2 m
Material camera probe  Wolfram braided
Movement of camera probe  4-way
Camera probe protection class  IP67
Diameter of camera head  6 mm
Field of view  120 °
Field of view depth  12 ... 200 mm
Bending angle  220 °
Luminous intensity  40000 lx
Fibre optic guide, rear LED
Cable type  flexible
Image / video format  JPEG, AVI, mp4
Pressure connection  Quick connection, max. permissible air pressure 4 bar
Menu language  German, English, Chinese, French, Spanish, Italian, Polish, Japanese, Russian, Ukrainian, Dutch, Korean
Protection class (device)  IP54
Power supply  5 V DC
Plug type  Euro plug device
Weight  1018 g
Dimensions (L x W x H)  360 x 157 x 75 mm
Operating conditions  -10 ... 50 °C , 0 ... 90 % r.H
Storage conditions  -20 ... 60 °C , 0 ... 90 % r.H
Accumulator/battery  1x 3.7 V , lithium-ion battery
Capacity  3400 mAh

Delivery Scope

1 x borescope PCE-VE 260HT
1 x 32 GB micro SD card
1 x USB card reader

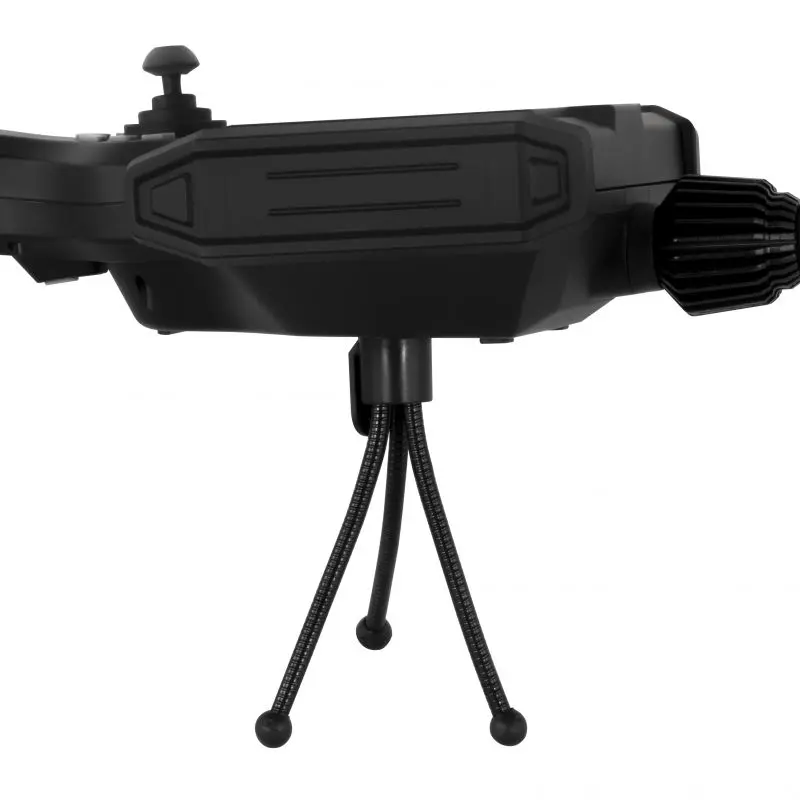

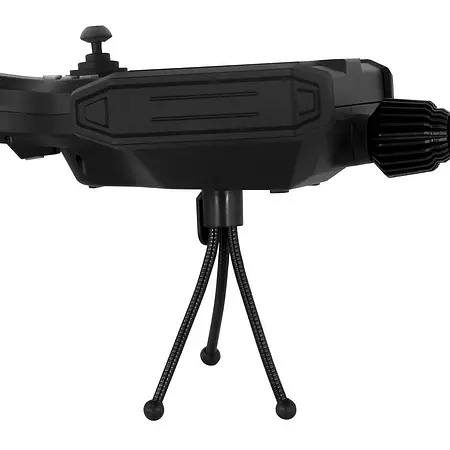

1 x mini tripod
1 x approx. 40 cm hose
1 x HDMI cable

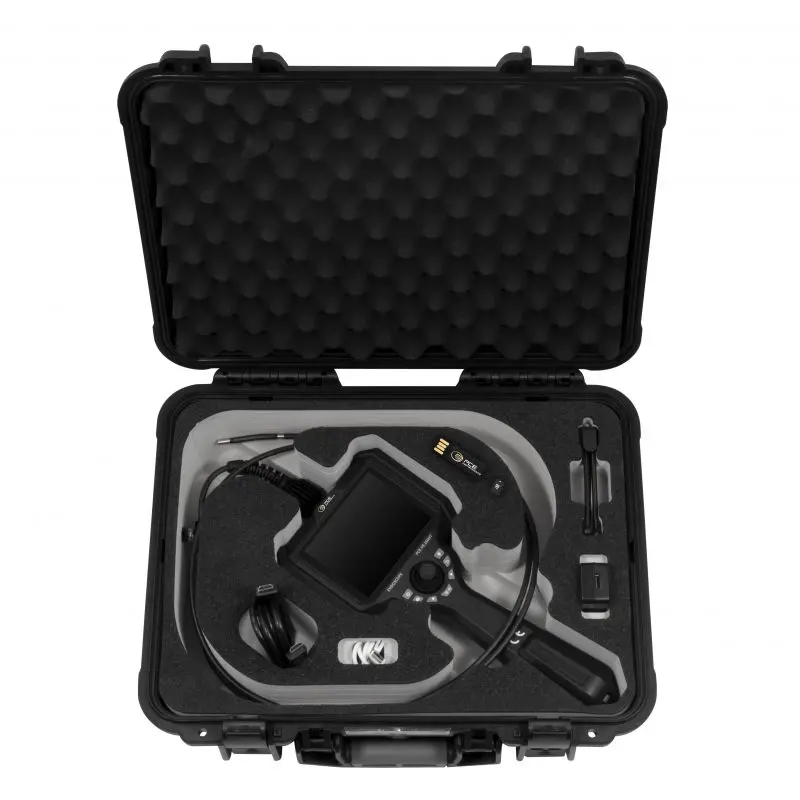

1 x case
1 x USB power adapter 5 V, 3 A
1 x Micro-USB cable
1 x instruction manual
