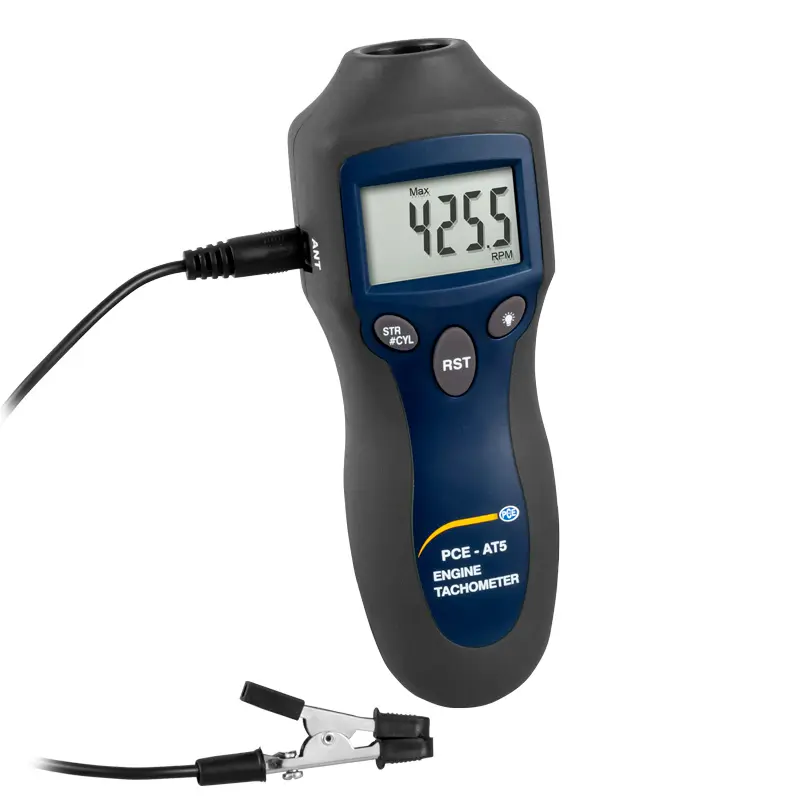

PCE-AT 5 Automotive Tester / Handheld Ignition-Tachometer
Measures revolutions in one-cylinder two-stroke and eight-cylinder four-stroke combustion engines with electric ignition starters

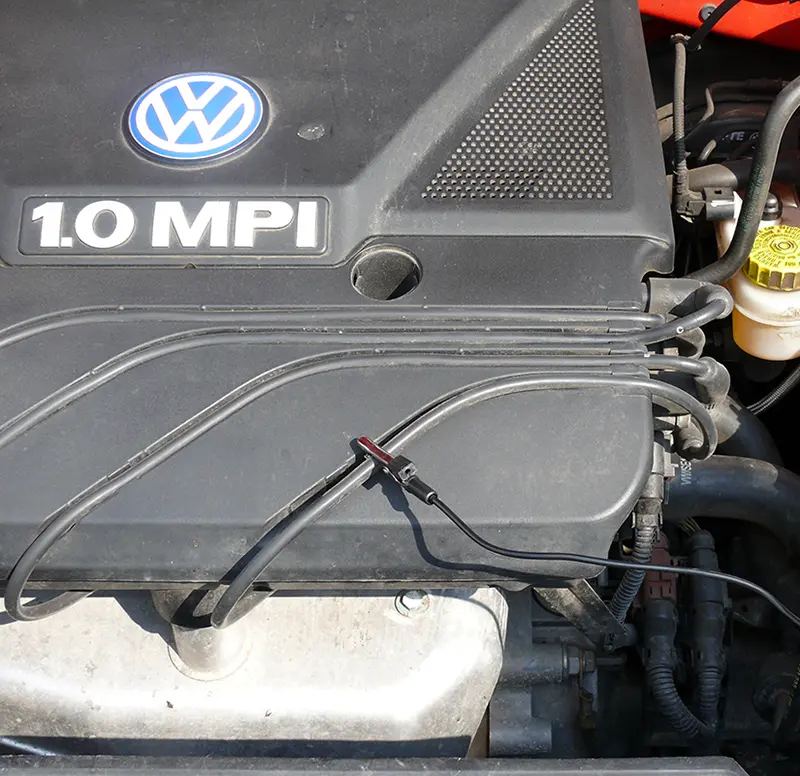

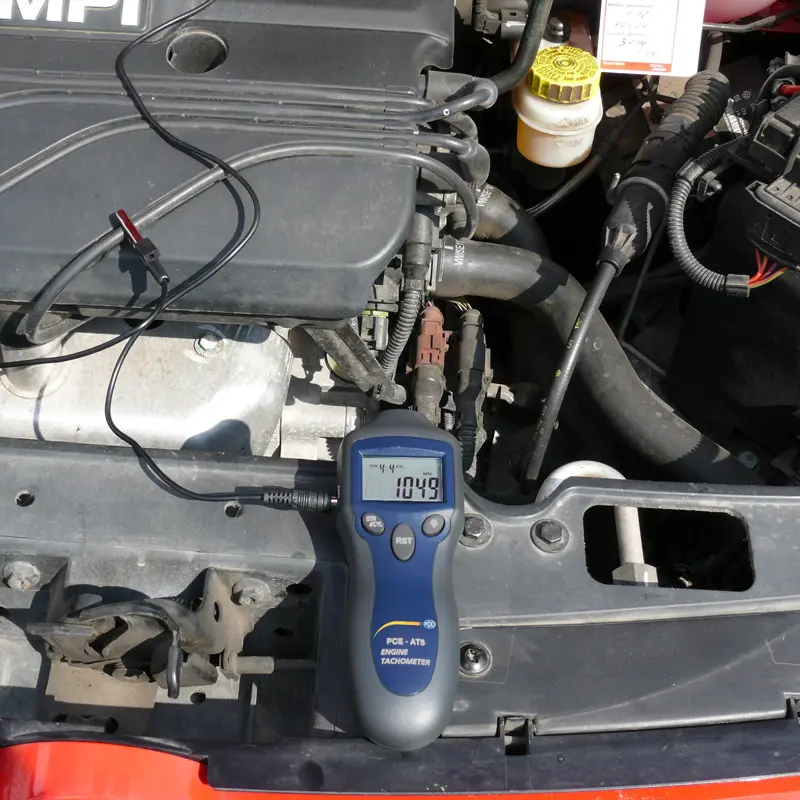

The PCE-AT 5 automotive tester / handheld ignition-tachometer is a portable compact device used to measure revolutions per minute (rpm) in one-cylinder two-stroke and eight-cylinder four-stroke combustion engines with electric ignition starters. The PCE-AT 5 handheld automotive ignition-tachometer features an easy-to-read, backlit digital LCD display and flashlight functionality for low-light applications. When the inductive clip is placed on the ignition cable, revolutions are measured quickly and easily. Compatible with motorcycles, cars, trucks and more, the PCE-AT 5 rotation meter is a versatile tool for use in garages, repair shops, factories and research and development (R&D) laboratories alike.


Highlights

- Measures revolutions in all common combustion engines with electric ignition starters
- Compatible with one-cylinder two-stroke engines as well as eight-cylinder four-stroke engines
- 1.1 m / .04 in cable with inductive clip to be placed on ignition cable

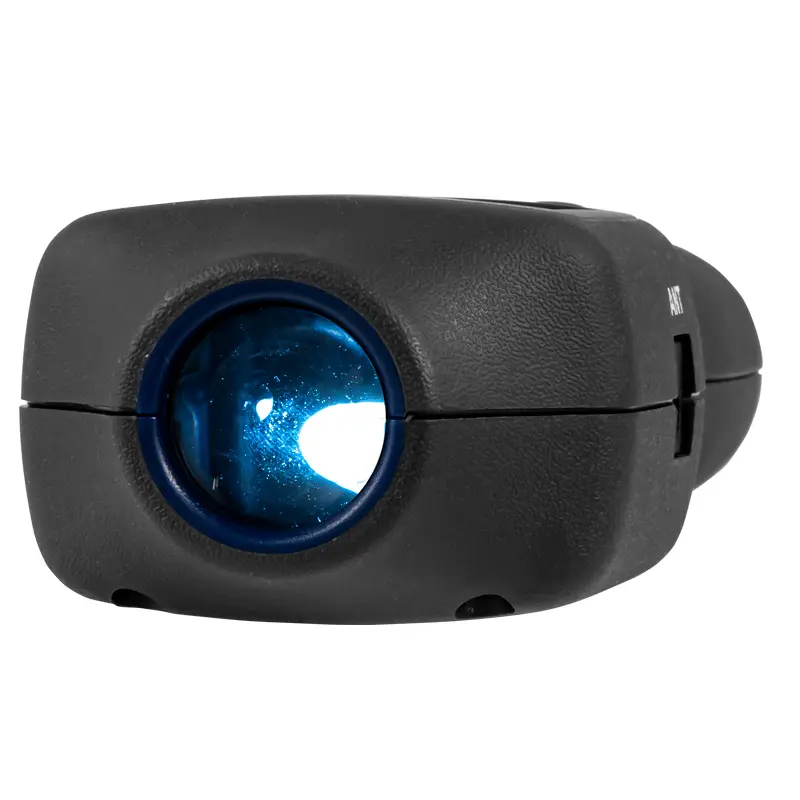

- 6-digit backlit LCD display and flashlight functionality for low-light applications
- Durable ABS plastic housing ensures longevity

Specification

Measurement range100 ... 20000 rpm
Resolution1 rpm
Accuracy± 10 rpm
Measurement interval0.5 seconds
Power supply1 x 9V battery
Operating temperature 0 ... 50ºC / 32 ... 122ºF
HousingABS plastic
Display6-digit 22 mm / .9 in LCD
Dimensions160 x 58 x 39 mm / 6.3 x 2.3 x 1.5 in
Weight177 g / < 1 lb

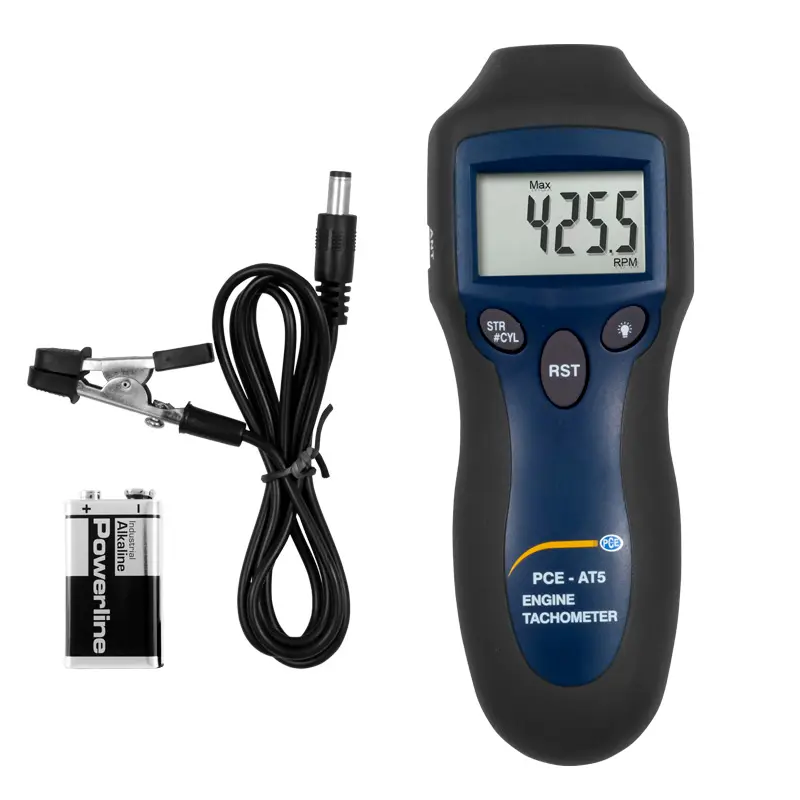

Delivery Scope

1 x PCE-AT 5 automotive tester / handheld ignition-tachometer
1 x Battery

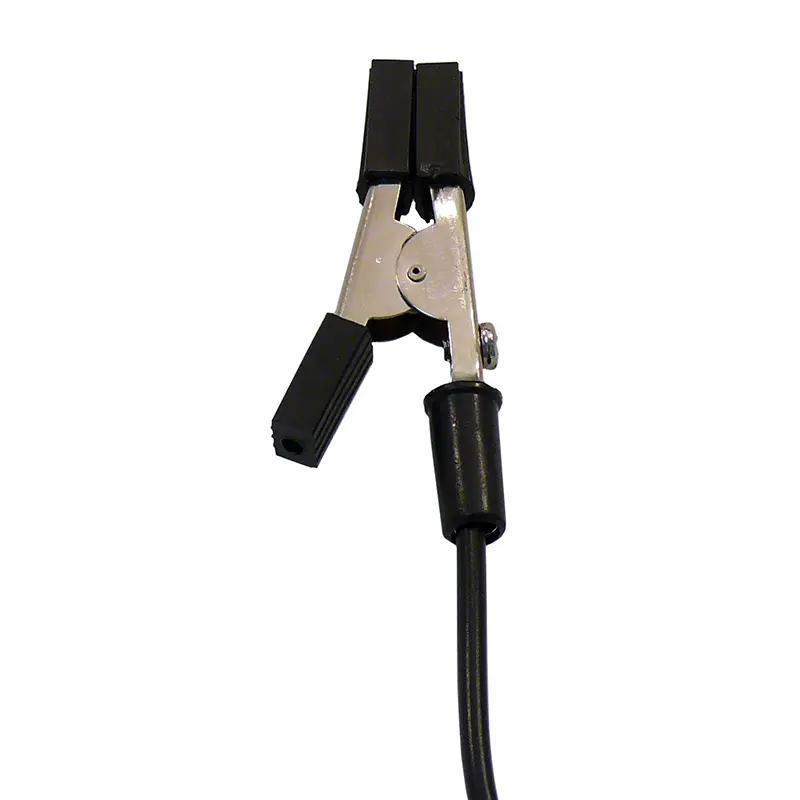

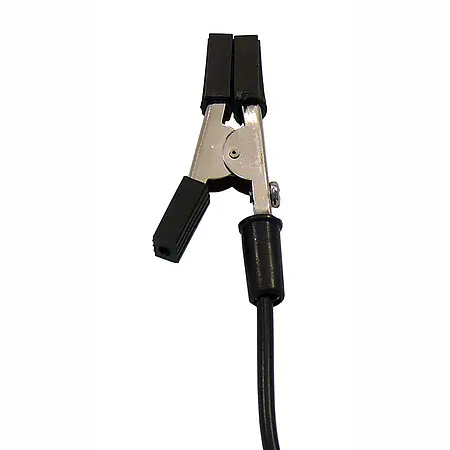

1 x Cable with inductive clip
1 x User manual
