Automotive Tester PCE-CT 26FN

Order no.: PCE-CT 26FN
GTIN (EAN): 4250348719058
US$ 272.00
ex. VAT, ex. delivery costs
:
4250348719058
PCE-CT 26FN
Available in: 1-2 days

Description

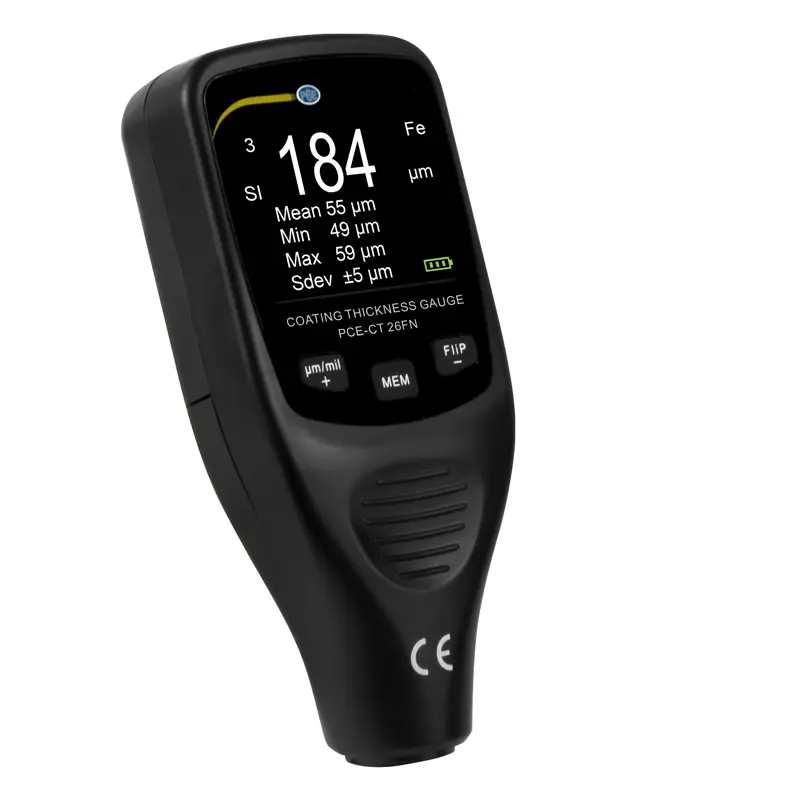

Automotive tester PCE-CT 26FN
For iron and non-ferrous substrates / Large measuring range / Rotatable color display / Low weight

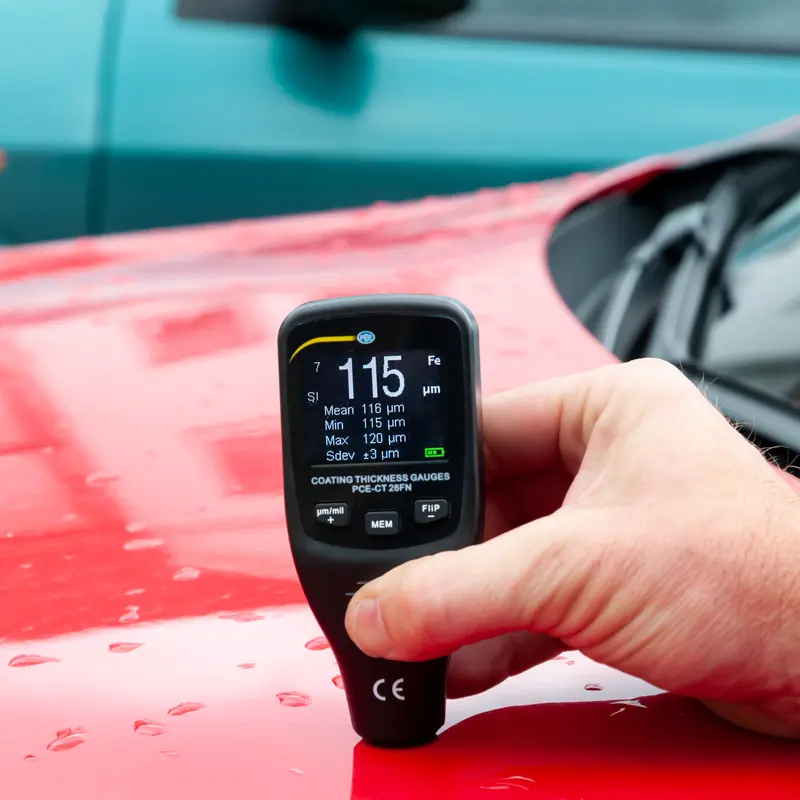

The automotive tester PCE-CT 26FN can measure non-destructive coatings (paints, plastics ...) on steel / iron and non-ferrous metals. The automotive tester is ideally suited, for example, to detect accidental damage to the vehicle immediately. But also in the industrial sector, the PCE-CT 26FN automotive tester is used for incoming and outgoing inspection in order to be able to offer consistently consistent product qualities.

The ergonomically shaped automotive tester with integrated probe and very simple operation allows you to quickly determine measurement results with high accuracy. The automotive tester PCE-CT 26FN is designed for measurements of non-magnetic coatings such as lacquer, plastic, chrome, copper, zinc, enamel, etc. on steel and iron, as well as all insulating coatings such as lacquer, plastic, enamel, paper, glass, rubber etc. on copper, aluminum, brass, stainless steel and aluminum.

Application / use:

Simply place the automotive tester u. read the measured value. You can easily measure varnish and paint layers, plastic layers, chrome layers, copper plating, zinc layers, galvanizing, enamel ... on steel, stainless steel, iron and similar materials. Non-ferrous metals (copper, aluminum, brass) and anodized aluminum.

By means of the included standards you can adjust the automotive tester at any time. To do this, the automotive tester must be placed on one of the foils. Please make sure that the meter is seated straight / level.

Highlights

- Immediately ready to measure
- Wear-resistant sensor
- V-groove for measurement on pipes
- One-handed operation
- ISO calibration optional
- Incl. transport case

Specification

Measuring range 0 ... 1250 μm (0 ... 49.2 mils)
Resolution 1 μm (0.039 mils)
Accuracy ± (3% + 2 μm) or ± (3% + 0.079 mils)
Smallest measuring surface 5 x 5 mm / 0.2 in x 0.2 in
Smallest radius of curvature Convex. 3 mm (0.1 in) / concave: 50 mm (2 in)
Smallest thickness of the base material         Fe: at least 0.5 mm / 0.02 in
  NFe: at least 0.3 mm / 0.01 in
Display OLED display
Ambient temperature 0 ... 50°C / 32 ... 120°F
Power supply 2 x AAA battery 1.5V
Dimension 100 x 52 x 29 mm / 4 x 2 x 1.1 in
Weight About 68 g / < 1 lb (without batteries)

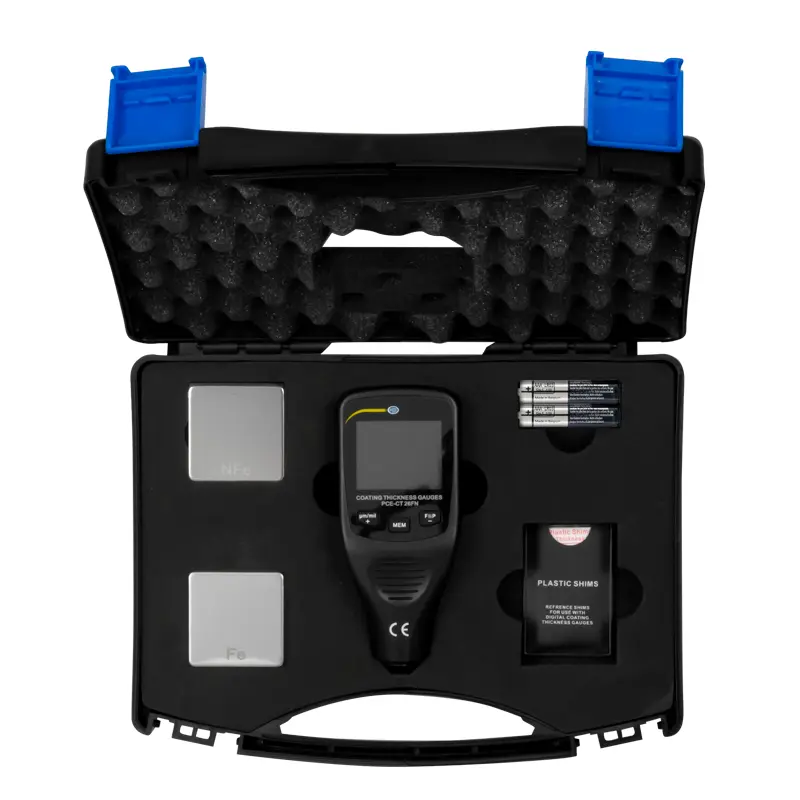

Delivery Scope

1 x Automotive tester PCE-CT 26FN
2 x AAA batteries 1.5V
1 x Set of calibration foils (5 pieces)
1 x Fe standard block
1 x NFe standard block
1 x Transport case
1 x User manual
