Automotive Tester PCE-T 220

Order no.: PCE-T 220
GTIN (EAN): 4250348734327
US$ 73.00
ex. VAT, ex. delivery costs
:
4250348734327
PCE-T 220
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Automotive Tester / optical speed measurement / measuring functions: MIN, MAX, LAST, average value / automatic power off / battery operation

Our Automotive Tester is a digital, battery-operated optical meter that can be used up to a distance of 50 cm from the measuring point thanks to its optical sensor. It covers a measurement range from 2.5 to 99999 revolutions per minute (rpm) and offers a resolution of 0.1 rpm to provide reliable results.

Equipped with minimum, maximum, last and average value functions, the Automotive Tester enables the recording of current and extreme measured values over the measurement period. The 1.8-inch LC display provides a clear view under all conditions. The compact design with dimensions of 127 x 55 x 30 mm makes the device handy and easy to use. The laser enables precise measurements at a distance of 50 to 500 mm. The trigger key must be held down to make a measurement. The values are updated by our Automotive Tester every second.

Our Automotive Tester switches off automatically after 60 seconds of inactivity to prevent the 2 AAA batteries from discharging unintentionally. Ideal for use in various industries such as engineering, automotive and maintenance, it provides the precision and reliability for a variety of applications.


Highlights

- measuring functions: MIN, MAX, LAST, AVG
- automatic power off after 60 s
- laser: class 3 A 2-5 mW
- measuring distance: 50 ... 500 mm
- sampling rate: 1 x per second
- LC display 1.8 inch

Specification

Optical speed
Measurement range up to  2,5 ... 999,9 RPM
Resolution  0,1 RPM
Accuracy  ± (0.1 % of Rd + 5 digits)

Optical speed
Measurement range up to  1000 ... 99999 RPM
Resolution  1 RPM
Accuracy  ± (1 % of Rd + 5 digits)

General technical data
Measuring functions  MIN, MAX, LAST, AVG
Display type  LCD
Display size  1,8 Inch
Measuring rate  1 x per second
Automatic power-off  60 s
Laser  Class 3A 2-5 mW
Measuring distance  50 ... 500 mm
Menu language  English, English (GB)
Protection class (device)  IP20
Weight  100 g
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  -10 ... 80 °C , 10 ... 75 % RH

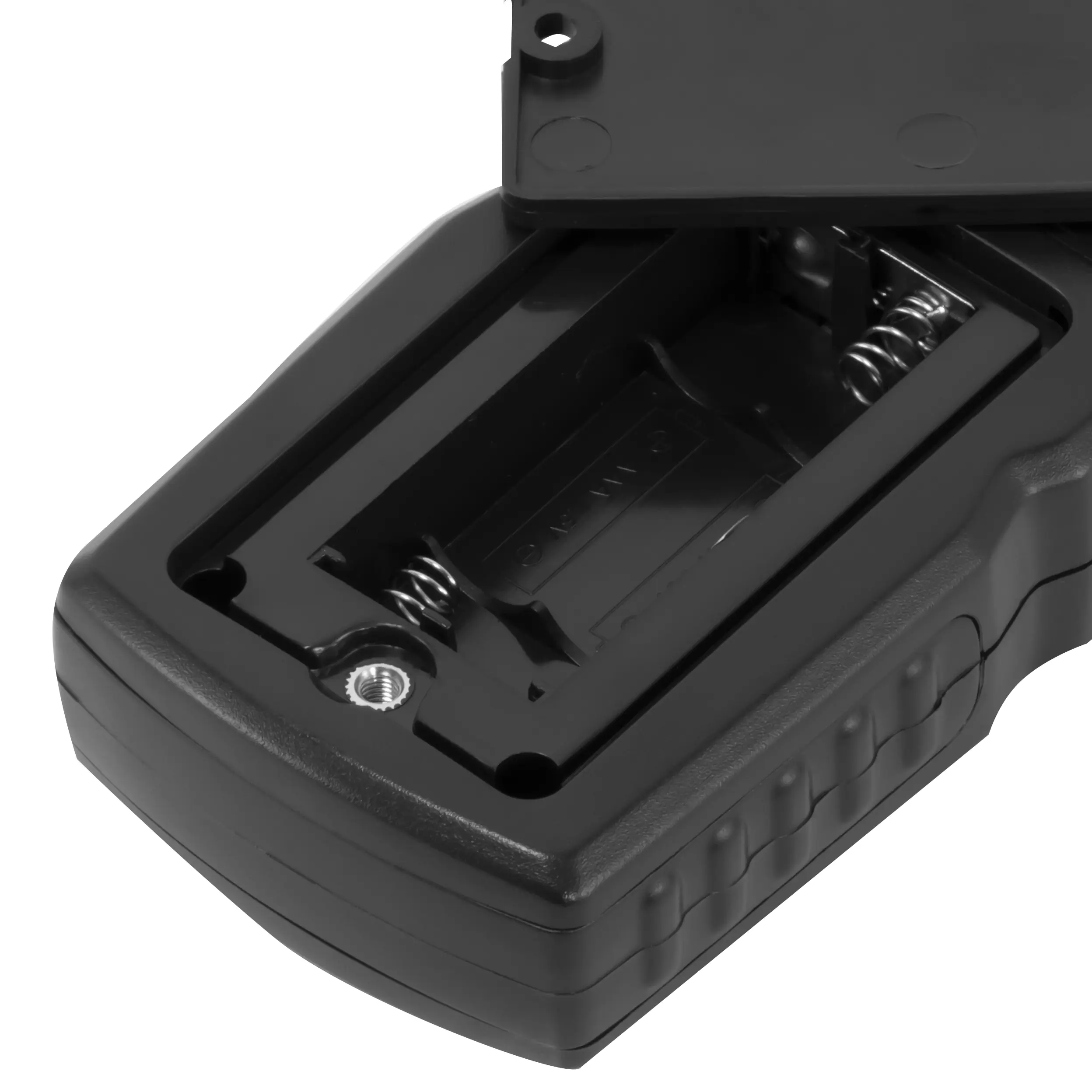

(Rechargeable) battery  2 x 1,5 V AAA battery , Zinc carbon
Capacity  400 mAh
Dimensions ( L x W x H )  127 x 55 x 30 mm

Delivery Scope

1 x Automotive Tester PCE-T 220
1 x user manual
2 x AAA 1.5 V battery

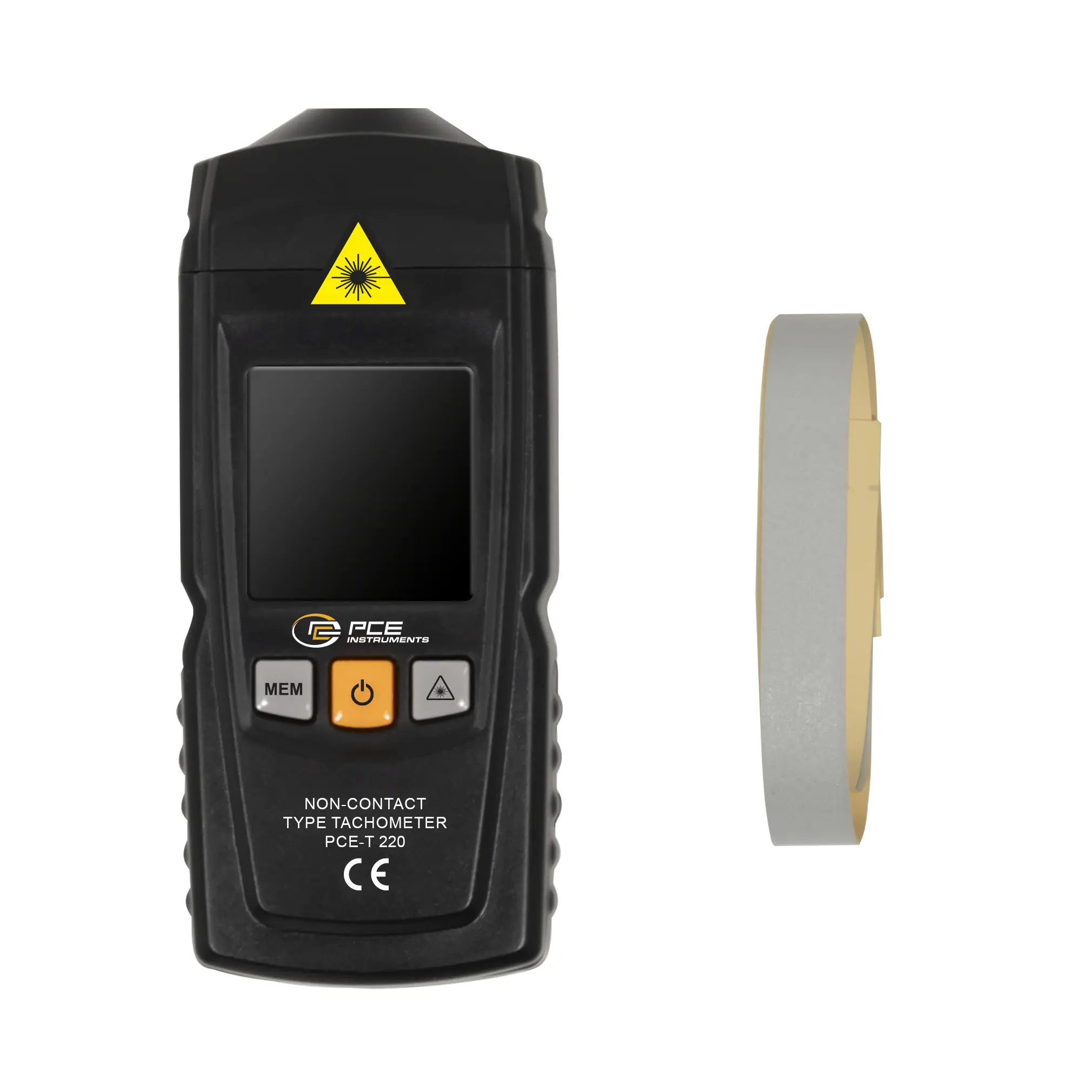

3 x reflective tape approx. 20 cm
