Automotive Tester PCE-T 230

Order no.: PCE-T 230
GTIN (EAN): 4250348734310
US$ 90.00
ex. VAT, ex. delivery costs
:
4250348734310
PCE-T 230
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Automotive Tester / optical speed measurement / measuring functions: minimum, maximum, last, average value / automatic power off / battery operation

Our Automotive Tester with a measurement range of 0.5 ... 19999 rpm and a resolution of 0.1 rpm enables accurate and reliable measurements in many applications. With a sampling rate of 0.8 seconds, the Automotive Tester delivers quick results. It offers multiple measurement functions to choose from, including MAX, MIN, LAST and AVG, to capture different aspects of rotational speed measurement. The units can be flexibly selected between rpm, m/min and ft/min.

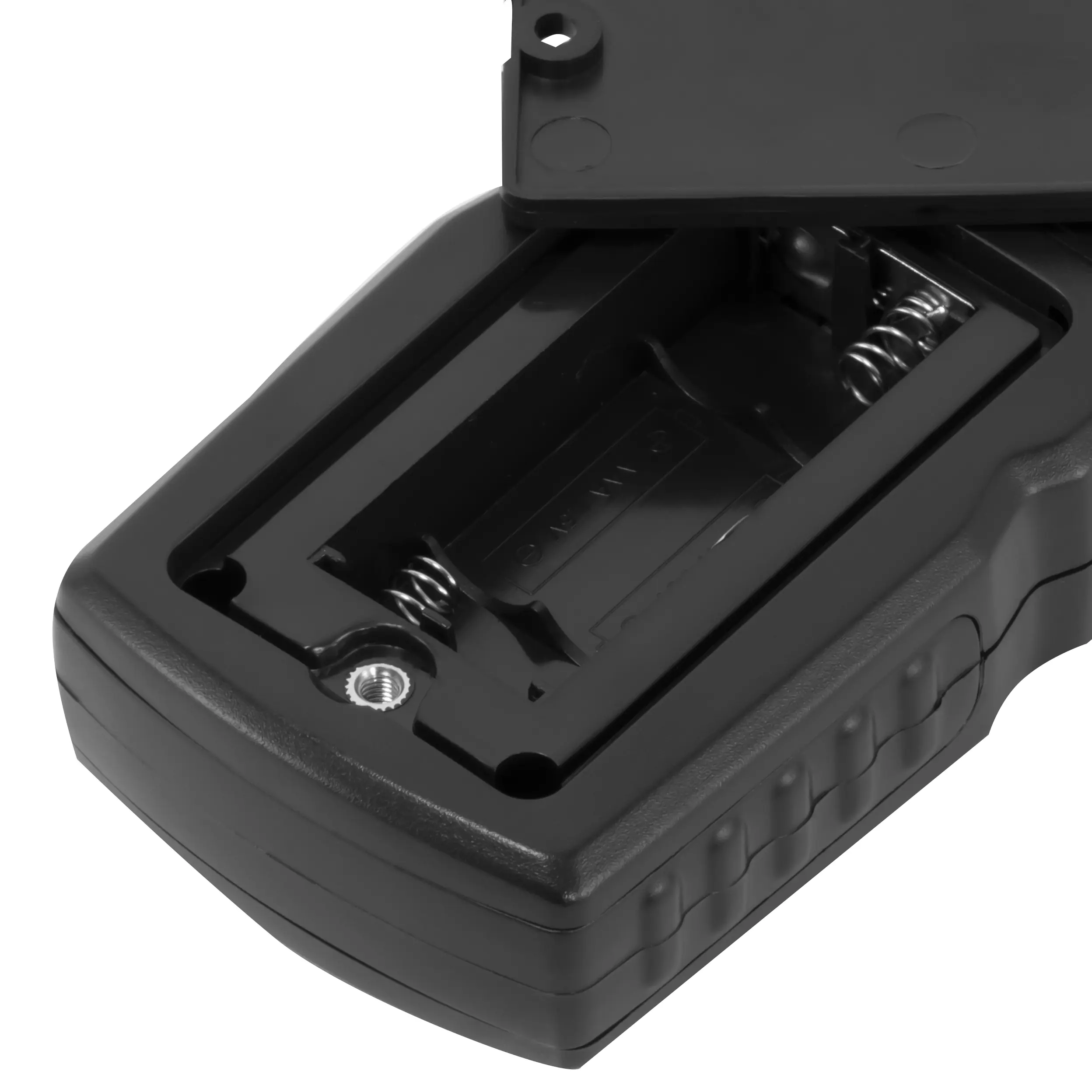

The Automotive Tester has a low battery indicator and is powered by two AAA batteries. Automatic power off after 60 seconds helps to save energy. The Automotive Tester fits compactly in the hand and can be operated using just three keys. The 1.8-inch LC display ensures that the measured values are clear and easy to read.

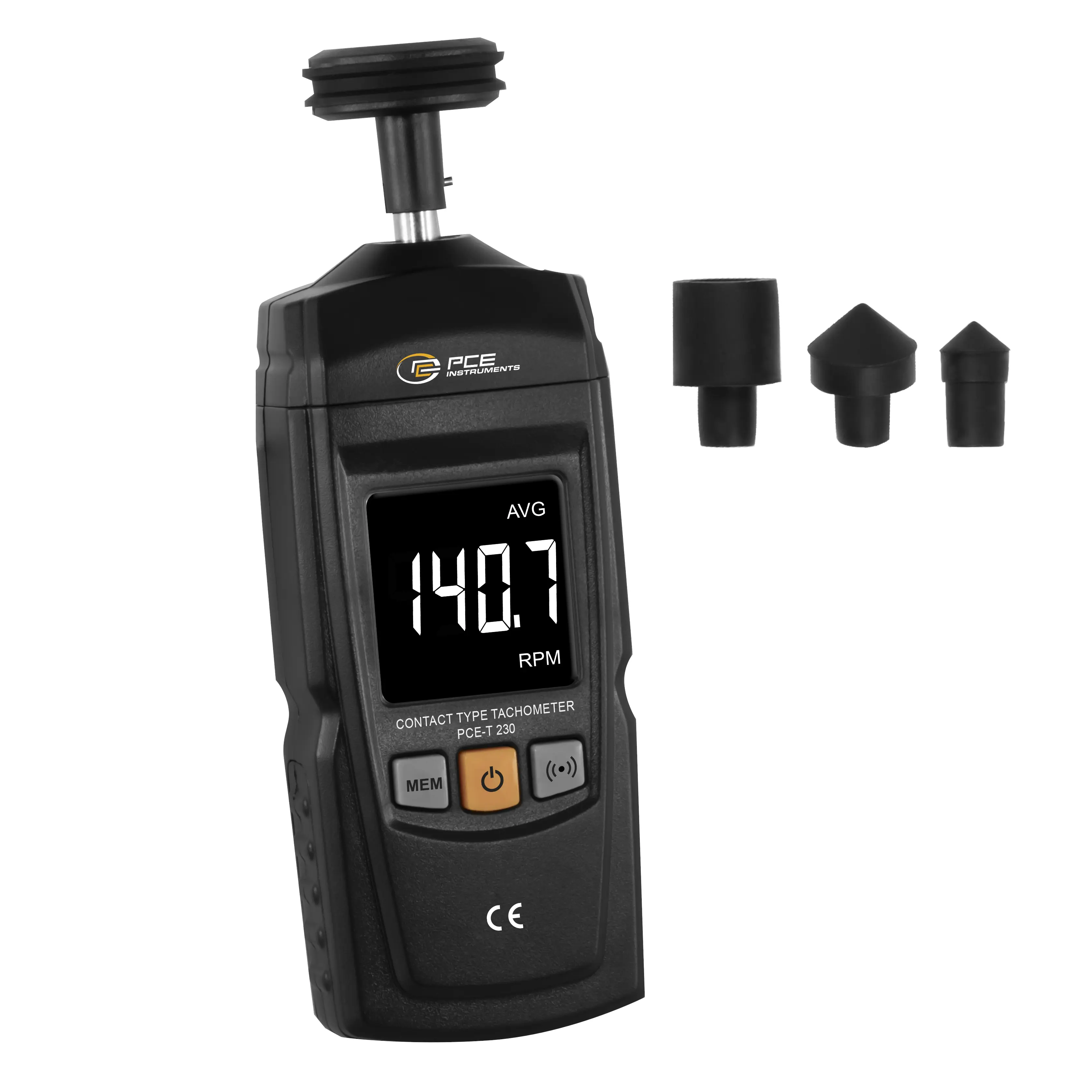

In addition to the Automotive Tester, the delivery scope includes an adaptor and four additional rubber pads for various measurements. These accessories extend the device's range of applications and make it a practical tool for users in various industries.


Highlights

- measuring functions: MAX, MIN, LAST, AVG
- units: rpm, m/min, ft/min
- sampling rate: 0.8 s
- automatic power off after 60 s
- 1.8-inch LC display

Specification

Optical speed
Measurement range up to  0,5 ... 9999 RPM
Resolution  0,1 RPM
Accuracy  0.05 % of Rd + 1 digit

Optical speed
Measurement range up to  1000 ... 19999 RPM
Resolution  1 RPM
Accuracy  0.05 % of Rd + 1 digit

General technical data
Measuring functions  MIN, MAX, LAST, AVG
Units  ft/min, m/min, RPM
Display type  LCD
Display size  1,8 Inch
Measuring rate  0,8 s
Automatic power-off  60 s
Menu language  English, English (GB)
Protection class (device)  IP20
Weight  110 g
Operating conditions  0 ... 50 °C , 10 ... 90 % RH
Storage conditions  -10 ... 80 °C , 10 ... 75 % RH
(Rechargeable) battery  2 x 1,5 V AAA battery , Zinc carbon
Capacity  400 mAh
Dimensions ( L x W x H )  144 x 51 x 30 mm

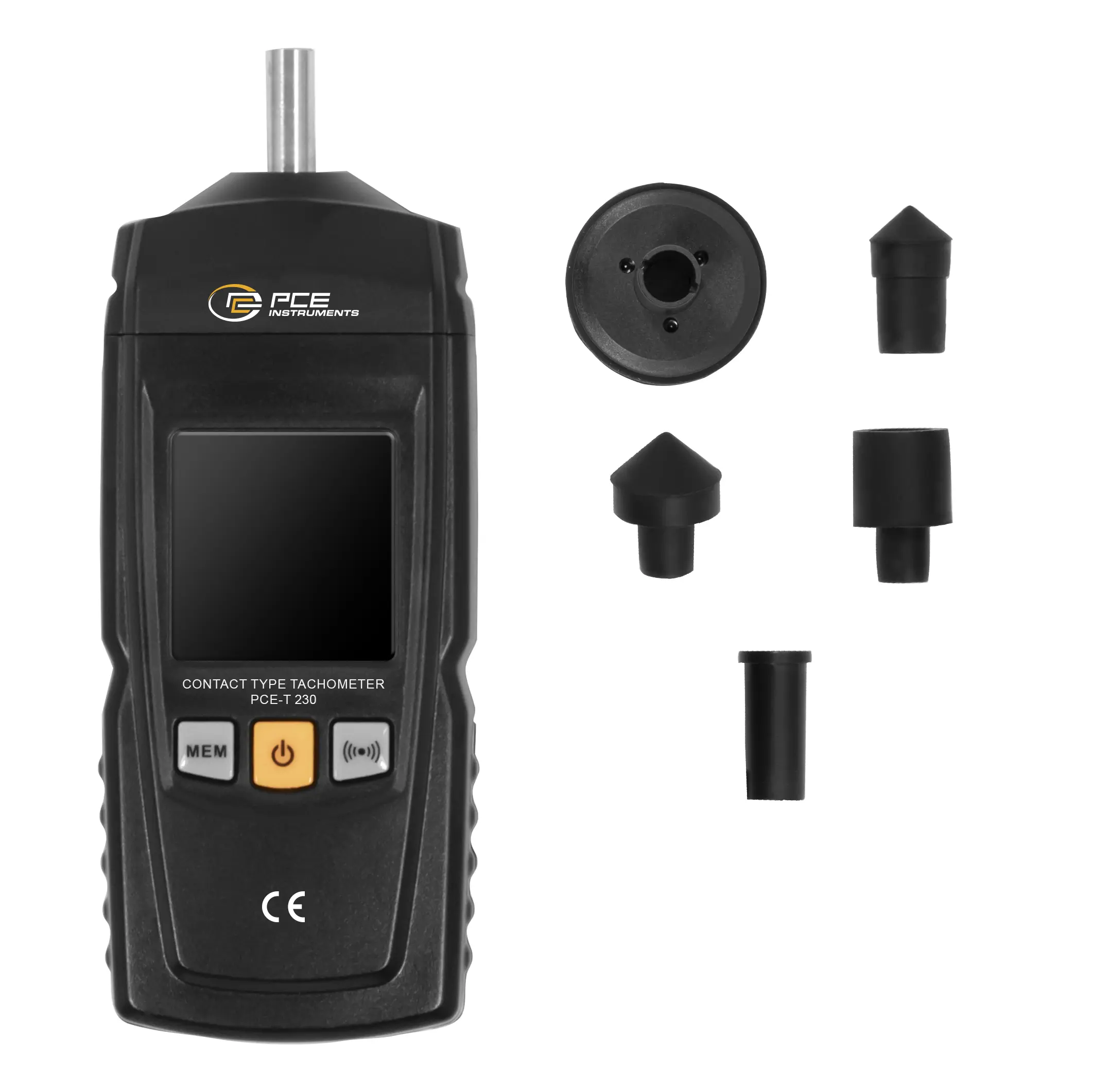

Delivery Scope

1 x Automotive Tester PCE-T 230
1 x adaptor wheel
1 x small measuring tip (outer cone)
1 x large measuring tip (outer cone)
1 x hollow measuring tip (inner cone)
1 x measuring wheel Ø32 mm
1 x user manual
2 x 1.5 V AAA battery
