Building Material Moisture Meter PCE-PMM 10

Order no.: PCE-PMM 10
GTIN (EAN): 4250348735447
US$ 80.00
ex. VAT, ex. delivery costs
:
4250348735447
PCE-PMM 10
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Building Material Moisture Meter / induction measurement for 10 material types / handy and user-friendly / traffic light function / 2-inch LC display

The Building Material Moisture Meter provides accurate moisture analyses for ten different material types, including drywall, masonry, hardwood, softwood, anhydrite screed (wt%), anhydrite screed (CM%), cement screed (wt%), cement screed (CM%), concrete and gypsum screed. It uses a capacitive measuring method and the sensor works inductively.

The Building Material Moisture Meter has two limit value settings which are shown on a bar graph and are designed for the 10 material types that our Building Material Moisture Meter can analyse. The first alarm point activates a rapid beep and the yellow LED when the moisture is between 20% and 69%. The second alarm point, which responds at values between 70% and 100%, generates a continuous tone and lights up the red LED. These functions ensure reliable moisture monitoring and provide clear audible and visual warning signals.

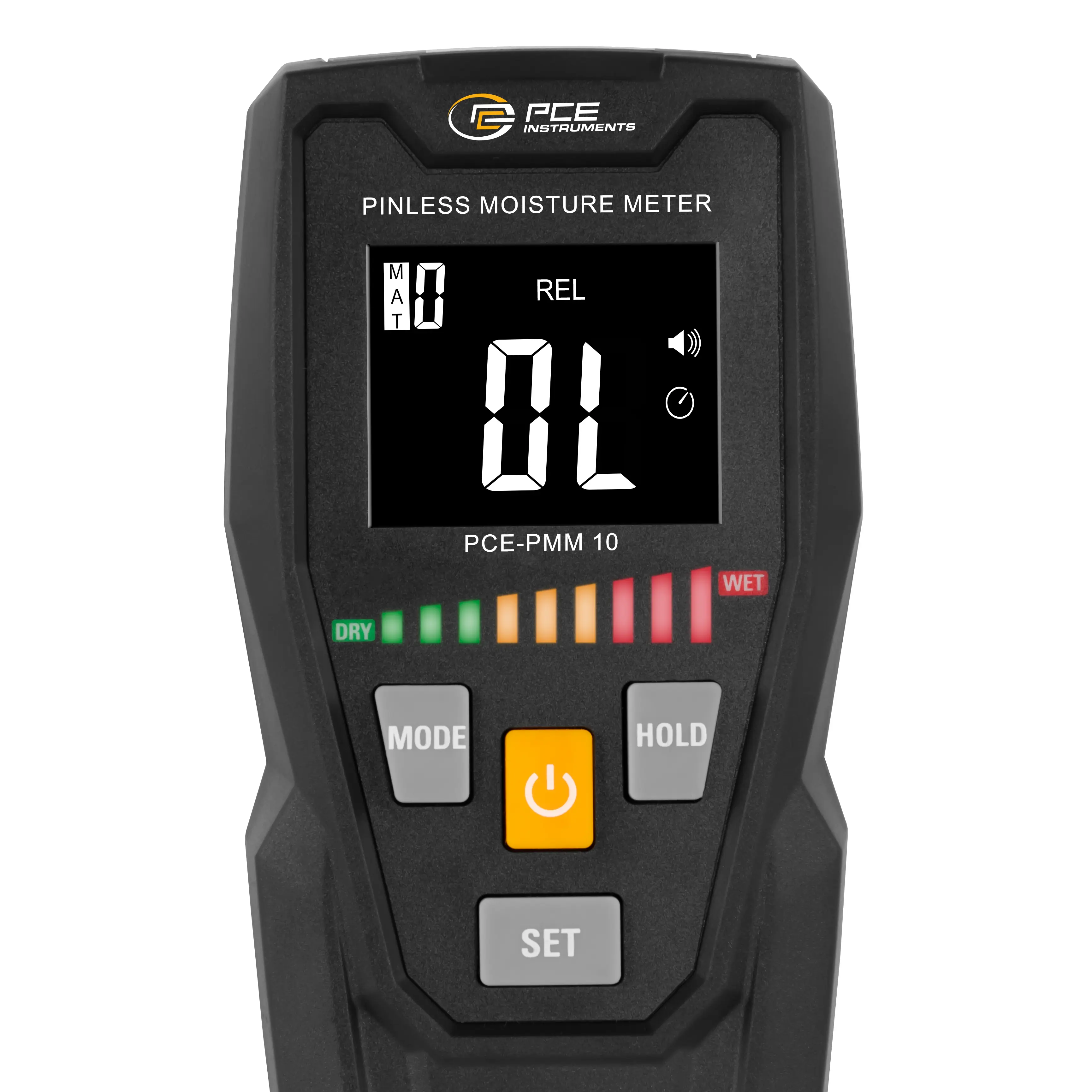

The Building Material Moisture Meter also has a hold function and an automatic power off function. The readings are shown on a 2-inch backlit LC display which also displays a battery warning.

The Building Material Moisture Meter is ideal for use in construction and renovation projects to check moisture levels in walls, floors and ceilings. It is often used by site managers, tradesmen and surveyors to ensure that materials are dry and ready for processing. It is also useful in woodworking, quality control of construction sites and in the refurbishment of damp rooms to prevent mould growth and other damage.


Highlights

- induction sensor for 10 material types
- limit value settings
- HOLD function
- automatic power off
- battery warning

Specification

Humidity
Material  Dry construction
Measurement range up to  0 ... 100 %
Resolution  0,1 %
Accuracy  ±4 % of Rd

Humidity
Material  Masonry
Measurement range up to  0 ... 89,5 %
Resolution  0,1 %
Accuracy  ±4 % of Rd

Humidity
Material  Hardwood
Measurement range up to  0 ... 35 %
Resolution  0,1 %
Accuracy  ±4 % of Rd

Humidity
Material  Softwood
Measurement range up to  0 ... 55 %
Resolution  0,1 %
Accuracy  ±4 % of Rd

Humidity
Material  Anhydrite screed (% by weight)
Measurement range up to  0 ... 3,5 %
Resolution  0,1 %
Accuracy  ±0.4 % of Rd

Humidity
Material  Anhydrite screed (CM%)
Measurement range up to  0 ... 1,5 %
Resolution  0,1 %
Accuracy  ±0.2 % of Rd

Humidity
Material  Cement screed (% by weight)
Measurement range up to  0 ... 4,7 %
Resolution  0,1 %
Accuracy  ±0.5% of Rd

Humidity
Material  Cement screed (CM%)
Measurement range up to  0 ... 3 %
Resolution  0,1 %
Accuracy  ±0.4 % of Rd

Humidity
Material  Concrete
Measurement range up to  0 ... 6 %
Resolution  0,1 %
Accuracy  ±0.7 % of Rd

Humidity
Material  Gypsum screed
Measurement range up to  0 ... 10 %
Resolution  0,1 %
Accuracy  ±1.1% f.s.

General technical data
Measuring functions  HOLD, ALARM
Display type  LCD with backlight
Display size  2 Inch
Sensor  inductive
Automatic power-off  10 min
Alarm  optical, Acoustic
Alarm modes  lower limit, upper limit
Measuring principle  Capacitive measuring method
Alarm settings  20 ... 100 %
Menu language  English, English (GB)
Protection class (device)  IP20

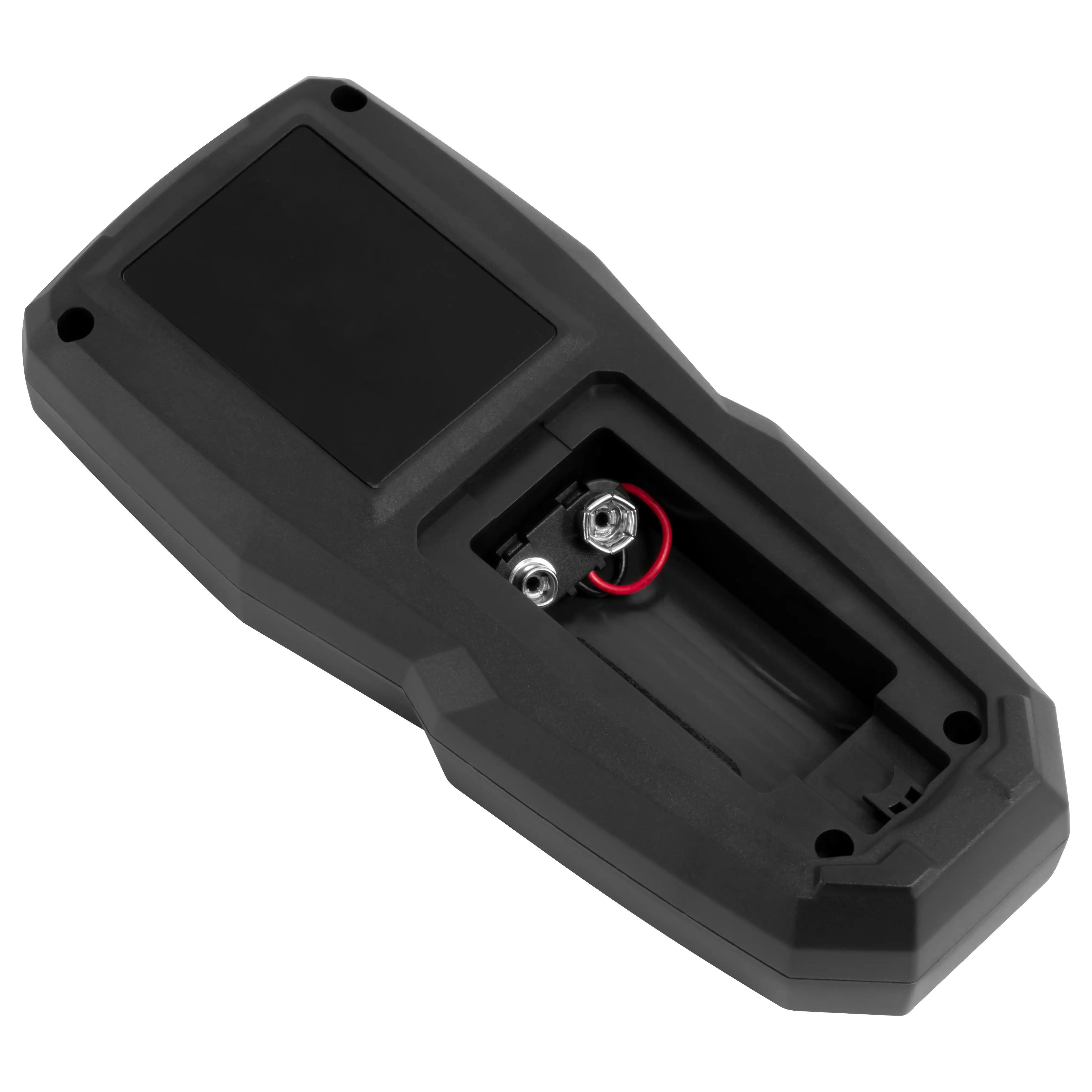

(Rechargeable) battery  1 x 9 V 9V block , Zinc carbon
Capacity  550 mAh
Operating conditions  0 ... 40 °C , 0 ... 80 % RH
Storage conditions  -10 ... 40 °C , 0 ... 70 % RH
Dimensions ( L x W x H )  155 x 70 x 35 mm
Weight  144 g

Delivery Scope

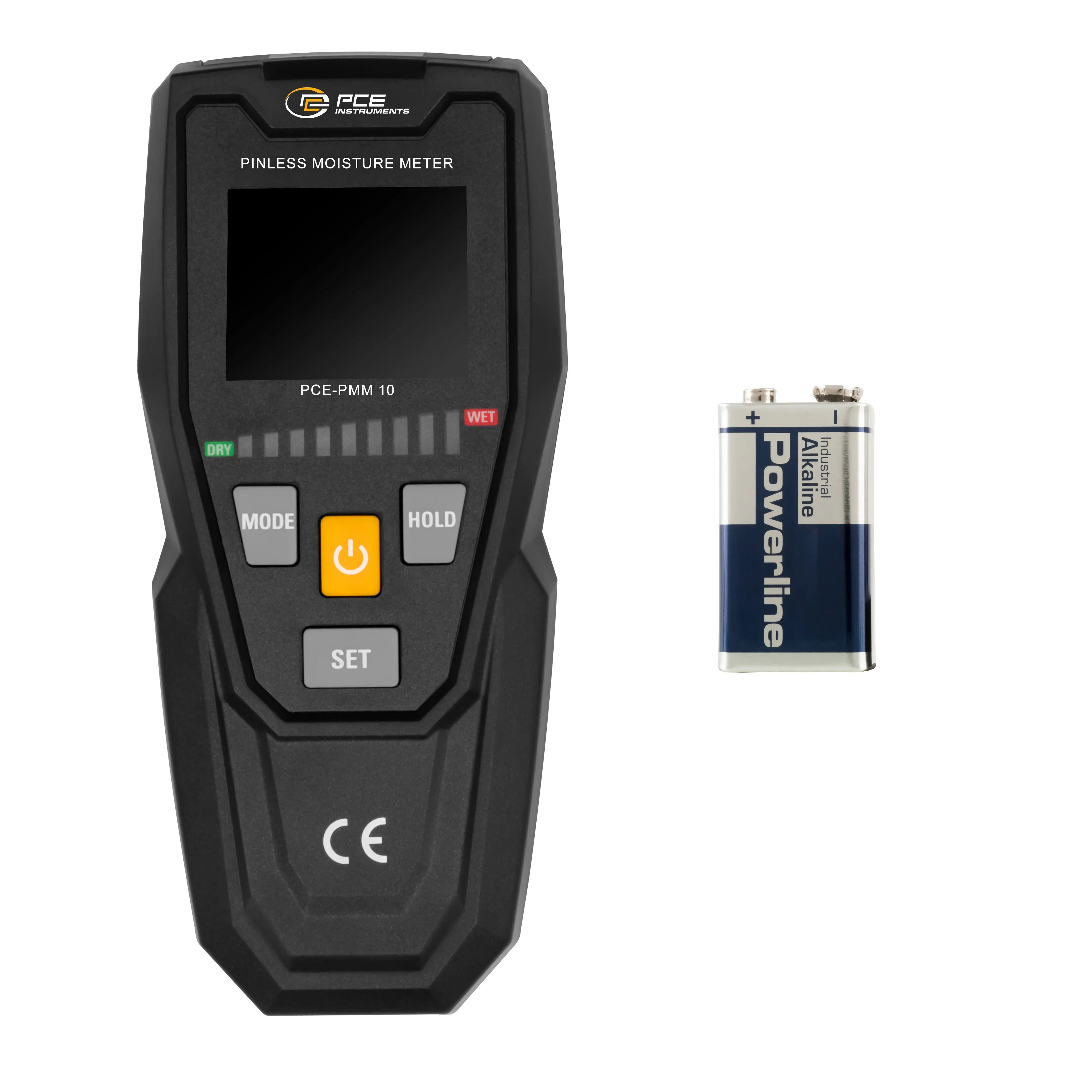

1 x Building Material Moisture Meter PCE-PMM 10
1 x 9 V block battery
1 x user manual
