Building Moisture Meter PCE-PMI 3

Order no.: PCE-PMI 3
GTIN (EAN): 4250348722263
US$ 343.00
ex. VAT, ex. delivery costs
:
4250348722263
PCE-PMI 3
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

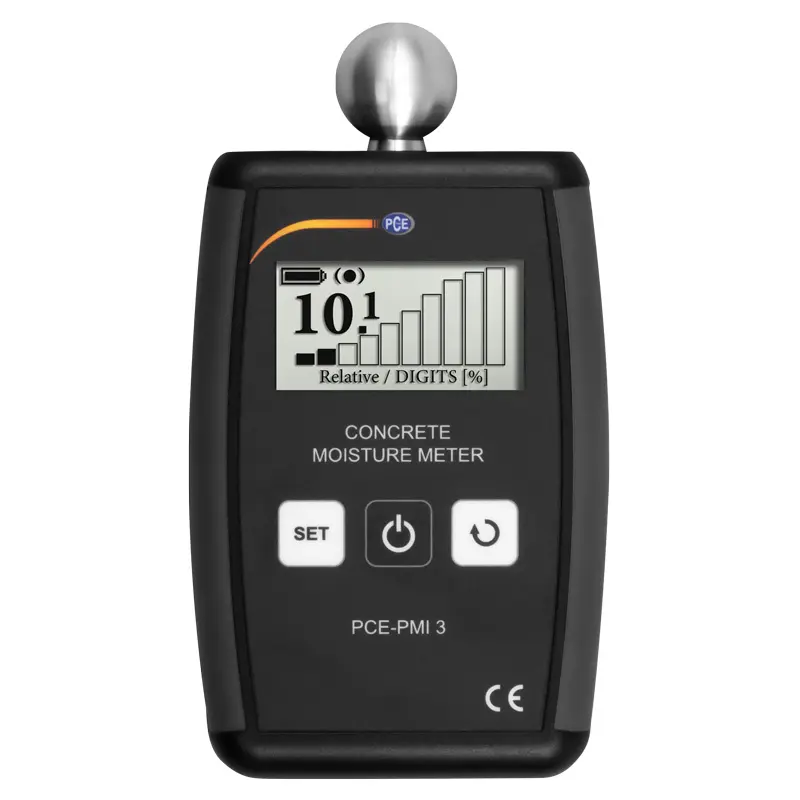

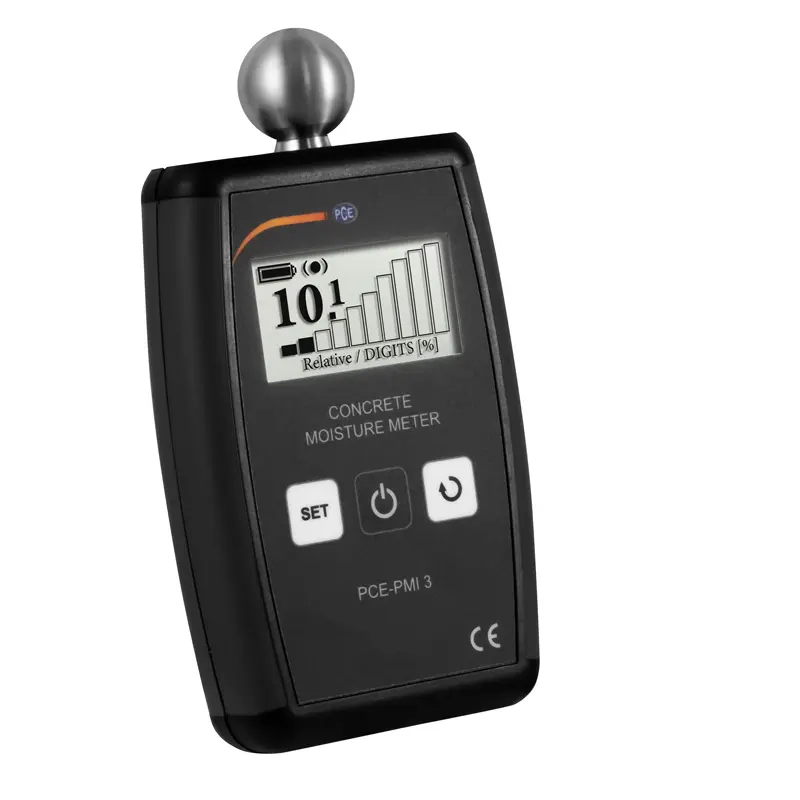

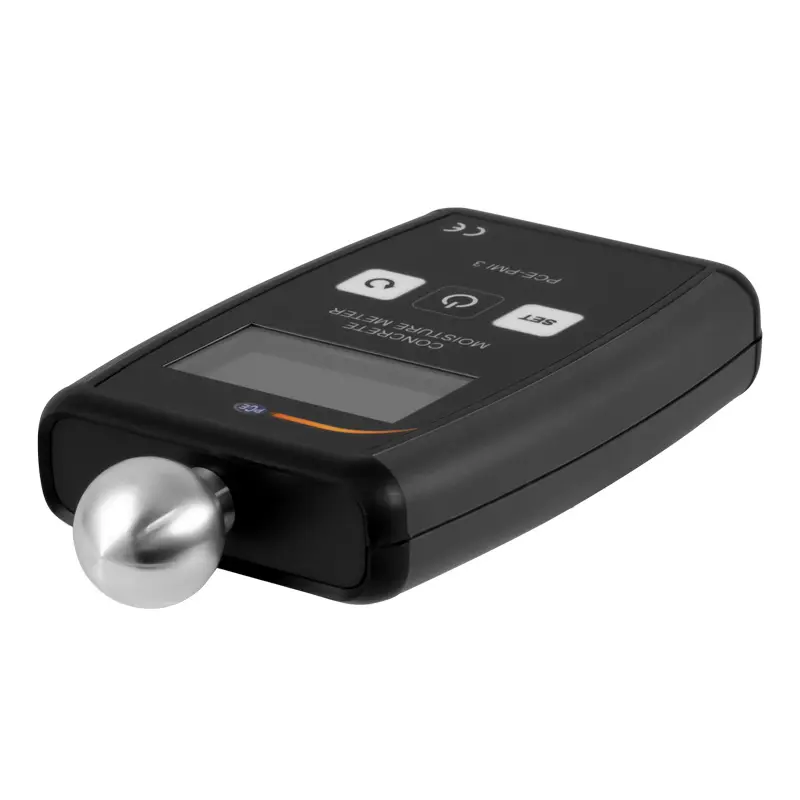

Building Moisture Meter
Moisture meter with different menu languages ​​/ Digitally rotatable display / Automatic shutdown for battery saving / For concrete and wood

The building moisture meter is a small and reliable measuring instrument for the determination of existing moisture in, for example, concrete and wood. Corresponding scales for measuring moisture are already stored in the library of the building moisture meter. After selecting the scale, the required measurement can be carried out with the building moisture meter. The measurement result is displayed on the building moisture meter both numerically and graphically after a few seconds.

For each scale in the building moisture meter, a separate alarm limit can be stored. As soon as the set alarm limit is exceeded, the building moisture meter will sound an audible alarm. In order to save the inserted batteries with the building moisture meter, the meter shuts itself off after 5 minutes if not used.

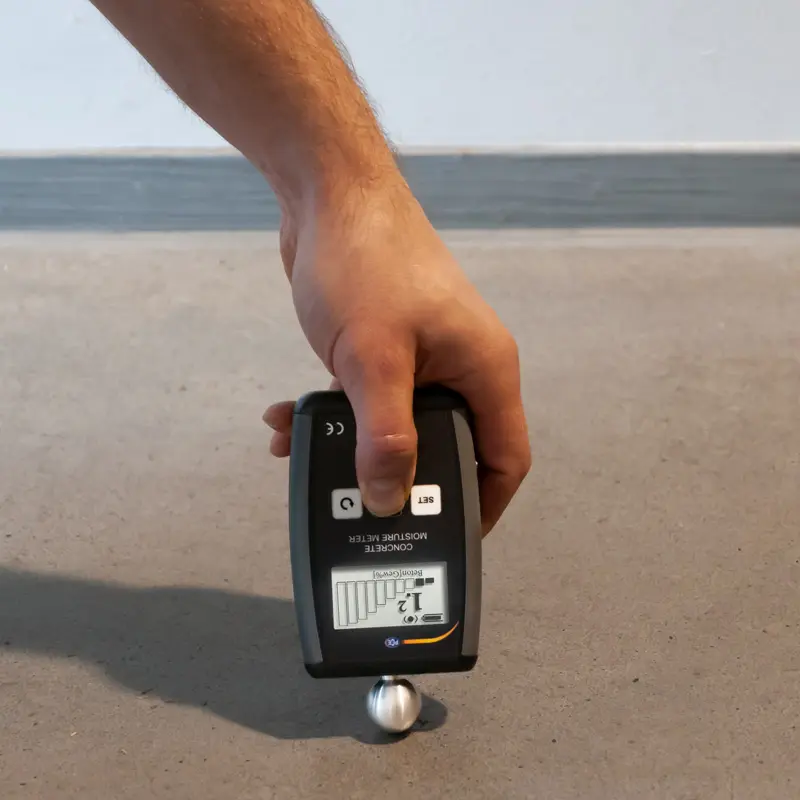

Another special feature of the building moisture meter is the possibility of displaying the calcium carbide method (CM%) for screed. Also in this measurement, the building moisture meter is placed on the surface to be tested. Based on the corresponding scale, the measured value is converted into a CM% value (calcium carbide method). This gives the operator a guideline value via the calcium carbide method.

Highlights

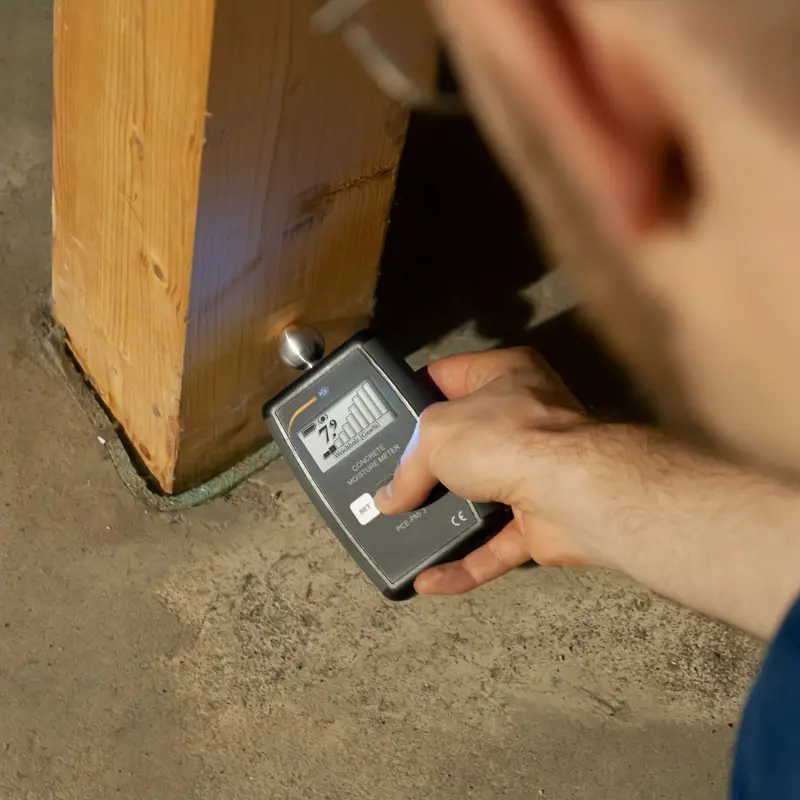

- For measurements on wood and concrete
- Ergonomic shape with anti-slip rubber
- Individually adjustable alarm limits
- Numeric and graphical view
- Easy three-button operation
- Automatic shutdown

Specification

Measuring function Measuring range
Relative scale 0.0 ... 99.9%
anhydrite 0.0 ... 3.5%
(Weight percent)
anhydrite 0.0 ... 1.5%
(Calcium carbide method)*
cement screed     0.0 ... 4.7%
(Weight percent)
cement screed 0.0 ... 3.0%
(Calcium carbide method)*
Concrete (weight percent)    0.0 ... 6.0%
gypsum plaster   0.0 ... 10.0%
(Weight percent)
hardwood   0.0 ... 37.0%
(Weight percent)
softwood 0.0 ... 51.0%
(Weight percent)
*The calcium carbide method is approximate.

Further specification
Accuracy ± 0.5%
Resolution
0.1%
Power supply 2 x 1.5V AA batteries
Uptime About 20 hours
Automatic shutdown  After 5 minutes of inactivity
Menu languages English, German, Dutch, Spanish, French
Display Graphically monochrome, 128 x 64 pixels, 61 x 33 mm, backlight
Operating conditions 5 ... 40°C / 41 ... 104°F
Dimensions 147 x 89 x 33 mm / 5.8 x 3.5 x 1.3 in
Weight 200 g / < 1 lb (with batteries)

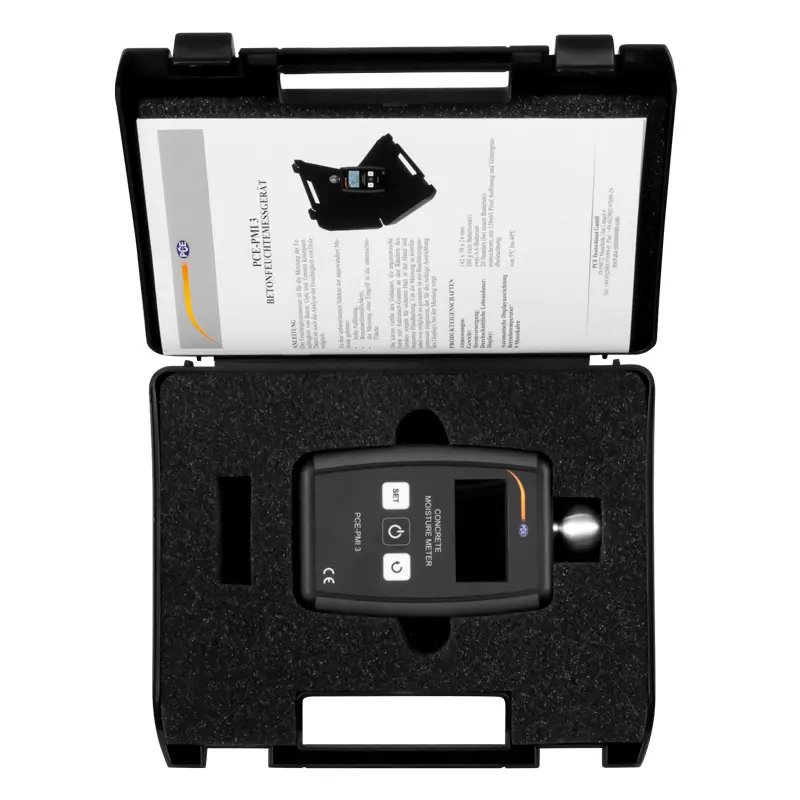

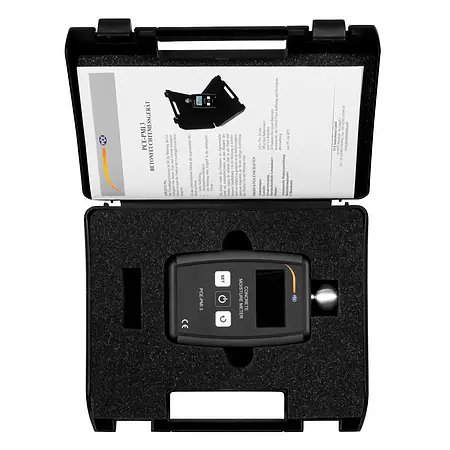

Delivery Scope

1 x Building Moisture Meter PCE-PMI 3
1 x Carrying case
2 x 1.5V AA battery
1 x Operating instructions
