Building Moisture Meter PCE-PMI 4

Order no.: PCE-PMI 4
GTIN (EAN): 4250348722270
US$ 641.00
ex. VAT, ex. delivery costs
:
4250348722270
PCE-PMI 4
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Brush Electrode PCE-PMI 4-B120
Brush Electrode PCE-PMI 4-B120
US$ 146.00
Penetration Probe PCE-PMI 4-ST230
Penetration Probe PCE-PMI 4-ST230
US$ 146.00
Fork Probe PCE-PMI 4-ST100G
Penetration Probe PCE-PMI 4-ST100G
US$ 146.00

Description

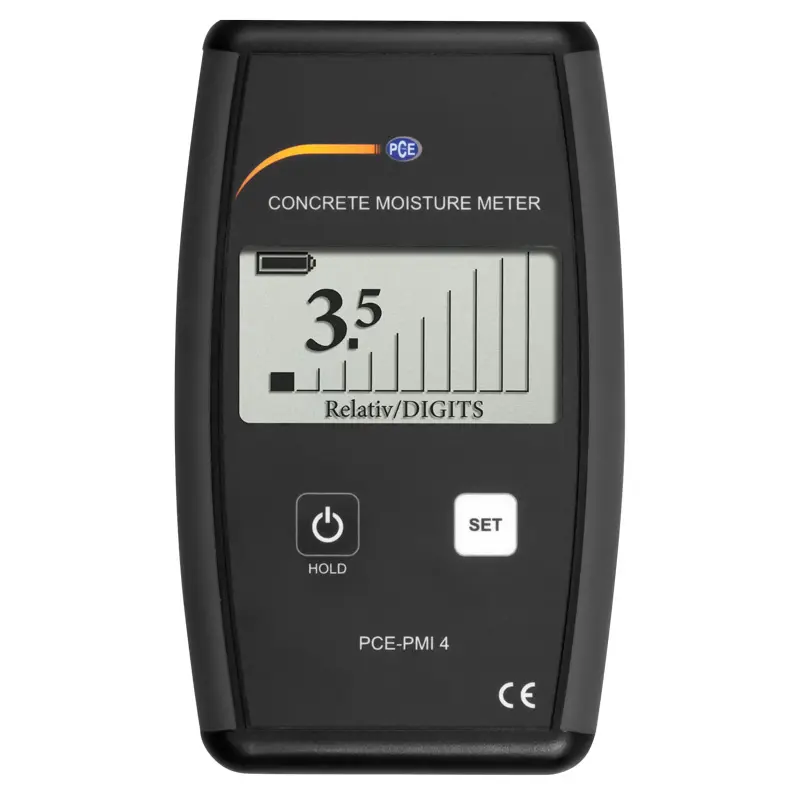

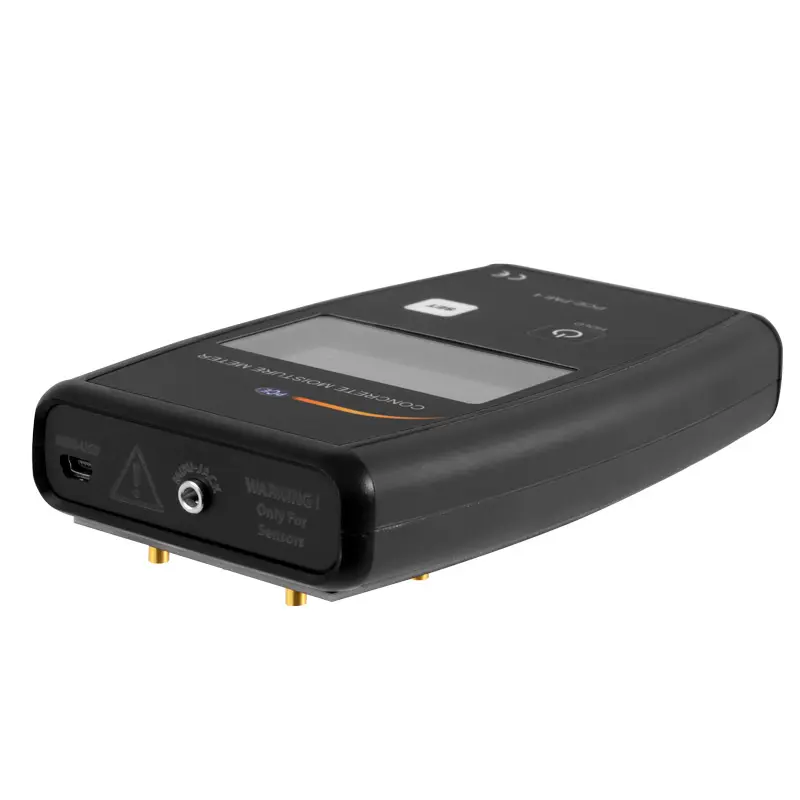

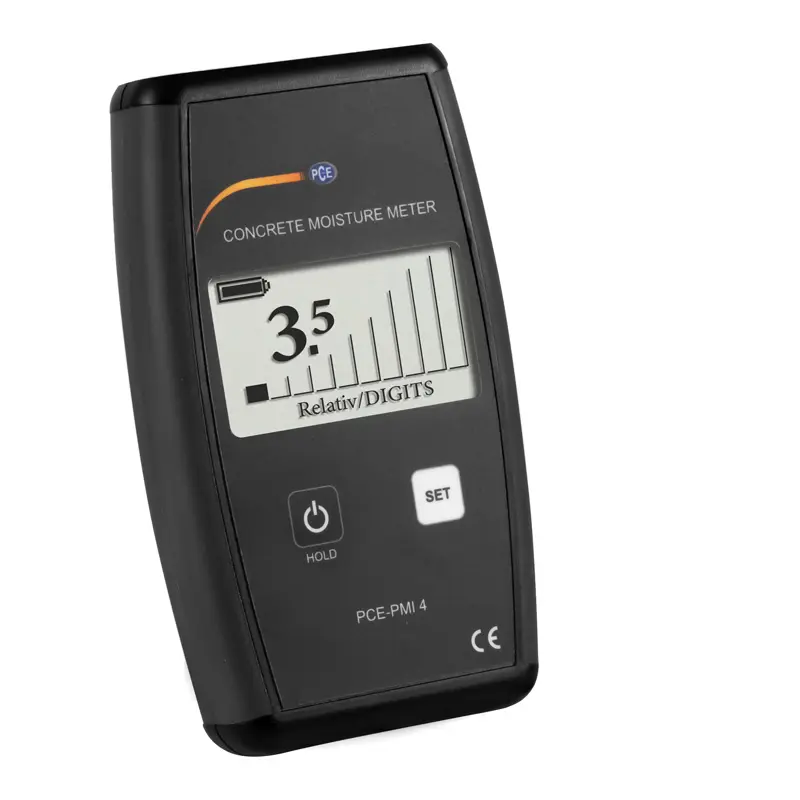

Building Moisture Meter
Moisture meter with eight spring electrodes / Many scales already deposited /
Non-destructive measurement on floors and walls / Large graphic display /
Measurement display both numerical and graphical / Max HOLD function

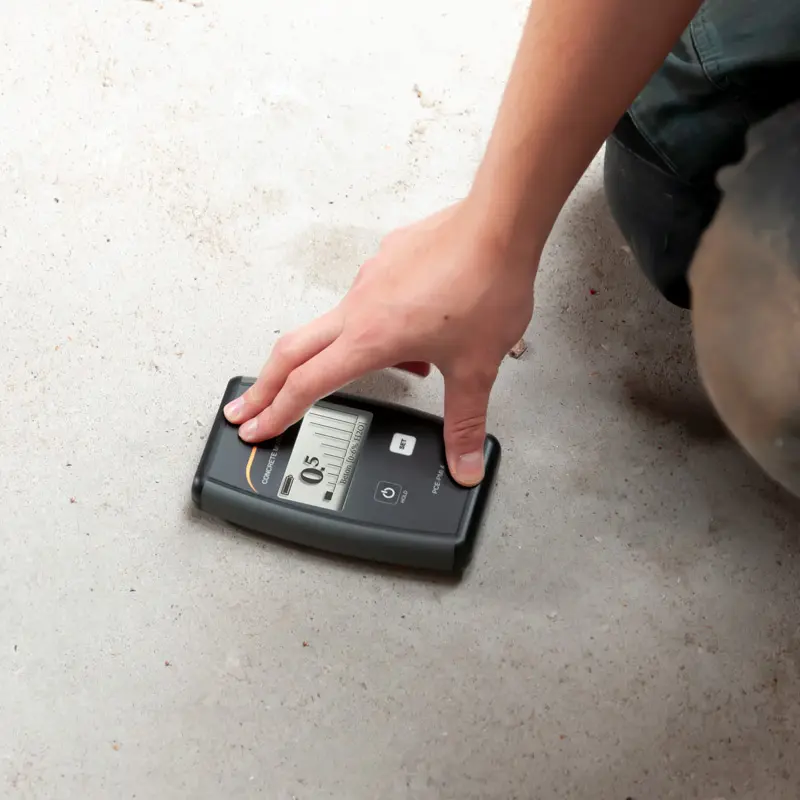

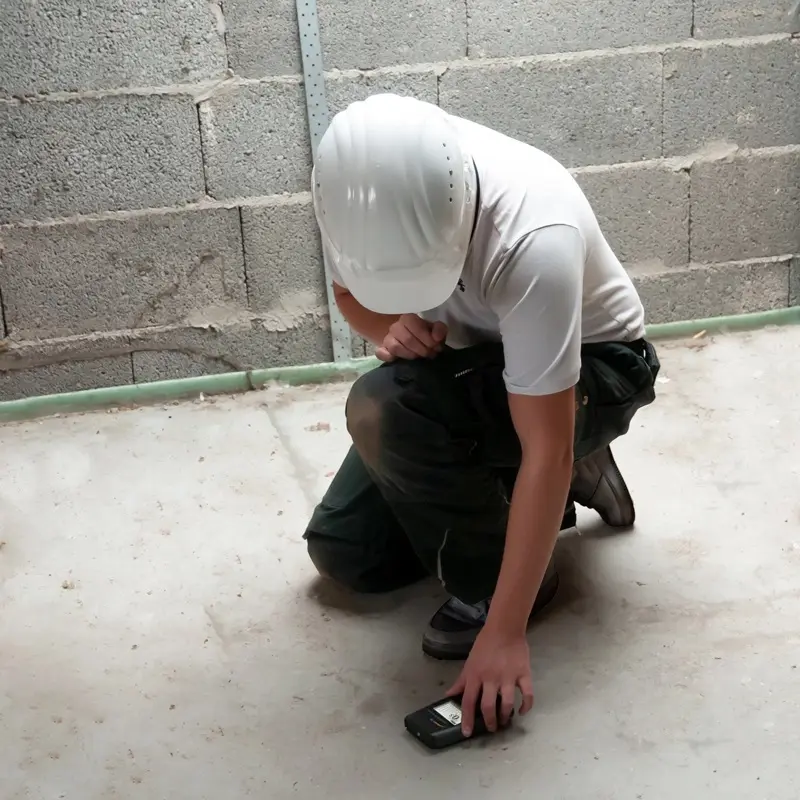

The building moisture meter is a measuring device for nondestructive moisture measurement on concrete and screed. Here, the spring electrodes of the building moisture meter are pressed onto the surface to be tested. Within seconds, the building moisture meter will show the moisture content to the operator. Different scales are already stored in the building moisture meter for a wide variety of surfaces. These are available to the operator directly from the building moisture meter.

As another special feature, the building moisture meter has an automatic shutdown. This feature automatically shuts off the meter if the building moisture meter is not used for 5 minutes. This prevents a sudden discharge of the battery in the building moisture meter. Another function of the building moisture meter is the Max HOLD function. This feature only displays the highest reading to the operator.

Highlights

- For measuring the moisture in concrete and screed
- Numeric and graphical view

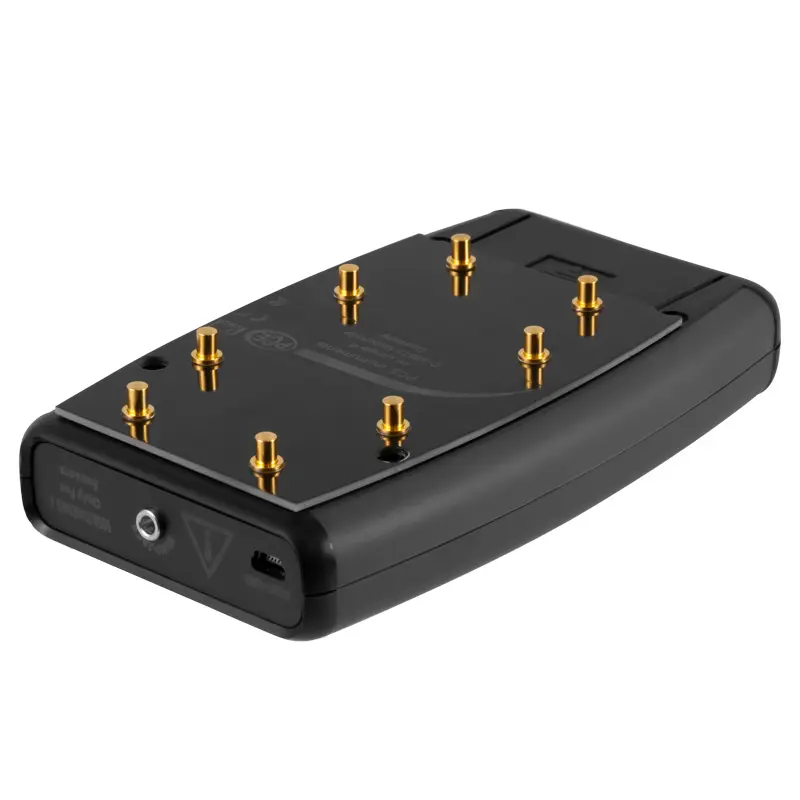

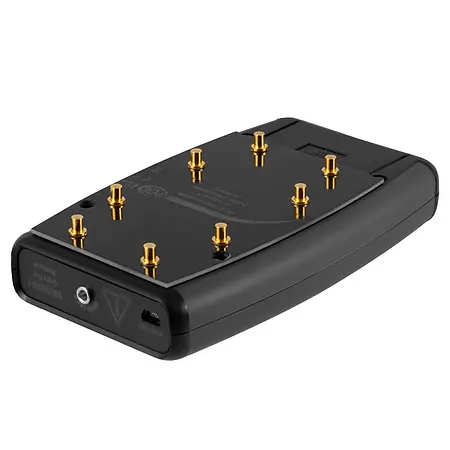

- Eight spring electrodes are used for the measurement
- Automatic shutdown
- Ergonomic shape with anti-slip rubber
- Normal measurement and max. HOLD display

Specification

Measuring function Measuring range
Concrete (H2O) 0 ... 6%
Cement screed (H2O) 0 ... 6%
cement screed 0 ... 4%
(Calcium carbide method)*
Anhydrite screed (H2O)   0 ... 3.5%
anhydrite  0 ... 1.9%
(Calcium carbide method)*
Caisson scale 0.3 ... 15.3 m
Relative scale 0 ... 100%
*The calcium carbide method is approximate.

Further specification
Accuracy ± 0.5%
Resolution
 0.1%
Display Graphically monochrome, 128 x 64 pixels,
  61 x 33 mm / 2.4 x 1.3 in, backlight
Operating conditions 5 ... 40°C / 41 ... 104°F
Automatic shutdown After 5 minutes of inactivity
Power supply 2 x 1.5V AA batteries
Uptime About 20 hours
Dimensions 147 x 89 x 33 mm / 5.8 x 3.5 x 1.3 in
Weight Approx. 250 g / < 1 lb (with batteries)



Delivery Scope

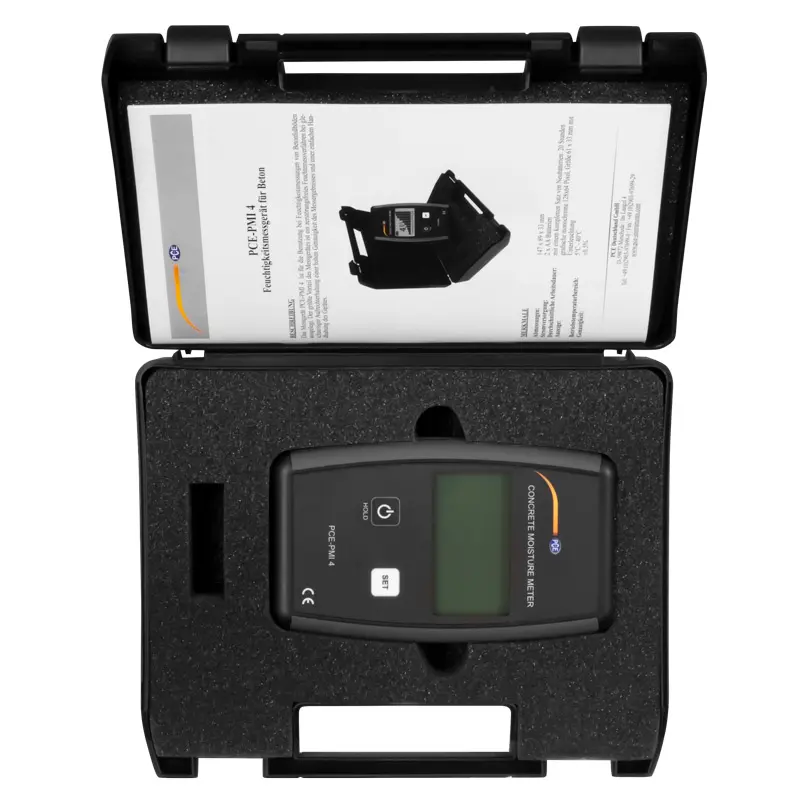

1 x Building Moisture Meter PCE-PMI 4
1 x Transport case
1 x 2 x 1.5V AA battery
1 x User manual
