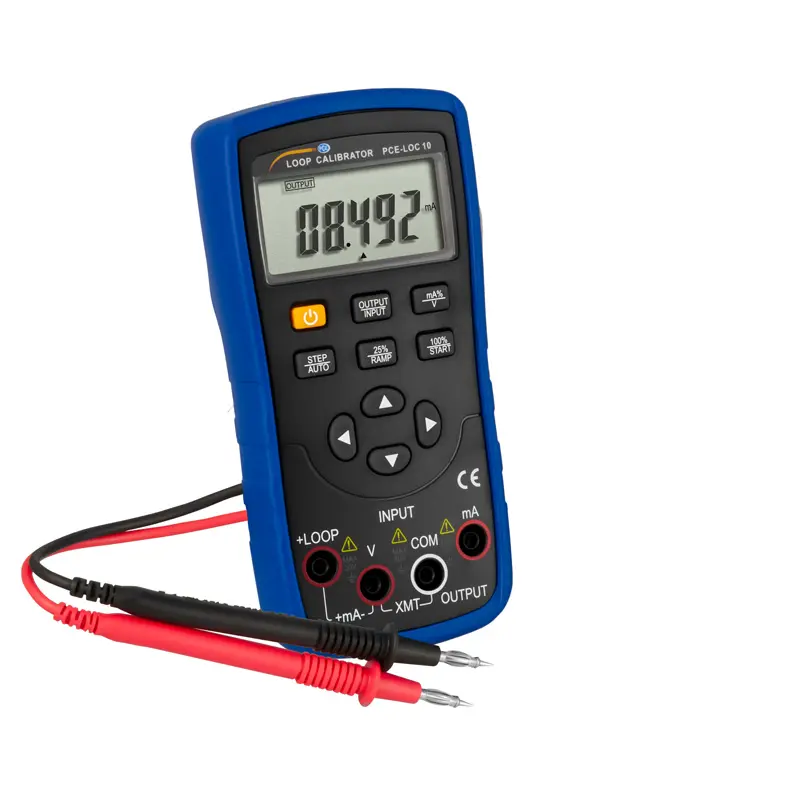

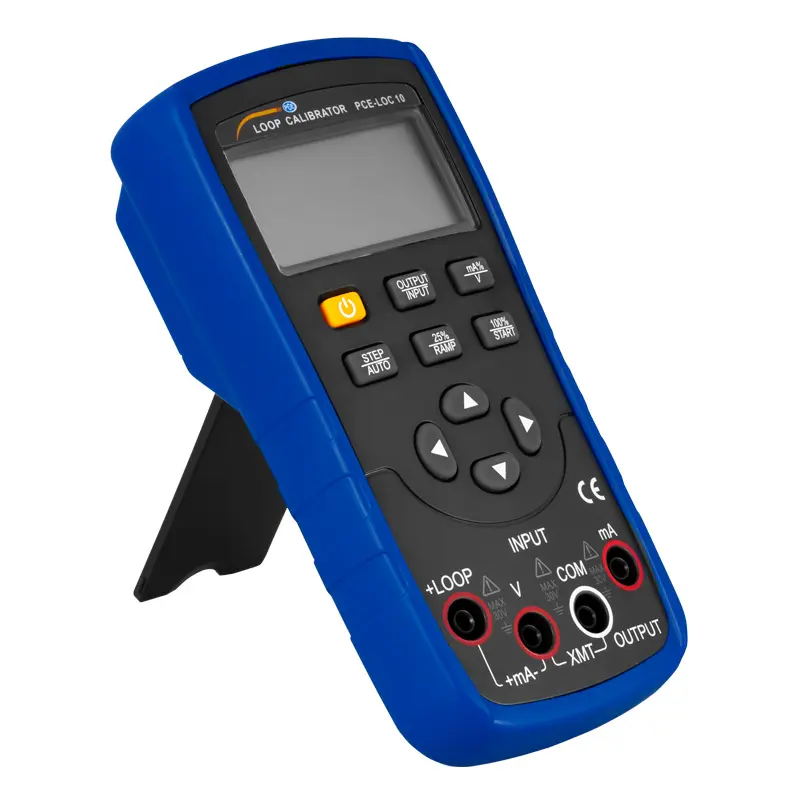

Calibrator PCE-LOC 10

Name: Calibrator PCE-LOC 10
Brand: PCE Instruments
SKU: 5934874
Price: 570 USD
Availability: InStock

Order no.: PCE-LOC 10

GTIN (EAN): 4250348720320

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

Calibrator PCE-LOC 10
Process calibrator for 0/4 ... 20-mA signals / Simulation of active and passive sensors / 24V DC encoder / Measurement of process currents possible

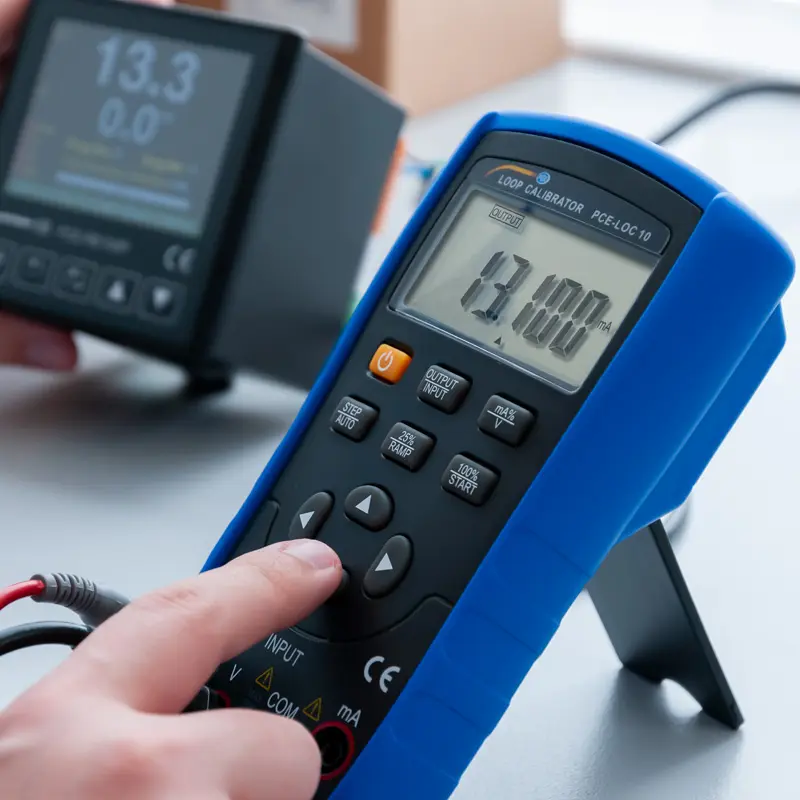

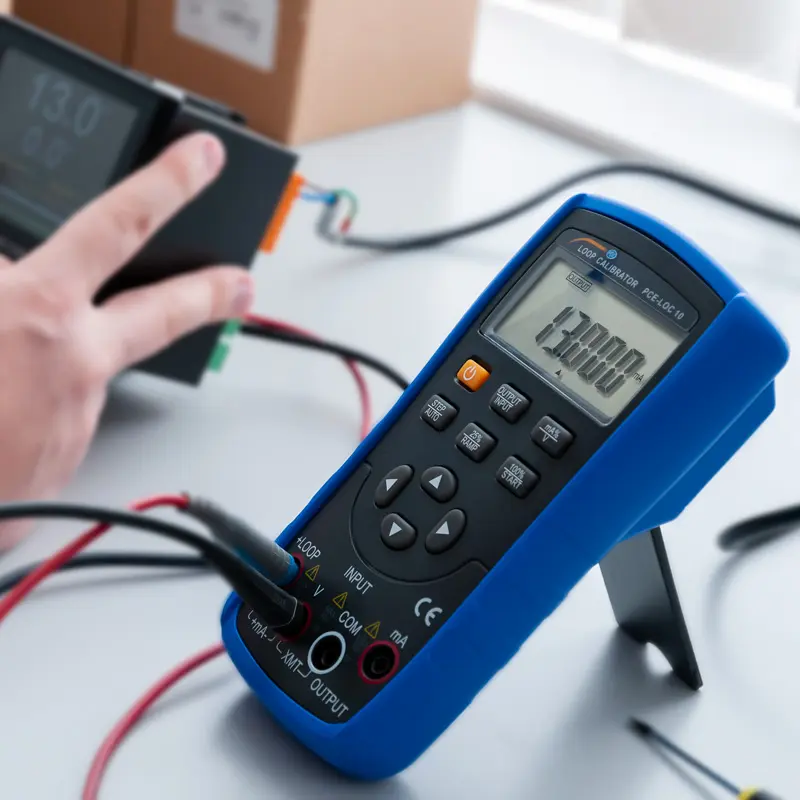

The process calibrator is used to simulate 0/4 ... 20-mA signals. The process calibrator can be used to calibrate display devices, data loggers, process recorders etc. The process calibrator can also be used to measure the process signal 0/4 ... 20-mA to test sensors and transmitters. The process calibrator is able to simulate both active sensors (source) and passive sensors (sink).

The process value can be set directly using the buttons on the process calibrator. However, it is also possible for the process calibrator to run an automatic ramp. As a further feature, the process calibrator can also provide 24V DC for sensors in order to test them in the process before commissioning. The output current from the sensor can be measured at the same time.

Highlights

- Simulation of 0/4 ... 20-mA
- For active and passive sensor simulations
- Large LCD
- Easy handling
- Ramp function
- 24V sensor supply possible

Specification

Current simulation (active)
(max. burden 1 kOhm)
Area	Resolution	Accuracy
0 ... 22-mA	0.001-mA	± 0.05% of sim. value + 4 µA


Current simulation (passive)
(max. burden 1 kOhm / max. 5 ... 25V DC)
Area	Resolution	Accuracy
0 ... 22-mA	0.001-mA	± 0.05% of sim. value + 4 µA


Voltage transmitter f. current loop
Area	Resolution	Accuracy
24V DC / 25-mA		± 10%


Voltage measurement
Area	Resolution	Accuracy
-0.2 ... 28V	1 mV	± 0.02% of meas. + 2 mV


Current measurement
Area	Resolution	Accuracy
-1 ... 22-mA	0.001-mA	± 0.02% of meas. + 4 µA


Current measurement
(Loop current with voltage transmitter function)
Area	Resolution	Accuracy
0 ... 22-mA	0.001-mA	± 0.02% of meas. + 4 µA

More specifications
Power supply	2 x 1.5V AA batteries
Max. Tension	30V
Operating conditions	0 ... 50°C / 32 ... 122°F, < 80% RH
Storage conditions	-10 ... 60°C / 14 ... 140°F, < 95% RH
Dimensions	180 x 90 x 47 mm / 7.1 x 3.5 x 1.9 in
Weight	Approx. 500 g / 1.1 lbs

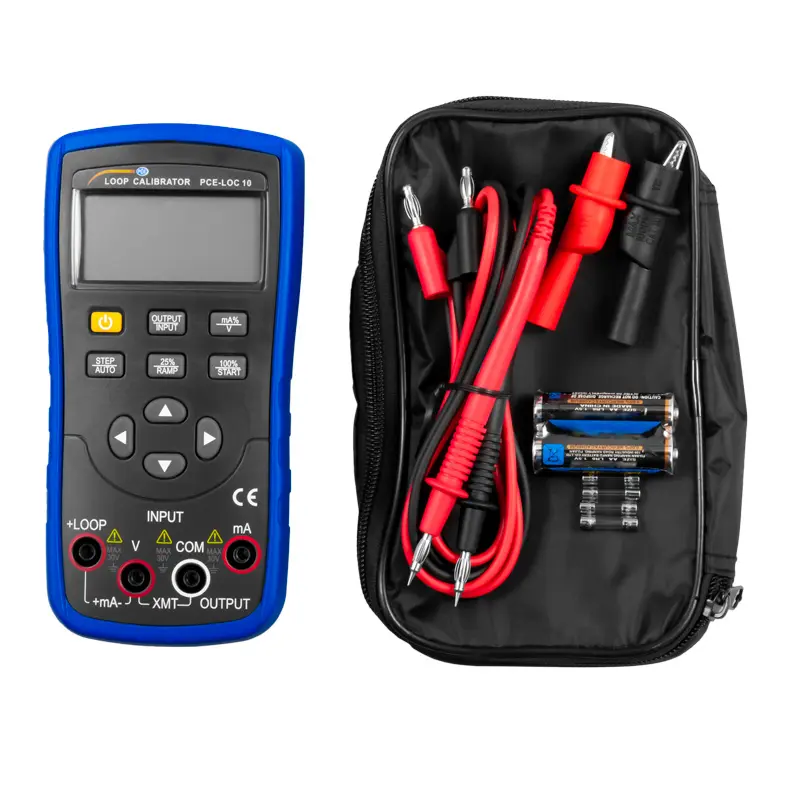

Delivery Scope

1 x Calibrator PCE-LOC 10

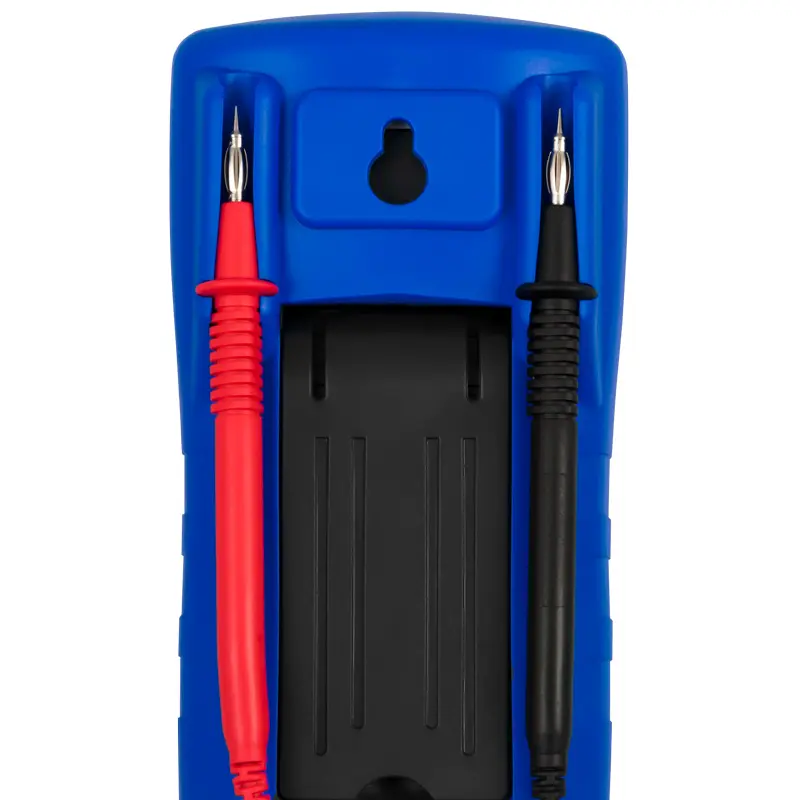

1 x Test lead set
2 x Alligator clips
2 x 1.5V AA batteries
1 x Carry bag
1 x Instruction manual
