Multifunction Calibrator PCE-789

Order no.: PCE-789

GTIN (EAN): 4250348708977

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

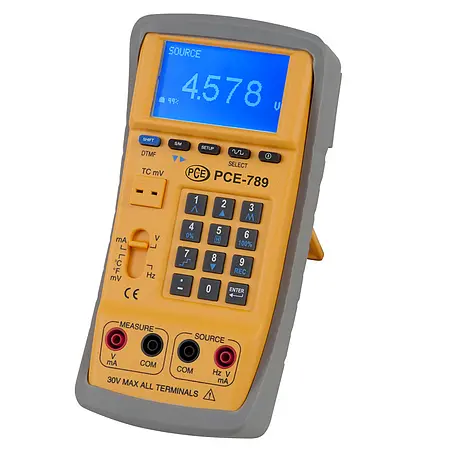

Multifunction Calibrator PCE-789
Multifunction Calibrator that measures and simulates current and voltage signals and
thermocouples / integrates a function generator for specific waveforms /
large graphical display with backlight /
data logger function

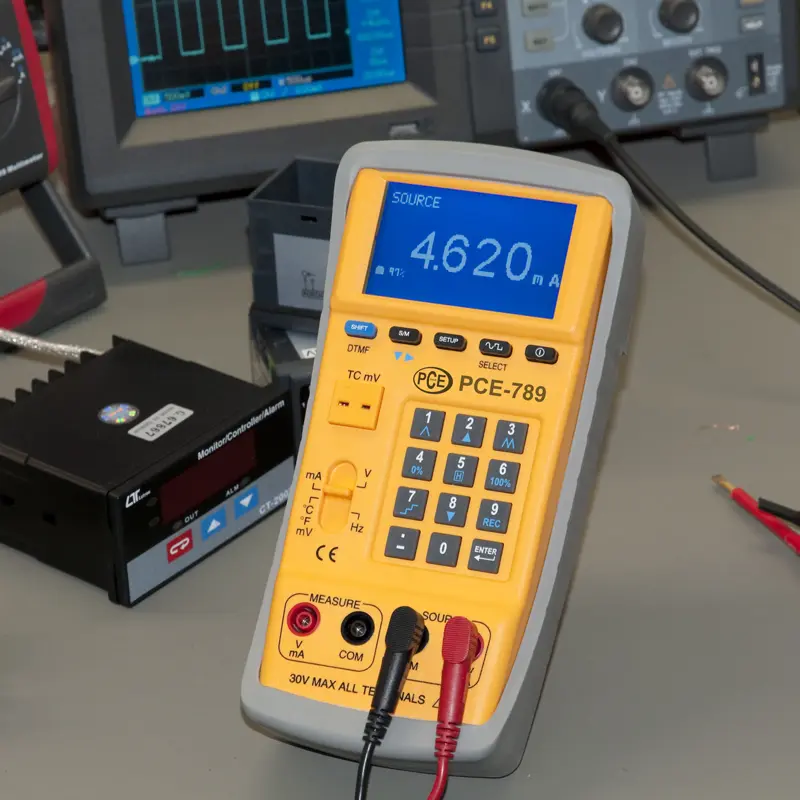

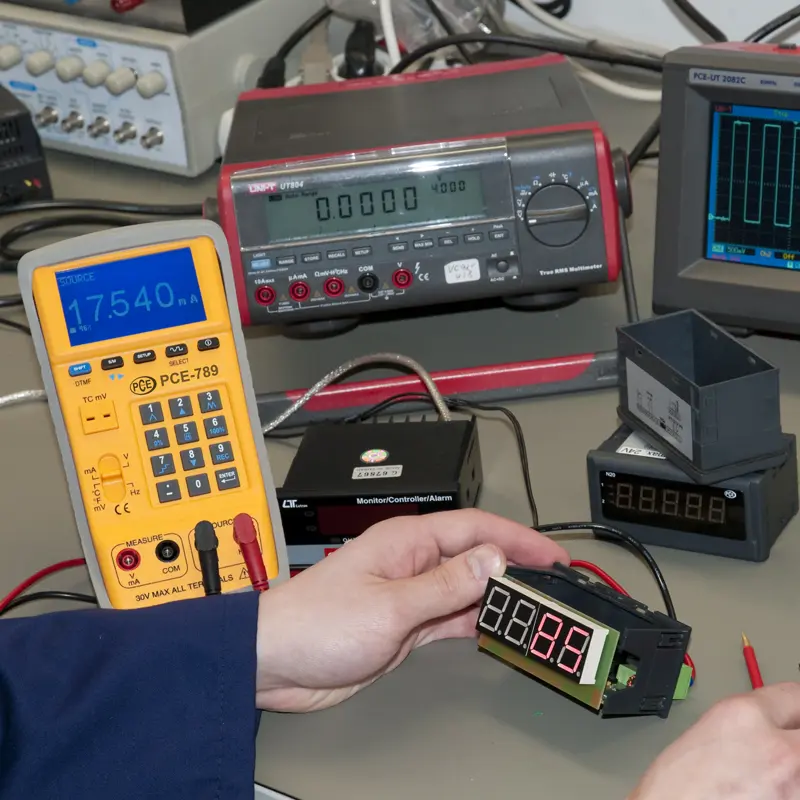

The PCE-789 Multifunction Calibrator is a versatile instrument for measuring and simulating process signals. The Multifunction Calibrator measures and simulates current and voltage signals. The curves of different types of thermocouples are stored on your computer, and because of this you can introduce and display the values in ° C. The main feature of this Multifunction Calibrator is the integrated function generator. Apart from the waveforms of sine, triangle, rectangle and cut sane, the multifunction calibrator has saved inside other 10 sinusoidal waveforms. Using the software, which is included in the delivery, you can create specific waveforms and store them on the Multifunction Calibrator. Furthermore, this Multifunction Calibrator can give two overlapping frequencies. For its functionality combined with a robust plastic housing, the multifunction calibrator can be used in many sareas . This Multifunction Calibrator is a useful tool with which you can perform many tasks in areas such as maintenance in the industry, and it can be used by engineers and laboratory technicians in the service sector. This system is supplied by mains adapter and battery allowing mobile use.

Highlights

- Different signals simulation and measurement
- Integrated function generator
- Graphic display with backlight
- Battery powered
- Own waveforms simulation
-Data logging function

Specification

Technical Specifications

Magnitud	Range	Resolution	Accuracy
Generate / Simulate
Current (no charge voltage >15 V)	-4 ... -0,005 mA	1 µA	± (0,03 % + 5 digits )
	0,005 ... 4 mA	1 µA	± (0,03 % + 5 digits )
	4 ... 20 mA	1 µA	± (0,03 % + 53gits )
	20 ... 24 mA	1 µA	± (0,03 % + 5 digits )
Voltage (máa 1 mA)	-3 ... -0,005 V	1 mV	± (0,03 % + 5 digits )
	0,005 V ... 10 V	1 mV	± (0,03 % + 5 digits )
	10 V ... 15 V	1 mV	± (0,03 % + 5 digits )
	-10 ... 70 mV	0,01 mV	0,05 mV
Termocouples Types: K, J, E, T, R, S, N, L, U, B, C	according to type (see use intructions)	0,1 °C	according to type (see use intructions)
Frequency	0,3 ... 99,999 Hz	0,1 Hz	0,002 Hz
	10,00 ... 999,99 Hz	0,1 Hz	0,02 Hz
	1000,0 ... 9999,9 Hz	0,1 Hz	0,2 Hz
	10000 ... 20000 Hz	0,1 Hz	2 Hz
Mesurement
Current	-4 ... -0,005 mA	1 µA	± (0,03 % + 5 digits )
	0,005 ... 4 mA	1 µA	± (0,03 % + 5 digits )
	4 ... 20 mA	1 µA	± (0,03 % + 53gits )
	20 ... 24 mA	1 µA	± (0,03 % + 5 digits )
Voltage	-3 ... 0,005 V	1 mV	± (0,03 % + 5 digits )
	0,005 V ... 10 V	1 mV	± (0,03 % + 5 digits )
	10 V ... 15 V	1 mV	± (0,03 % + 5 digits )
Termocouples Types: K, J, E, T, R, S, N, L, U, B, C	according to type (see use intructions)	0,1 °C	according to type (see use intructions)

General observations

Power supply

internal acumulator o mains adapter

Dimensions

214,0 x 98,7 x 56,0 mm

Weight

650 g

Environmental conditions

Operating: 0 ... 50 °C, 85 % R.H..
Stored: -20 ... 60 °C, 75 % R.H..

Delivery Scope

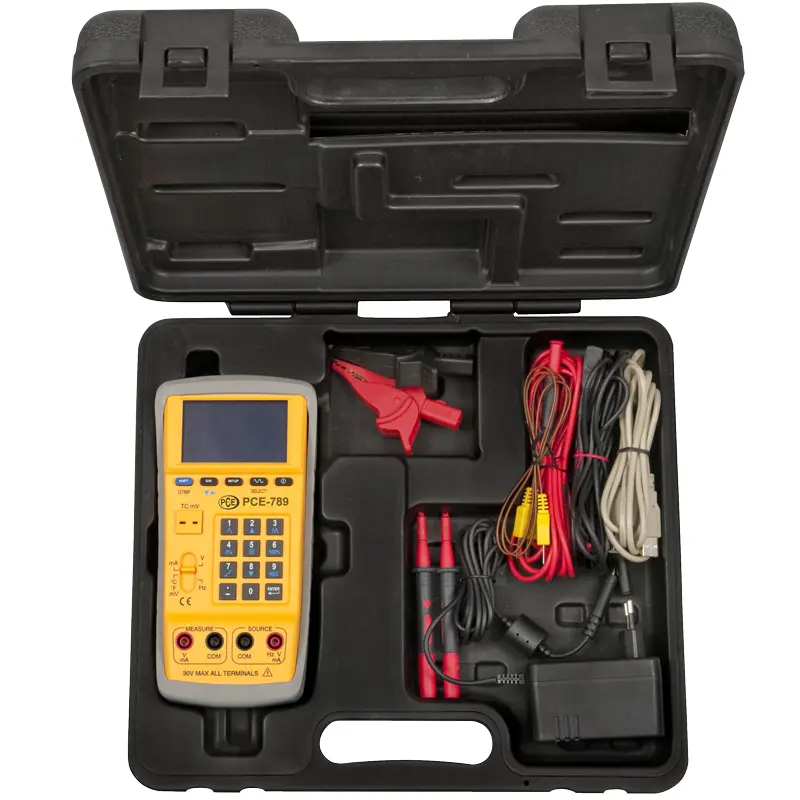

Delivery content

1 x PCE-789 Multifunction Calibrator
1 x K-type adapter
2 x test leads or points
2 x crocodile clips
1 x software
1 x USB cable
1 x mains adapter
1 x carrying case
1 x instructions
