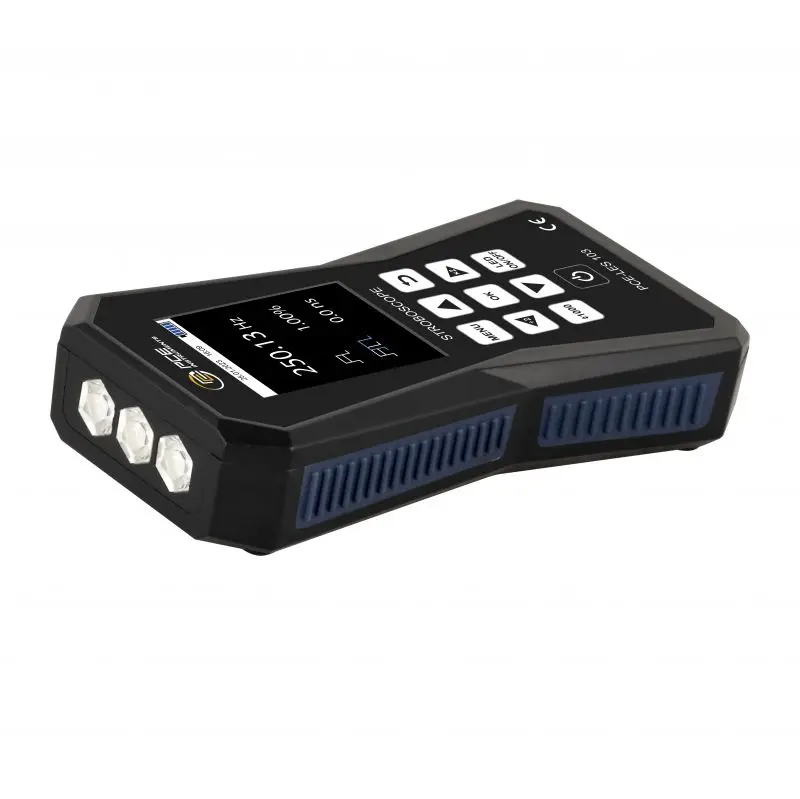

Car Measuring Device PCE-LES 103-ICA incl. ISO-Calibration Certificate

Order no.: PCE-LES 103-ICA
GTIN (EAN): 4250348734143
US$ 715.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348734143
PCE-LES 103-ICA
Available in: up to 10 working days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Car Measuring Device with 3 high-power LEDs / 6160 lux @ 30 cm @ 1000 Hz 1 % / pulse width adjustable in per cent, degrees or time / phase shift / simple, clear display / mains-independent thanks to rechargeable battery operation

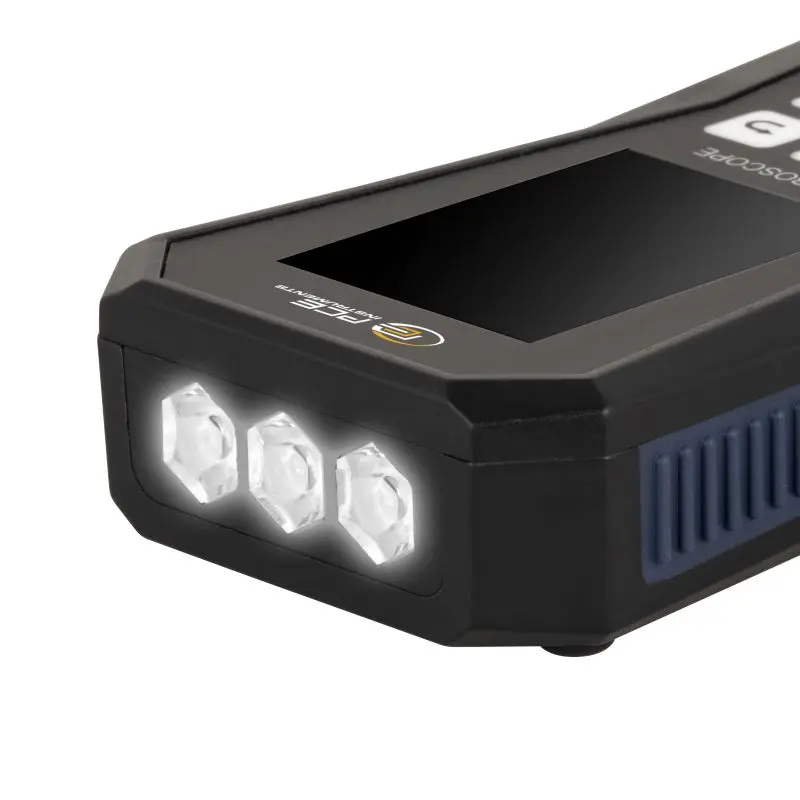

Motion analysis of rotating machines is quick and easy with our car measuring device. The car measuring device is equipped with 3 high-power LEDs, which together generate a light intensity of 11730 lux at 20 cm / 1000 Hz. Sketch of the respective light intensity at different distances.With the car measuring device, you can precisely set the flash frequency in both FPM and Hz. It is also small, handy and mains-independent thanks to the rechargeable battery.

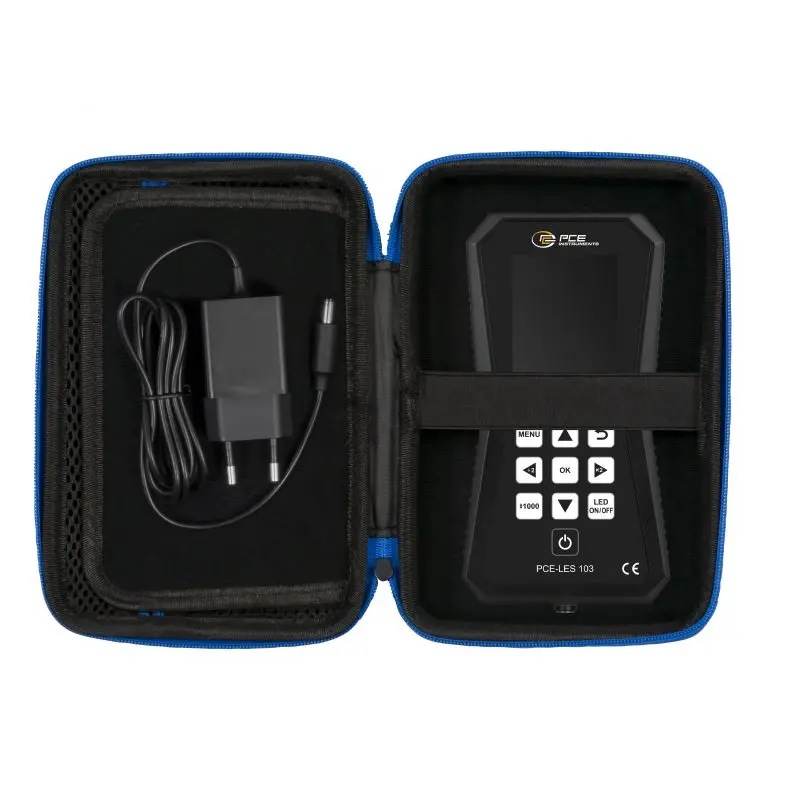

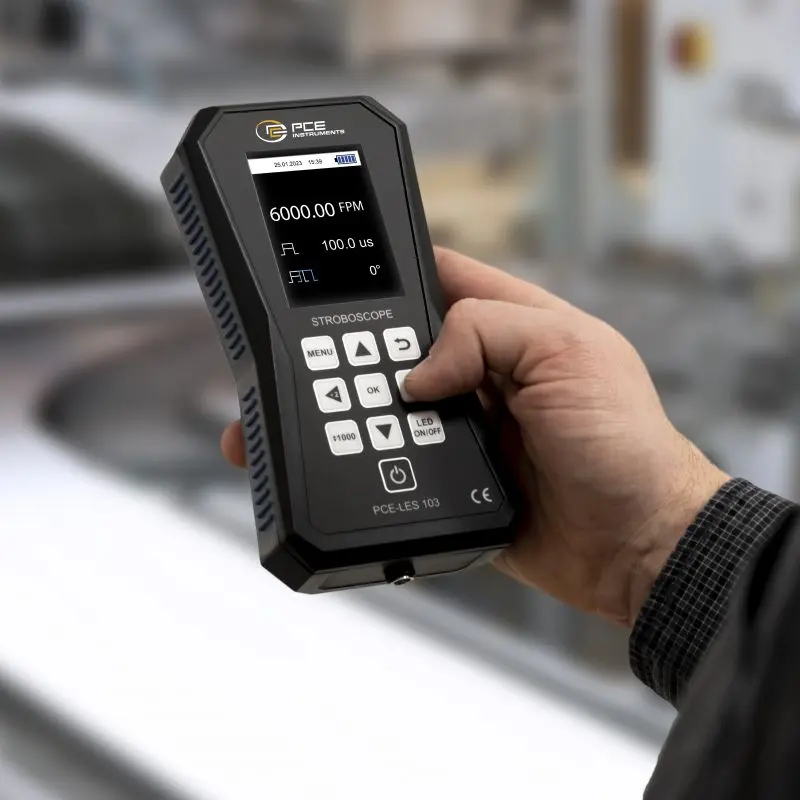

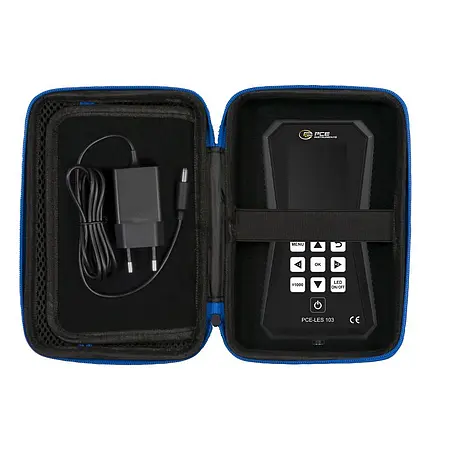

The car measuring device is operated intuitively using the 10 buttons, allowing quick adjustments to be made. The phase shift allows the observation point to be moved variably. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. The display brightness can be selected in the settings menu, as can switching off the display after a period of inactivity, which extends the battery life. The car measuring device is supplied with a USB-C charging cable in a service bag.

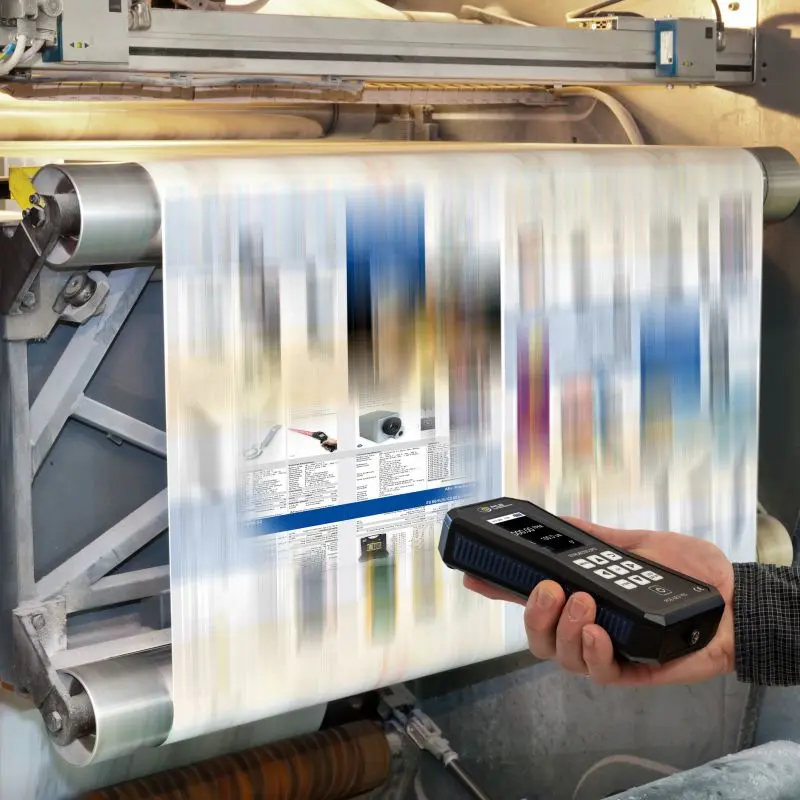

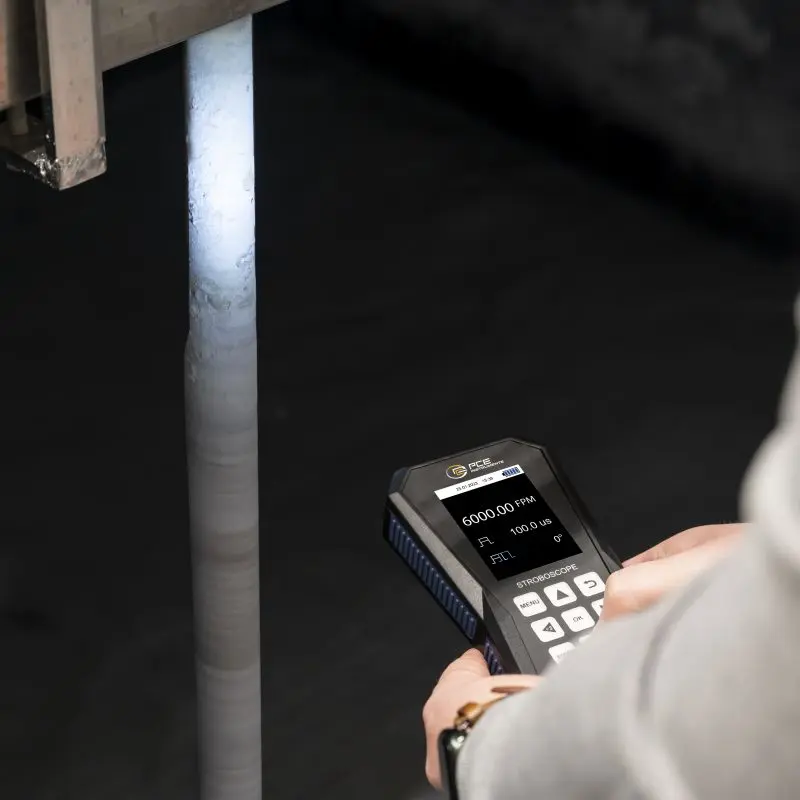

The car measuring device is an indispensable tool for monitoring and inspecting production facilities, e.g. in the printing and textile industries. But also for general maintenance and inspection tasks in all industrial sectors. The car measuring device also enables non-contact speed and vibration measurement: if the flash frequency of the car measuring device matches the frequency of movement, the measured object appears stationary.


Highlights

- Brightness: 3 High Power LEDs
- Flash frequency adjustable in FPM and Hz
- 6160 lux at 30 cm / 1000 Hz
- Digital pulse width modulation
- Phase shift: -360° to +360°
- Quick adjustment with x2 and ÷2 buttons
- Intuitive control buttons and clear display
  (Empty line for formatting)

Specification

Frequency
Measurement Range+60 FPM ... +9999.99 FPM
Resolution0.01 FPM
Accuracy0.003 % of the setting or ± 1 LSD

Frequency
Measurement Range+10000 FPM ... +300000 FPM
Resolution0.1 FPM
Accuracy0.003 % of the setting or ± 1 LSD

Frequency
Measurement Range+1 Hz ... +5000 Hz
Resolution0.01 Hz
Accuracy0.003 % of the setting or ± 1 LSD

General Technical Data
Display TypeTFT Color Display
Display Size2.8 inches
Operating Time4.5 hours
Operating Time Additional  Information     at flash frequency 100 Hz, 1%, display brightness 70%
Adjustable Auto Shutdown2 ... 10 min.
Auto Shutdown DeactivatableYes
Brightness11730 lux @ 20cm @ 1000Hz 1%
6160 lux @ 30cm @ 1000Hz 1%
2650 lux @ 50cm @ 1000Hz 1%
Light Color6500 K
Phase Shift-360 ... 360 °
Pulse Width0.01 … 1% of pulse duration
Resolution: 0.01%

0.01 º … 3.60 º of 360 º
Resolution: 0.01 º
Menu LanguageGerman, English, Spanish, French, Italian, Dutch, Turkish, Polish, Russian, Chinese
Protection Class (Device)IP52
Power Supply5V DC, 2A

Weight284 g
Dimensions (L x W x H)165 x 90 x 35 mm / 6,4 x 3,5 x 1,3 in
Operating Conditions-20 ... 60 °C, 35 ... 85% r.H
Storage Conditions-20 ... 60 °C, 35 ... 85% r.H
Instruction Manual LanguagesGerman, English

Batteries and Accumulators
TypeLithium-Ion Battery
Lithium InfoLithium in the product (built-in or included)
Capacity2200 mAh
Voltage7.4 V
SystemSecondary: Rechargeable Battery / Accumulator
Number1

Delivery Scope

1 x Car Measuring Device PCE-LES 103-ICA
1 x USB-C cable
1 x Quick Start Guide
1 x User manual

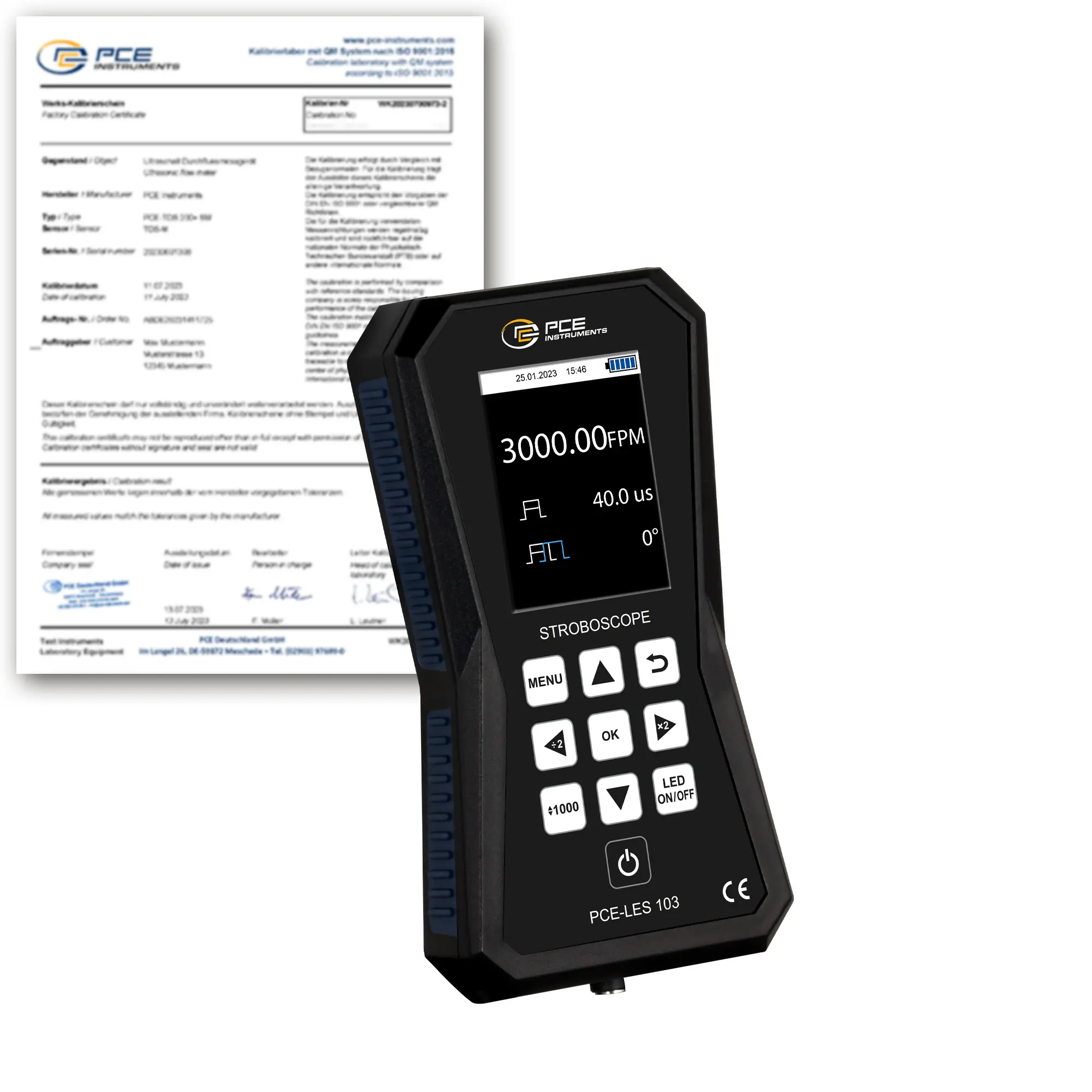

1 x ISO-Calibration Certificate
