PCE-VE 180 Car Measuring Device
LED illumination / MicroSD memory / Detachable remote control display / Small 3.9 mm (.16 in) cable diameter / 1 m (3.28 ft) cable length

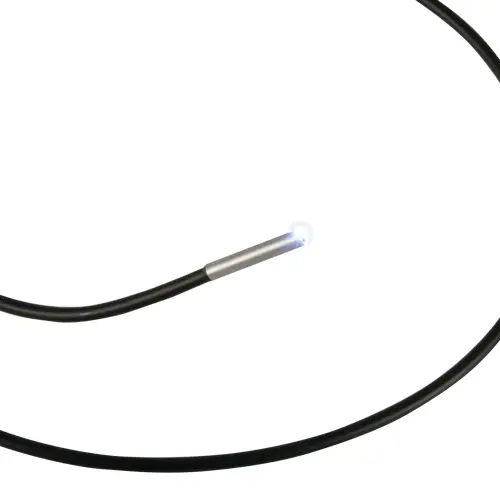

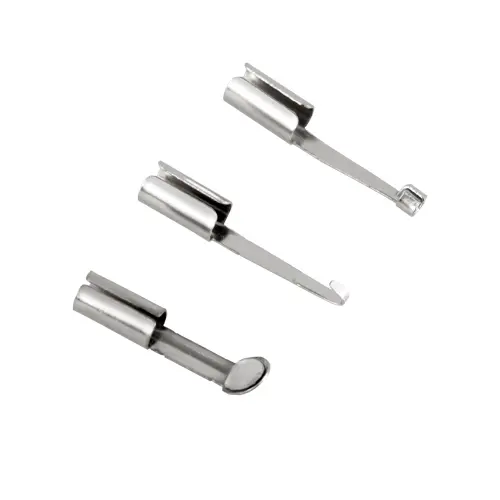

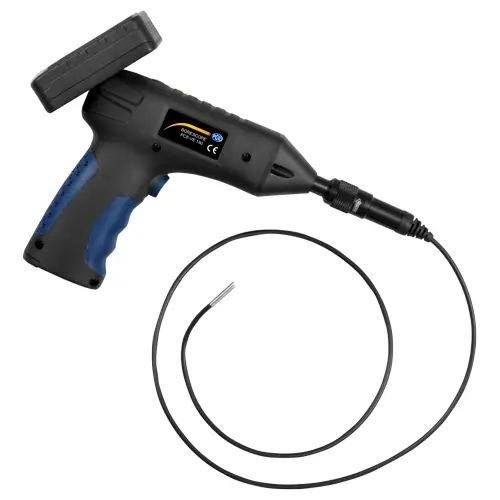

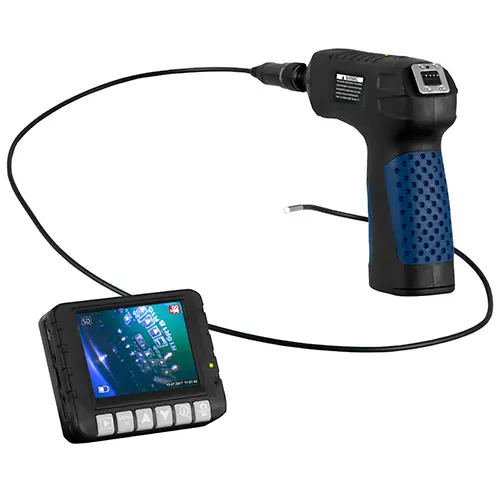

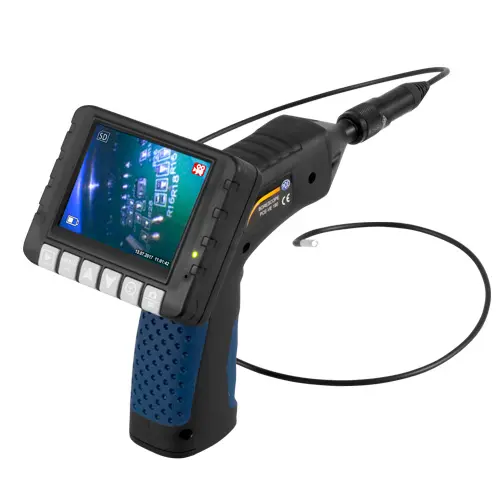

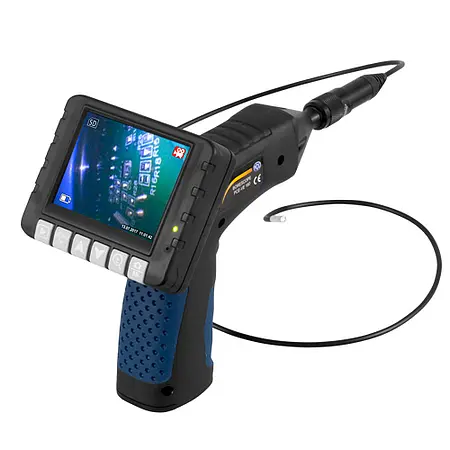

The car measuring device is a rechargeable handheld pistol-grip videoscope or video borescope inspection camera with video recording and image capture functionality. Equipped with built-in LED lighting on the waterproof camera tip, the PCE-VE 180 borescope features a detachable remote control with integrated 3.5" LCD for easy viewing and navigation. The remote control communicates using radio transmission at 2.4 GHz. The borescope is powered by a rechargeable battery that allows for up to 3 hours of continuous use. Recorded images and videos are saved to a MicroSD memory card with a capacity of up to 32 GB. The semi-flexible gooseneck cable of the borescope has a small diameter of just 3.9 mm / .16 in for insertion into tiny cavities. An IP67 ingress protection rating protects the borescope against dust and water, allowing for use in adverse conditions. The borescope comes with three different attachments: a 90 ° angle mirror for viewing side walls and around corners, as well as a hook and a magnet for pulling parts out of cavities.
***Not for medical use***
Cable length | 1 m / 3.28 ft |
Type of cable | Semi-flexible (gooseneck) |
Cable diameter | 3.9 mm / .16 in |
Illumination | 2 LEDs |
Resolution | 1280 x 980 pixels (interpolated) |
Ingress protection rating | IP67 protection against water, oil and dust |
Focal distance | 30 ... 80 mm / 1.18 ... 3.15 in |
Field of view | 60° |
Display size | 3.5" / 320 x 240 pixels |
Memory formats | Images: JPG / BMP Video: AVI |

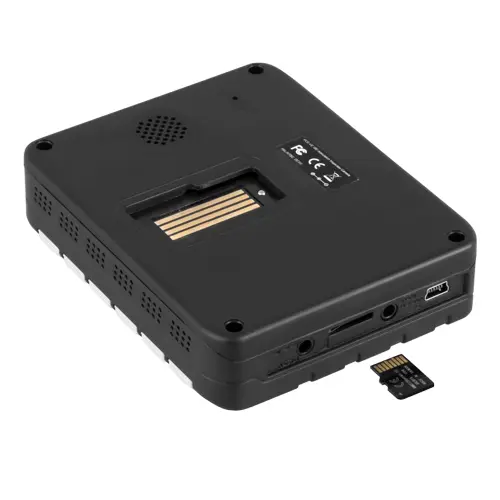

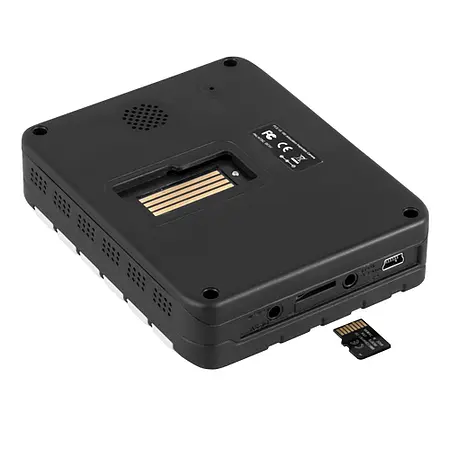

Memory | Micro SD card (max. 32 GB) |
Radio transmission | 2.4 GHz |
Power supply | Remote / display: Li-Ion 3.7 V 1200-mAh Pistol grip: Li-Ion 3.7 V 1600-mAh AC power adapter / battery charger: 5V / 2 A |
Battery life | Approx. 1 ... 3 hours continuous use |
