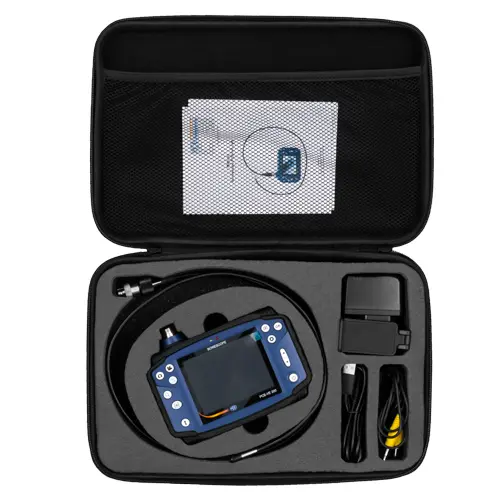

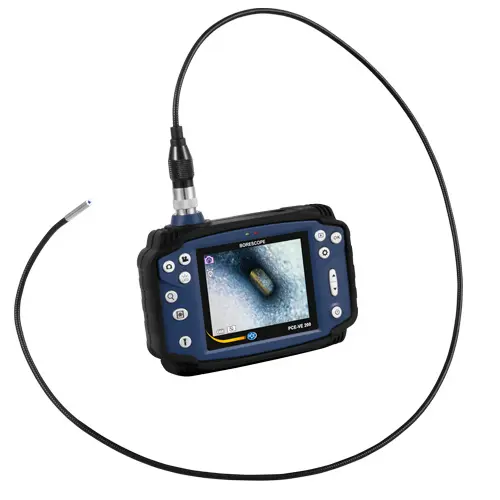

PCE-VE 200 is a car measuring device, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This car measuring device provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.
Technical Specification | |||||||||||||||||

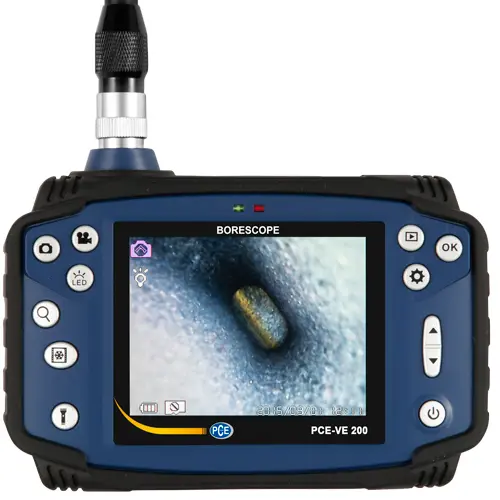

Display | 3.5" LCD | ||||||||||||||||
Resolution video function | AVI (640 x 480) | ||||||||||||||||
Resolution image function | JPEG (1600 x 1200) | ||||||||||||||||
Image rotation | 180° rotation and mirror function | ||||||||||||||||
Freeze function | yes | ||||||||||||||||
Zoom | up to 4-times | ||||||||||||||||
Storage medium | Micro SD card | ||||||||||||||||
Menu languages | German English Spanish French Russian Japanese simplified Chinese traditional Chinese |
||||||||||||||||

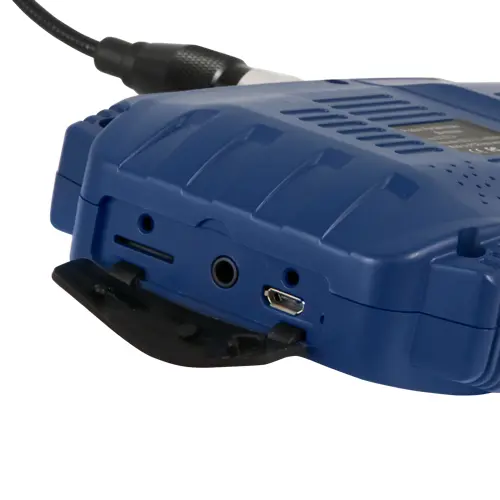

Interfaces | Micro USB 2.0, TV-output, Micro SD card slot | ||||||||||||||||
TV-output | PAL | ||||||||||||||||
Power supply | Li-Ion battery | ||||||||||||||||
Battery capacity | 2600 mAh | ||||||||||||||||
Operating conditions | -10 ... +40 °C / 14 ... 104 °F, rel. humidity <75 % | ||||||||||||||||

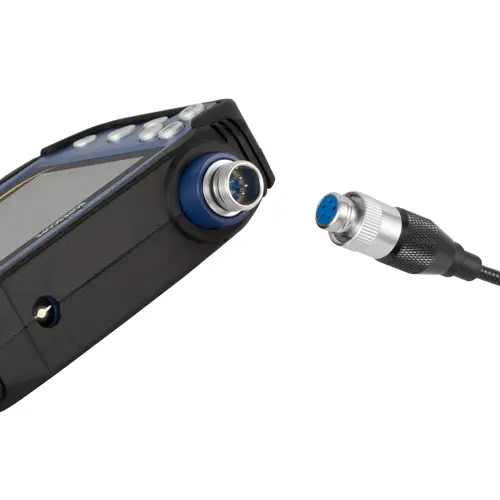

Technical Specification of Video Borescope PCE-VE 200 (Borescope cable) | |||||||||||||||||
Cable diameter | 4.5 mm / 0.17" | ||||||||||||||||
Image sensor | 1/8" CMOS chip | ||||||||||||||||
Resolution camera | 640 x 480 pixel | ||||||||||||||||
Camera lighting | 6 white LEDs (intensity can be set) | ||||||||||||||||
Field of view / angle of view | 90 ° | ||||||||||||||||
Field of view depth | 15 ... 100 mm / 0.59 ... 3.94" | ||||||||||||||||
Length of camera hose | 1 m / 3ft 3" | ||||||||||||||||
Pushcable | semi-flexible (semi-rigid spiral) | ||||||||||||||||
Environmental conditions of Video Borescope PCE-VE 200 | |||||||||||||||||
|
