Car Measuring Device PCE-VE 340N

Order no.: PCE-VE 340N
GTIN (EAN): 4250348709271

US$ 1,495.00
ex. VAT, ex. delivery costs
:
4250348709271
PCE-VE 340N
Available in: 1-2 days
No
5.5 mm
10 m
320 x 240 / 640 x 480 pixels
No
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

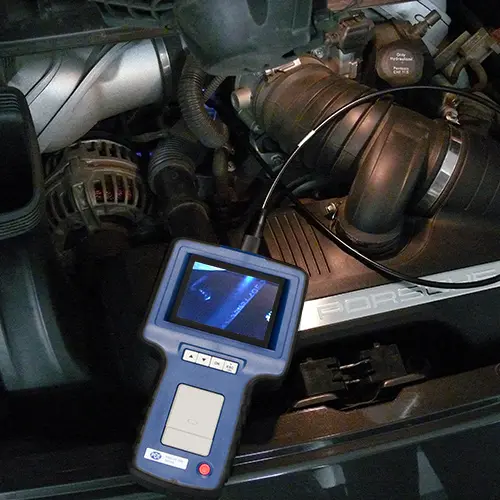

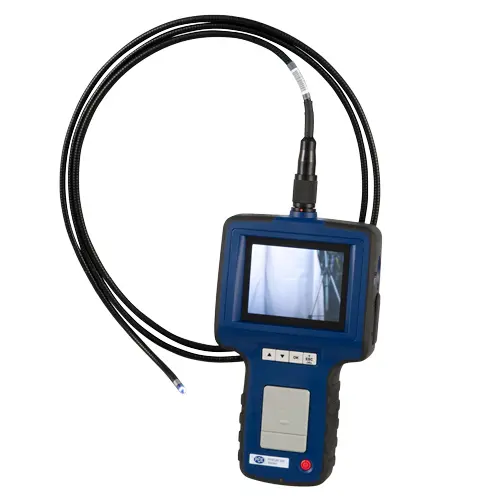

PCE-VE 340N is a car measuring device, borescope, inspection camera or industrial endoscope for the non-destructive inspection (NDI) of engines, machines and more. This car measuring device is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 4 LED lights with automatic illumination. In addition, digital image magnification or zoom of up to 2 times is available.

The car measuring device stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 10 m / 32.8 ft cable length and 5.5 mm / 0.22 in diameter allow the car measuring device unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this car measuring device useful in a variety of applications.

***Not for medical use***

Highlights

- Cable length 1m, 2m or 10m / 3ft 3", 6ft 6" or 32ft 9" (depending on model)

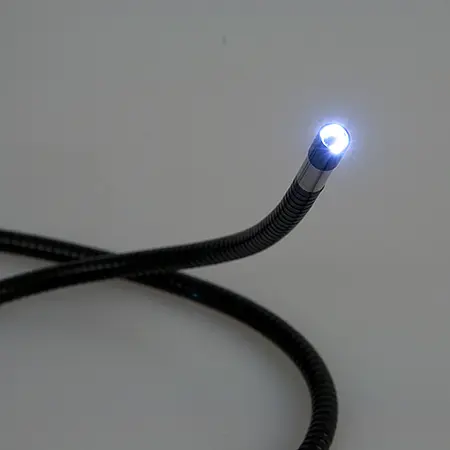

- Cable diameter 5.5 mm / 0.22"
- Storage of pictures and videos
- 8 GB memory card incl.
- LED lighting
- Robust carrying case included
- Additional camera cables optional

Specification

Cable diameter

5.5 mm / 0.22 in

Cable length

10 m / 32.8 ft

Depth of field

1.5 … 10 cm / 0.59 ... 3.94 in

Field of view

67°

Bending radius 90 mm / 3.54 in
Illumination 4 LEDs, automatic
Image sensor CMOS
Picture rate 30 frames per second (fps)
Display
88.9 mm / 3.5 in TFT LCD monitor
Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage Up to 32 GB SD memory card
Compression format MPEG 4
Picture format JPEG (640 x 480 pixel resolution)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature 0 ... 60°C / 32 ... 140°F
Voltage supply Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 450 g / 1 lb
Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft

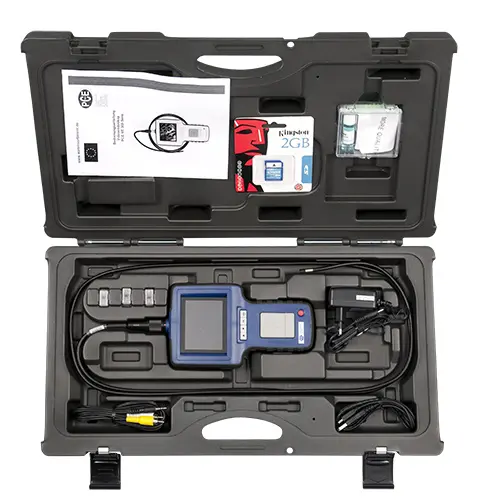

Delivery Scope

1 x Car Measuring Device PCE-VE 340N
1 x 8 GB SD memory card
1 x Cable (PCE-VE-N-SC10)
1 x USB cable
1 x Carrying case
1 x Power adapter
1 x User manual

Please note: Not to be used for medical applications!
