Car Measuring Device PCE-VE 350HR

Order no.: PCE-VE 350HR
GTIN (EAN): 4250348715746

US$ 2,159.00
ex. VAT, ex. delivery costs
:
4250348715746
PCE-VE 350HR
Available in: 1-2 days
Flexible
No
6 mm
1 m
320 x 240 / 640 x 480 pixels
Digital
2-way
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

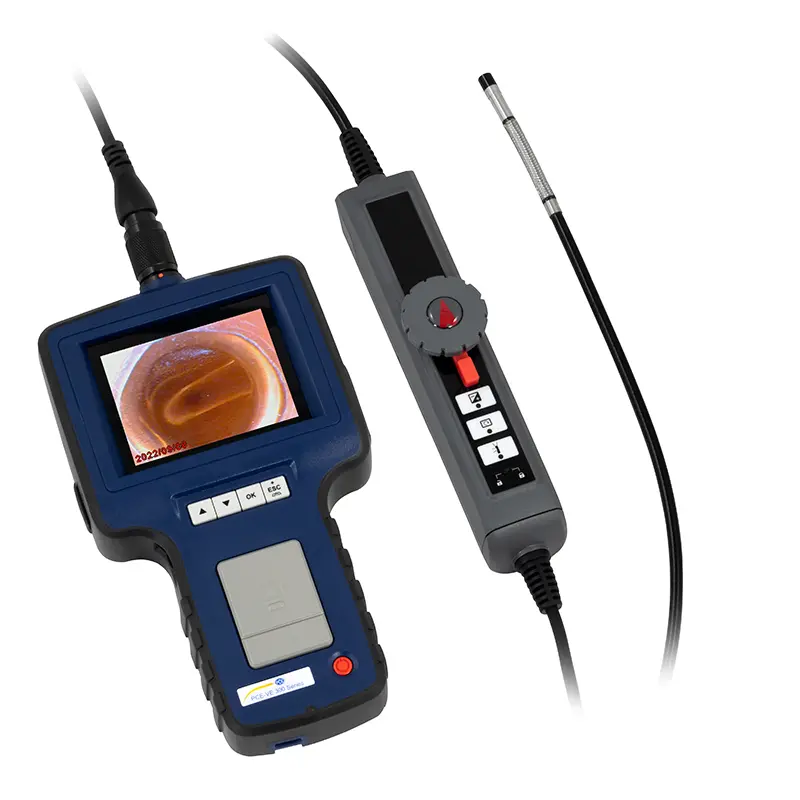

Car Measuring Device PCE-VE 350HR
Two-way articulating inspection camera, industrial endoscope or videoscope with IP67 ingress protection rating, boost functionality and 6 LED lights (4 front, 2 side) for optimal illumination

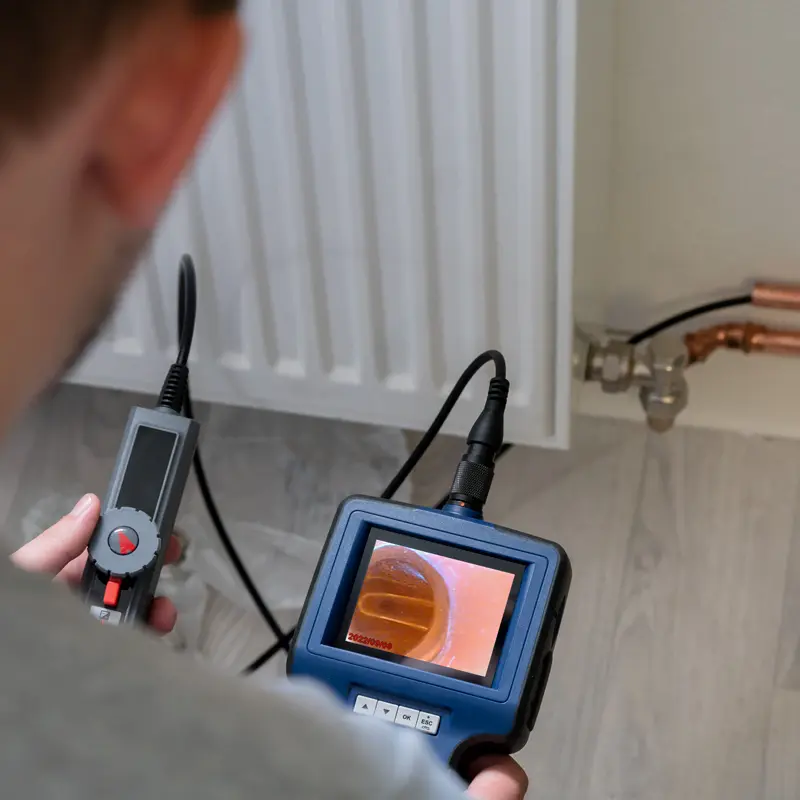

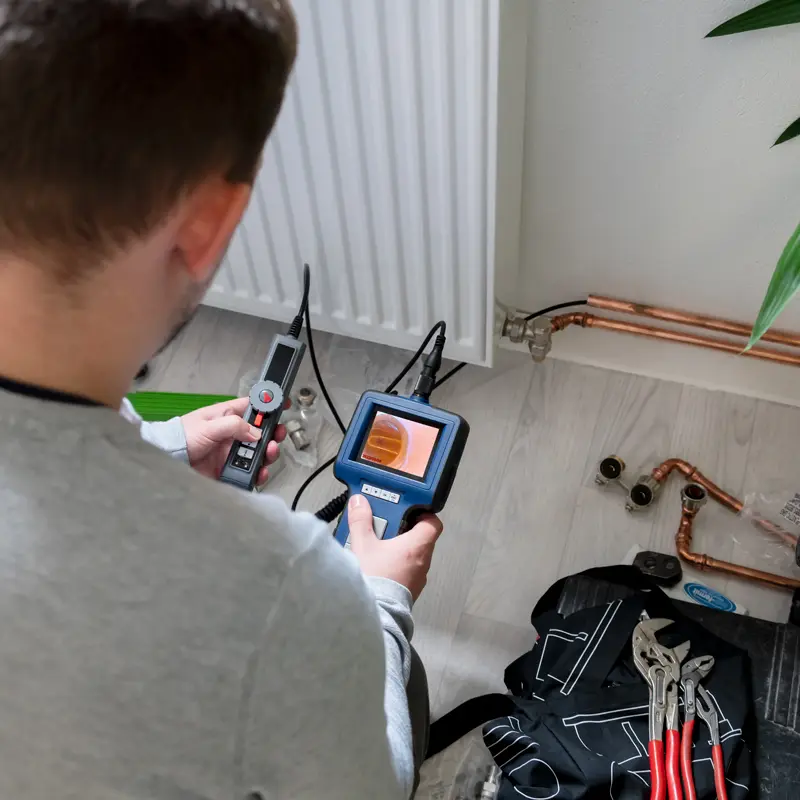

PCE-VE 350HR is a two-way articulating car measuring device, inspection camera, industrial endoscope or videoscope for the non-destructive inspection (NDI) of machines, equipment and more. This car measuring device is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for optimal illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost functionality for improved image quality in the dark.

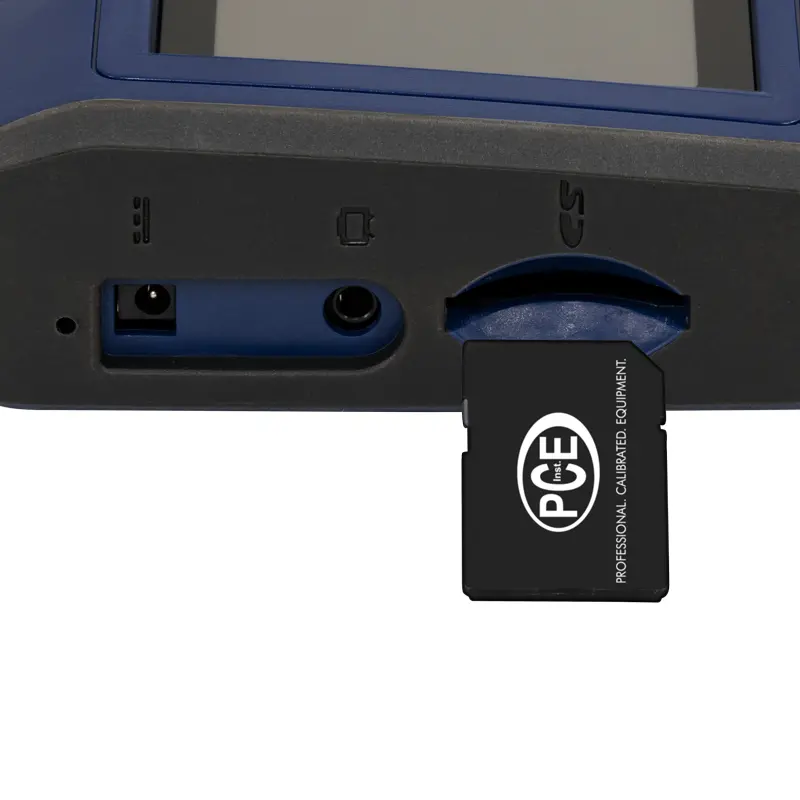

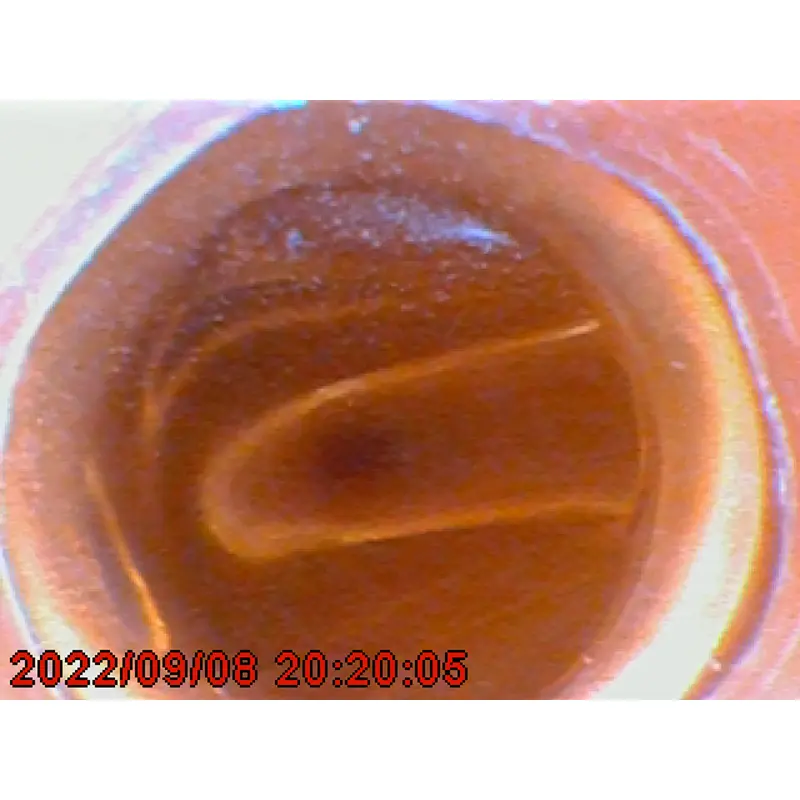

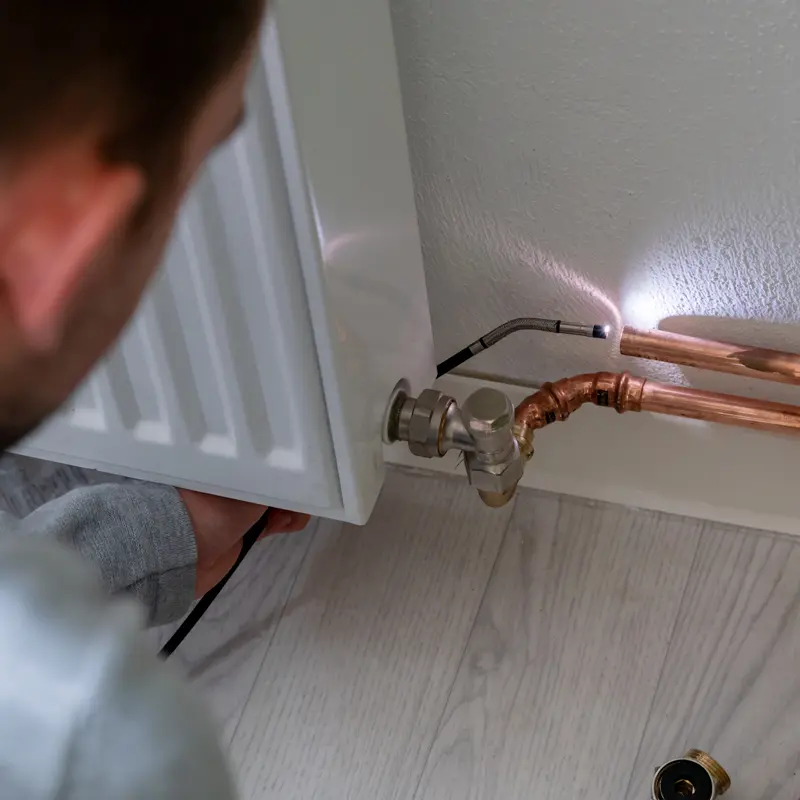

The car measuring device stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 1 m / 3.28 ft cable length and 6.0 mm / 0.24 in diameter allow the car measuring device unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this car measuring device useful in a variety of applications.

***Not for medical use***


Highlights

- With boost function: better images in dark surroundings
- Image rotation possible

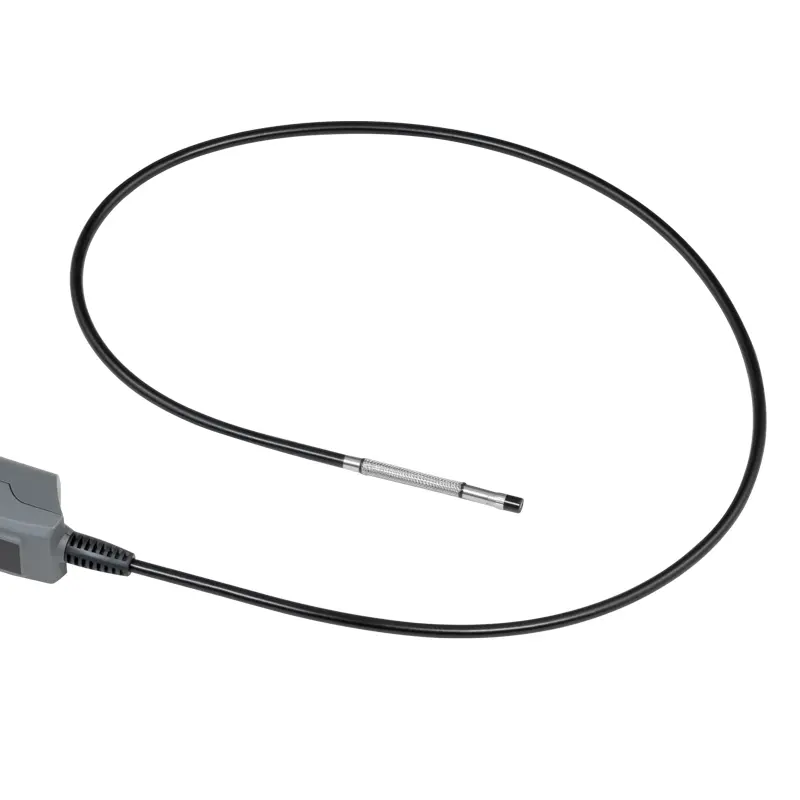

- Flexible 1 m / 3ft 3" cable
- Diameter camera head 6 mm / 0.24"
- Image capture / Photos und Videos
- LED lighting (2 additional side LEDs for better lighting)

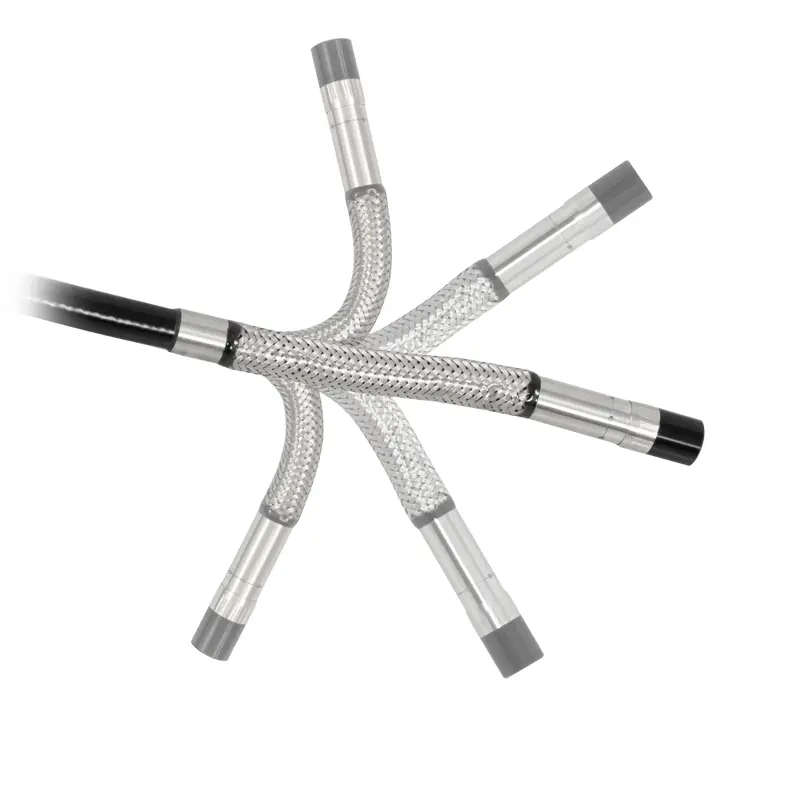

- 2-way optics
- 8 GB SD memory card (incl.)
- Robust carrying case included

Specification

Cable diameter

6.0 mm / 0.24 in

Cable length

1 m / 3.28 ft

Depth of field

1.5 … 10 cm / 0.59 ... 3.94 in

Field of view

67°

Bending radius 90 mm / 3.54 in
Illumination 6 LEDs (4 front, 2 side), automatic
Boost function For improved image quality in the dark
Image sensor CMOS
Picture rate 30 frames per second (fps)

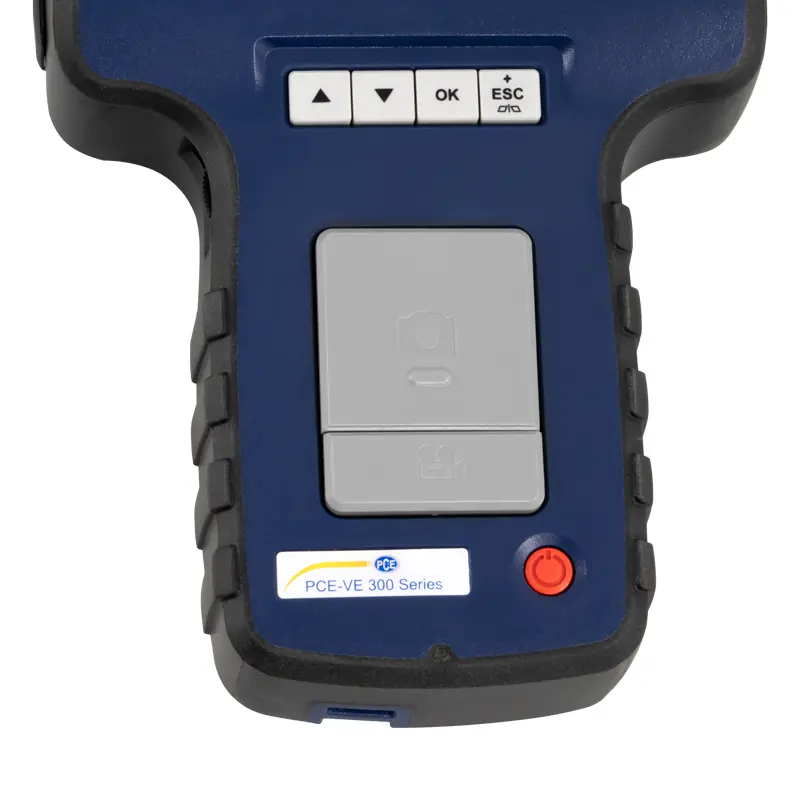

Display
88.9 mm / 3.5 in TFT LCD monitor

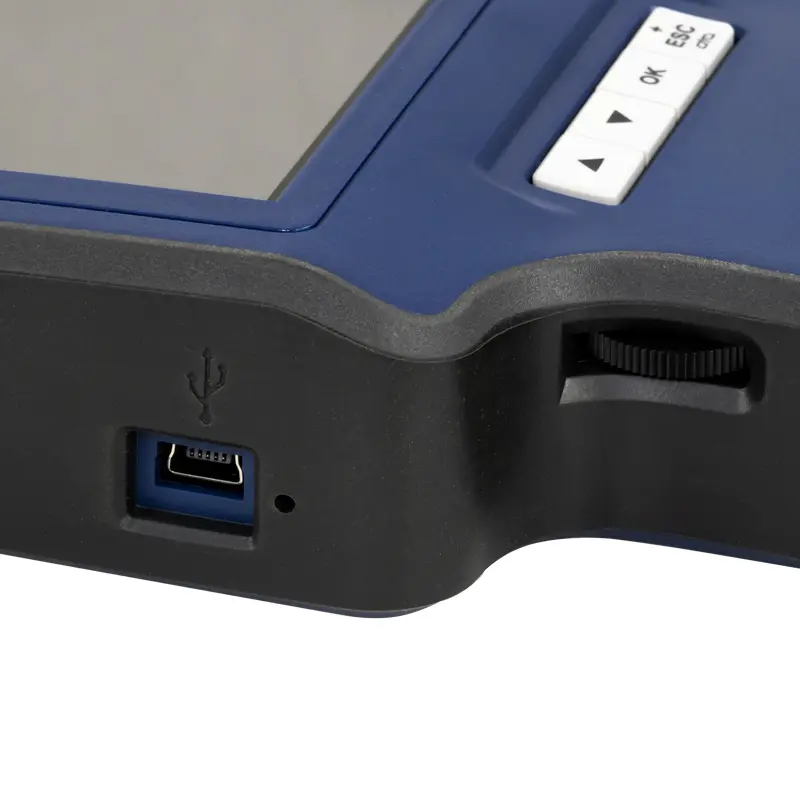

Interface Mini USB 1.1 / AV out
Storage options Image or video
Storage 8 GB memory card (can be increased to 32 GB)
Compression format MPEG 4
Picture format JPEG (640 x 480 pixel resolution)
Video output format NTSC / PAL
Video format ASF (320 x 240)
Operation and storage temperature -10 ... 50°C / 14 ... 122°F
Voltage supply Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case 450 g / 1 lb
Protection type, camera IP 67 = Dust tight, no ingress of dust, complete protection against contact. Protected against liquid immersion up to 1 m / 3.28 ft, ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of press and time (up to 1 m / 3.28 ft of submersion).

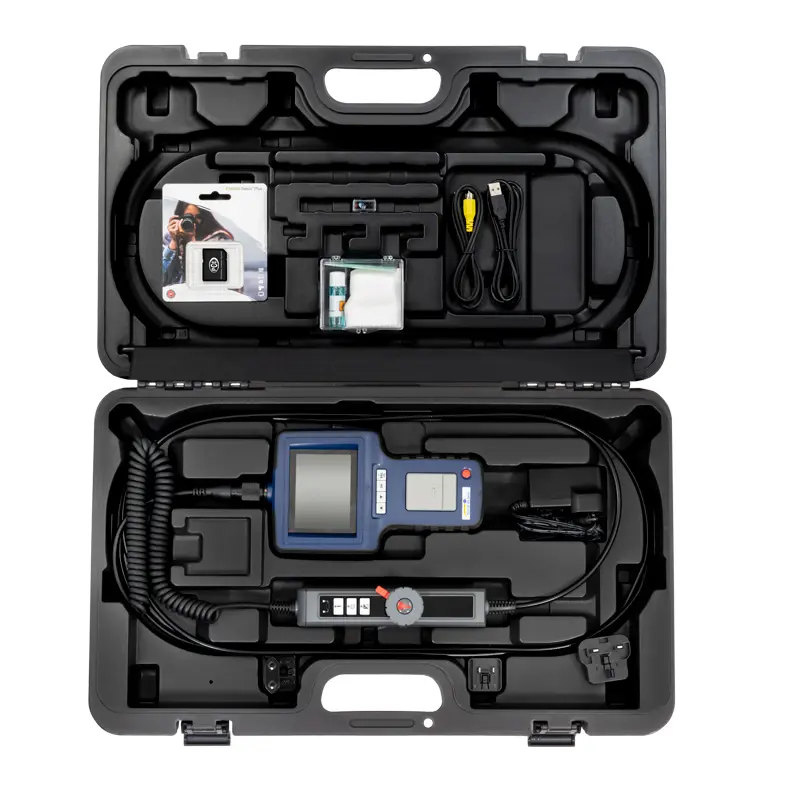

Delivery Scope

1 x Car Measuring Device PCE-VE 350HR
1 x 8GB SD memory card
1 x USB cable
1 x Mains power adapter
1 x Carrying case
1 x  User manual



Please note: Not to be used for medical applications!
