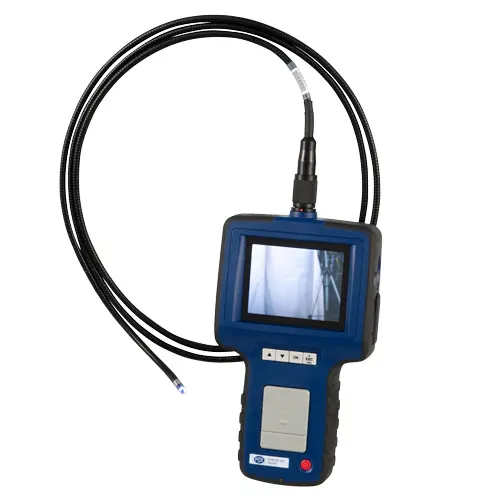

The Fiberscope is the ideal tool for professional, technical, maintenance and development. The Fiberoscope also allows you to visualize the interior of installations and machinery without the need to disassemble them, to take pictures and video clips of the parts to check and to in the Fiberscope and then transfer them to your PC.
This Fiberscope is the ideal instrument for the maintenance and conservation in industrial businesses and workshops. It has never been so simple and inexpensive to make optical analyses documented with a Fiberoscope. It also has a very small cable diameter of 3.9 mm / 0.16 in. This allows the Fiberscope to penetrate up into very small pieces, and this with a cable length of 1 m / 3.3 ft. The cable has markings with which you can detect how much cable has penetrated, for example, in a tube. The handling is very simple. Direct the flexible cable through a hole or cavity near the place you want to see and examine everything on the screen.
You can take photos for documentation, which are stored in the internal memory of the Fiberscope. You can then transfer the images to the computer and analyze them there safely. This allows you to take preventive measures without having to make costly disassembly. Especially the documentation produced as an image or video allows an examination before and after. In reconstructions or repairs, you can compare the initial state with the final state.
Cable diameter |
3.9 mm / 0.16 in |
Cable length |
1 m / 3.28 ft |
Depth of field |
1.5 … 10 cm / 0.59 ... 3.94 in |
Field of view |
67° |
Bending radius | 90 mm / 3.54 in |
Illumination | 3 LEDs, automatic |
Image sensor | CMOS |
Picture rate | 30 frames per second (fps) |
Display |
88.9 mm / 3.5 in TFT LCD monitor |
Interface | Mini USB 1.1 / AV out |
Storage options | Image or video |
Storage | 8 GB memory card (can be increased to 32 GB) |
Compression format | MPEG 4 |
Picture format | JPEG (640 x 480 pixel resolution) |
Video output format | NTSC / PAL |
Video format | ASF (320 x 240) |
Operation and storage temperature | -10 ... 60°C / 14 ... 140°F |
Voltage supply | Rechargeable 3.7V lithium-ion battery |
Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |
Weight, incl. carrying case | 450 g / 1 lb |
Protection type, camera | IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft |
|
|
