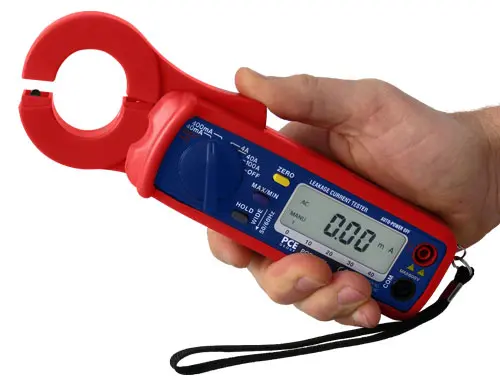

Clamp Meter PCE-LCT 1

Order no.: PCE-LCT 1

GTIN (EAN): 4250348707178

Description

Digital Clamp Meter to test leakage current / RMS measurement /

Continuity and resistance test / Measures voltage up to 600 V

With the Clamp Meter it is possible to measure leakage currents up to a range of 100 A. The Clamp Meter can measure leakage currents which appear when current flows through electrical conductors which are not designed for conduction current. The Clamp Meter can detect leakage currents and show them on the display. With the help of the Clamp Meter you can detect insulation failures in places where machines cannot be disconnected, however insulation must be checked, as for instance according to the VDE 701/702 standard. The Clamp Meter measures current flow, voltage up to 600 V, resistance and continuity. The Clamp Meter is the ideal instrument for electricians according to the VDE standard. The Clamp Meter has a compact design which allows to be placed in any pocket. The rubber protection protects the instrument against falls, so it is the ideal instrument to be used in electrical inspections and in workshops.

Highlights

- Measures leakage current
- Measures current up to 100 A
- Measures voltage up to 600 V
- Continuity test
- Measures resistance up to 400 Ω
- Digital bar graph
- High resolution
- Max./min. values are viewed on the display
- Rubber protector
- Test cables are included

Specification

Leakage current and current (AC A)
Measurement ranges	Resolution	Accuracy
50 / 60 Hz	400 Hz ... 1 kHz
40-mA	10 µA	± (1% + 0.5-mA)	± (4.5% + 0.5-mA)
400-mA	100 µA	± (3% + 5-mA)	± (3% + 5-mA)
4 A	1-mA	± (4% + 0.1-mA)	± (4% + 0.1 A)
40 A	10-mA	± (4% + 1 A)	± (4% + 1 A)
80 A	10-mA	± (2.5% + 1 A)	± (3% + 1 A)
80 A - 100 A	100-mA	± (5% + 1 A)	± (5% + 1 A)
Voltage (AC V)
Measurement ranges	Resolution	Accuracy
50 / 60 Hz	400 Hz ... 1 kHz
400 V	1 V	± (1.5 % + 2 digits)	± (2 % + 4 digits)
Resistance
Measurement ranges	Resolution
Accuracy	Alarm
400 Ω	0.1 Ω	± (1% + 2 digits)	Measurement value <38Ω
General Technical Specifications
Display		3 3/4
Measured electrical properties		AC V, AC A, resistance
Security standards		CAT III 300 V / CAT II 600 V
Diameter of the clip		30 mm
Input impedance		10 MΩ
Registration rate		2 Hz (numerical values), 20 Hz (bar graph)
Operating temperature		-10 ... 50ºC / 14 ... 122ºF
Operating humidity		<85% H.r.
Storing temperature		-20 ... 60ºC / -4 ... 140ºF
Auto shut-off		After 30 minutes
Power		9 V battery
Input current		10-mA
Weight		200 g / < 1 lb
Dimensions		210 x 62 x 35.6 mm / 8.2 x 2.4 x 1.4 in
