PCE-PA 8000 Power Analyser
Real-time current, voltage and power consumption measurement / Built-in data recorder with adjustable rate / Includes current clamps, alligator clips, test leads, SD card memory and 2-year warranty against manufacturer defects

PCE-PA 8000 is a portable handheld Clamp on Tester used for the testing and inspection of 3-phase / 4-wire, 3-phase / 3-wire, 1-phase / 2-wire and 1-phase / 3-wire electrical circuits. This handy power quality analyzer not only measures multiple electrical properties in real time, but also saves the measurement data in .xls format to the included SD card memory for quick and easy data transfer and analysis using Microsoft Excel.

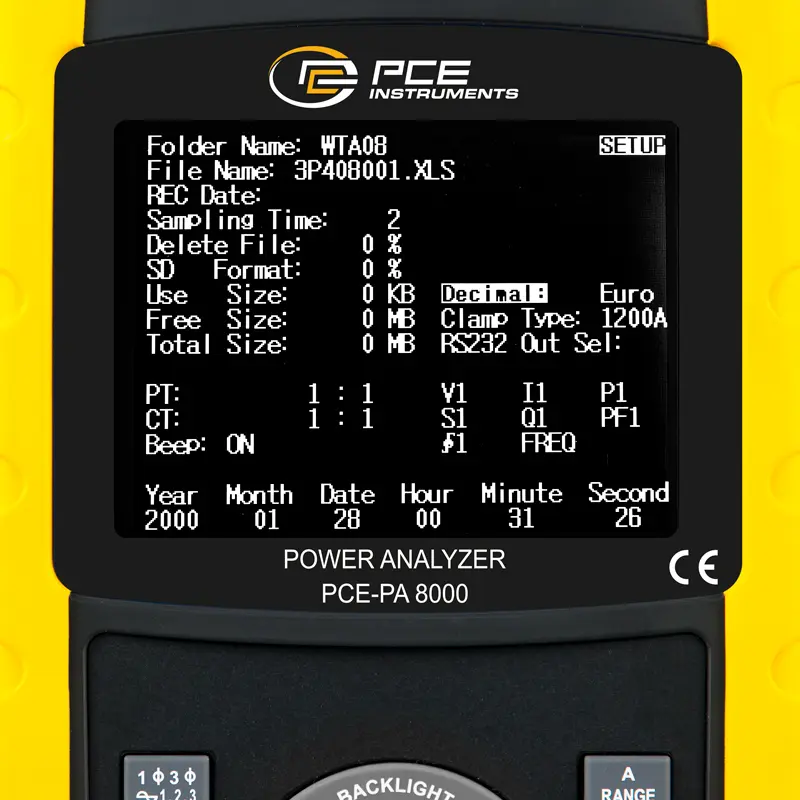

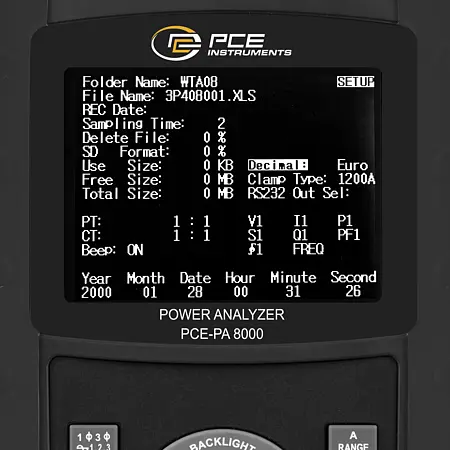

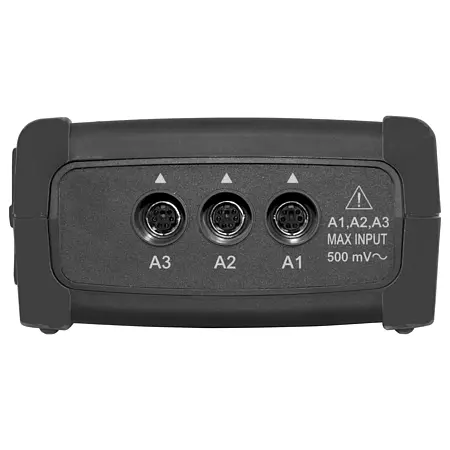

The PCE-PA 8000 Clamp on Tester provides true RMS measurements of current and voltage. The Clamp on Tester also determines power factor (PF), phase angle (Φ), active power, apparent power and reactive power. The three current clamps included with the Clamp on Tester can be used on wires and cables with a diameter of 2.0" / 50 mm, allowing for use with the power grid. Also included in the delivery contents are four alligator clips, four test leads and an SD card. For real-time current, voltage and power consumption measurements at a glance, the PCE-PA 8000 features an easy-to-read 3.7" / 94 mm (320 x 240 pixel) LCD screen with backlight.

Highlights

- True RMS measurement for ACA, ACV
- True power: W, KW, MW
- VA, KVA, MVA, VAR, KVAR, MVAR
- PF (power factor), phase angle (Φ)
- KWH, KVAH, KVARH, PFH
- Voltage measurement range: 10 ... 600 ACV
- Current measurement range: 0.2 ... 1200 ACA
- Real-time current, voltage and power consumption measurement
- Built-in data recorder with adjustable rate: 2 ... 7,200 sec.
- Saves date- and time-stamped measurement data sets
- Complies with IEC 1010 and CAT III 600 V safety standards
- Includes current clamps, alligator clips, test leads, SD card memory and 2-year warranty against manufacturer defects
- incl. ISO Calibration Certificate
- USB data cable with software and spare AC power adapter sold separately - see accessories for details

Specification

Voltage (ACV)
Measurement range	Resolution	Accuracy
10 V ... 600 V (phase to neutral)	0.1 V	±(0.5 % + 0.5 V)
10 V ... 600 V (phase to neutral)
Current (ACA)
Measurement range	Resolution	Accuracy
20 A	0.001 A (< 10 A) 0.01 A (≥ 10 A)	±(0.5 % + 0.1 V)
200 A	0.01 A (< 100 A) 0.1 A (≥ 100 A)	±(0.5 % + 0.5 A)
1200 A	0.1 A (< 1000 A) 1 A (≥ 1000 A)	±(0.5 A + 5 A)
Active power
Measurement range	Resolution	Accuracy
0 KW ... 9.999 KW	0.001 KW	±(1 % + 0.008 KW)
10 KW ... 99.99 KW	0.01 KW	±(1 % + 0.008 KW)
100 KW ... 999.9 KW	0.1 KW	±(1 % + 0.8 KW)
1 MW ... 9.999 MW	0.001 MW	±(1 % + 0.008 MW)
Apparent power
Measurement range	Resolution	Accuracy
0 KVA ... 9.999 KVA	0.001 KVA	±(1 % + 0.008 KVA)
10 KVA ... 99.99 KVA	0.01 KVA	±(1 % + 0.08 KVA)
100 KVA ... 999.9 KVA	0.1 KVA	±(1 % + 0.8 KVA)
1 MVA ... 9.999 MVA	0.001 MVA	±(1 % + 0.008 MVA)
Reactive power
Measurement range	Resolution	Accuracy
0 KVAR ... 9.999 KVAR	0.001 KVAR	±(1 % + 0.008 KVAR)
10 KVAR ... 99.99 KVAR	0.01 KVAR	±(1 % + 0.08 KVAR)
100 KVAR ... 999.9 KVAR	0.1 KVAR	±(1 % + 0.8 KVAR)
1 MVAR ... 9.999 MVAR	0.001 MVAR	±(1 % + 0.008 MVAR)
Active energy
Measurement range	Resolution	Accuracy
0 KWh ... 9.999 KWh	0.001 KWh	±(1 % + 0.008 KWh)
10 KWh ... 99.99 KWh	0.01 KWh	±(1 % + 0.08 KWh)
100 KWh ... 999.9 KWh	0.1 KWh	±(1 % + 0.8 KWh)
1 MWh... 9.999 MWh	0.001 MWh	±(1 % + 0.008 MWh)
Apparent energy
Measurement range	Resolution	Accuracy
0 KVAh ... 9.999 KVAh	0.001 KVAh	±(2 % + 0.008 KVAh)
10 KVAh ... 99.99 KVAh	0.01 KVAh	±(2 % + 0.08 KVAh)
100 KVAh ... 999.9 KVAh	0.1 KVAh	±(2 % + 0.8 KVAh)
1 MVAh... 9.999 MVAh	0.001 MVAh	±(2 % + 0.008 MVAh)
Reactive energy
Measurement range	Resolution	Accuracy
0 KVARh ... 9.999 KVARh	0.001 KVARh	±(2 % + 0.008 KVARh)
10 KVARh ... 99.99 KVARh	0.01 KVARh	±(2 % + 0.08 KVARh)
100 KVARh ... 999.9 KVARh	0.1 KVARh	±(2 % + 0.8 KVARh)
1 MVARh... 9.999 MVARh	0.001 MVARh	±(2 % + 0.008 MVARh)
Power factor
Measurement range	Resolution	Accuracy
0 ... 1	0.01	±0.04
Phase angle
Measurement range	Resolution	Accuracy
-180º ... 180º	0.1º	±1º
Frequency
Measurement range	Resolution	Accuracy
45 Hz ... 65 Hz	0.1 Hz	0.1 Hz
General specifications
Display	3.7" / 94.0 mm LCD (320 x 240 pixel) with backlight
Electrical properties	ACV, ACA, active power, apparent power, power factor, phase angle, mains frequency
Voltage range	10 ... 600 ACV, automatic range selection
Safety standards	Complies with IEC 1010, CAT III 600 V
ACV input resistance	10 MΩ
Operation frequency of current clamps	40 Hz ... 1 kHz
Tested operation frequency of current clamps	45 Hz ... 65 Hz
Overload protection	ACV / 720 V RMS
ACA	1300 A with current clamps
Memory	SD card, up to 16 GB
Real-time display refresh rate	1 second
Data logger	Yes, fully integrated
Data logger sample rate	Adjustable, 2 ... 7,200 seconds
Data output	USB or RS-232, depending on the connection cable
Operating temperature	0º C ... 50º C / 32° F ... 122° F
Operating humidity	< 80 % RH
Power supply	8 x 1.5 V AA batteries / AC power adapter
Input current	Meter: 300 mA DC Clamp: 34 mA DC
Max. diameter	2" / 50 mm
Weight	Meter: 948 g / 2.09 lbs (with batteries) Clamp: 467 g / 1.03 lbs (with cable)
Dimensions	Meter: 225 x 125 x 64 mm / 8.8 x 4.9 x 2.5"
	Clamp: 210 x 64 x 33 mm / 8.2 x 2.5 x 1.2"
	Jaw: 86 mm / 3.3" (exterior)

Delivery Scope

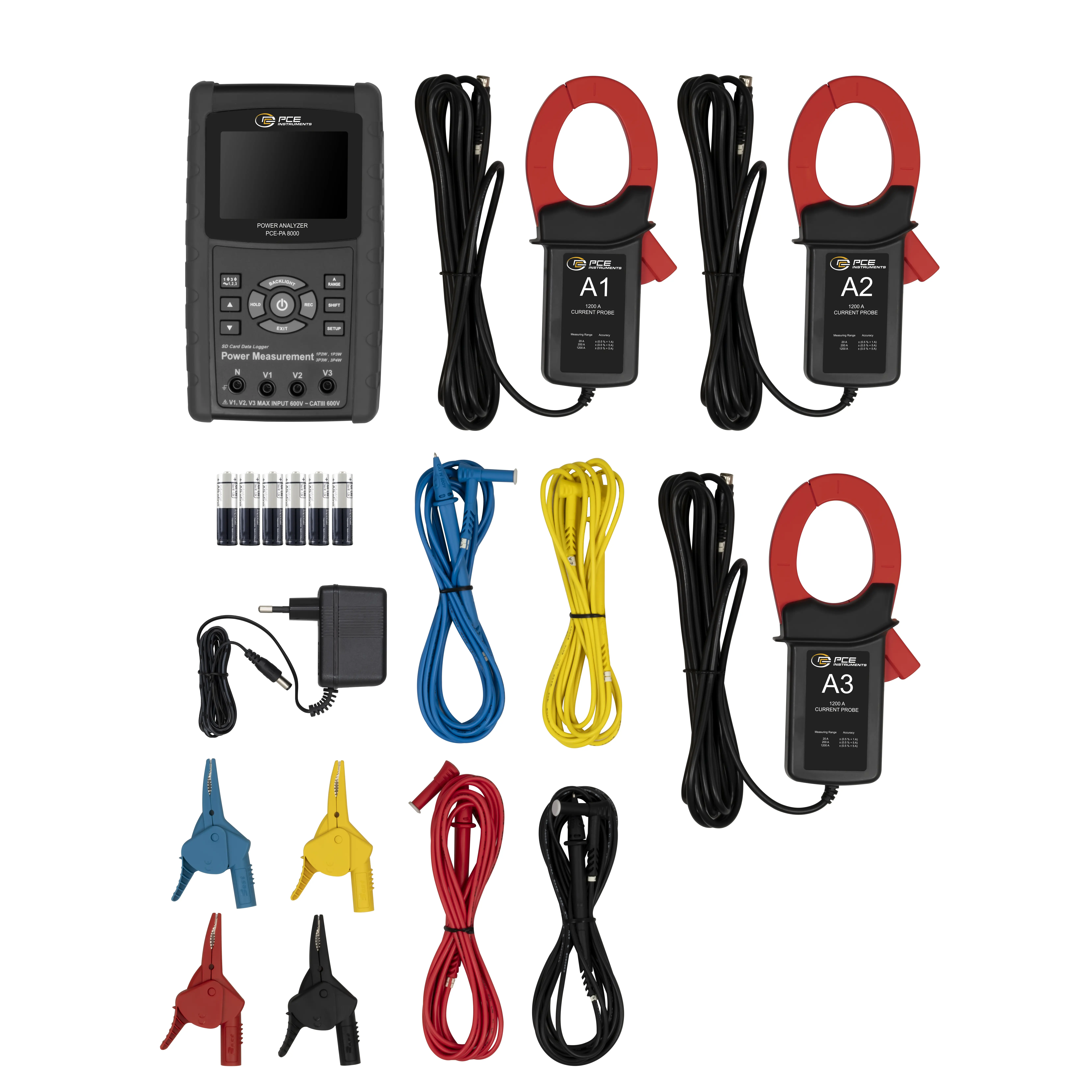

1 x PCE-PA 8000 Clamp on Tester

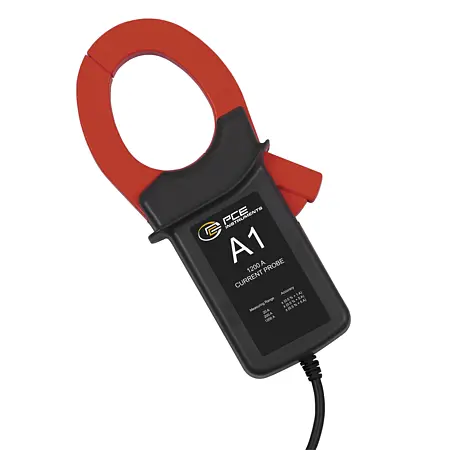

3 x Current clamps
4 x Alligator clips
4 x Test leads
1 x SD card
8 x 1.5 V AA batteries
1 x AC power adapter
1 x User manual
1 x Carrying case

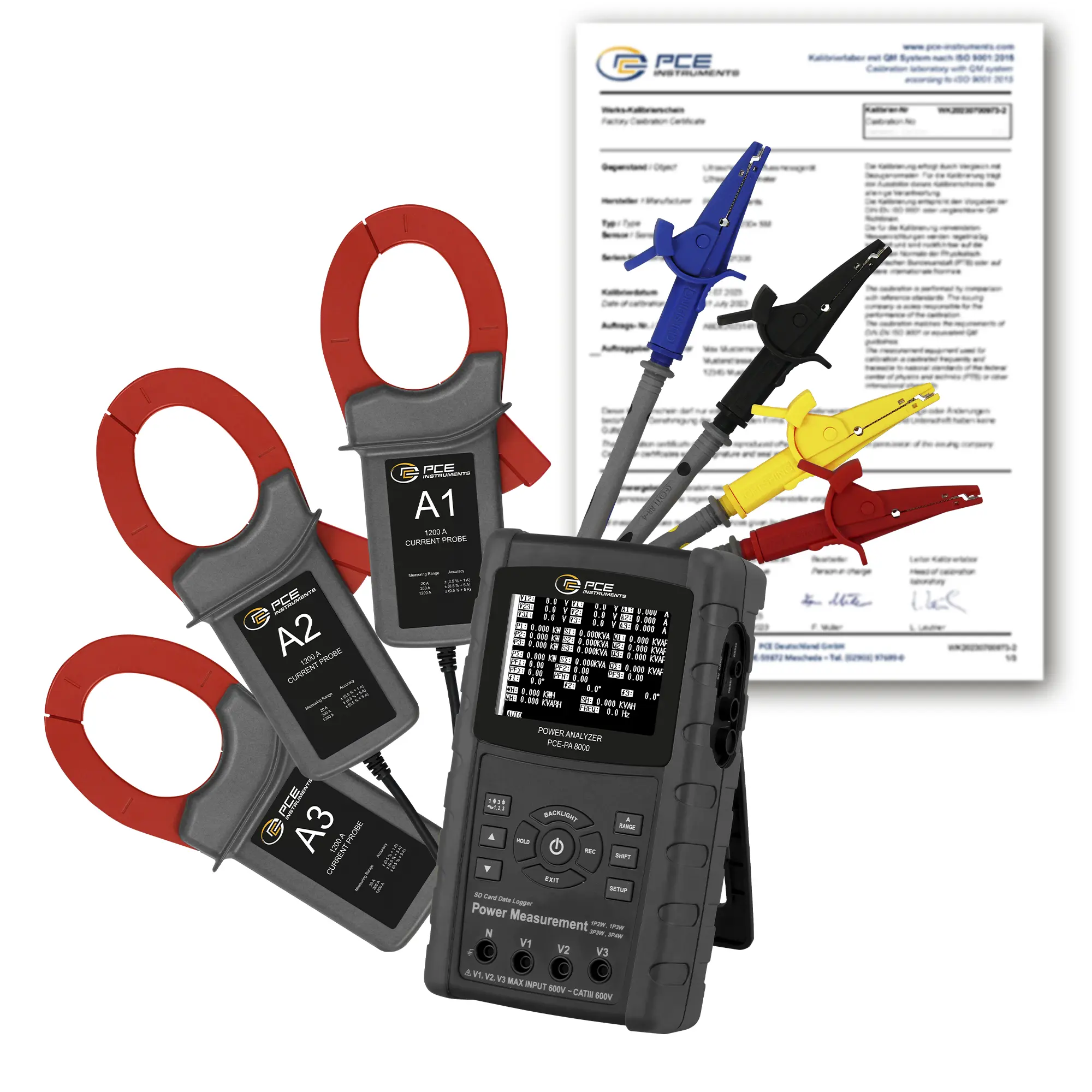

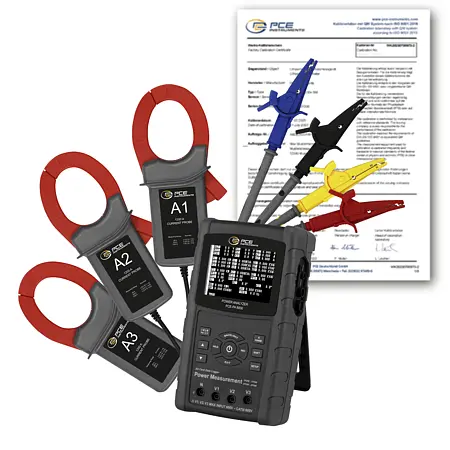

1 x ISO Calibration Certificate

Calibration certificates are issued specifically for the customer and are excluded from the right of return.
