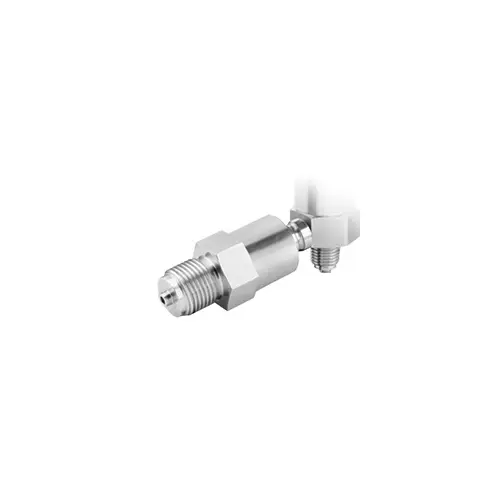

Single Pressure Sensor PCE-DMM 60-SENS

Order no.: PCE-DMM 60-SENS

GTIN (EAN):

US$ 50.00

Price

ex. VAT, ex. delivery costs

Order no.

PCE-DMM 60-SENS

Pressure Type

Measuring range (0.10 ... 0.25 bar only relative available)

Sensor Version

Accuracy (Pressure ranges noted)

Connection thread

Question / Callback

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

The pressure sensor and the pressure transmitter can be purchased without a display. This is always an advantage if the pressure to be checked sporadically. Thus, the sensor can remain permanently installed in the system and the display can be taken from measurement point to measurement point with the test engineer.

Specification

Nominal pressure relative in Bar	0.1	0.16	0.25	0.40	0.60	1		1.6	2.5	4	6
Nominal pressure absolute in bar				0.40	0.60	1		1.6	2.5	4	6
Overpressure in bar	0.5	1	1	2	5	5		10	10	20	40
Burst pressure in bar	1.5	1.5	1.5	3	7.9	7.5		15	15	25	50

Nominal pressure relative / absolute in bar	10	16	25	40	60	100		160	250	400
Overpressure in bar	40	80	80	108	210	210		600	1050	1050
Burst pressure in bar	50	120	120	210	420	420		1000	1250	1250

Negative pressure	-1 ... 0 bar; Overload: 5 bar; Burst pressure: 7.5 bar
Vacuum resistance	P ≥ 1 bar: unlimited
General Specifications
Accuracy							≥ 0.4 Bar: ≤ ± 0.05 % FSO < 0.4 Bar: ≤ ± 0.125 % FSO
Measuring rate							1/s or 2/s (adjustable)
Long term stability							< ±0.1 % FSO
Media							gas water
Temperature ranges							Fluid: -10 ... 55 °C Operating: -10 ... 55 °C Storage: -20 ... 70 °C
Pressure port / housing							Stainless steel 1.4404
Seal							FKM
Diaphragm							Stainless steel 4.4435
Parts exposed to liquid							Pressure port, seals, diaphragm
Display							Graphic LCD Digit height 5.5 mm (gauge) Reading: max. 7 points, depending on the pressure range Temperature display, time, 100-segment bar graph, Adjustable backlighting
Memory							Storage of pressure units and sensor temperature (min, hrs., daily for a set time) max. 8,500 values modes: cyclical, linear measurement interval adjustable
Power supply							3 x 1.5V Duracell Plus battery, AA
Battery life							1.5 years standby
Protection							IP67
Weight							ca. 680 g / 1.5 lbs

Delivery Scope

1 x Pressure Transmitter PCE-DMM 60-SENS
