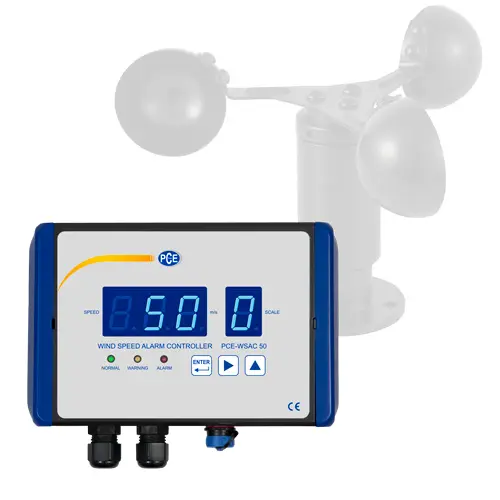

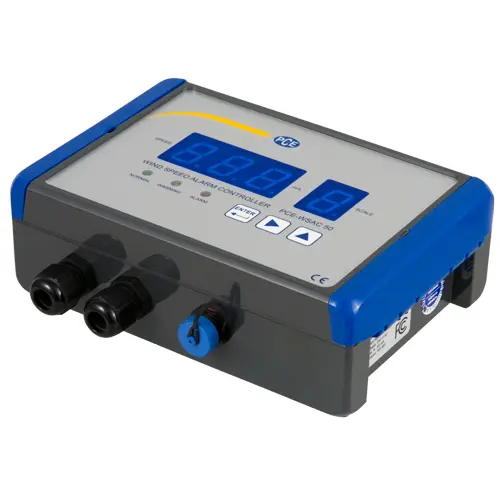

Climate Meter Alarm Controller PCE-WSAC 50
Pre-alarm and full alarm / Optional RS-485 modbus interface / Displays current wind speed and average wind speed of last 2 and 5 minutes
PCE-WSAC 50 is a climate meter alarm controller that displays the current wind speed as well as the average wind speed of the last 2 and 5 minutes. A pre-alarm and full alarm can be activated based on preset values. If wind speeds are higher than the preset values, a pre-alarm is first applied before the full alarm is issued. Both alarms are delivered visually and audibly. If the pre-alarm is triggered, a yellow LED will flash on the front of the unit and a beep will periodically be emitted as a warning tone. If the full alarm is triggered, a red LED will flash on the front of the unit and a beep will continuously be emitted.

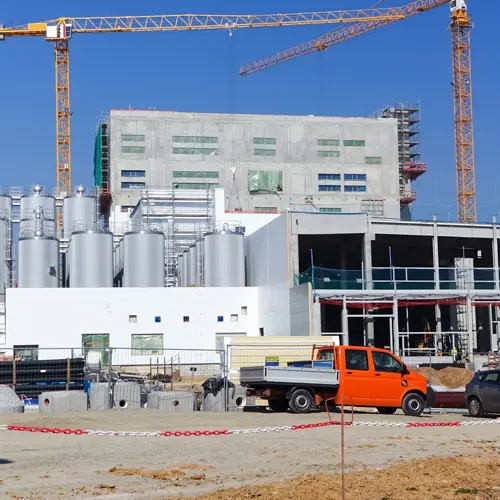

The climate meter alarm controller allows measurement of the slightest of wind movements. This climate meter alarm controller is used for a variety of wind monitoring applications in industries such as construction, mining, renewable energy and manufacturing. If necessary, a relay can also be connected to the controller.
***Sensors sold separately***
| Power supply |
115V AC 230V AC 24V DC |
|
| Supply voltage for sensors (output) |
12V DC 24V DC |
|
| Measuring range | 0 ... 50 m/s or 0 ... 110 mph | |
| Measuring accuracy | ± 3% of measuring range | |
| Signal input (selectable) |
4 ... 20-mA 0 ... 5 / 10V |
|
| Alarm relay |
|
|

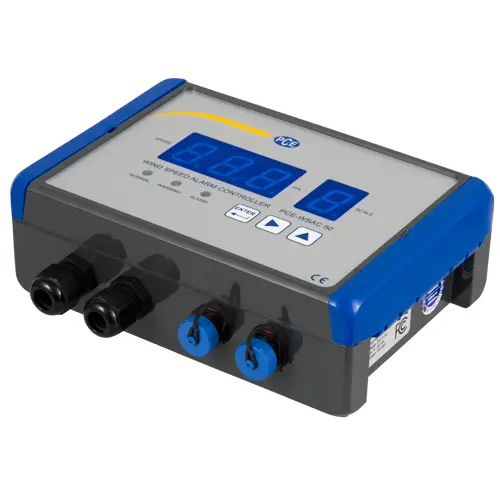

| Optional interface | RS-485 modbus | |
| Operating temperature | -20 ... 60°C / -4 ... 140°F | |
| Dimensions | 197.5 x 90 x 45 mm / 7.7 x 3.5 x 1.7 in | |
| Weight | Approx. 400 g / < 1 lb |
1 x Climate Meter Alarm Controller PCE-WSAC 50
1 x User manual

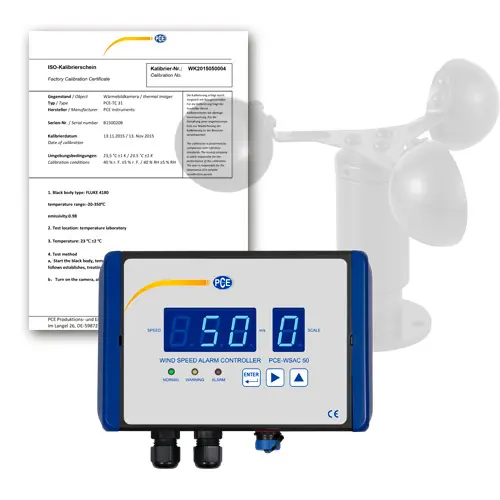

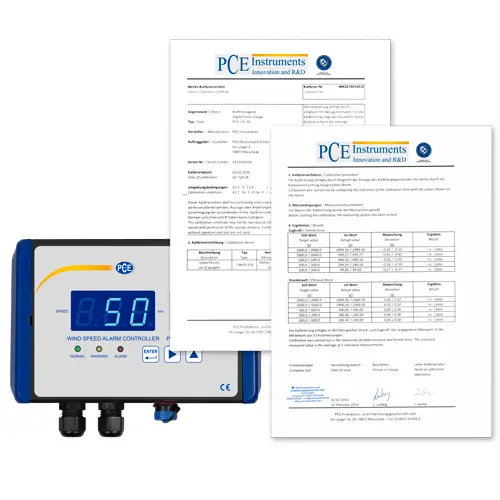

1 x ISO Calibration certificate
***Sensors sold separately***
