- Applicable standards DIN EN 14752:2015, DIN EN 14752:2005 (optional)
- Precise measurements
- Robust design
- Ease of use - One button operation or remote control via - Microsoft® DLL
   Interface or National Instruments® LabView library
- Professional PC software PinchPilot
- Spacers for all opening widths according to EN 14752:2015
- Automatic limit value setting by distance detection
- Complete scope of delivery of all components in a high-quality transport case
- Support for the management of large fleets

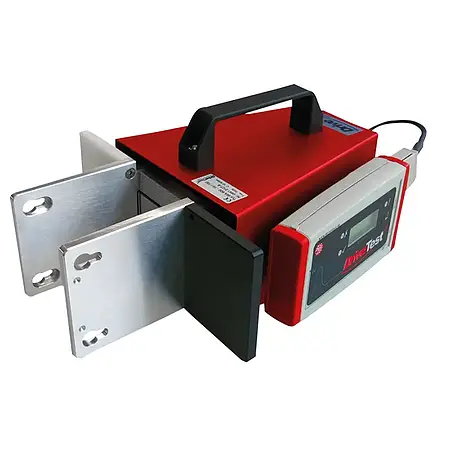

BIA600
Application of force	on both sides
Measuring range	0 ... 700 N
Accuracy	+/– 3 N (0–100 N)
	+/– 3 % (>100 N)
Spring rate	10 N/mm
Opening width	90 mm / 3.5"
Area	100 x 100 mm / 3.9 x 3.9"
Force sensor	DMS bridge
Dimensions	320 x 250 x 110 mm / 12.5 x 9.8 x 4.3"
Weight	3.0kg / 6.6 lb
Display device SEB2
- Data logger unit with LCD display and LED status indicators, control button, serial    interface
- Optional PC-controlled measurement
- 9 V battery supply
- Real time clock
- Memory for 100 measurements
- Sensor and PC interface
- Peak display
- Rating display i. O./n. i. O.

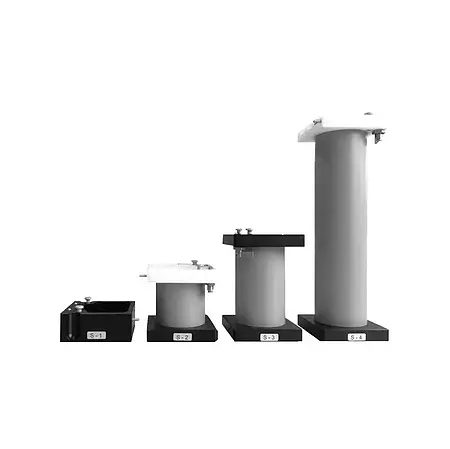

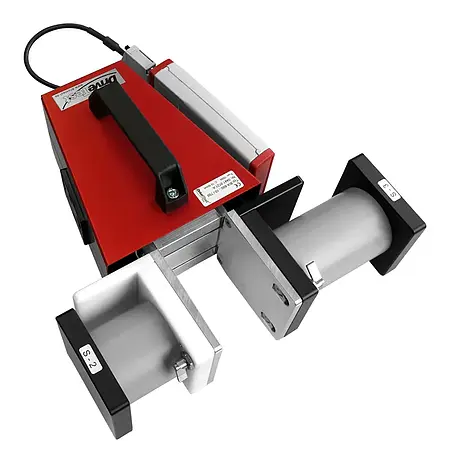

Spacers
- Complete set for all opening widths according to EN 14752:2015
- Automatic detection of the spacers used
- Automatic limit value adjustment according to opening width
- Easy to use, quick assembly without tools
- Robust design, low weight, POM
- Together with BIA 600 sensor, SEB2 in a carrying case
PC evaluation software PinchPilot
- Multilingual (DE, EN, IT, FR, ES)
- Graphic representation of the force curve
- Calculation of the standard-relevant characteristic values
- Evaluation according to different guidelines possible
- Custom policy adjustable
- Log printout
- Data export (Excel, CSV, PDF)
- Optional measuring point identification
- System requirements software PinchPilot (see tab Software/App)

1 x Closing force measuring device BIA600 incl. connection cable
1 x Indicator SEB2 data logger unit with LCD display and LED status indicators, control button, serial
       interface
1 x 9V battery
1 x Spacer (4 pieces) according to EN 14752:2015

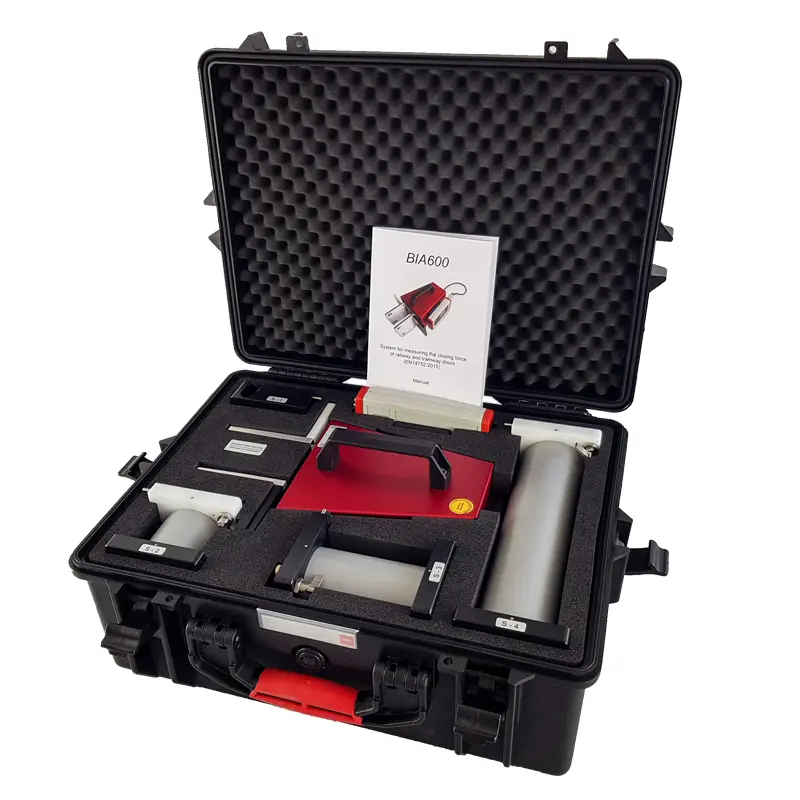

1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x PinchPilot PC software, suitable for Windows XP, Vista, W7, W8, W10
1 x User Manual

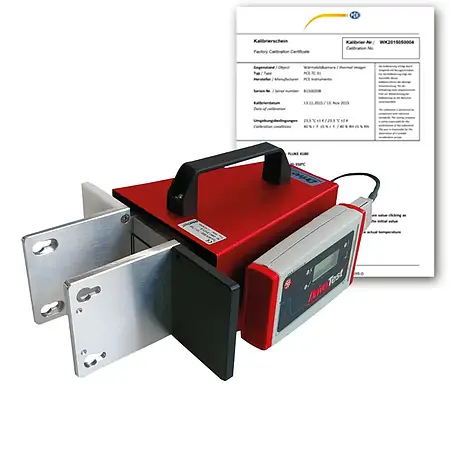

1 x ISO calibration certificate

- PC/Laptop Windows 7 or higher
- USB serial port or Bluetooth interface
- Measuring device
- for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202,
    FM 205, FM 206, FM 207, FM 208, FM 300

PC software PinchPilot
Our "PinchPilot" software is used to evaluate the data obtained during closing force measurements. No additional software is required for daily work.

Data export
PinchPilot provides all the functions required for routine measurements. Should the data nevertheless be processed further in another room, there are various types of export to choose from:

Text export: measured values as a series of numbers; can be imported e.g. into Microsoft Excel
Image export: log or single diagram in EMF format; can be imported, e.g. into Microsoft Word Measurement data can be exported as ppdx (XML format) and imported with our other software tools for further processing
SQL database: A customer-specific SQL interface can be implemented on request
National Instruments DataPlugin (for import into Diadem or LabView)

Evaluation according to PinchPilot guidelines

Result documentation

The following standards and guidelines can currently be evaluated:
EN 81-1 2000-4-EG
FMVSS118
APTA PR-M-S-18-10
ASME A17.1 2000
EN 14752:2005
EN 14752:2015
2001-85-EG / ECE R. 107 §35 e Abs.5 StVZO
EN14120 DIN 18650-1
EN 12453
EN 16005
EN 60335-2-103
ASR A1.7
ECE R-21
prEN 12650-1
