Closing Force Measuring Device FM202 sliding roofs,window lifters,doors,steps

Order no.: FM202-UN-SY-10-600

GTIN (EAN): 4260650210396

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

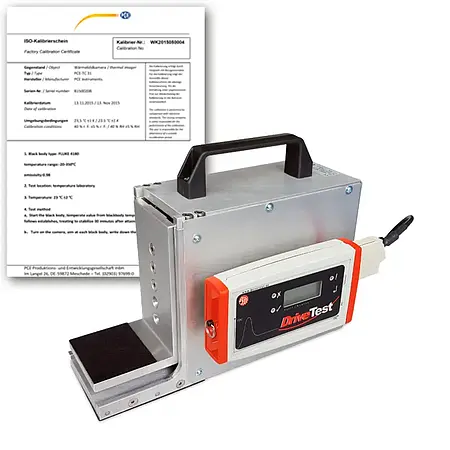

Closing force measuring device
Closing force measuring system for sliding roofs, window lifters, doors and sliding step measurement

The closing force measuring device is an electronic measuring device for power-operated windows, sliding roofs and doors in the automotive sector and for sliding steps in the rail vehicle sector. It allows measurements up to 600 N with a spring stiffness of 10 N/mm. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

For measurement set-ups in testing and production, quick and easy execution is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement procedure and the effort required for documentation. With just a few operating steps, the measurements can be loaded into a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test sequence.

Highlights

- Applicable standards - 2000/4/EC or user-defined
- Precise measurement results - ensured by frictionless guide and platform load cell
- Robust design - housing made of high-strength aluminium and stainless steel for long service life in
heavy use
- Easy to use - operation with a single control button or remotely via Microsoft® DLL
- interface or National Instruments® LabView library
- Professional, comprehensive PC software - PinchPilot leaves nothing to be desired
- Wide measuring range - max. 600 N at 10 N/mm spring stiffness over the entire measuring range
- Excess force - applicable for excess force measurement
- Complete scope of delivery - all components in high-quality carrying case

Specification

FM202
Application of force	on one side
Measuring range	0 ... 600 N
Accuracy	+/– 3 N (0–100 N) +/– 3 % (>100 N)
Spring rate	10 N/mm
Gap width	40 mm / 1.5" minimum
Area	80 x 80 mm / 3.1 x 3.1"
Measuring principle	DMS bridge
Dimensions	100 x 300 x 190 mm / 3.9 x 11.8 x 7.4"
Weight	4.2kg / 9.2 lb

Display device SEB2
- Data logger unit with LCD display and LED status indicators, control button, serial interface
- Optional PC-controlled measurement
- 9 V battery supply
- Real time clock
- Memory for 100 measurements
- Sensor and PC interface
- Peak value display and effective power display
- Rating display i. O./n. i. O.

PC evaluation software PinchPilot
- Multilingual (DE, EN, IT, FR, ES)
- Graphic representation of the force curve
- Calculation of important parameters
- Evaluation according to different guidelines (standards)
- Possibility of entering self-defined guidelines
- Log printout
- Data export (Excel, CSV, PDF) - System requirements software PinchPilot (see tab Software/App)

Delivery Scope

1 x Closing Force Measuring Device FM202
1 x Display device SEB2 separate measured value acquisition module with LCD display, LED display, membrane key
and serial interface
1 x 9 V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate

Software / App

Description of software / technical requirements

For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

- PC/Laptop Windows 7 or higher
- USB serial port or Bluetooth interface
- Measuring device
- for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202,
FM 205, FM 206, FM 207, FM 208, FM 300

PC software PinchPilot
Our "PinchPilot" software is used to evaluate the data obtained during closing force measurements. No additional software is required for daily work.

Data export
PinchPilot provides all the functions required for routine measurements. Should the data nevertheless be processed further in another room, there are various types of export to choose from:

Text export: measured values as a series of numbers; can be imported e.g. into Microsoft Excel
Image export: log or single diagram in EMF format; can be imported, e.g. into Microsoft Word Measurement data can be exported as ppdx (XML format) and imported with our other software tools for further processing
SQL database: A customer-specific SQL interface can be implemented on request
National Instruments DataPlugin (for import into Diadem or LabView)

Evaluation according to PinchPilot guidelines

The software evaluates the measurement results according to PinchPilot guidelines. These are created on the basis of applicable regulations (laws, standards, guidelines). They consist of a set of parameters that contain the permissible limit values. The measurement results obtained are evaluated accordingly. The permissible range is highlighted in color in the measurement diagram and allows a quick assessment of the measurement. We keep the PinchPilot guidelines up to date. Calibrations by us include an update of the software and thus also of the PinchPilot guidelines. With regular calibration, the user has the security of always checking according to the latest status. In addition to the assessment according to PinchPilot guidelines, the user has the option of creating their own guidelines.

Result documentation

There are two options for documenting measurements in paper form: The measurement log is detailed graphic documentation for a measurement point. While the measurement report is documentation for several measurement points in tabular form. This allows all measurements on an object (door, wagon, etc.) to be documented.
You can set the user language yourself: German, English, French, Italian and Spanish. Software upgrade costs will apply if no license is available for the downloaded version.

The following standards and guidelines can currently be evaluated:
EN 81-1 2000-4-EG
FMVSS118
APTA PR-M-S-18-10
ASME A17.1 2000
EN 14752:2005
EN 14752:2015
2001-85-EG / ECE R. 107 §35 e Abs.5 StVZO
EN14120 DIN 18650-1
EN 12453
EN 16005
EN 60335-2-103
ASR A1.7
ECE R-21
prEN 12650-1

For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during clamping force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
