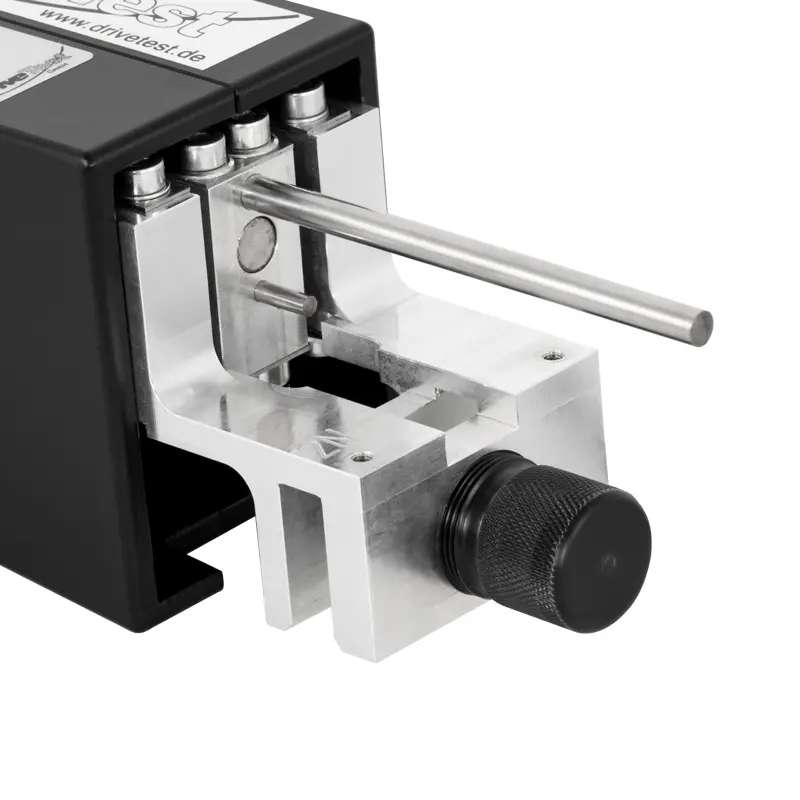

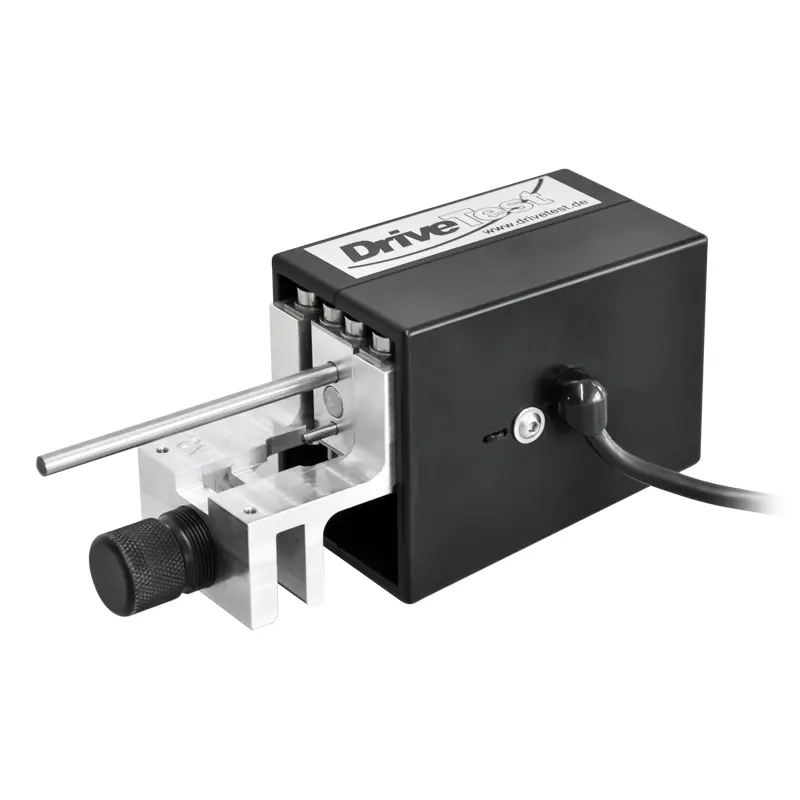

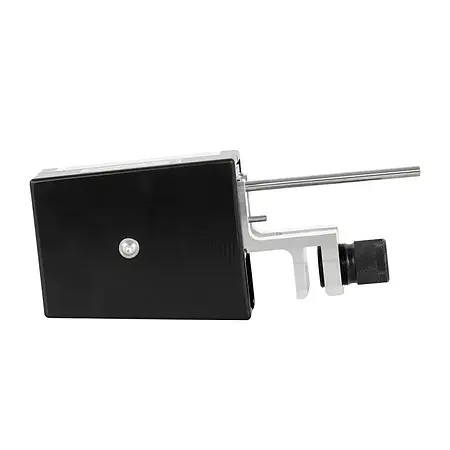

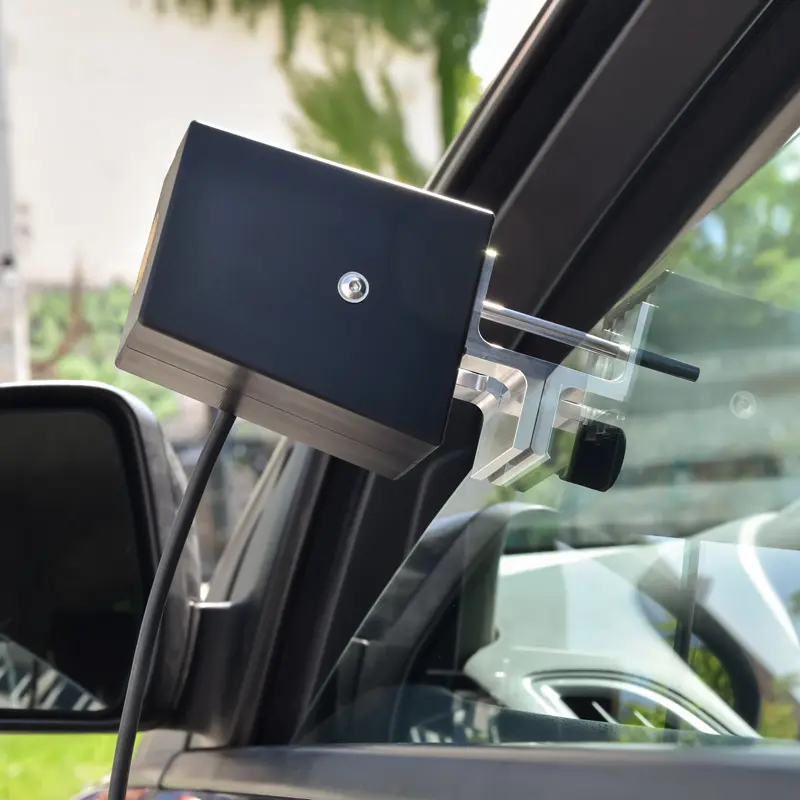

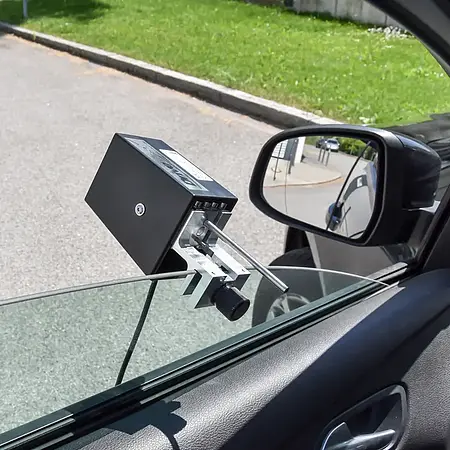

Closing force sensor FM205-WI-SE-02-050 for automatic window regulators

Order no.: FM205-WI-SE-02-050
GTIN (EAN): 4260650210433
US$ 2,473.68
ISO Calibration
ex. VAT, ex. delivery costs
:
4260650210433
FM205-WI-SE-02-050
Available in: min. 4 weeks

Specification

Application of force   on one side
Measuring range 0 ... 50 N
Accuracy +/– 3 N (0–100 N) or
  +/– 3 % (>100 N)
Spring stiffness2 N/mm
Gap width Fmax. 5 mm / 0.2"
Area 5 x 80 mm / 0.2 x 3.1"
Force sensor
Cable length		 strain gauge bridge
1.5 m / 4.9 ft
Dimensions 175 x 75 x 57 mm / 6.8 x 2.9 x 2.2"
Weight ca. 400 g / 14.1 oz

Delivery Scope

1 x Closing force sensor FM205-WI-SE-02-050

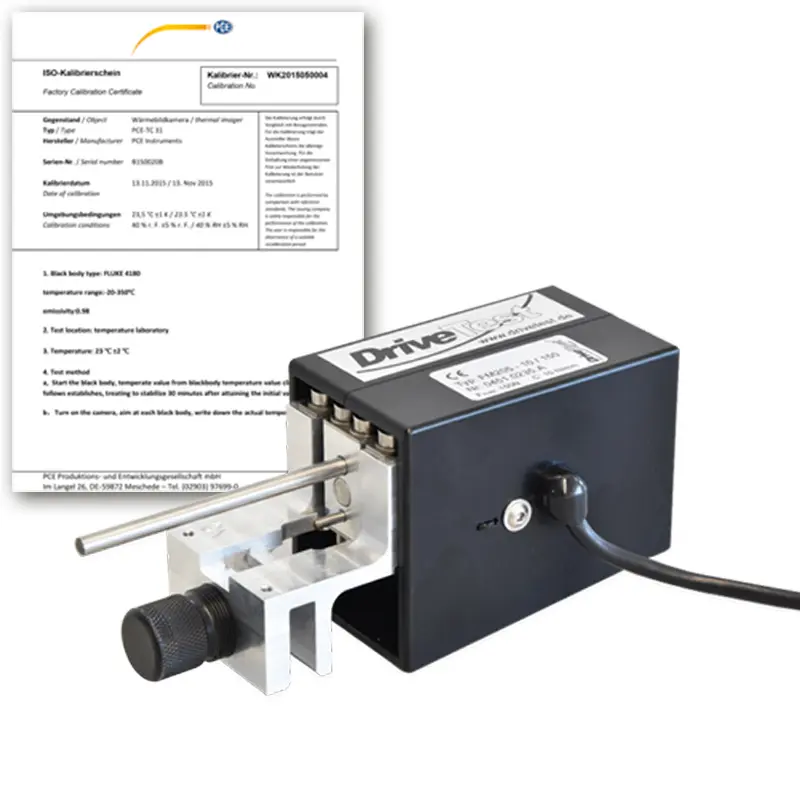

1 x ISO calibration certificate
